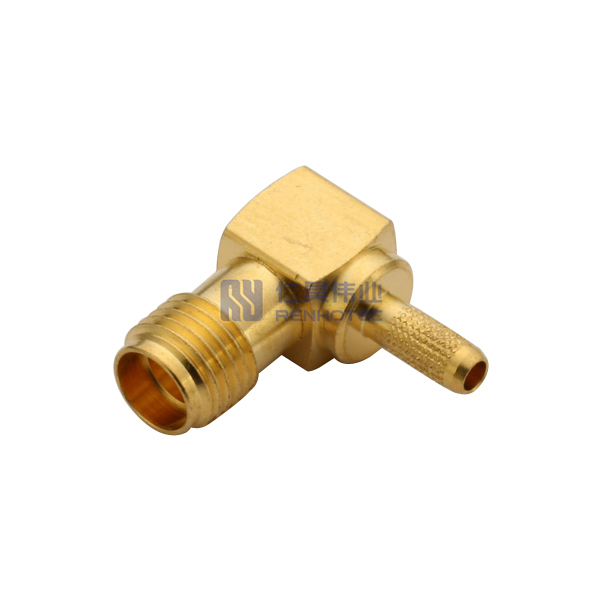

SMA Connector Right Angle Jack Crimp Cable Type RG316 – RHT-612-0200

Designed for safe and reliable connections, SMA connectors with right angle jacks are ideal for telecom and aerospace applications. The connectors can be connected to RG316 cables to ensure high performance and durability for all your connection needs.

The SMA connector is a semi-precision, ultra-compact RF and microwave connector that is widely used, especially for RF connections in electronic systems with frequencies up to 18 GHz and beyond. While SMA connectors are now widely used, their use is likely to expand further as the operating frequencies of many new RF systems extend into the microwave region.

Light weight, compact and antivibration design for harsh environments

Available in brass and stainless steel with gold, nickel and passivated plating

Terminates to all standard flexible coaxial cables,as semi-rigid and conformable cable

Subminiature design:Space-saving vertical mating

Complete Variety

SMA Male

SMA Female

RP-SMA Male

RP-SMA Female

Crimp Type

Crimp with Solder

Solder Typ

Solder Cup

For Antenna

Through Hole

Edge Mount

Offset Type

Flange Type

Bulkhead Type

Product Application

Telecommunications

PC / LAN

Antenna

Instrumentation

GPS

Base Stations

Our Advantages

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series

SMA Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Right Angle

Mounting Type

Cable Mount

Contact Termination Style

Crimp

Shield Termination

Crimp

Fastening Type

1/4-36 Threaded

Impedance

50 ohm

Insulator Material

PTFE

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Contact Material

Phosphor Bronze

Contact Finish

Gold Plated

VSWR

R/A type ?Q 1.5MAX, Straight type?Q1.3 MAX

Frequency Range

DC-6GHz

Center Contact Resistance

6 M? Max

Outer Contact Resistance

?Q 2.0 M?? (Milliohms Max.)

Insultation Resistance

?R 5 x 103 M?? (Megohms MIN.)

Rated Voltage

335 Volts RMS Continuous

Mating Durability

?? 500 Cycles

Temperature Range

-65?? to +165??

RF Series

SMA Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Right Angle

Mounting Type

Cable Mount

Contact Termination Style

Crimp

Shield Termination

Crimp

Fastening Type

1/4-36 Threaded

Impedance

50 ohm

Insulator Material

PTFE

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Contact Material

Phosphor Bronze

Contact Finish

Gold Plated

VSWR

R/A type ?Q 1.5MAX, Straight type?Q1.3 MAX

Frequency Range

DC-6GHz

Center Contact Resistance

6 M? Max

Outer Contact Resistance

?Q 2.0 M?? (Milliohms Max.)

Insultation Resistance

?R 5 x 103 M?? (Megohms MIN.)

Rated Voltage

335 Volts RMS Continuous

Mating Durability

?? 500 Cycles

Temperature Range

-65?? to +165??

RF Series

SMA Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Right Angle

Mounting Type

Cable Mount

Contact Termination Style

Crimp

Shield Termination

Crimp

Fastening Type

1/4-36 Threaded

Impedance

50 ohm

Insulator Material

PTFE

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Contact Material

Phosphor Bronze

Contact Finish

Gold Plated

VSWR

R/A type ?Q 1.5MAX, Straight type?Q1.3 MAX

Frequency Range

DC-6GHz

Center Contact Resistance

6 M? Max

Outer Contact Resistance

?Q 2.0 M?? (Milliohms Max.)

Insultation Resistance

?R 5 x 103 M?? (Megohms MIN.)

Rated Voltage

335 Volts RMS Continuous

Mating Durability

?? 500 Cycles

Temperature Range

-65?? to +165??

SMA male connector is identified by inside 1/4″-36 threads and a 5/16″ hex nut, and SMA female connector is identified by outside 1/4″-36 threads.

SMA Male / Plug Connectors: the center pin (male pin) is surrounded by a barrel with threads on the inside

SMA Female / Jack Connectors: the center sleeve (female pin) is surrounded by a barrel with threads on the outside

RP-SMA Male/Plug Connectors: the center sleeve (female pin) is surrounded by a barrel with threads on the inside

RP-SMA Female / Jack Connectors: the center pin (male pin) is surrounded by a barrel with threads on the outside

SMA Body: Brass or stainless steel

Insulator: Made of PTFE

Center pin: Made of brass, beryllium copper, phosphor bronze

Please feel free to submit your product requirements and we will provide you with the most suitable suggestions.

The frequency of SMA connectors commonly used in the international market is generally 0-6Ghz. We can also customize 0-18Ghz, pls send us the dimension, performance and usage environment requirements, we’ll provide you product solution.

Durability : 500 mating cycles min. Power rating at 1 GHz : 450W. Temperature range : -65°C / +165°C.

Yes, the center pin of an SMA connector can indeed be plated with a thicker layer of material. Plating thickness can be adjusted based on the specific requirements of the application, such as improved conductivity, increased durability, or enhanced corrosion resistance.

It has MOQ requirement, pls send us your product requirement.

Yes, we can customize different thread length to meet specific requirements, pls advise the thread length, our professional engineer team will provide you product solution.
