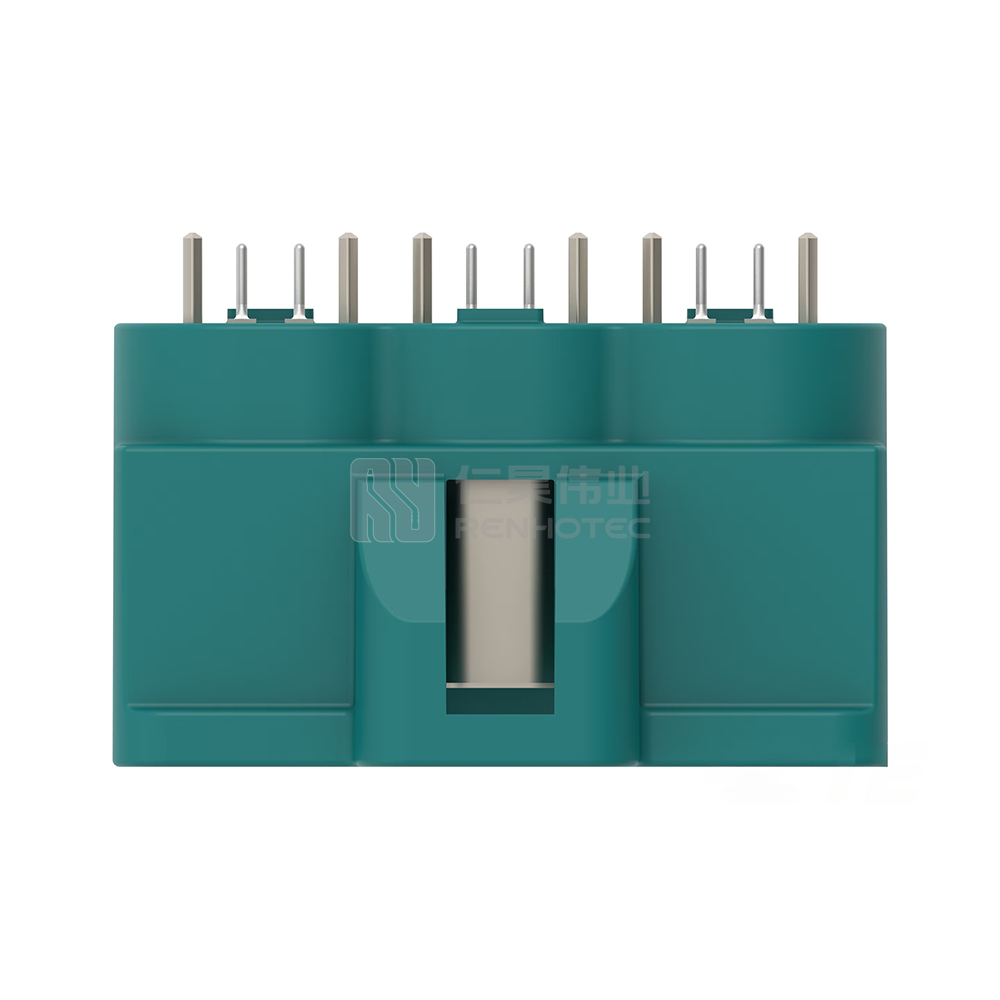

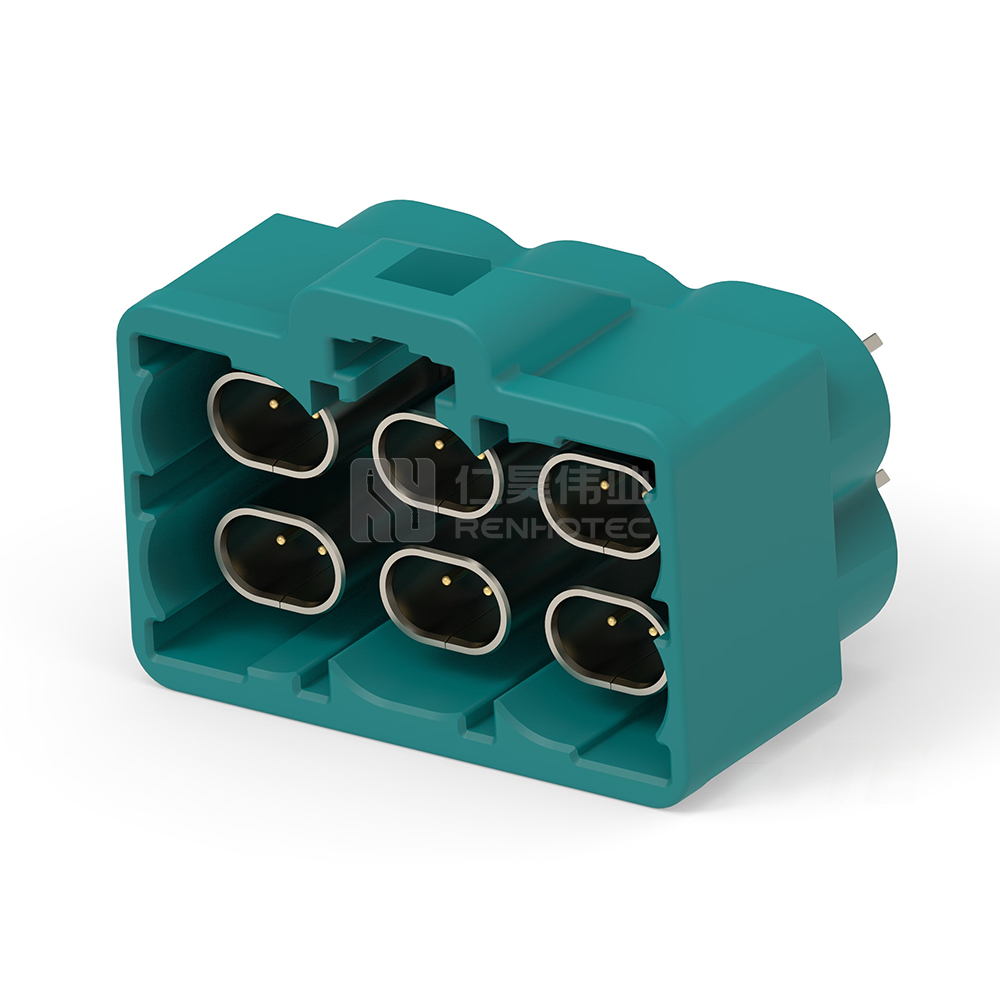

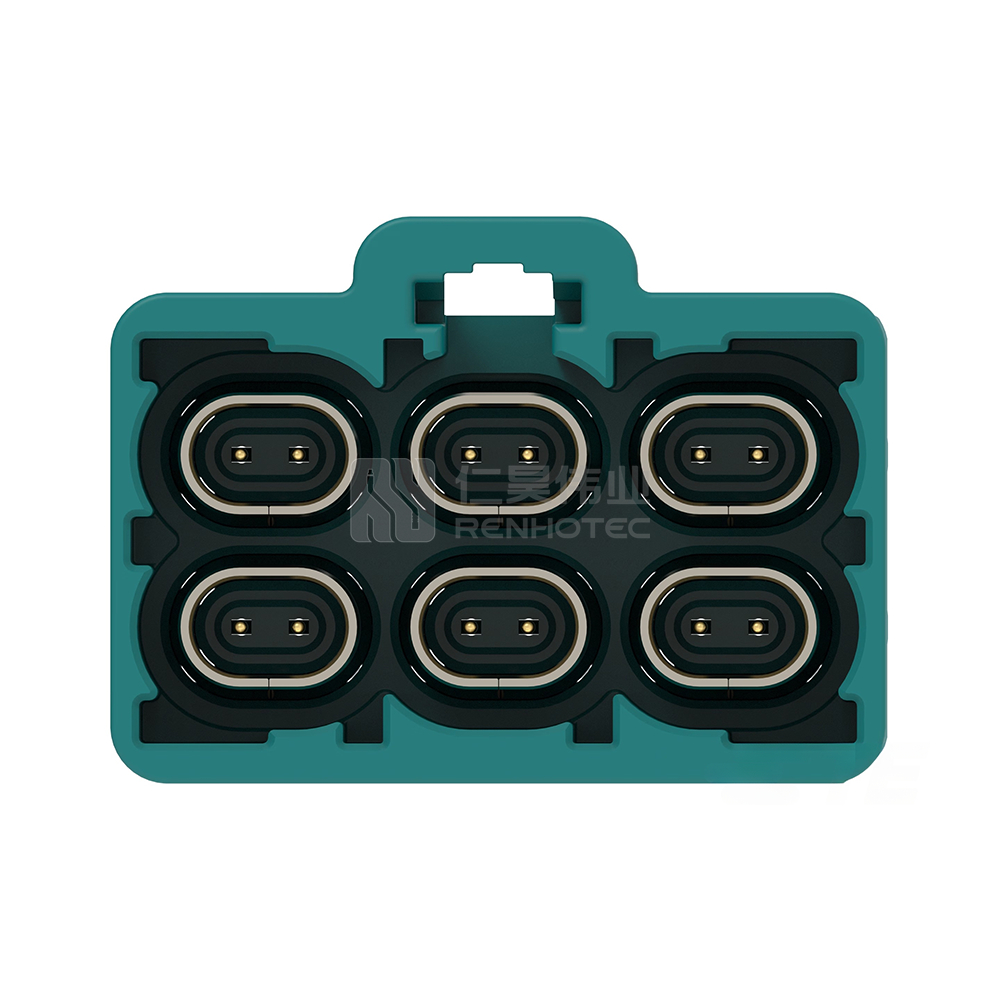

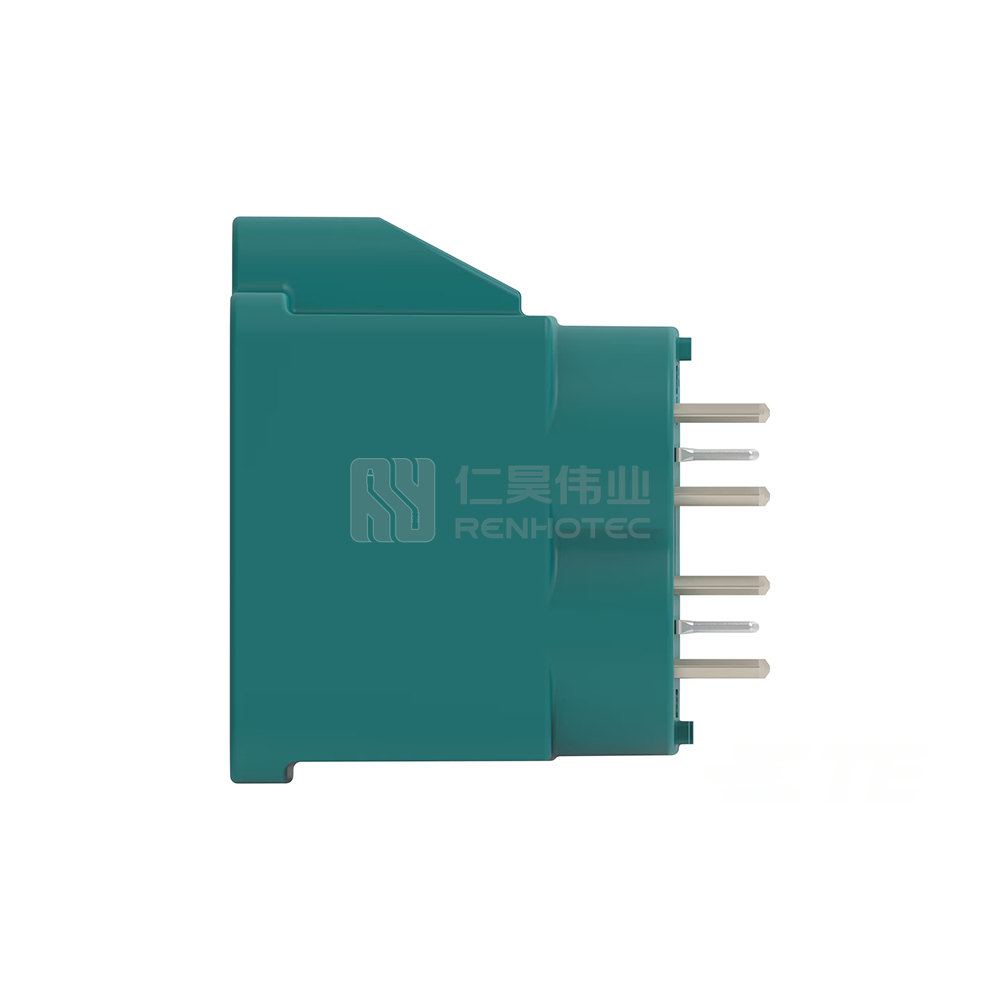

Shielded, Vertical, 12 Position, Board Mount, Z Code, 2 mm Centerline, Data Connectivity Headers

Termination Point

Printed Circuit Board
Sealable

No
Row Count

2
PCB Orientation

Vertical
Position Count

12
Key Code

Z
Contact Plating

Gold (Au)
Pin Diameter

.5 mm [ .02 in ]
Max Current A

2
PCB Termination

Through Hole – Solder
Mount Type

Board Mount
Housing Color

Water Blue
Pitch

2 mm [ .078 in ]
Shielded

Yes
