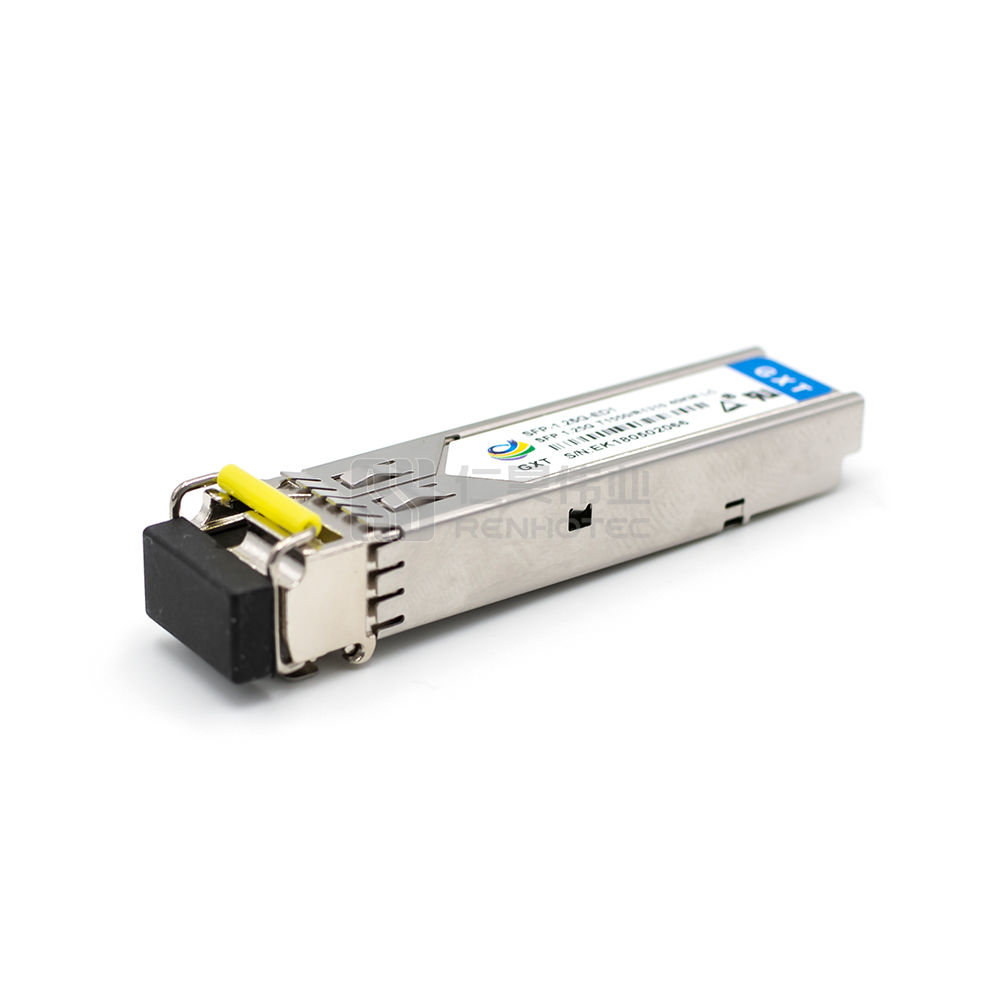

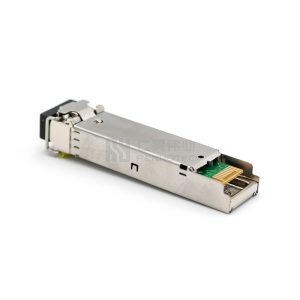

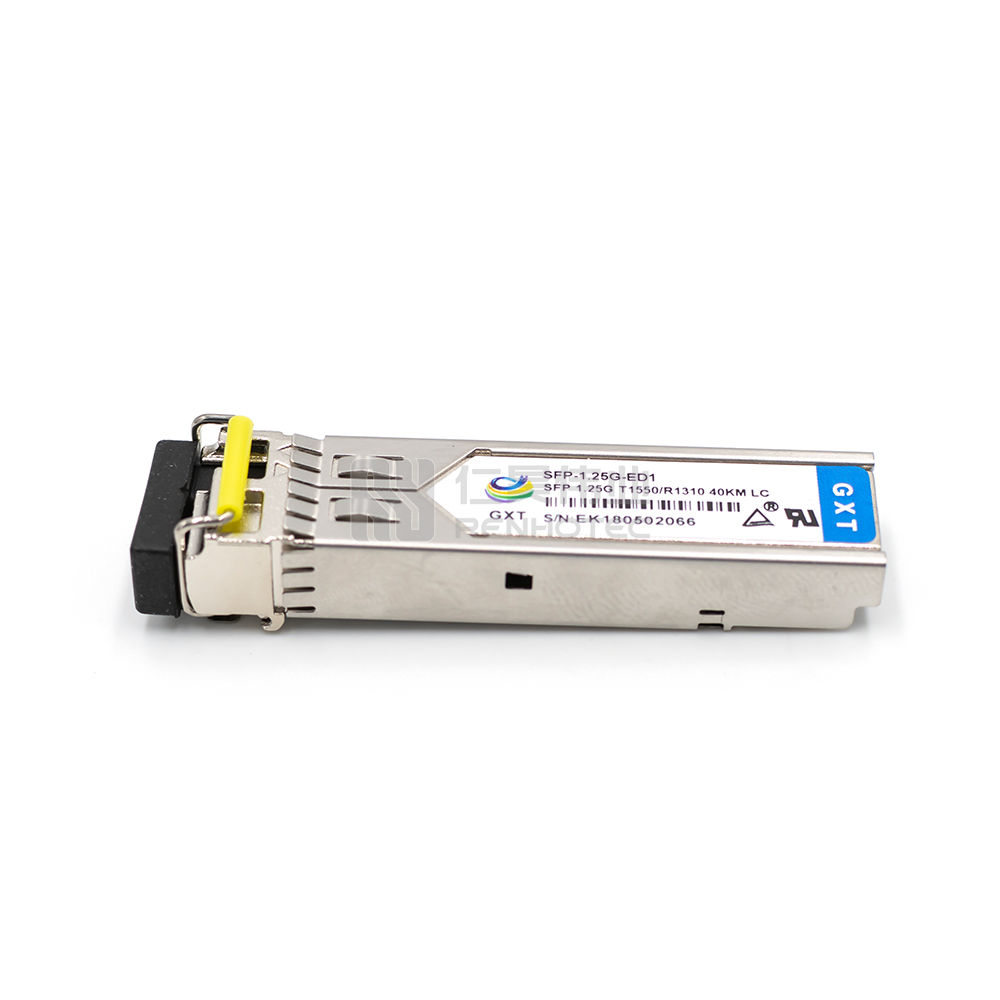

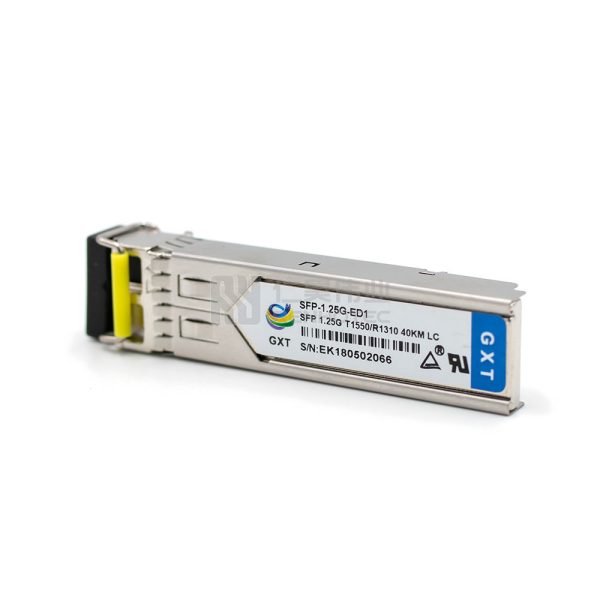

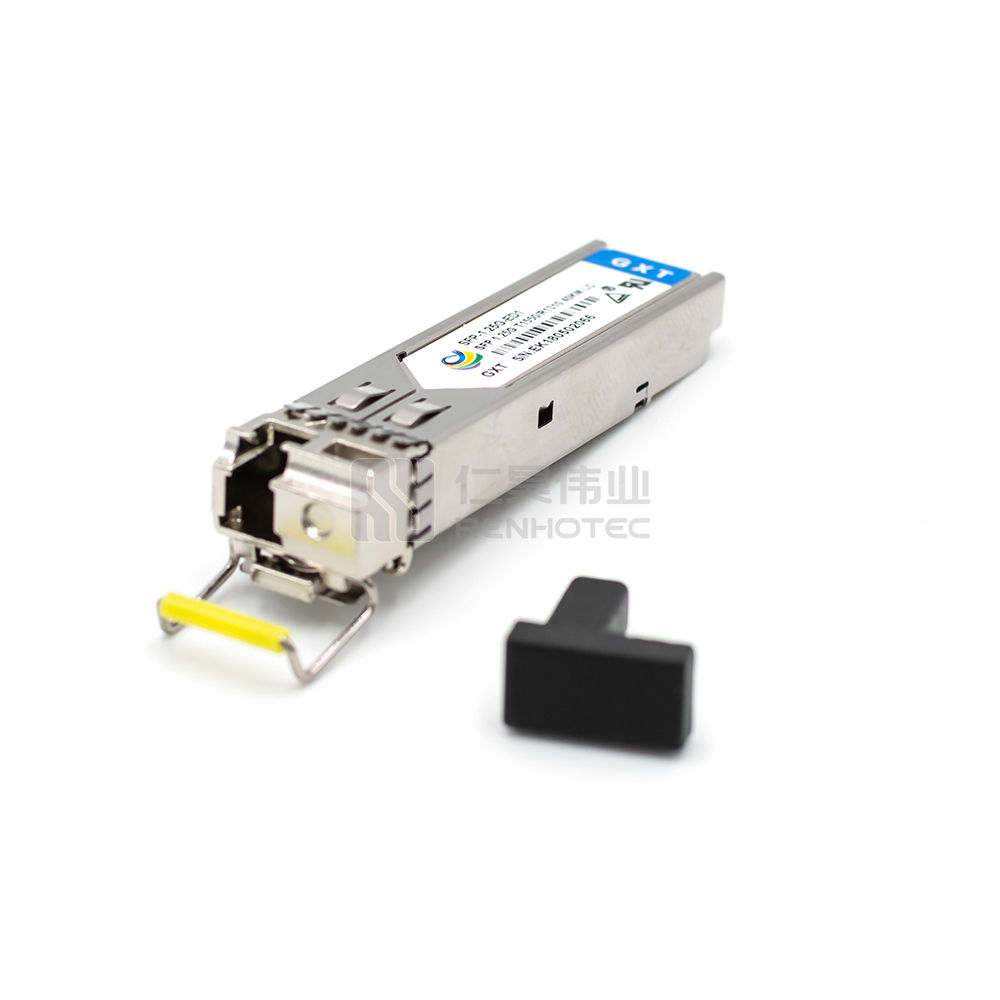

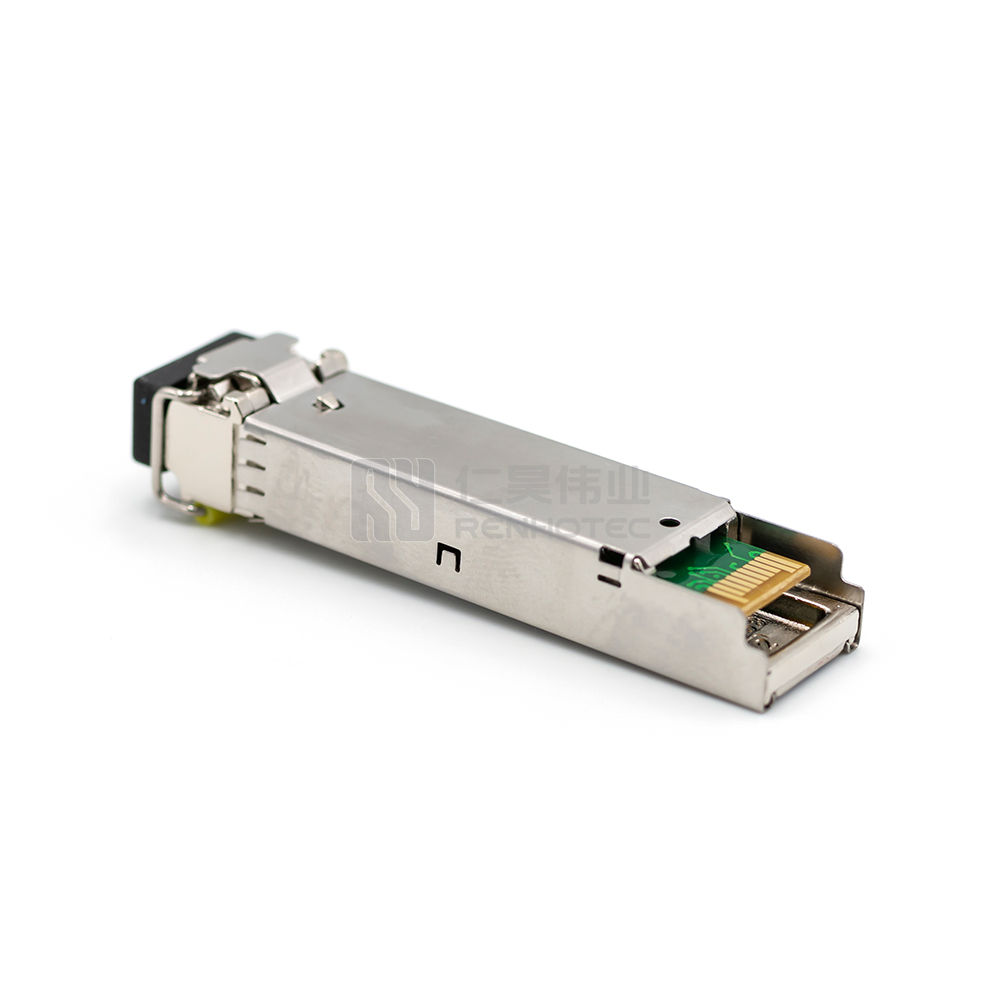

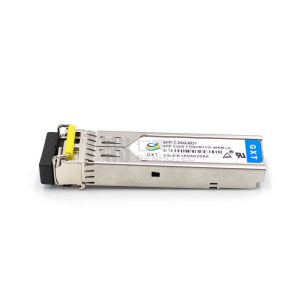

SFP-1.25G-ED1, 1.25G SFP T1550/R1310 40km DOM Simplex LC SMF Optical Transceiver Module
- Supports data transfer rates up to 1.25 Gbps
- Works with both single-mode and multi-mode fiber optic cables
- Energy efficient with low power consumption
- Durable metal casing for protection and longevity
- Ideal for use in data centers, telecommunications networks, and other high-speed networking applications
Specifications
| Compatible Brands | Cisco, Huawei, ZTE, HP |
|---|---|
| Form Factor | SFP |
| Max Data Rate | 1.25Gbps |
| Wavelength | 1550nm-TX/1310nm-RX |
| Max Cable Distance | 40km |
| DOM/DDM | Supported |
| Mode | Single Mode |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -3~0dBm |
| Receiver Sensitivity | <-22dBm |
| Protocols | IEEE 802.3z, SFF-8472 |
Product Specification
| Connector | Duplex LC |
|---|
| Compatible Brands | Cisco, Huawei, ZTE, HP |
|---|---|
| Form Factor | SFP |
| Max Data Rate | 1.25Gbps |
| Wavelength | 1550nm-TX/1310nm-RX |
| Max Cable Distance | 40km |
| Connector | Duplex LC |
| DOM/DDM | Supported |
| Mode | Single Mode |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -3~0dBm |
| Receiver Sensitivity | <-22dBm |
| Protocols | IEEE 802.3z, SFF-8472 |
Renhotec SFP/SFP+ 1.25Gb Modules
The Renhotec 1.25Gb SFP/SFP+ modules are high-performance, reliable optical transceivers for various networking applications. They support data rates up to 1.25Gbps and are compatible with a wide range of networking equipment. With their compact form factor and hot-pluggable design, these modules are easy to install and replace, making them an ideal choice for network administrators looking for a cost-effective and flexible solution.
Connectivity Solution
Features
1.25G Connectivity & Low-Power
The Optical Transceiver provides fast and reliable 1.25G connectivity in data center environments. Its low power consumption feature makes it an energy-efficient option for large-scale data center environments, reducing power costs and minimizing environmental impact.
Strict Quality Control Requirements
Renhotec follows strict quality control requirements to ensure the reliable performance of its optical modules. By adhering to these requirements, they can provide high-quality products that meet the needs of their customers and provide reliable performance over an extended period.
