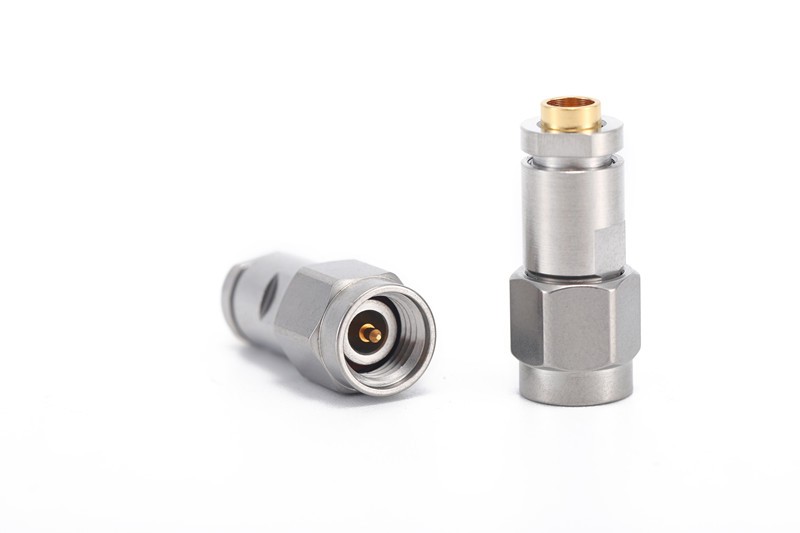

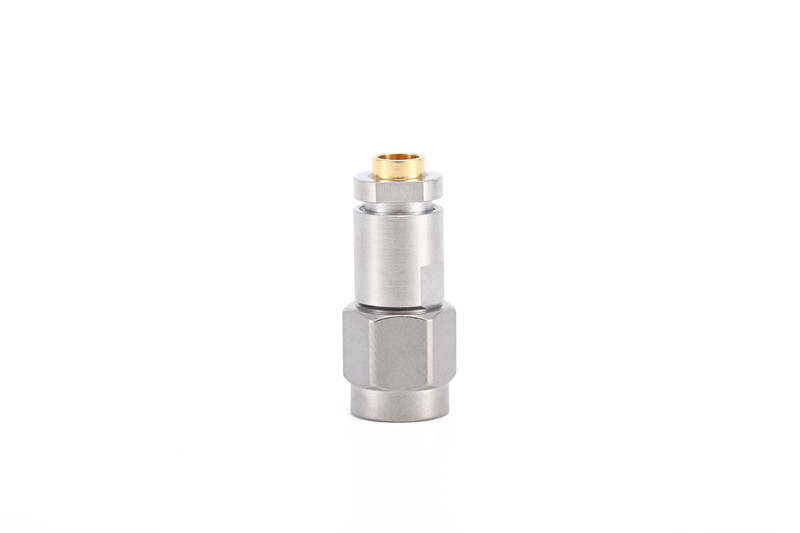

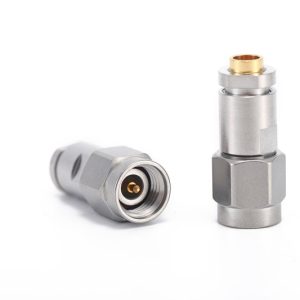

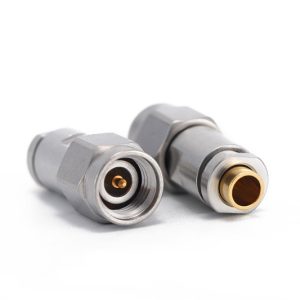

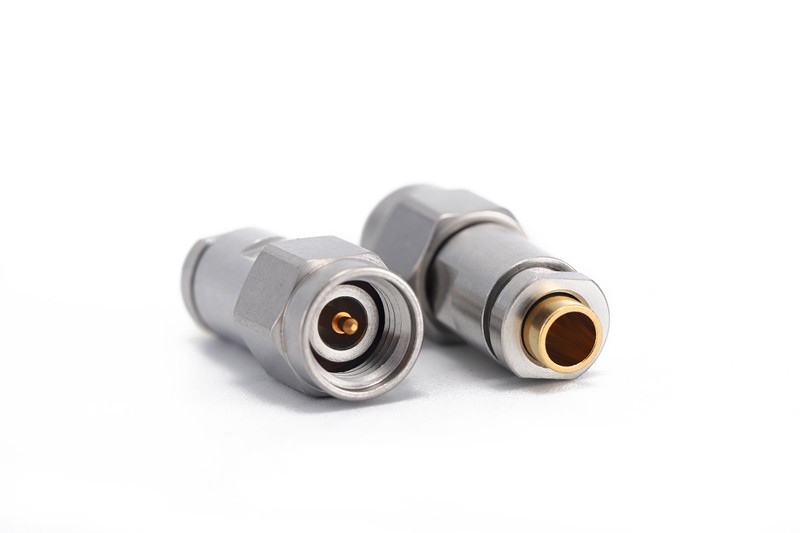

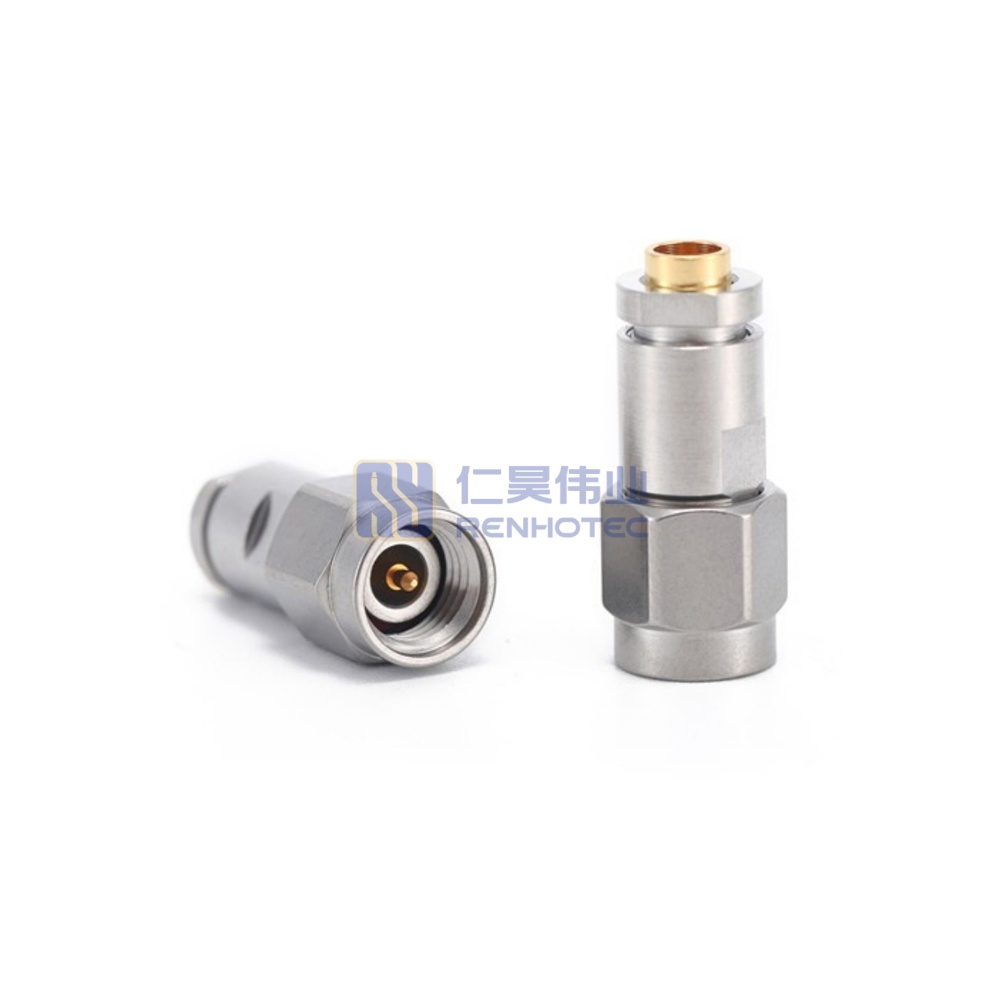

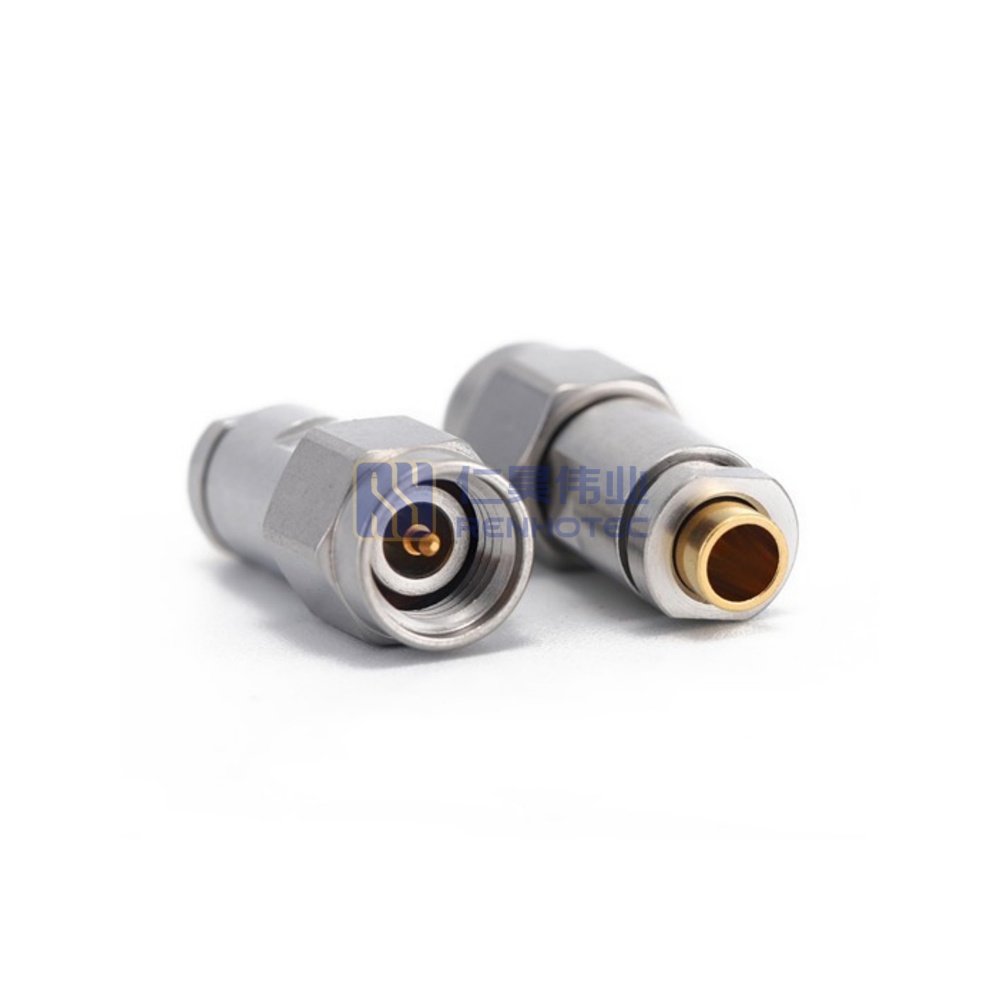

Renhotec 2.92mm (K-Type) Male RF Coaxial Connector for Gore 3507 Cable
- Frequency range: DC to 40GHz for optimal high-frequency performance
- 2.92mm male interface ensures low signal loss and stable connections
- Tailored for Gore 3507 cables, enabling seamless integration
- Durable stainless steel construction provides excellent corrosion resistance
- Perfect for RF testing, telecommunications, and precision measurement systems
Product Specification
| Center Contact Resistance | ≦4.0mΩ |
||
|---|---|---|---|
| Connector Type | Plug |
||
| Contact Finish | Gold Plated |
||
| Contact Material | Beryllium-Copper |
||
| Dielectric Withstanding Voltage | ≧750v |
||
| Frequency Range | DC-40GHz |
||
| Impedance | 50 ohm |
||
| Insulation Resistance | ≥5000MΩ |
||
| Insulator Material | PEI |
||
| Mounting Type | Cable Mount |
||
| Outer Contact Resistance | ≦2.0mΩ |
||
| RF Series | 2.92mm |
||
| Shell Finish | Passivated |
||
| Shell Material | Stainless Steel(SU303) |
||
| Temperature Range | -45°C to +85°C |
||
| VSWR | ≤1.20 |
||
| Contact Type | Female Pin |
||
| Orientation | Straight |
||
| Center Contact Resistance | ≦4.0mΩ |
Connector Type | Plug |
| Contact Finish | Gold Plated |
Contact Material | Beryllium-Copper |
| Dielectric Withstanding Voltage | ≧750v |
Frequency Range | DC-40GHz |
| Impedance | 50 ohm |
Insulation Resistance | ≥5000MΩ |
| Insulator Material | PEI |
Mounting Type | Cable Mount |
| Outer Contact Resistance | ≦2.0mΩ |
RF Series | 2.92mm |
| Shell Finish | Passivated |
Shell Material | Stainless Steel(SU303) |
| Temperature Range | -45°C to +85°C |
VSWR | ≤1.20 |
| Contact Type | Female Pin |
Orientation | Straight |
| Voltage | 750V |
|---|---|
| Voltage | 750V |
| Center Contact Resistance | ≦4.0mΩ |
|---|---|
| Connector Type | Plug |
| Contact Finish | Gold Plated |
| Contact Material | Beryllium-Copper |
| Dielectric Withstanding Voltage | ≧750v |
| Frequency Range | DC-40GHz |
| Impedance | 50 ohm |
| Insulation Resistance | ≥5000MΩ |
| Insulator Material | PEI |
| Mounting Type | Cable Mount |
| Outer Contact Resistance | ≦2.0mΩ |
| RF Series | 2.92mm |
| Shell Finish | Passivated |
| Shell Material | Stainless Steel(SU303) |
| Temperature Range | -45°C to +85°C |
| VSWR | ≤1.20 |
| Voltage | 750V |
| Contact Type | Female Pin |
| Orientation | Straight |
The 2.92mm connector, also known as a K connector, is a precision coaxial connector used in high-frequency applications. Known for its excellent electrical performance and mechanical stability, this connector operates at frequencies up to 40 GHz, making it suitable for microwave and high-speed digital applications. The 2.92mm connector features a bayonet coupling mechanism for quick and secure mating, ensuring reliable connections in critical applications such as telecommunications, test and measurement equipment, and laboratory setups. Its small size and high-frequency capabilities make it a preferred choice for engineers and technicians working with advanced RF systems.
Features
- High performance up to 40 GHz
- Low VSWR
- Excellent return loss and insertion loss
- Ruggedized construction for repeatability
- Compitable to mate with SMA, 3.5 mm and other K or 2.92 mm connectors
2.92mm Connector Types
Cable Mount
Panel Mount
2.92mm Adapter
Applications
Our Advantages
Physical factory
Having a professional production team, selfproduced and self sold
Quality assurance
Through strict qualitycontrol, ensure quality
After sales system
Actively follow up andpromptly address anyissues
After sales system
Actively follow up andpromptly address anyissues
Production Process
1. Put forward demand
2. Sketch design
3. Production equipment
4. Production measurement
5. Product assembly
6. Quality test
7. Product packaging
8. Product packag box
9. Deliver goods
What are high frequency connectors?
High frequency connectors are precision connectors used for test and measurement or for sensitive low loss, phase stable, high frequency microwave applications up to 67 GHz. They are made of high grade materials in order to allow for longer life cycle and higher durability.
What high frequency products can you provide ?
1.0mm, 1.35mm, 1.85mm, 2.4mm, 2.92mm, 3.5mm, BMA
SMP(GPO), SMPS (G3PO), mini SMP(GPPO), SMPM
Also we could provide high frequency adapters and cable assemblies.
What's the Coupling Mechanism of SMP conector ?
It offers in both push-on and snap-on mating styles.
The available detent systems, full,limited,and smooth bore, provide respective levels of engagement/disengagement forces.
Do you offer original replacement parts for high frequency connectors ?
Of course, and we had customized many different types high frequency connectors for our customers based on original brand like Amphenol/TE/Radiall. Our state-of-the-art facilities adhere to the highest quality standards, ensuring that each replacement part meets or exceeds the specifications of the original component. Additionally, our skilled technicians meticulously oversee the production process to guarantee precision and reliability.
