SKU: 102-12-10009 Categories: ,

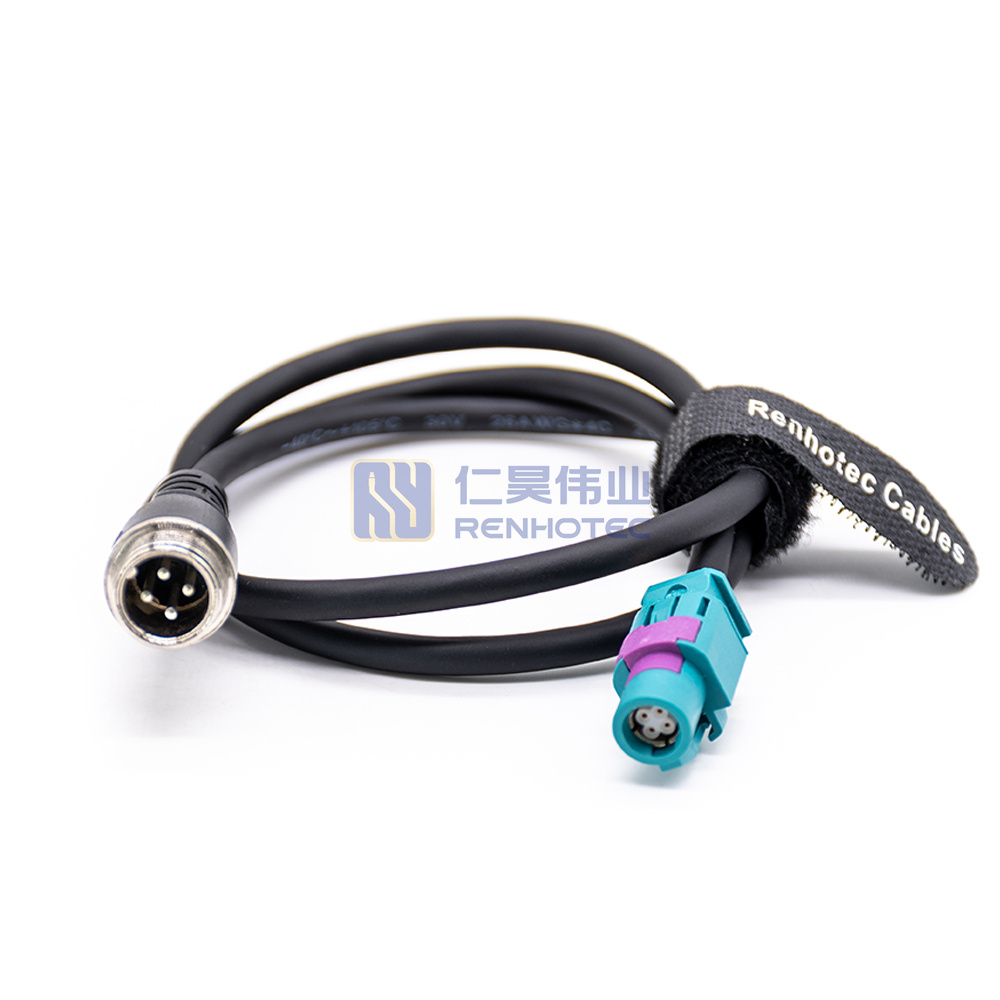

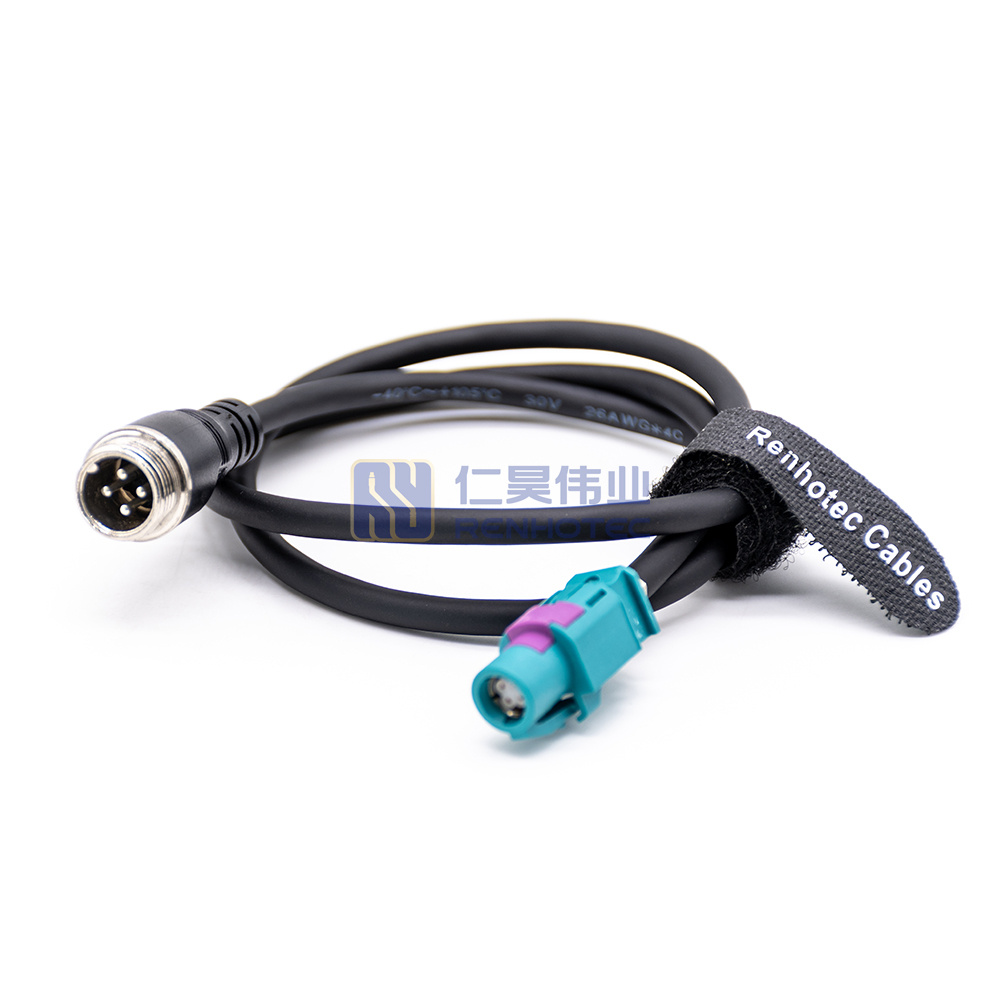

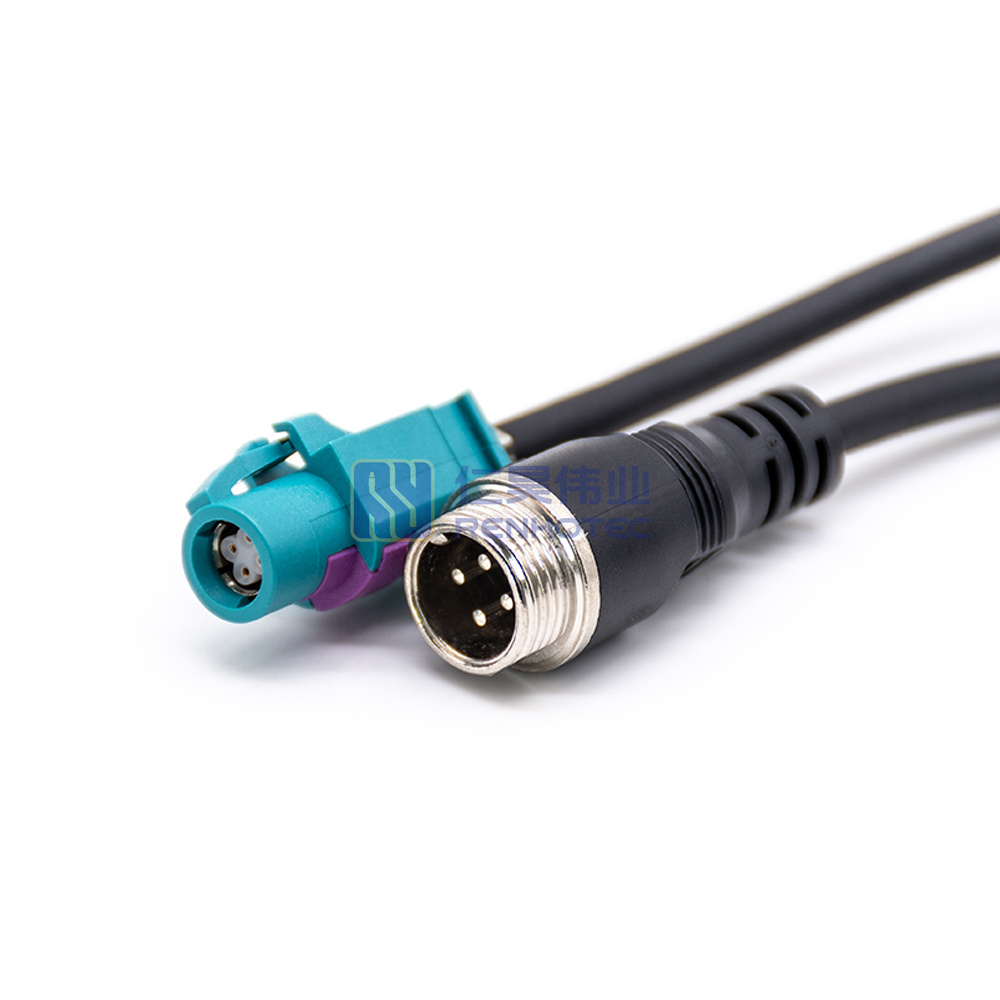

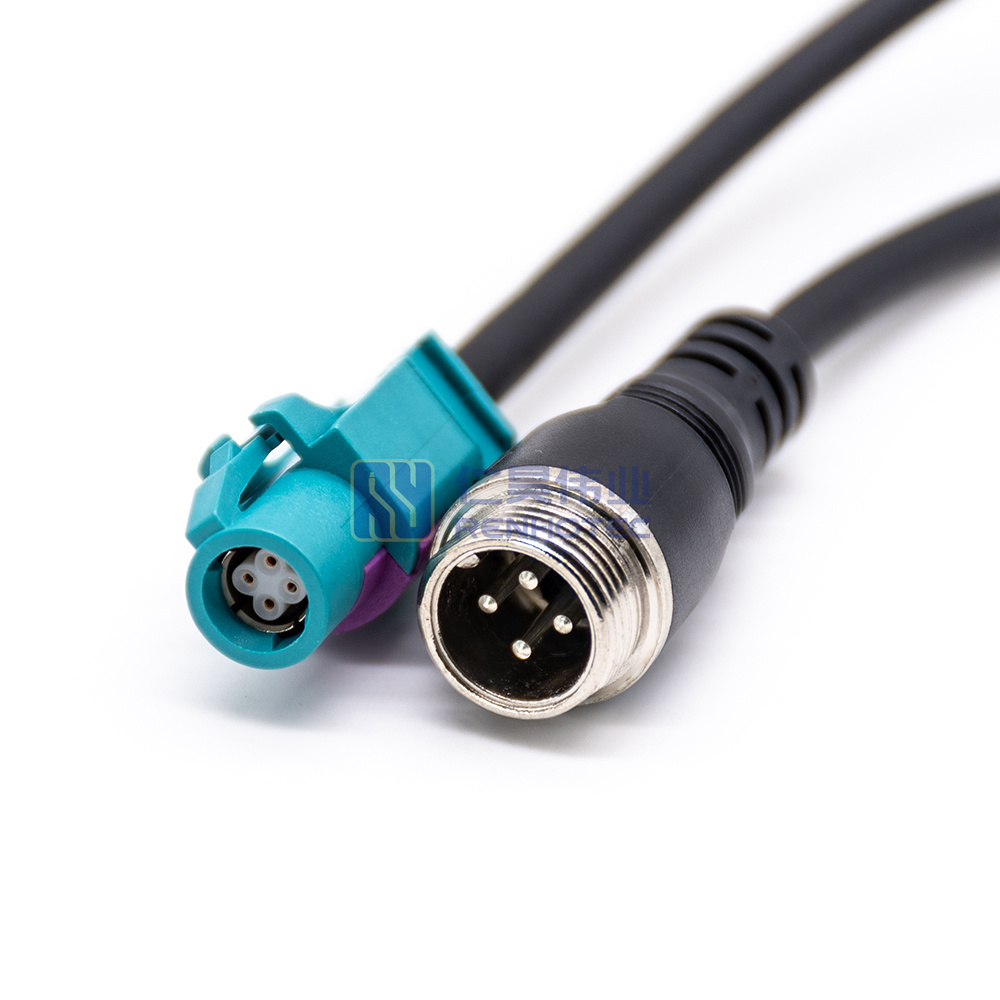

Rear View Camera Signal Cable, HSD to GX12, HSD 4Pin Z Code Female to GX12 Plug Extension Cable

  • High-speed shielded connection system suitable for digital data with performance up to 6 Gbps
  • Fully shielded connection system of different wire diameters and types
  • Compliant with LVDS (Low voltage differential signal), Ethernet and USB protocols
  • Full range of connectors for non-sealed and sealed applications
  • Extend the PCB connector product portfolio
  • High level of process automation and global manufacturing footprint
  • IDB 1394 Automotive Specification
  • USCAR 2, REV 5

HSD connectors provide connectivity solutions for automotive infotainment modules, cameras, consumer equipment ports, and display devices.
The HSD product portfolio is designed for high-speed data transmission to meet automotive data transmission rates up to 6 GHz.
The connector product portfolio can be combined with 1-channel and 4-channel LVDS, IEEE 1394, GVIF, eMOST, and USB 2.0 protocols. These high-speed connectors are compatible with the German AK HSD interface, USCAR 30 (Mini USB) and designated shield connection systems. These connectors can be used for sealing applications.



HSD Interface Dimensions

HSD Connector Coding

Specifications

Style

HSD to GX12

Style

HSD to GX12

Product Specification

1st Connector

HSD 4P Jack, Z Code

1st Connector Orientation

Straight

2nd Connector

GX12 Plug

2nd Connector Orientation

Straight

Plastic Housing

PA, PBT

Contact Material

Copper

Insulator Material

PA, LCP

Impedance

100 ohm

Frequency - Max

6GHz

Insultation Resistance

≥ 1000 MΩ

Operating Voltage

100V rms

Withstand Voltage

250 V rms

Core Connection Resistance

≤ 10 MΩ

Mating Durability

≥ 25 Cycles

Latch Holding Force

≥110N

Operating Temperature

-40°C~+105°C

1st Connector

HSD 4P Jack, Z Code

1st Connector Orientation

Straight

2nd Connector

GX12 Plug

2nd Connector Orientation

Straight

Plastic Housing

PA, PBT

Contact Material

Copper

Insulator Material

PA, LCP

Impedance

100 ohm

Frequency - Max

6GHz

Insultation Resistance

≥ 1000 MΩ

Operating Voltage

100V rms

Withstand Voltage

250 V rms

Core Connection Resistance

≤ 10 MΩ

Mating Durability

≥ 25 Cycles

Latch Holding Force

≥110N

Operating Temperature

-40°C~+105°C
