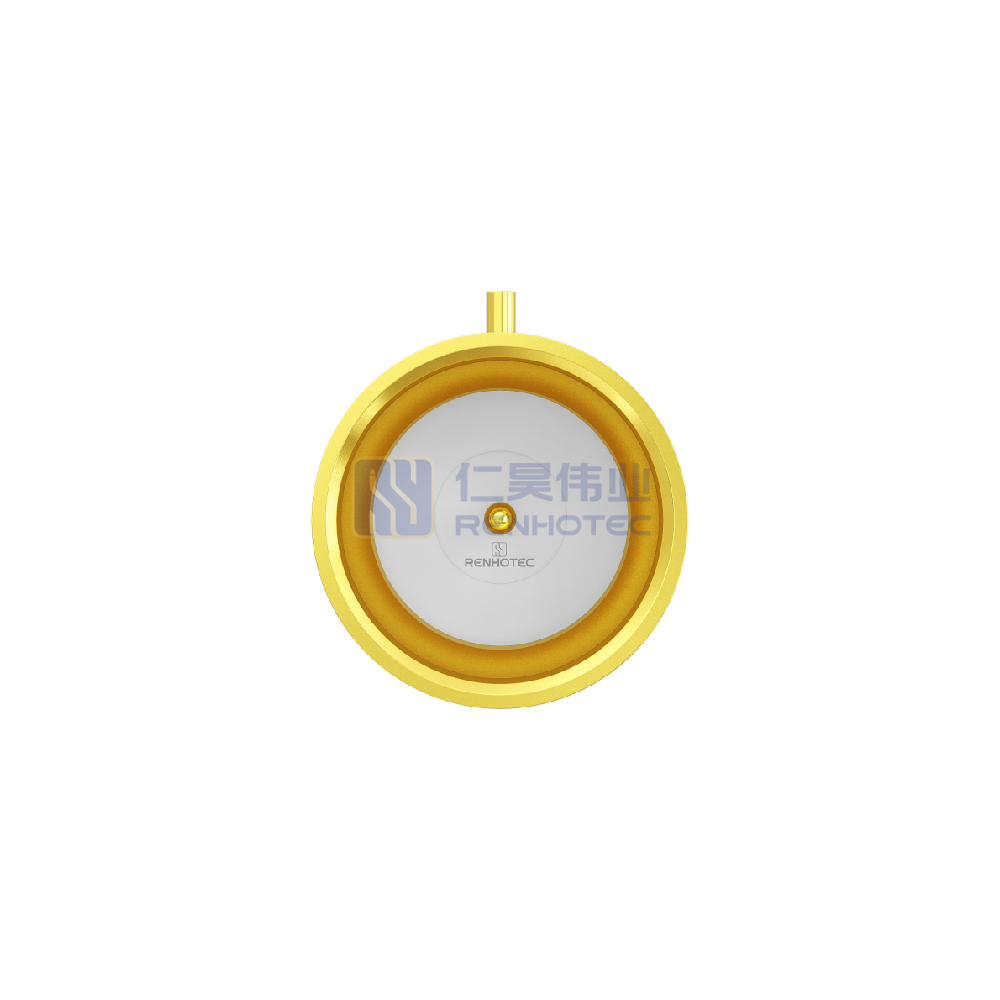

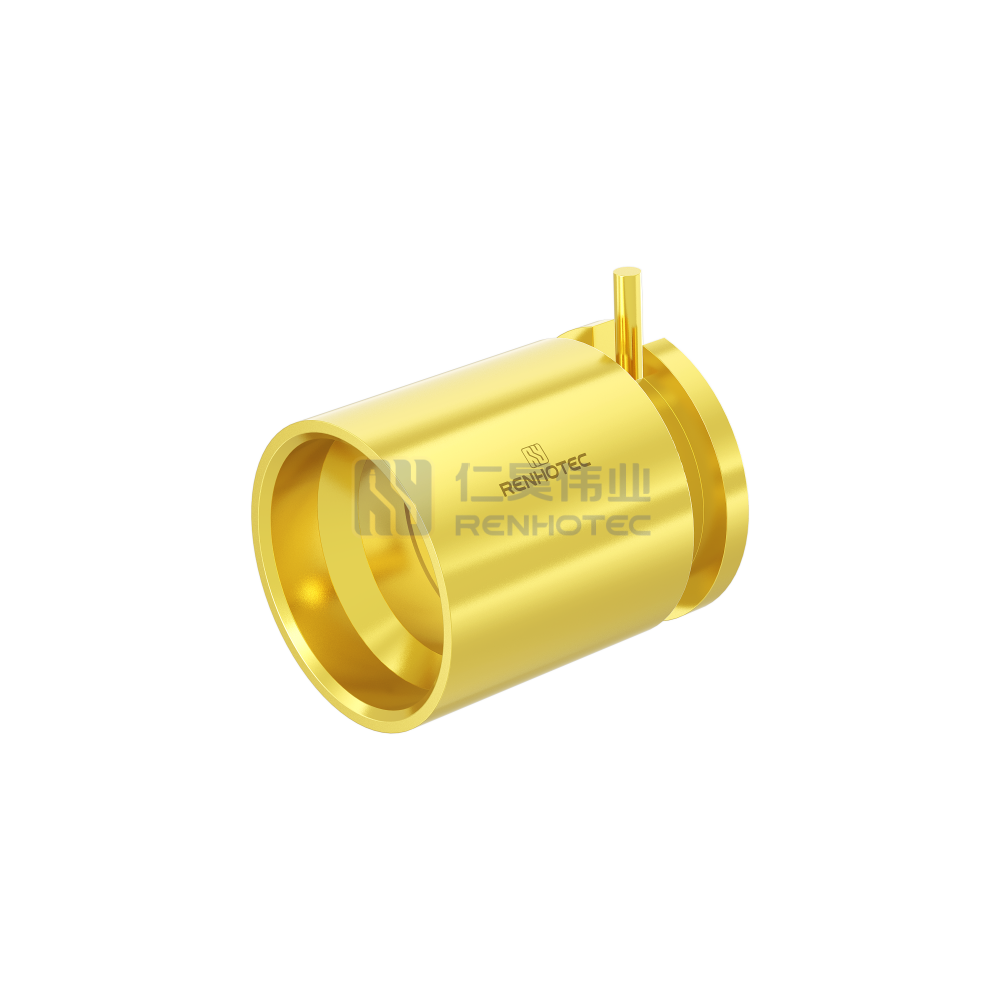

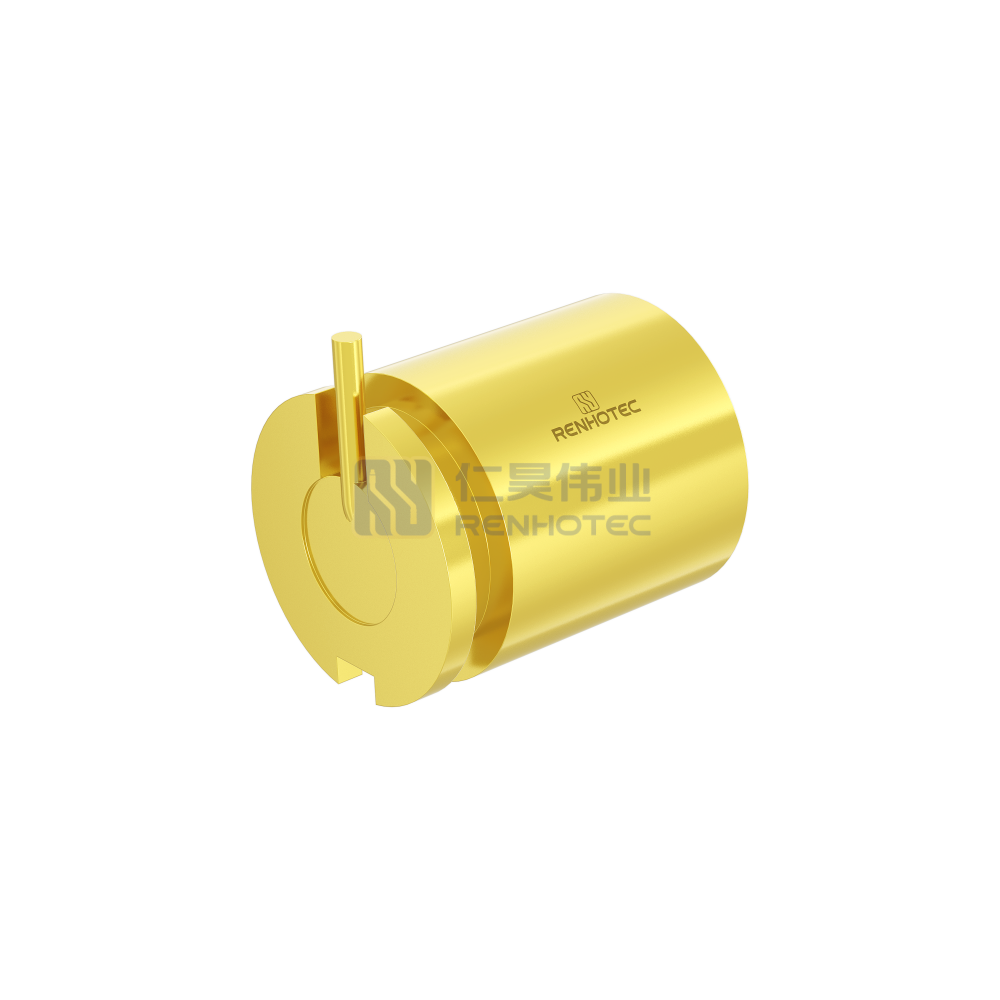

R/A SMP Plug – RHT-628-0032
Right-angle SMP plug, 50Ω, general-purpose right-angle plug for cable or board mounting, supports blind-mate connections with reliable RF transmission up to 40 GHz, commonly used in base station backplanes, microwave filters, and coupler networks.
Product Specification
| RF Series | SMP Type |
||
|---|---|---|---|
| Orientation | Right Angle |
||
| Connector Type | Plug |
||
| Contact Type | Male Pin |
||
| Contact Material | Brass |
||
| Contact Finish | Gold Plated |
||
| Shell Material | Brass |
||
| Shell Finish | Gold Plated |
||
| Insulator Material | TEFLON |
||
| Impedance | 50 ohm |
||
| Frequency Range | 0-18GHz |
||
| VSWR | 1.5 MAX |
||
| Working Voltage | 335 V rms |
||
| Insulation Resistance | 5000MΩ Min |
||
| Temperature Range | -55°C to +155°C |
||
| RF Series | SMP Type |
Orientation | Right Angle |
| Connector Type | Plug |
Contact Type | Male Pin |
| Contact Material | Brass |
Contact Finish | Gold Plated |
| Shell Material | Brass |
Shell Finish | Gold Plated |
| Insulator Material | TEFLON |
Impedance | 50 ohm |
| Frequency Range | 0-18GHz |
VSWR | 1.5 MAX |
| Working Voltage | 335 V rms |
Insulation Resistance | 5000MΩ Min |
| Temperature Range | -55°C to +155°C |
| RF Series | SMP Type |
|---|---|
| Orientation | Right Angle |
| Connector Type | Plug |
| Contact Type | Male Pin |
| Contact Material | Brass |
| Contact Finish | Gold Plated |
| Shell Material | Brass |
| Shell Finish | Gold Plated |
| Insulator Material | TEFLON |
| Impedance | 50 ohm |
| Frequency Range | 0-18GHz |
| VSWR | 1.5 MAX |
| Working Voltage | 335 V rms |
| Insulation Resistance | 5000MΩ Min |
| Temperature Range | -55°C to +155°C |
The SMP interface, similar in size to MMCX connectors, supports frequencies from DC to 40 GHz. Frequently employed in compact high-frequency coaxial modules, this interface comes in push-on and snap-on mating variations.
Features
- Full detent, limited detent, smooth bore or catcher’s mitt
- Standard surface mount (versus swept contact) for best performance
- 50 ohm impedance
- Performance to 40 GHz
- Cable-to-board or board-to-board applications
- Push-on interface for quick installation, or blind mate
SMP Connector Types
Cable Mount
Panel Mount
SMP Adaptor
Applications
- Antennas
- Broadband
- Instrumentation
- Medical
- Quantum Computing
