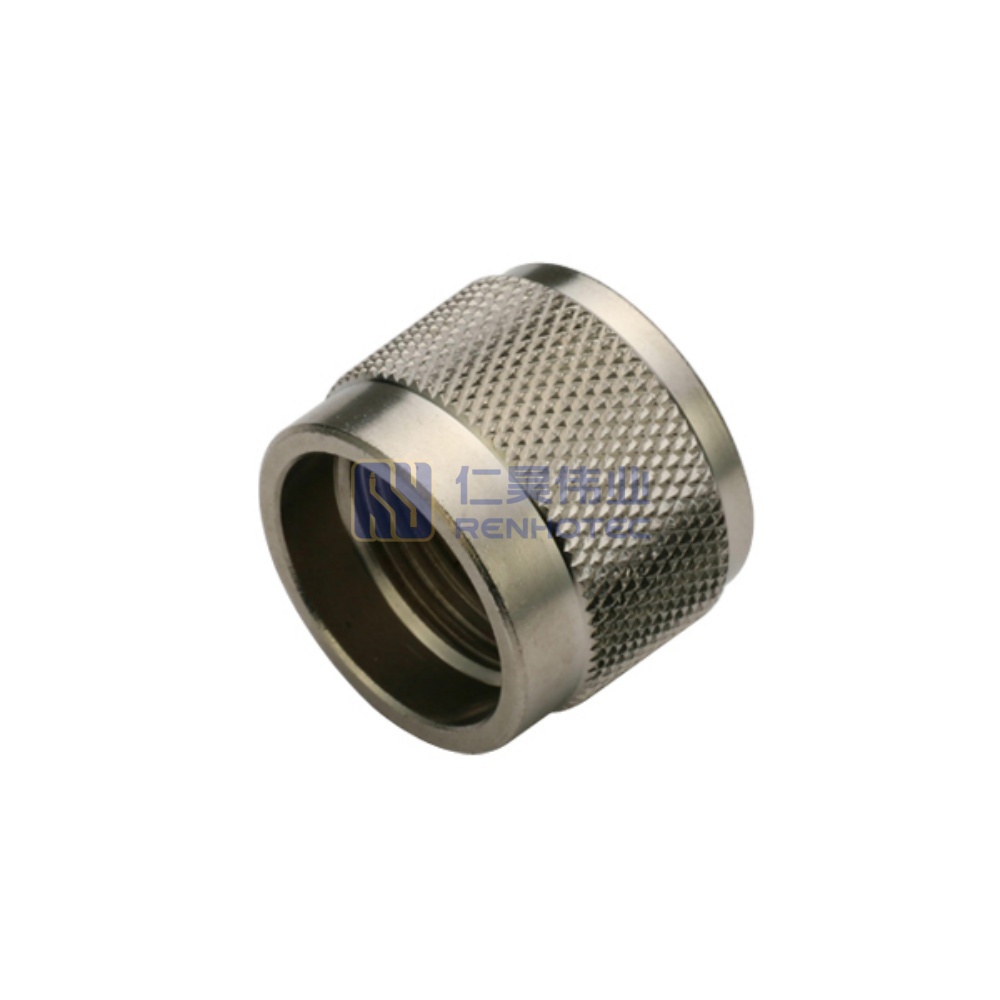

N Type Straight RF Coaxial Connector Male Dust Cap for Cable TV – RHT-614-0148
Product Specification
| RF Series | N Type |
||
|---|---|---|---|
| Fastening Type | Threaded |
||
| Connector Type | Plug |
||
| Orientation | Straight |
||
| RF Series | N Type |
Fastening Type | Threaded |
| Connector Type | Plug |
Orientation | Straight |
| Feature | Dustproof |
||
|---|---|---|---|
| Body Material | Brass |
||
| Body Plating | Nickel Plating |
||
| Gasket Material | Silicone Rubber |
||
| Feature | Dustproof |
Body Material | Brass |
| Body Plating | Nickel Plating |
Gasket Material | Silicone Rubber |
| RF Series | N Type |
|---|---|
| Fastening Type | Threaded |
| Connector Type | Plug |
| Orientation | Straight |
| Feature | Dustproof |
| Body Material | Brass |
| Body Plating | Nickel Plating |
| Gasket Material | Silicone Rubber |
High-Performance N Type RF Coaxial Connector
Enhance your radio frequency and microwave communications with our industrial-grade N Type RF Coaxial Connector series. Designed for high signal integrity and low attenuation, these standard N connectors (available in both N male connector and N female connector configurations) deliver reliable broadband performance across wireless infrastructure, base stations, and RF testing applications.
Key Features & Advantages
- Versatile Interface Options: Complete range of N male and N female types in both Straight and Right Angle (90～) orientations.
- Flexible Mounting Styles: Available in standard cable crimp/solder, N type bulkhead connector (panel mount), and 4-hole flange mount designs to fit your specific enclosure or cabinet setup.
- Durable Construction: Heavy-duty brass body with corrosion-resistant plating, built for high-durability mating cycles and harsh outdoor environments.
- Low VSWR & High Stability: Premium threaded coupling ensures a secure, vibration-proof connection with optimized impedance matching (50 Ohm / 75 Ohm).
- Threaded Coupling Mechanism: Screw-on interface guarantees a vibration-proof, highly stable connection even in high-vibration applications.
- Weatherproof & Reliable: Excellent environmental sealing capability, providing dependable performance for both indoor and outdoor deployments.
Compatible Cable Types
Seamlessly compatible with popular flexible, semi-rigid, and low-loss coaxial cables, including RG316, RG174, RG400, RG213, LMR400, UT141, and UT085.
Applications
Widely applied in 5G/LTE cellular base stations, Wi-Fi antenna systems, broadcast equipment, marine communication, and RF cable assembly customization.
Drawing for N Type Straight RF Coaxial Connector Male Dust Cap for Cable TVDownload
