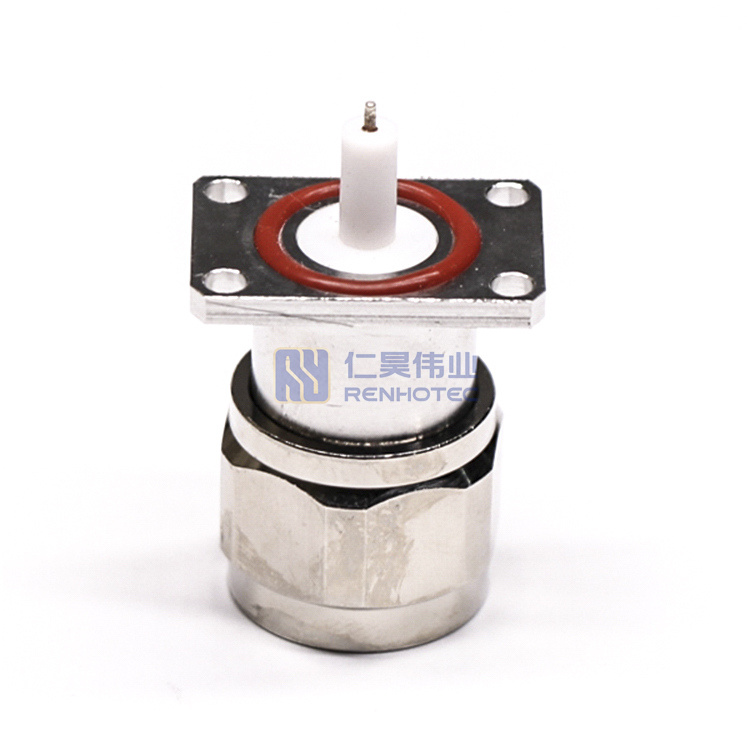

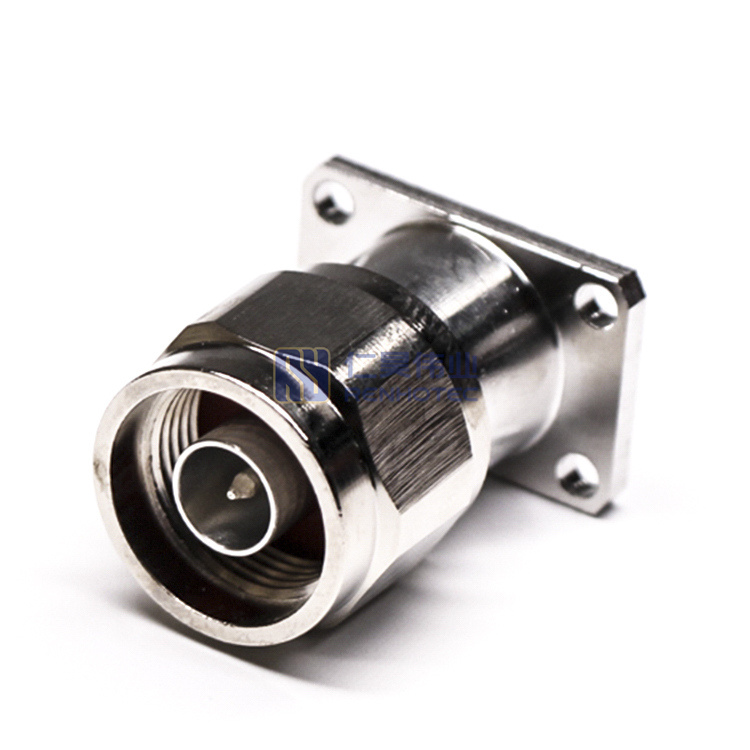

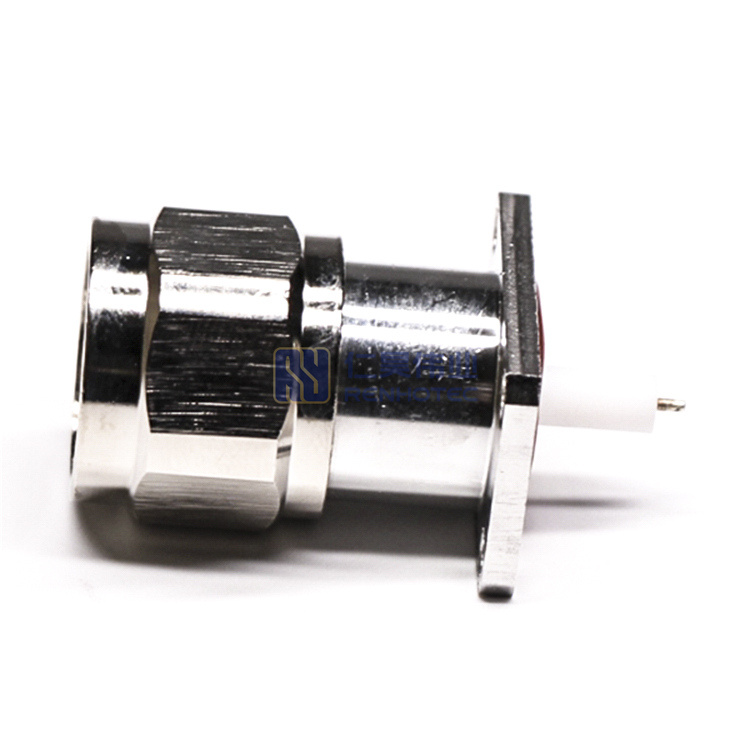

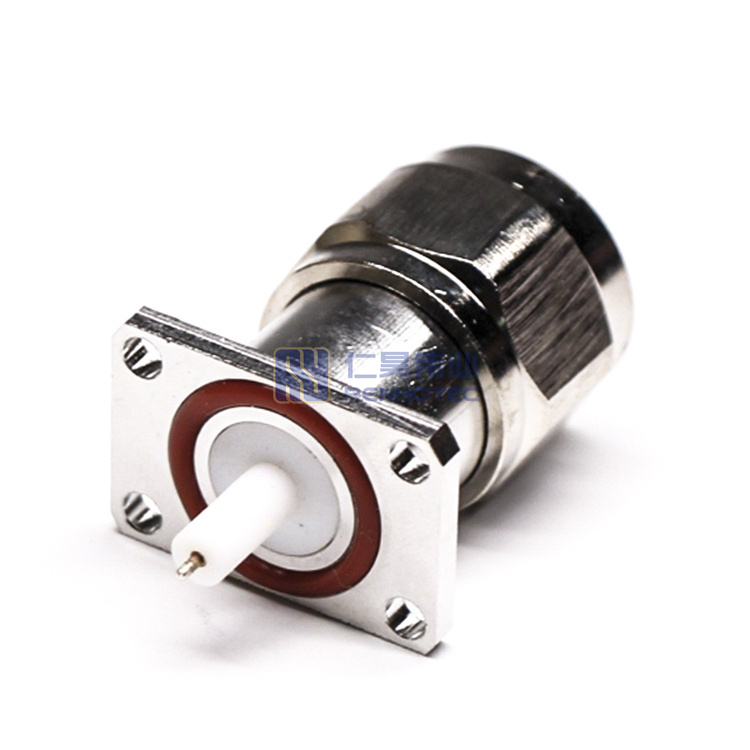

N Type Connector Male Straight Solder Panel Mount 4 Hole Flange 50ohm – RHT-614-0217
This N Type Connector features a male straight solder design with a 4 hole flange for reliable panel mounting. It has a 50ohm impedance, ensuring stable and efficient signal transmission for your needs.
NO.1
Excellent RF performance from DC to 11 GHz, and DC to 18 GHz on extended range designs
NO.2
Threaded coupling mechanism ideal for vibration resistance
NO.3
Accommodates a wide range of coaxial cables including low loss types
NO.4
Broad line of industrial and commercial grade products available
Complete Variety
N Type Cable Connector
N Crimp Type
N Crimp Type
N Solder Type
N Solder Cup
N Type PCB/Panel Connector
N Through Hole Type
N Edge Mount Type
N Flange Type
N Bulkhead Type
Product Application
Instrumentation
Computer/LAN
Satellite Communications
Automotive/ Aerospace
Broadcasting
Cable Modems
Our Advantages
Physical factory
Having a professional production team, selfproduced and self sold
Quality assurance
Through strict qualitycontrol, ensure quality
After sales system
Actively follow up andpromptly address anyissues
After sales system
Actively follow up andpromptly address anyissues
Production Process
1. Put forward demand
2. Sketch design
3. Production equipment
4. Production measurement
5. Product assembly
6. Quality test
7. Product packaging
8. Product packag box
9. Deliver goods
N-type connectors find wide use in many lower frequency microwave systems, where ruggedness and/or low cost are needed. Many spectrum analyzers use such connectors for their inputs, and antennas which operate in the 0-11 GHz range often connect to a coaxial cable with type N connections.
The frequency of N-type connectors commonly used in the international market is generally DC-6GHz, if you require a full 11GHz, we can customize it for you.
Yes,our N-type connectors can achieve IP67 waterproof rating, which is a stable waterproof solution with a threaded coupling mechanism for increased vibration resistance. Also the waterproof test report is available for your reference.
N-type Connectors has large range of frequency, but low working efficiency, suitable for many different applications like Antennas, Cellular, Military, Aerospace and Base Stations, while DIN Connectors with high working efficiency, small and narrow range of frequency, being used for transmission lines with high power such as the connections of mobile information transmission, mobile radio transmission and applications with lower frequency.
