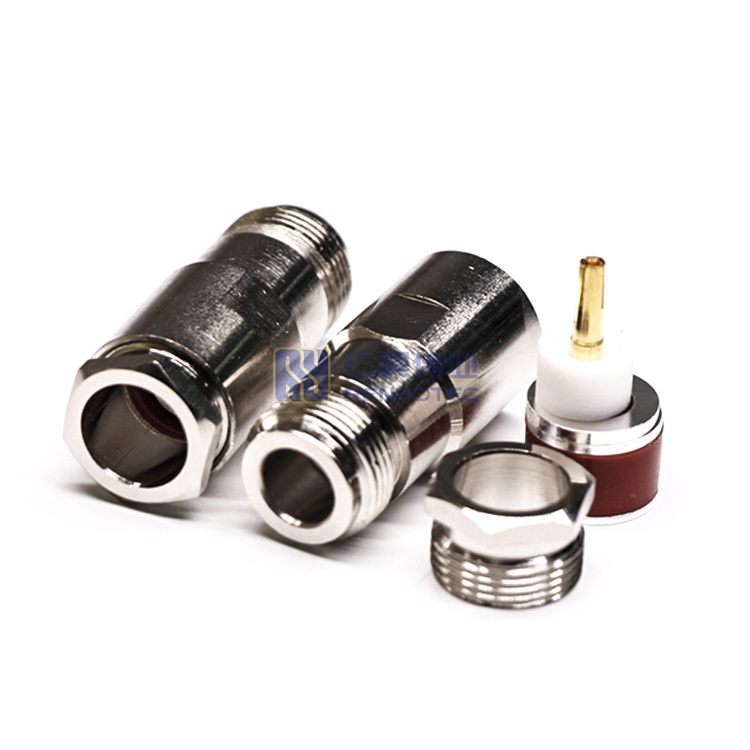

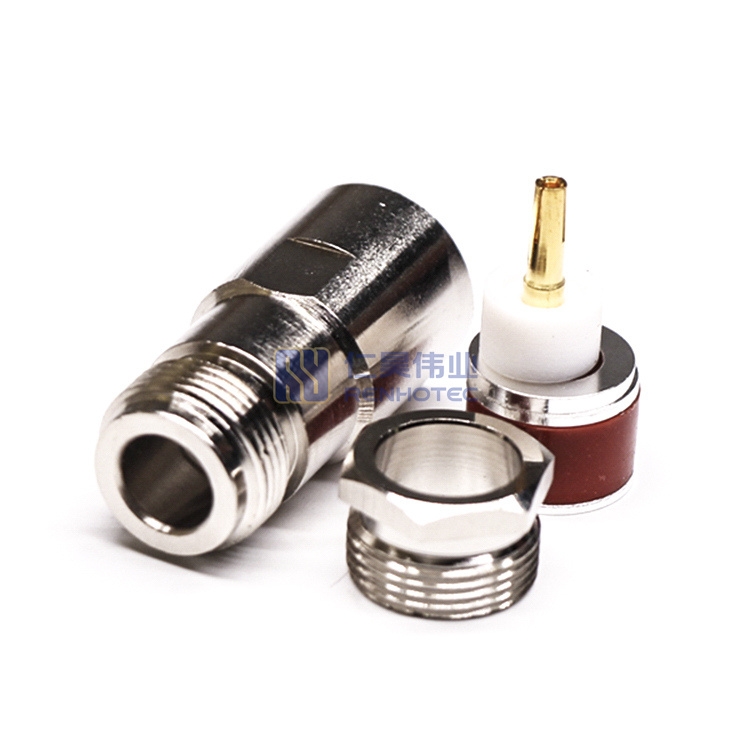

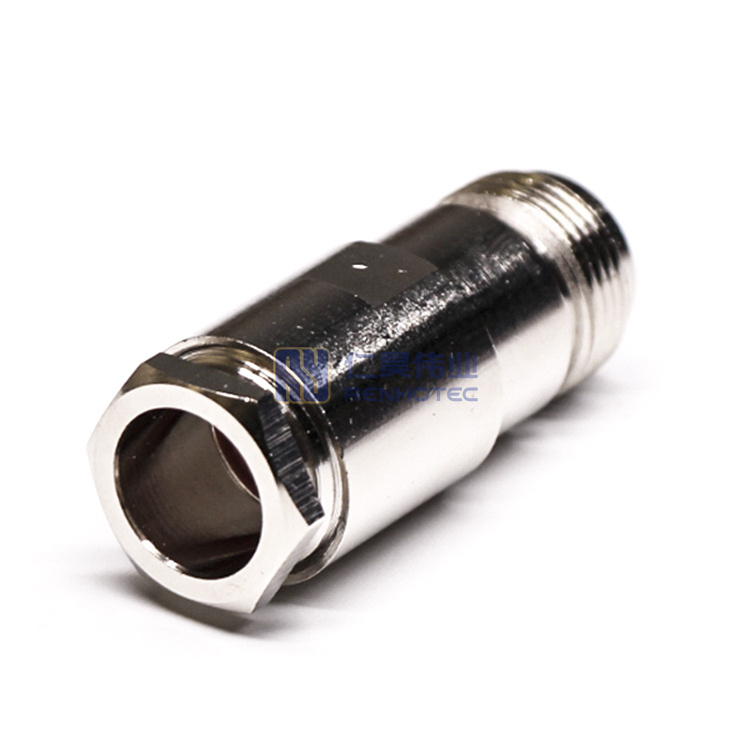

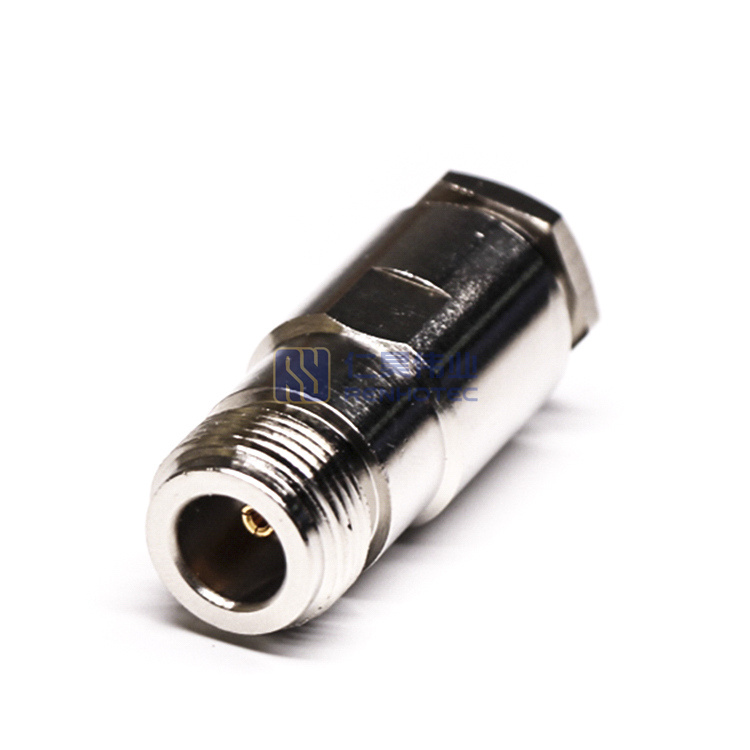

N Type Connector Jack Straight Clamp Cable Type 50ohm
- The product design is reasonable and compact to reduce the installation space
- The threaded connection ensures durability and stability in the vibration environment
- Medium size, used in military, industrial, and consumer electronics
- Body: Brass or Stainless Steel
N-Type connectors are designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance. N connectors are available with the impedance of 50ohm and 75ohm. The frequency range extends to 18GHz.depending on the connector and cable type.
We offer a wide range of military, industrial and commercial grade products. N connectors offer excellent RF performance in the DC to 11 GHz and DC to 18 GHz ranges for extended range designs. And it can accommodate a variety of coaxial cables, including low-loss types.
The screw-type coupling mechanism provides a sturdy and reliable connection. Connector styles are available for flexible, conformable,semi-rigid, and corrugated cable types. Both crimp and clamp cable termination processes are used for this series.
Interface
Applications
Product Specification
| RF Series | N Type |
||
|---|---|---|---|
| Orientation | Straight |
||
| Connector Type | Jack |
||
| Contact Type | Female Pin |
||
| Contact Material | Brass |
||
| Contact Finish | Gold Plated |
||
| Shell Material | Copper Alloy |
||
| Shell Finish | Nickel Plated |
||
| Insulator Material | Teflon White |
||
| Fastening Type | Threaded |
||
| Shield Termination | Clamp |
||
| Mounting Type | Cable Mount |
||
| Number of Ports | 1 |
||
| Impedance | 50 ohm |
||
| Frequency Range | 0~11 GHz |
||
| Mating Durability | ≥ 500 Cycles |
||
| Ingress Protection | IP65 |
||
| Insultation Resistance | ≧ 5 x 10³ MΩ (Megohms MIN.) |
||
| VSWR | R/A type ≦ 1.5MAX, Straight type≦1.3 MAX |
||
| Working Voltage | 1000 V rms |
||
| Withstand Voltage | 1500V V RMS Max |
||
| Vibration | MIL-STD-202 Meth. 204 |
||
| Corrosion Resistance | MIL-STD-202 Meth. 101 |
||
| Coupling Nut Retention | 30 in-lbs. MIN |
||
| Operating Temperature | -65°C~+165°C |
||
| Contact Retention | 6 lbs min. |
||
| Dielectric Withstanding Voltage | 2500 V rms |
||
| Center Contact Resistance | ≦ 1.0 MΩ (Milliohms Max.) |
||
| Outer Contact Resistance | ≦ 0.2 MΩ (Milliohms Max.) |
||
| RF Series | N Type |
Orientation | Straight |
| Connector Type | Jack |
Contact Type | Female Pin |
| Contact Material | Brass |
Contact Finish | Gold Plated |
| Shell Material | Copper Alloy |
Shell Finish | Nickel Plated |
| Insulator Material | Teflon White |
Fastening Type | Threaded |
| Shield Termination | Clamp |
Mounting Type | Cable Mount |
| Number of Ports | 1 |
Impedance | 50 ohm |
| Frequency Range | 0~11 GHz |
Mating Durability | ≥ 500 Cycles |
| Ingress Protection | IP65 |
Insultation Resistance | ≧ 5 x 10³ MΩ (Megohms MIN.) |
| VSWR | R/A type ≦ 1.5MAX, Straight type≦1.3 MAX |
Working Voltage | 1000 V rms |
| Withstand Voltage | 1500V V RMS Max |
Vibration | MIL-STD-202 Meth. 204 |
| Corrosion Resistance | MIL-STD-202 Meth. 101 |
Coupling Nut Retention | 30 in-lbs. MIN |
| Operating Temperature | -65°C~+165°C |
Contact Retention | 6 lbs min. |
| Dielectric Withstanding Voltage | 2500 V rms |
Center Contact Resistance | ≦ 1.0 MΩ (Milliohms Max.) |
| Outer Contact Resistance | ≦ 0.2 MΩ (Milliohms Max.) |
| RF Series | N Type |
|---|---|
| Orientation | Straight |
| Connector Type | Jack |
| Contact Type | Female Pin |
| Contact Material | Brass |
| Contact Finish | Gold Plated |
| Shell Material | Copper Alloy |
| Shell Finish | Nickel Plated |
| Insulator Material | Teflon White |
| Fastening Type | Threaded |
| Shield Termination | Clamp |
| Mounting Type | Cable Mount |
| Number of Ports | 1 |
| Impedance | 50 ohm |
| Frequency Range | 0~11 GHz |
| Mating Durability | ≥ 500 Cycles |
| Ingress Protection | IP65 |
| Insultation Resistance | ≧ 5 x 10³ MΩ (Megohms MIN.) |
| VSWR | R/A type ≦ 1.5MAX, Straight type≦1.3 MAX |
| Working Voltage | 1000 V rms |
| Withstand Voltage | 1500V V RMS Max |
| Vibration | MIL-STD-202 Meth. 204 |
| Corrosion Resistance | MIL-STD-202 Meth. 101 |
| Coupling Nut Retention | 30 in-lbs. MIN |
| Operating Temperature | -65°C~+165°C |
| Contact Retention | 6 lbs min. |
| Dielectric Withstanding Voltage | 2500 V rms |
| Center Contact Resistance | ≦ 1.0 MΩ (Milliohms Max.) |
| Outer Contact Resistance | ≦ 0.2 MΩ (Milliohms Max.) |
