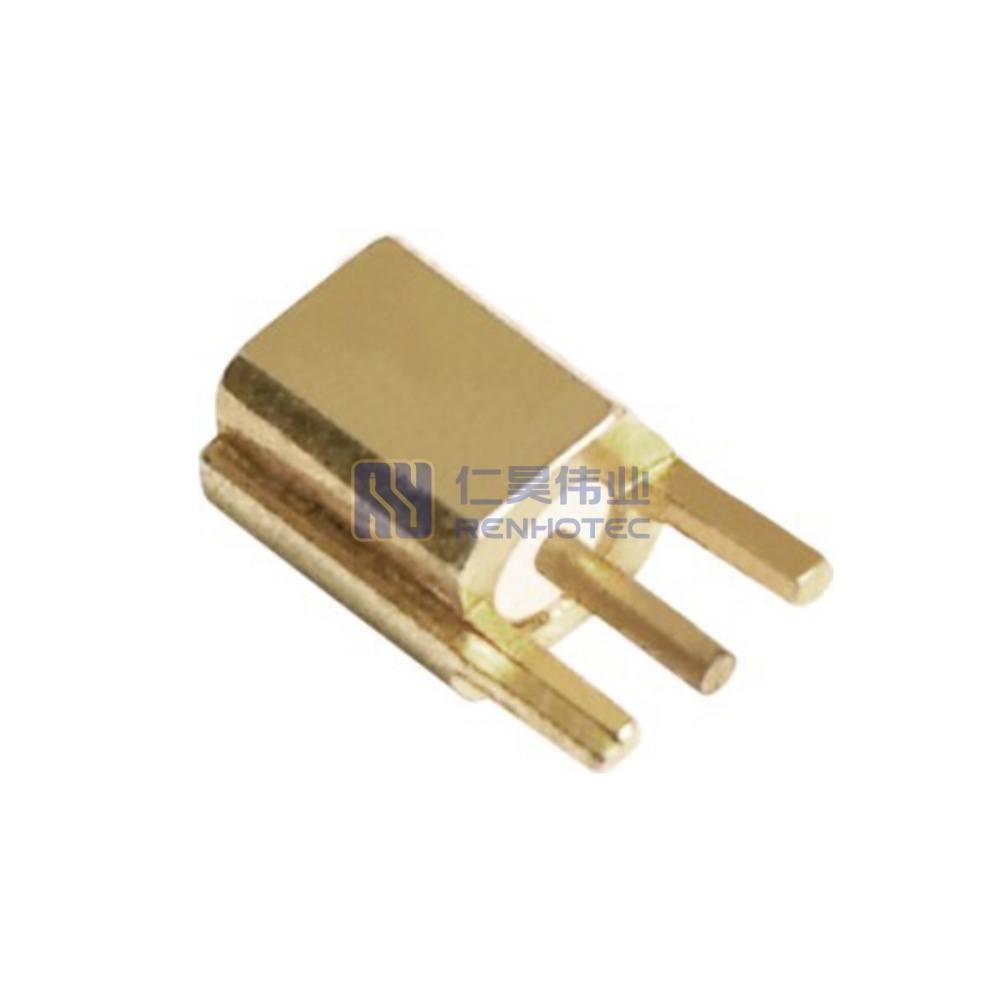

MMCX Connector Straight Jack Solder PCB Mount – RHT-631-0005
- Straight MMCX jack, 50Ω, solder termination for PCB mounting with robust mechanical design
- Supports multiple mating cycles with consistent electrical contact integrity
- Operates from DC to 6 GHz with stable return loss and minimal signal degradation
- Compact footprint enables integration into space-sensitive wireless assemblies
- Ideal for Bluetooth modules, wearable electronics, and RF front-end circuits
Product Specification
| Connector Type | Jack |
||
|---|---|---|---|
| Contact Type | Female Pin |
||
| Contact Finish | Gold Plated |
||
| Contact Material | Brass |
||
| Fastening Type | Snap On |
||
| Frequency - Max | 6GHz |
||
| Impedance | 50 ohm |
||
| Insulation Resistance | 5000 Ohms min |
||
| Insulator Material | PTFE |
||
| Mating Durability | ≥ 500 Cycles |
||
| Mounting Feature | SMT |
||
| Mounting Type | PCB Mount |
||
| Number of Ports | 1 |
||
| Orientation | Straight |
||
| RF Series | MMCX Type |
||
| Shell Finish | Gold Plated |
||
| Shell Material | Brass |
||
| Temperature Range | -65°C to +165°C |
||
| VSWR | 1.25MAX |
||
| Working Voltage | ＜170V rms |
||
| Connector Type | Jack |
Contact Type | Female Pin |
| Contact Finish | Gold Plated |
Contact Material | Brass |
| Fastening Type | Snap On |
Frequency - Max | 6GHz |
| Impedance | 50 ohm |
Insulation Resistance | 5000 Ohms min |
| Insulator Material | PTFE |
Mating Durability | ≥ 500 Cycles |
| Mounting Feature | SMT |
Mounting Type | PCB Mount |
| Number of Ports | 1 |
Orientation | Straight |
| RF Series | MMCX Type |
Shell Finish | Gold Plated |
| Shell Material | Brass |
Temperature Range | -65°C to +165°C |
| VSWR | 1.25MAX |
Working Voltage | ＜170V rms |
| Termination | Solder |
|---|---|
| Termination | Solder |
| Connector Type | Jack |
|---|---|
| Contact Type | Female Pin |
| Contact Finish | Gold Plated |
| Contact Material | Brass |
| Fastening Type | Snap On |
| Frequency - Max | 6GHz |
| Impedance | 50 ohm |
| Insulation Resistance | 5000 Ohms min |
| Insulator Material | PTFE |
| Mating Durability | ≥ 500 Cycles |
| Mounting Feature | SMT |
| Mounting Type | PCB Mount |
| Number of Ports | 1 |
| Orientation | Straight |
| RF Series | MMCX Type |
| Shell Finish | Gold Plated |
| Shell Material | Brass |
| Temperature Range | -65°C to +165°C |
| Termination | Solder |
| VSWR | 1.25MAX |
| Working Voltage | ＜170V rms |
Drawing for MMCX Connector Straight Jack Solder PCB Mount Download
