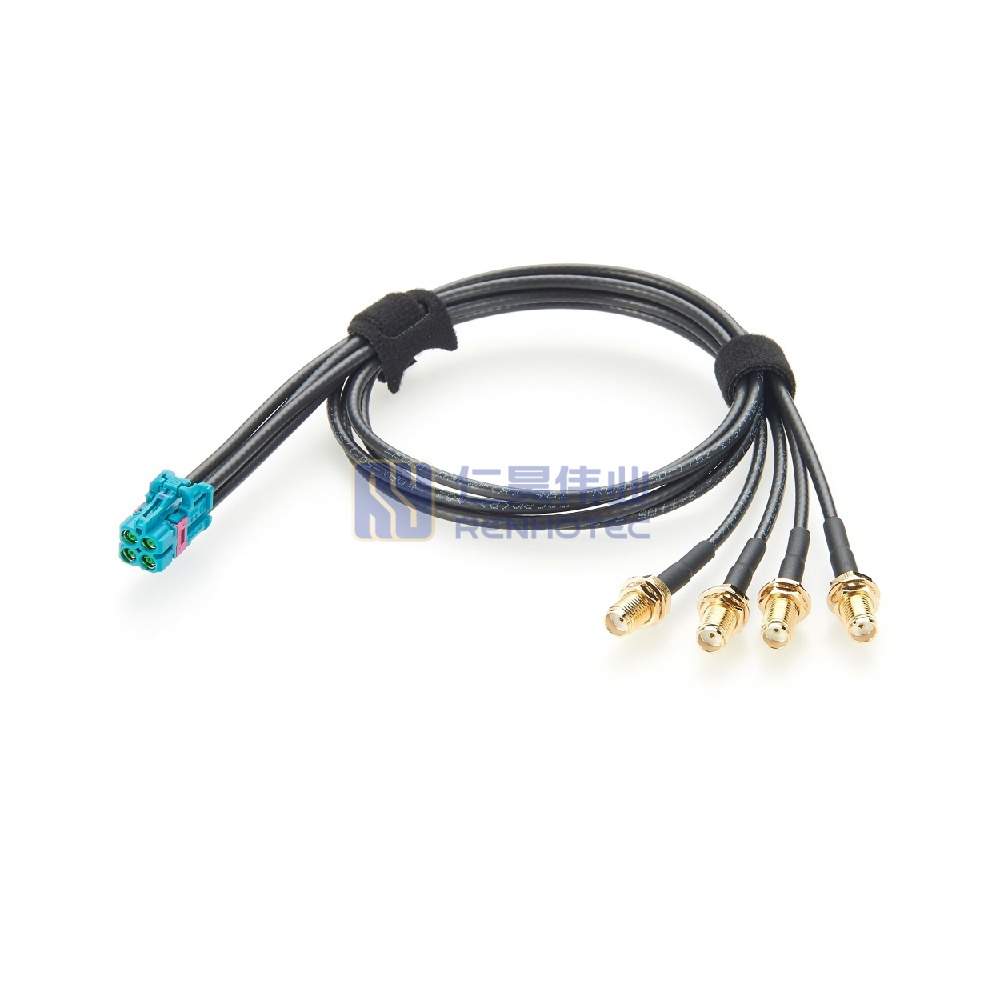

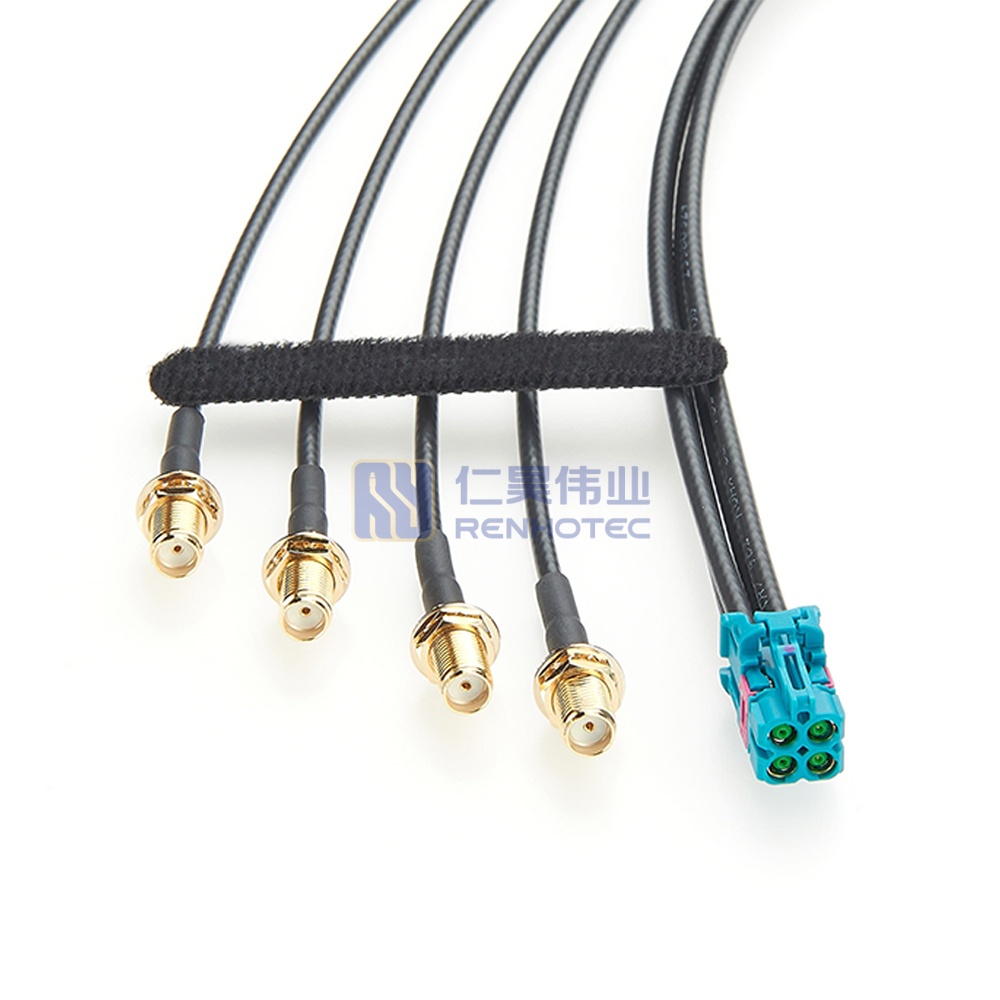

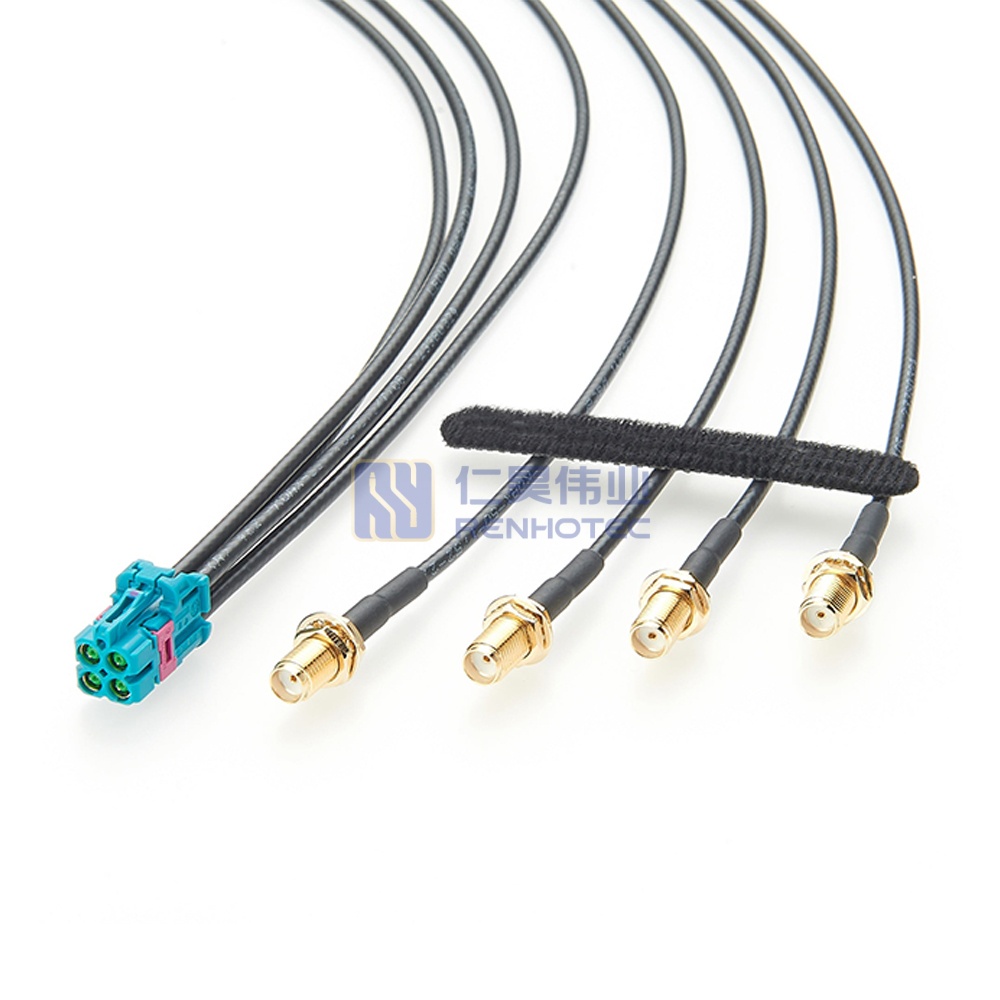

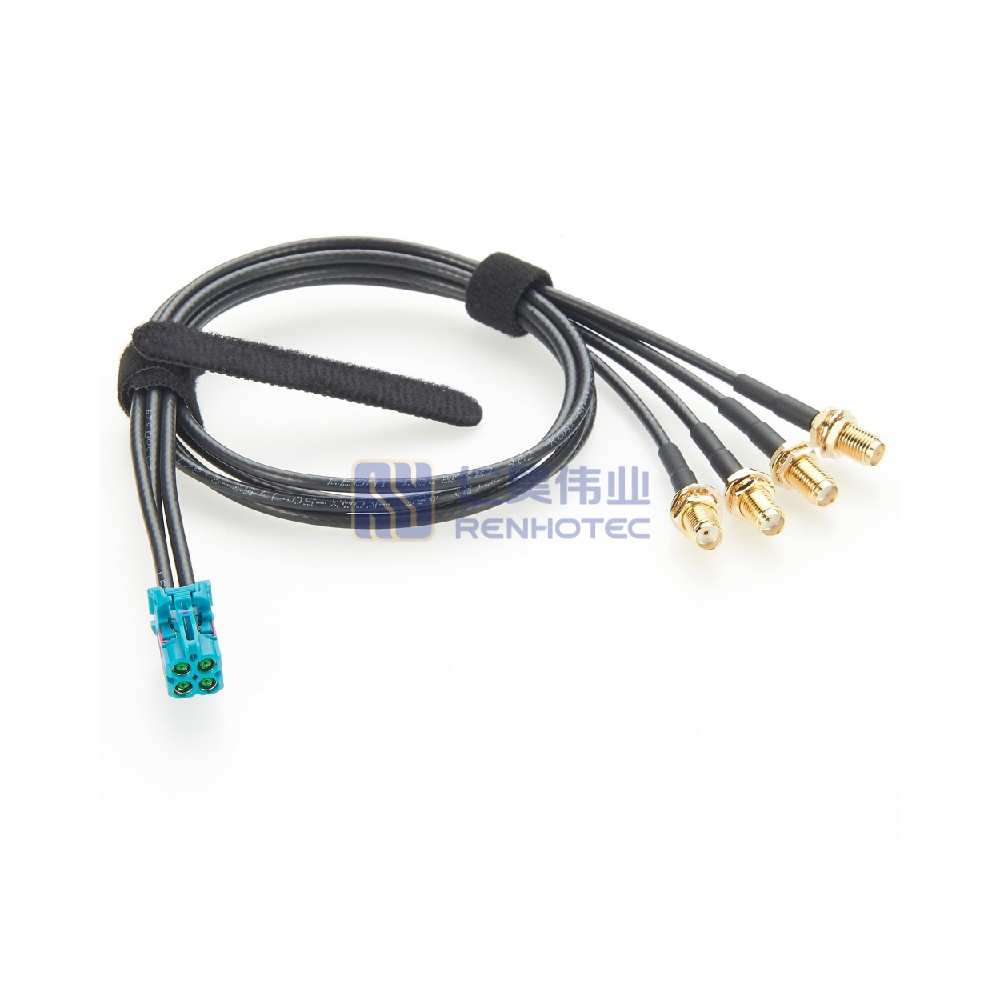

Mini FAKRA Quad Female to 4 x SMA Female Cable – RHT-605-20802
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF RHT-605-20802 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | RHT-605-20802 |
| TE Connectivity Alternative | 2298721-9 |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.
Product Specification
| RF Cable 1st Connector | Mini Fakra Z |
||
|---|---|---|---|
| RF Cable 2nd Connector | SMA |
||
| 1st Contact Type | Female Pin |
||
| 2nd Contact Type | Female Pin |
||
| 1st Connector | 2298721-9 |
||
| 2nd Connector | 4* SMA Female |
||
| Cable Type | LEONI DACAR 462 |
||
| Impedance | 50 ohm |
||
| Frequency Range | DC ~ 6 GHz |
||
| Temperature Range | -40°C to +105°C |
||
| VSWR | 1.80 MAX |
||
| RF Cable 1st Connector | Mini Fakra Z |
RF Cable 2nd Connector | SMA |
| 1st Contact Type | Female Pin |
2nd Contact Type | Female Pin |
| 1st Connector | 2298721-9 |
2nd Connector | 4* SMA Female |
| Cable Type | LEONI DACAR 462 |
Impedance | 50 ohm |
| Frequency Range | DC ~ 6 GHz |
Temperature Range | -40°C to +105°C |
| VSWR | 1.80 MAX |
| Length | Customized |
|---|---|
| Length | Customized |
| RF Cable 1st Connector | Mini Fakra Z |
|---|---|
| RF Cable 2nd Connector | SMA |
| 1st Contact Type | Female Pin |
| 2nd Contact Type | Female Pin |
| 1st Connector | 2298721-9 |
| 2nd Connector | 4* SMA Female |
| Cable Type | LEONI DACAR 462 |
| Length | Customized |
| Impedance | 50 ohm |
| Frequency Range | DC ~ 6 GHz |
| Temperature Range | -40°C to +105°C |
| VSWR | 1.80 MAX |
