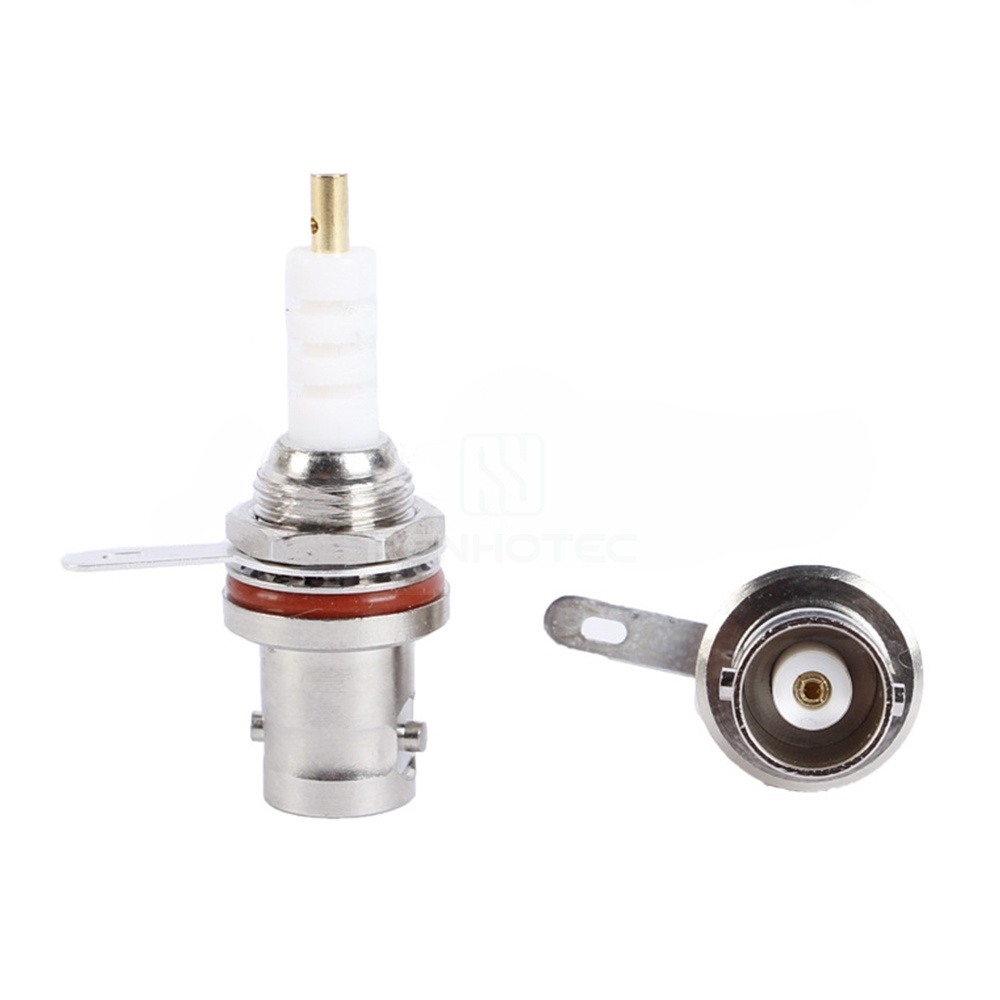

MHV 3000V High Voltage RF Connector-MHV-KY-3000V

The High Voltage RF Connector is a dedicated interconnect component engineered for the combined transmission of high-frequency RF signals and extremely high voltage or current. Based on the conventional coaxial framework, it tackles the critical challenge of maintaining reliable performance under kilovolt (kV) to tens of kilovolt conditions through innovative insulation and contact design. This component serves as a precise interface into high-energy applications.

Features

• HHV Type: Engineered for ultra-high voltage applications, this robust connector provides superior insulation and mechanical stability for heavy-duty environments.

• SHV Type: Features a recessed contact design that prevents accidental shock while disconnected. It is the industry standard for applications where operator safety is the top priority.

• MHV Type: A compact solution similar in size to BNC connectors. It is ideal for high-voltage setups where space is limited and a quick bayonet-lock mechanism is required.

HHV Type

SHV Type

MHV Type

Applications

• Power Device Test: For IGBT/SiC modules (kV, hundreds of A).
• Big Science: Particle accelerators & plasma research (UHV, precise pulses).
• Pulse Power: High-power radar/lasers (instantaneous high energy).
• RF Heating: Plastic welding & semiconductor manufacturing (high-power RF).
• Medical Imaging: X-ray & CT systems (high voltage & control).
