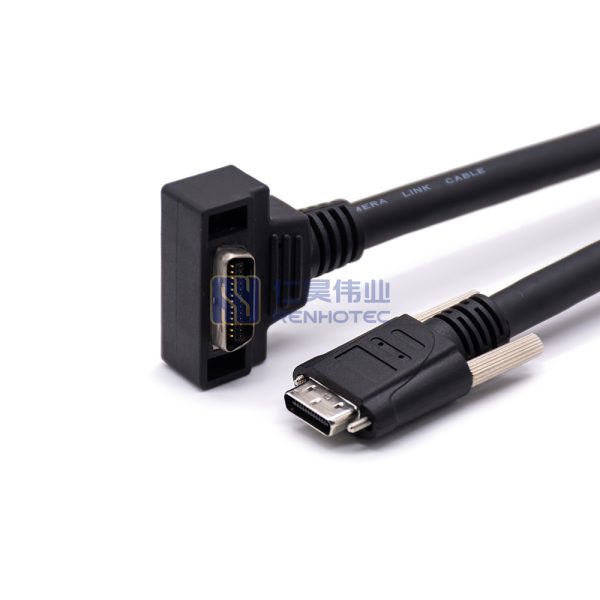

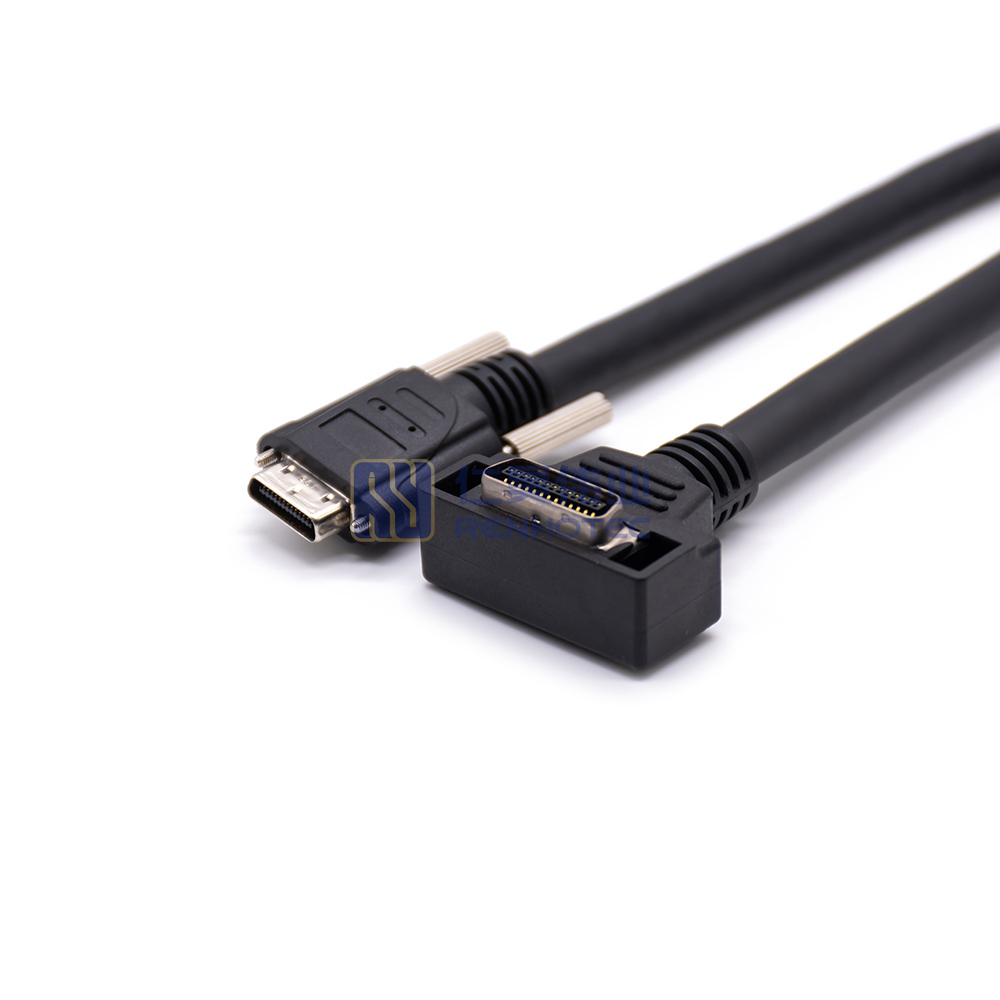

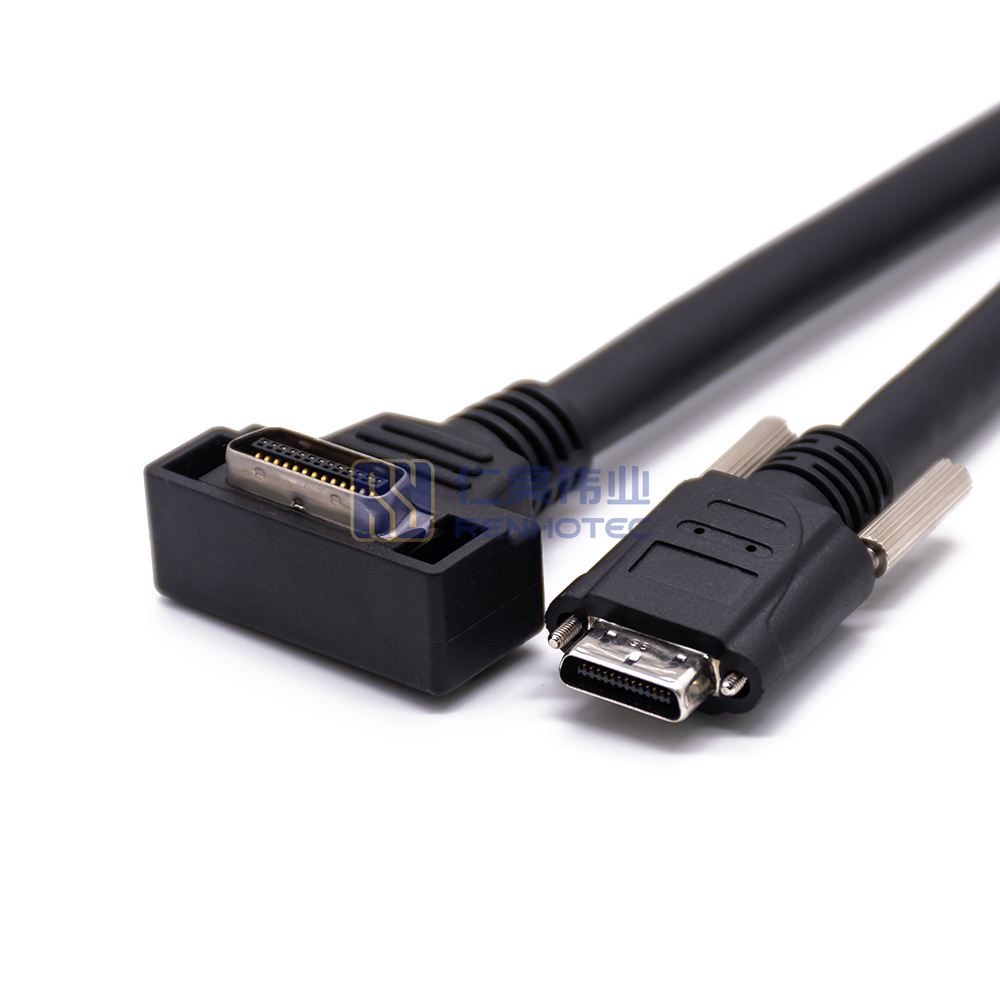

MDR Right Angle Plug to SDR Plug Camera Link Cable Assemblies with Screw Lock for Machine Vision

  • Real-time signal transmission, low latency
  • 100% electronic function test
  • Low noise and good performance when tilted
  • Superior shielding function
  • The wire harness is resistant to bending and highly flexible

The industrial camera is a key component in the machine vision system. Its most essential function is to convert the optical signal into an ordered electrical signal. The industrial camera harness is used to connect its data transmission and maintain the power supply.Industrial camera harnesses can be divided into 6 categories according to the interface, Camera link cable, IO trigger cable, industrial camera usb cable, industrial Ethernet cable, GigE Ethernet cable and CoaXPress cable.

The Camera Link cable is designed to meet the Camera Link interface standard, which defines the electrical, mechanical, and functional requirements for high-speed data transfer between cameras and image acquisition devices. The cable typically consists of a number of twisted pairs of wires, shielded to reduce electromagnetic interference and crosstalk.

When choosing a Camera Link cable, it is important to consider factors such as cable length, connector type, and cable quality. The cable should also be compatible with the camera and image acquisition device being used.



Application Scenarios

1. Industrial imaging technology
2. Machine Vision System
3. Industrial cameras
4. Scan on pipeline processing
5. Product testing
6. Image recognition
7. Factory Automation System

Product Specification

Cable Style

MDR to SDR

Cable 1st Connector

MDR Plug

1st Connector Number of Positions

26 Pin

1st Connector Orientation

Right Angle

1st Connector Mounting Type

Cable Type

1st Connector Contact Termination

Solder

Cable 2nd Connector

SDR Screw-on Plug

2nd Connector Number of Positions

26 Pin

2nd Connector Orientation

Straight

2nd Connector Mounting Type

Cable Type

2nd Connector Contact Termination

Solder

Cable length

25cm

Cable Color

Black

Temperature Range

-40°C to +105°C

Cable Style

MDR to SDR

Cable 1st Connector

MDR Plug

1st Connector Number of Positions

26 Pin

1st Connector Orientation

Right Angle

1st Connector Mounting Type

Cable Type

1st Connector Contact Termination

Solder

Cable 2nd Connector

SDR Screw-on Plug

2nd Connector Number of Positions

26 Pin

2nd Connector Orientation

Straight

2nd Connector Mounting Type

Cable Type

2nd Connector Contact Termination

Solder

Cable length

25cm

Cable Color

Black

Temperature Range

-40°C to +105°C

Cable Style

MDR to SDR

Cable 1st Connector

MDR Plug

1st Connector Number of Positions

26 Pin

1st Connector Orientation

Right Angle

1st Connector Mounting Type

Cable Type

1st Connector Contact Termination

Solder

Cable 2nd Connector

SDR Screw-on Plug

2nd Connector Number of Positions

26 Pin

2nd Connector Orientation

Straight

2nd Connector Mounting Type

Cable Type

2nd Connector Contact Termination

Solder

Cable length

25cm

Cable Color

Black

Temperature Range

-40°C to +105°C
