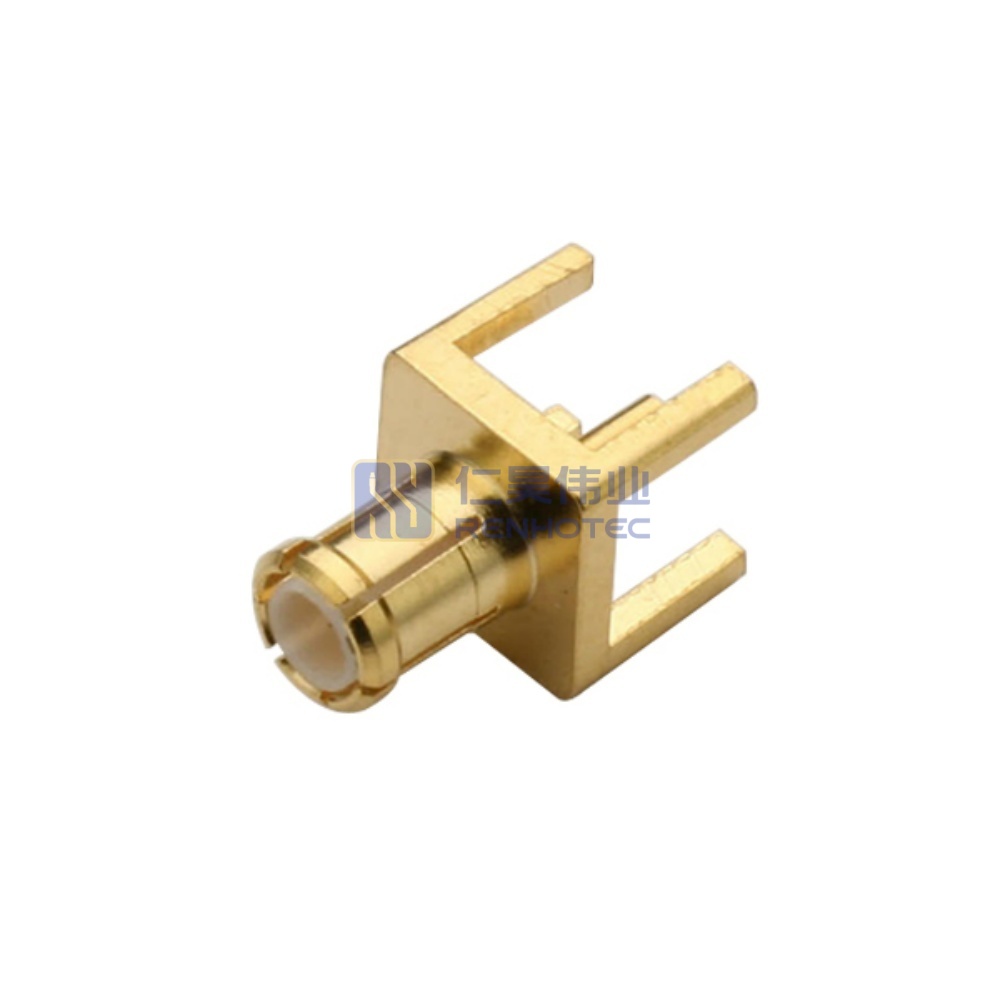

MCX Connector Straight Plug PCB Mount 50ohm – RHT-617-1023
Straight MCX through-hole plug, 50Ω, board-mounted male connector for permanent integration into RF circuitry, offers secure inter-board signal transfer with low return loss, operates effectively up to 6 GHz, ideal for industrial controllers, telecommunication backplanes, and embedded system interfaces.
Product Specification
| RF Series | MCX Type |
||
|---|---|---|---|
| Connector Type | Plug |
||
| Orientation | Straight |
||
| Contact Type | Male Pin |
||
| Mounting Type | PCB Mount |
||
| Mounting Feature | Through Hole |
||
| Contact Termination Style | Solder |
||
| Shell Material | Brass |
||
| Shell Finish | Gold Plating |
||
| Contact Material | Phosphor |
||
| Contact Finish | Gold Plating |
||
| Insulator Material | TEFLON |
||
| Frequency Range | 6GHz |
||
| Impedance | 50 ohm |
||
| Center Contact Resistance | 5 MΩ Min |
||
| Outer Contact Resistance | 1 MΩ Min |
||
| Rated Voltage | 500 Volts RMS Max Continuous |
||
| Fastening Type | Push-in |
||
| RF Series | MCX Type |
Connector Type | Plug |
| Orientation | Straight |
Contact Type | Male Pin |
| Mounting Type | PCB Mount |
Mounting Feature | Through Hole |
| Contact Termination Style | Solder |
Shell Material | Brass |
| Shell Finish | Gold Plating |
Contact Material | Phosphor |
| Contact Finish | Gold Plating |
Insulator Material | TEFLON |
| Frequency Range | 6GHz |
Impedance | 50 ohm |
| Center Contact Resistance | 5 MΩ Min |
Outer Contact Resistance | 1 MΩ Min |
| Rated Voltage | 500 Volts RMS Max Continuous |
Fastening Type | Push-in |
| RF Series | MCX Type |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Contact Type | Male Pin |
| Mounting Type | PCB Mount |
| Mounting Feature | Through Hole |
| Contact Termination Style | Solder |
| Shell Material | Brass |
| Shell Finish | Gold Plating |
| Contact Material | Phosphor |
| Contact Finish | Gold Plating |
| Insulator Material | TEFLON |
| Frequency Range | 6GHz |
| Impedance | 50 ohm |
| Center Contact Resistance | 5 MΩ Min |
| Outer Contact Resistance | 1 MΩ Min |
| Rated Voltage | 500 Volts RMS Max Continuous |
| Fastening Type | Push-in |
The connector was developed in Europe from the 1980s to the 1990s. It adopts a push-in coupling method and is suitable for quick insertion and removal. Ultra-micro size, small size, lightweight, compact structure, widely used in small communication equipment with space constraints.
MCX connectors are approximately 30% smaller than SMB connectors, are available in both 50 and 75 Ohm versions, and provide good electrical performance to 6 GHz.
Mainly applicable to aerospace and defense, medical, commercial vehicles, telecommunications, data/communications, industrial, etc.
MCX Connector
MMCX Connector
Interface
Application Scenarios
Drawing for MCX Straight Plug PCB 50ohmDownload
