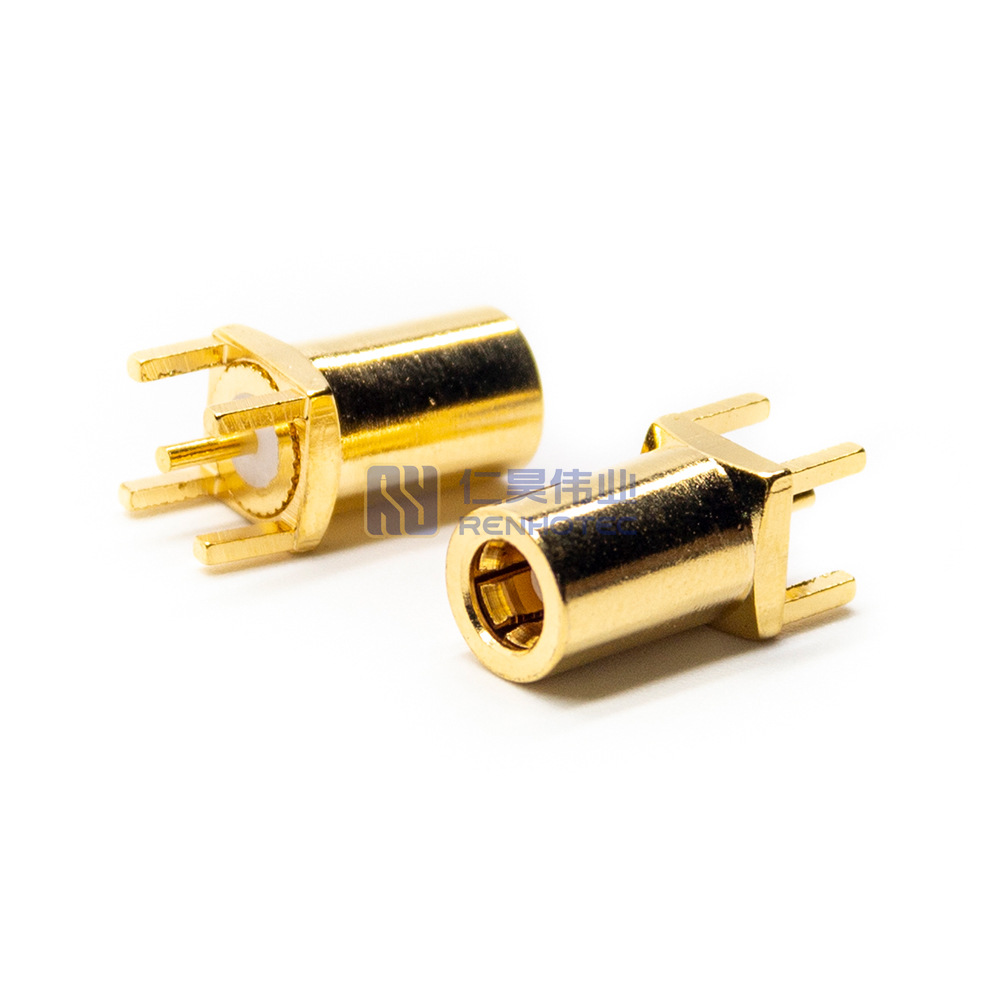

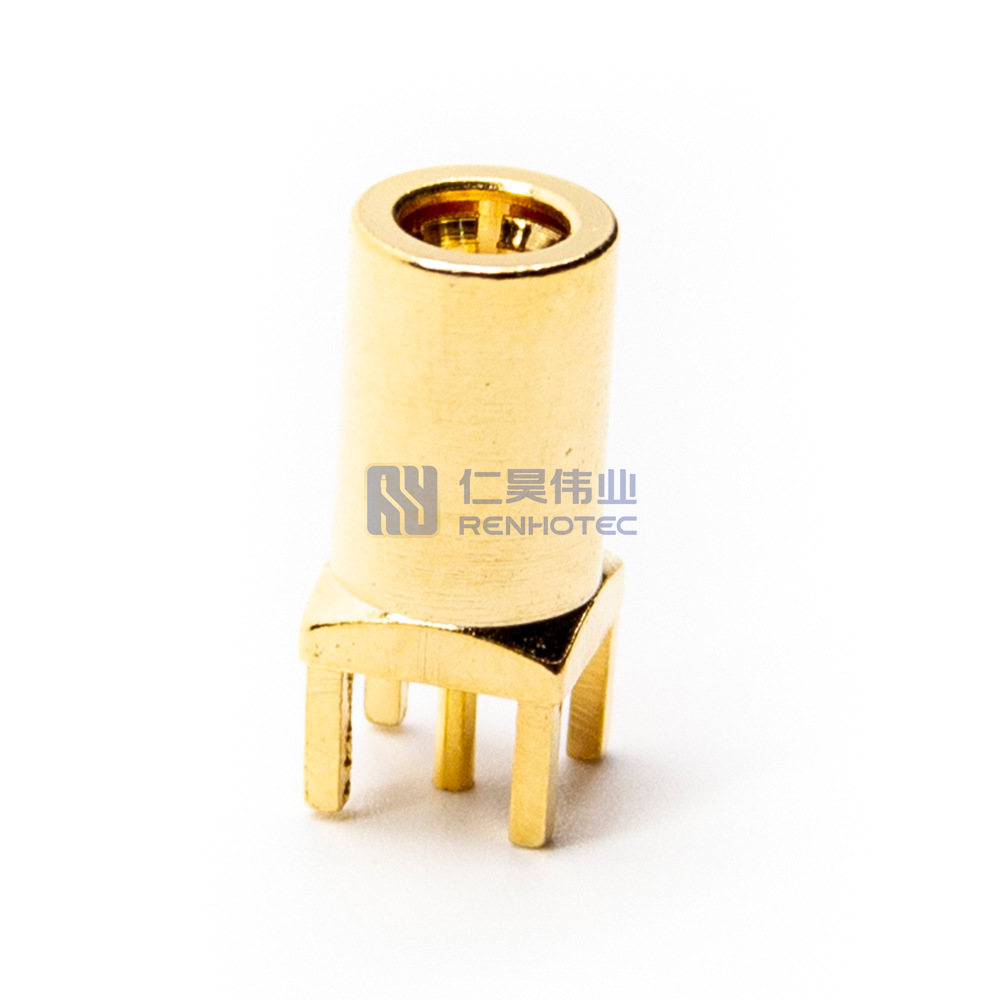

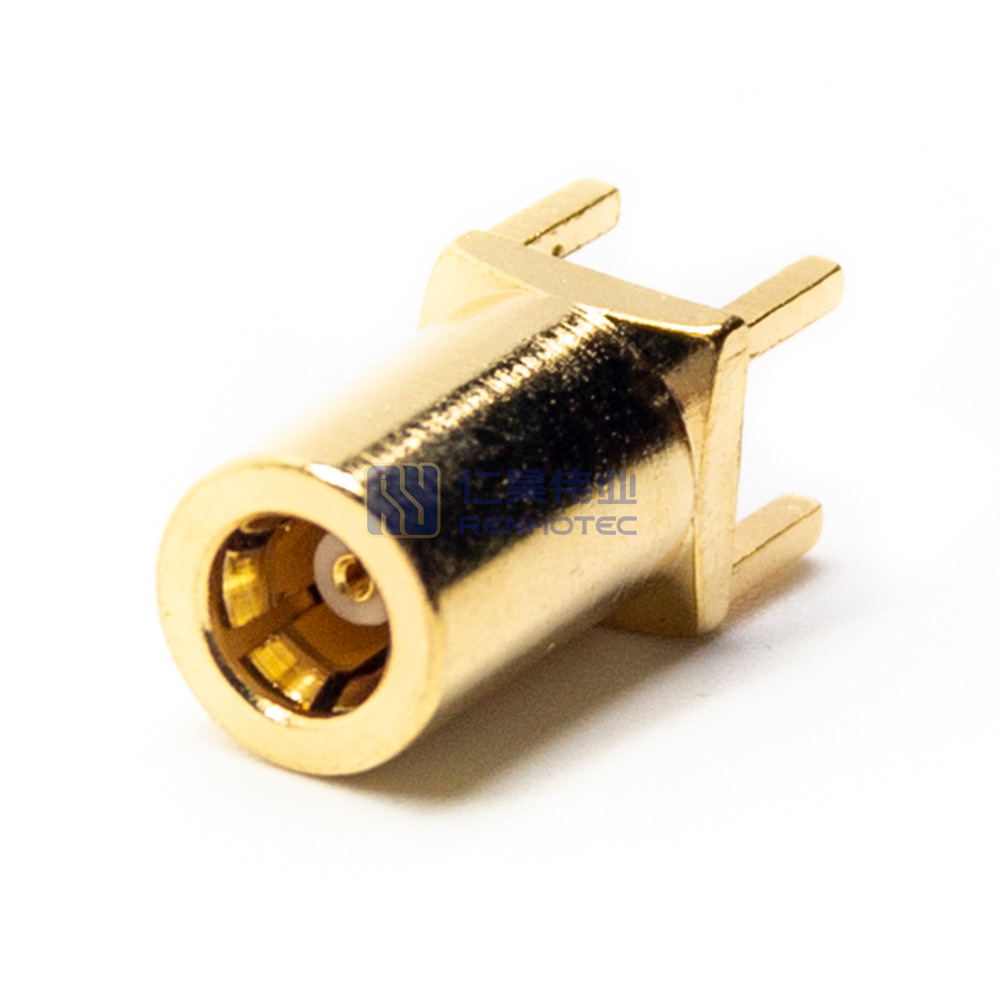

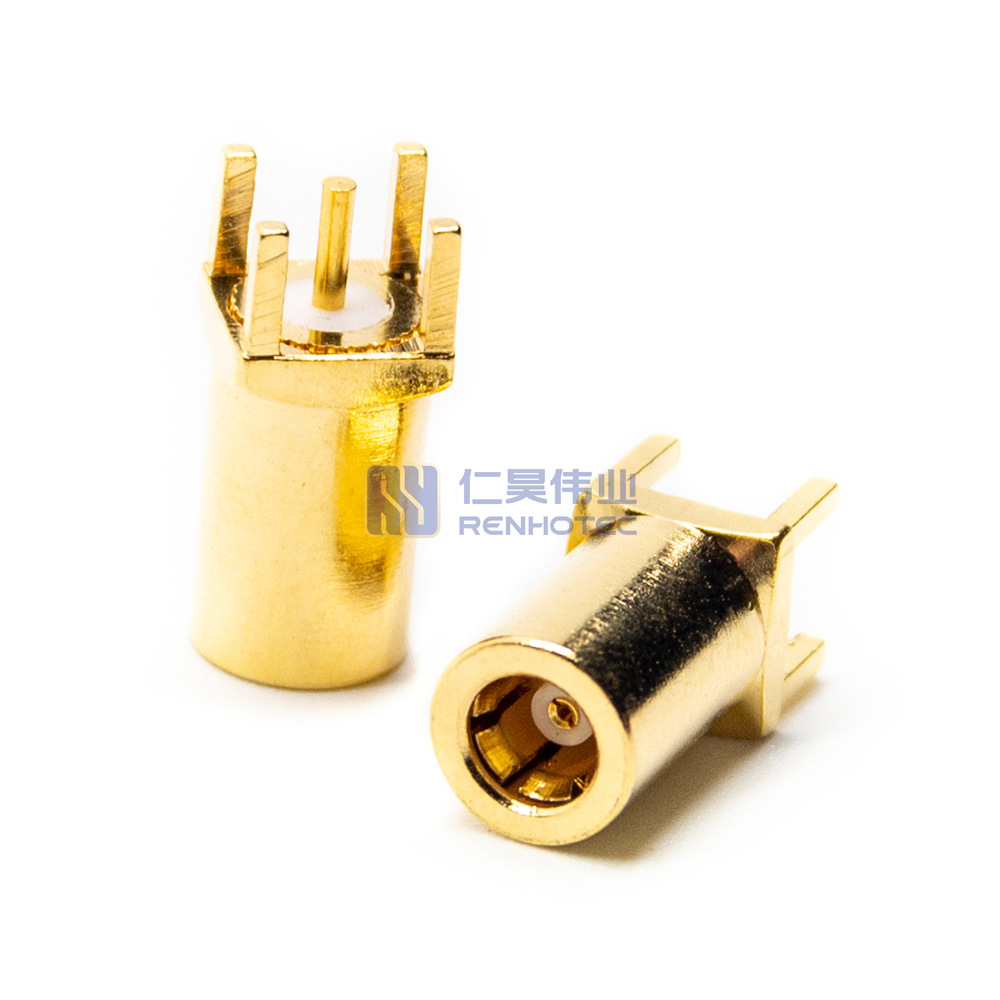

MCX Connector Jack Solder Panel Mount Through Hole – RHT-617-0102
- Broadband performance with low reflection
- High-quality solution at a low cost
- Quick connect/disconnect snap-on mating reduces installation time
- Conforms to European CECC 22000 specifications
- Available in straight and right-angle plugs and printed circuit board connectors
The connector was developed in Europe from the 1980s to the 1990s. It adopts a push-in coupling method and is suitable for quick insertion and removal. Ultra-micro size, small size, lightweight, compact structure, widely used in small communication equipment with space constraints.
MCX connectors are approximately 30% smaller than SMB connectors, are available in both 50 and 75 Ohm versions, and provide good electrical performance to 6 GHz.
Mainly applicable to aerospace and defense, medical, commercial vehicles, telecommunications, data/communications, industrial, etc.
MCX Connector
MMCX Connector
Interface
Application Scenarios
Product Specification
RF Series | MCX Type |
||
---|---|---|---|
Connector Type | Jack |
||
Orientation | Straight |
||
Contact Type | Female Pin |
||
Contact Termination Style | Solder |
||
Shield Termination | Solder |
||
Mounting Type | Panel Mount |
||
Mounting Feature | Through Hole |
||
Fastening Type | Push-Pull |
||
Number of Ports | 1 |
||
Impedance | 75 ohm |
||
Frequency - Max | 6GHz |
||
Shell Material | Copper Alloy |
||
Shell Finish | Gold Plated |
||
Insulator Material | Teflon White |
||
Contact Material | Brass |
||
Contact Finish | Gold Plated |
||
Rated Voltage | 500 Volts RMS Max Continuous |
||
Dielectric Withstanding Voltage | 1000 VRMS Max |
||
Insultation Resistance | 500 MΩ Min |
||
Center Contact Resistance | 5 MΩ Min |
||
Outer Contact Resistance | 1 MΩ Min |
||
Temperature Range | -65℃ to +165℃ |
||
Mating Durability | ≥ 500 Cycles |
||
VSWR | ≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz) |
||
Vibration | MIL-STD-202 Meth. 204 |
||
Corrosion Resistance | MIL-STD-202 Meth. 101 |
||
RF Series | MCX Type |
Connector Type | Jack |
Orientation | Straight |
Contact Type | Female Pin |
Contact Termination Style | Solder |
Shield Termination | Solder |
Mounting Type | Panel Mount |
Mounting Feature | Through Hole |
Fastening Type | Push-Pull |
Number of Ports | 1 |
Impedance | 75 ohm |
Frequency - Max | 6GHz |
Shell Material | Copper Alloy |
Shell Finish | Gold Plated |
Insulator Material | Teflon White |
Contact Material | Brass |
Contact Finish | Gold Plated |
Rated Voltage | 500 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 1000 VRMS Max |
Insultation Resistance | 500 MΩ Min |
Center Contact Resistance | 5 MΩ Min |
Outer Contact Resistance | 1 MΩ Min |
Temperature Range | -65℃ to +165℃ |
Mating Durability | ≥ 500 Cycles |
VSWR | ≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz) |
Vibration | MIL-STD-202 Meth. 204 |
Corrosion Resistance | MIL-STD-202 Meth. 101 |
RF Series | MCX Type |
---|---|
Connector Type | Jack |
Orientation | Straight |
Contact Type | Female Pin |
Contact Termination Style | Solder |
Shield Termination | Solder |
Mounting Type | Panel Mount |
Mounting Feature | Through Hole |
Fastening Type | Push-Pull |
Number of Ports | 1 |
Impedance | 75 ohm |
Frequency - Max | 6GHz |
Shell Material | Copper Alloy |
Shell Finish | Gold Plated |
Insulator Material | Teflon White |
Contact Material | Brass |
Contact Finish | Gold Plated |
Rated Voltage | 500 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 1000 VRMS Max |
Insultation Resistance | 500 MΩ Min |
Center Contact Resistance | 5 MΩ Min |
Outer Contact Resistance | 1 MΩ Min |
Temperature Range | -65℃ to +165℃ |
Mating Durability | ≥ 500 Cycles |
VSWR | ≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz) |
Vibration | MIL-STD-202 Meth. 204 |
Corrosion Resistance | MIL-STD-202 Meth. 101 |
