SKU: I01-R01-10006-200 Category:

Authorized Sellers


Request for Quotation

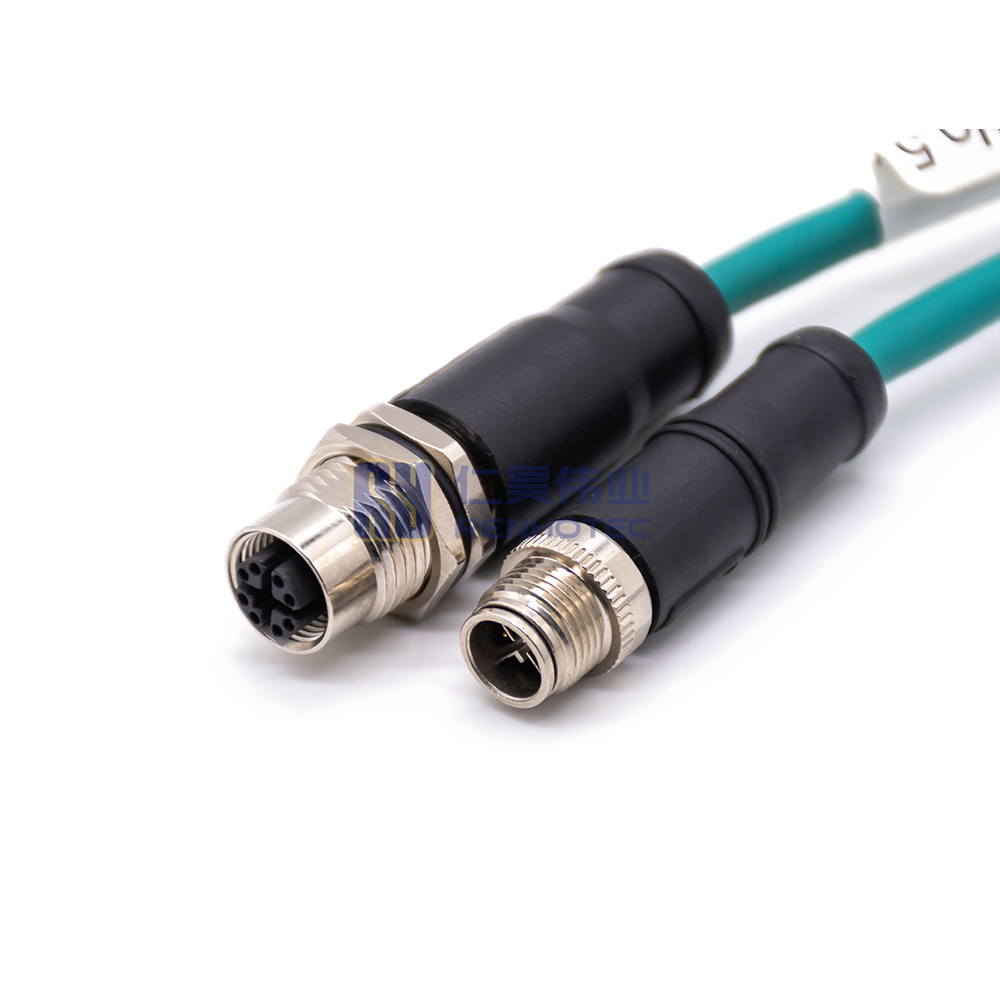

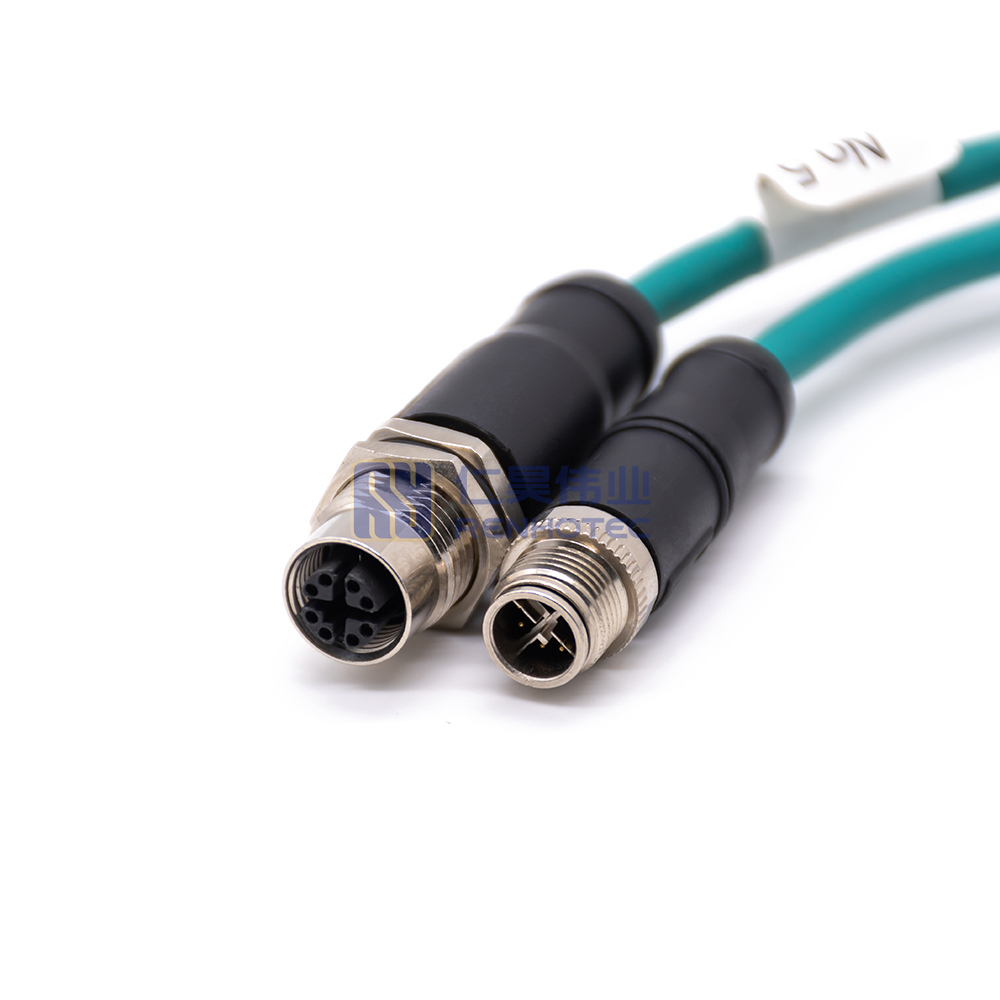

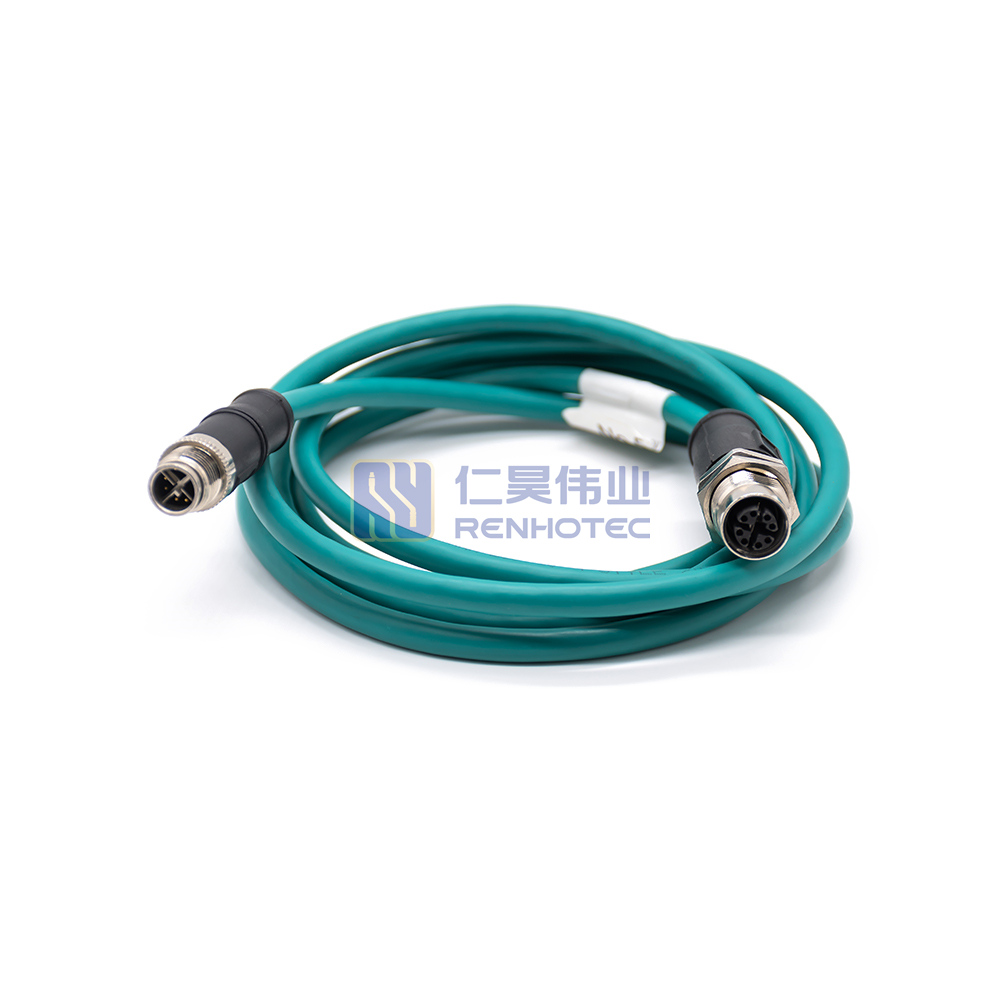

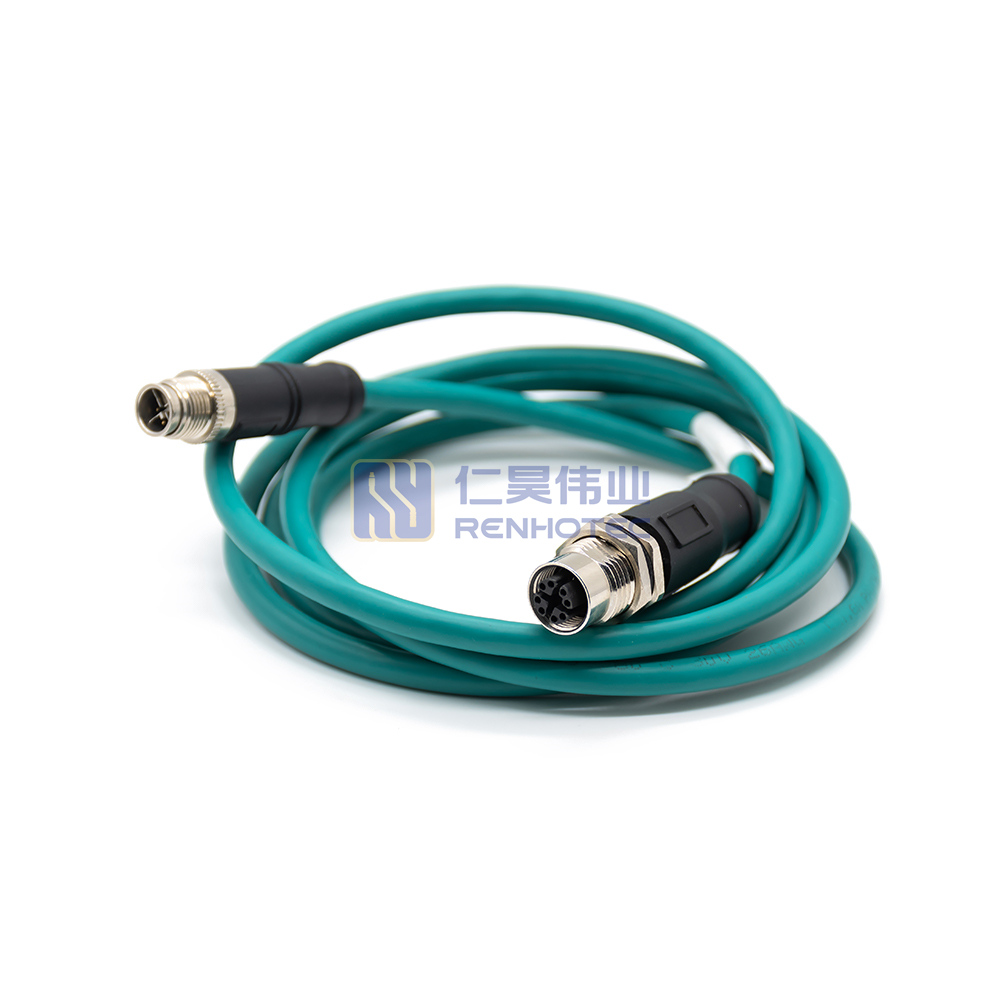

M12 Plug X code to M12 Jack X code 8 Pin 26AWG 2m GigE Camera Cable

  • Real-time signal transmission, low latency
  • 100% electronic function test
  • Low noise and good performance when tilted
  • Superior shielding function
  • The wire harness is resistant to bending and highly flexible

The industrial camera is a key component in the machine vision system. Its most essential function is to convert the optical signal into an ordered electrical signal. The industrial camera harness is used to connect its data transmission and maintain the power supply.Industrial camera harnesses can be divided into 6 categories according to the interface, Camera link cable, IO trigger cable, industrial camera usb cable, industrial Ethernet cable, GigE Ethernet cable and CoaXPress cable. Compatible with most industrial brand cameras.Can be customized with bayonet type or screw type, right angle or straight type, injection molded type or use assembled type; OEM is also acceptable.

When choosing a GigE camera cable, it is important to consider factors such as cable length, data transmission speed, and durability. Some cables are designed for use in harsh environments and are resistant to moisture, heat, and chemicals.

Application Scenarios

1. Industrial imaging technology
2. Machine Vision System
3. Industrial cameras
4. Scan on pipeline processing
5. Product testing
6. Image recognition
7. Factory Automation System

Product Specification

Cable Style

M12 to M12

Cable 1st Connector

M12 Plug,X code

1st Contact Type

Male Pin

1st Connector Number of Positions

8 Pin

1st Connector Orientation

Straight

1st Connector Mounting Type

Cable Type

1st Connector Contact Termination

Solder

Cable 2nd Connector

M12 Jack,X code

2nd Contact Type

Female Pin

2nd Connector Number of Positions

8 Pin

2nd Connector Orientation

Straight

2nd Connector Mounting Type

Cable Type

2nd Connector Contact Termination

Solder

Cable Type

26AWG

Cable length

20cm

Cable Color

Green

Temperature Range

-65℃ to +165℃

Cable Style

M12 to M12

Cable 1st Connector

M12 Plug,X code

1st Contact Type

Male Pin

1st Connector Number of Positions

8 Pin

1st Connector Orientation

Straight

1st Connector Mounting Type

Cable Type

1st Connector Contact Termination

Solder

Cable 2nd Connector

M12 Jack,X code

2nd Contact Type

Female Pin

2nd Connector Number of Positions

8 Pin

2nd Connector Orientation

Straight

2nd Connector Mounting Type

Cable Type

2nd Connector Contact Termination

Solder

Cable Type

26AWG

Cable length

20cm

Cable Color

Green

Temperature Range

-65℃ to +165℃
