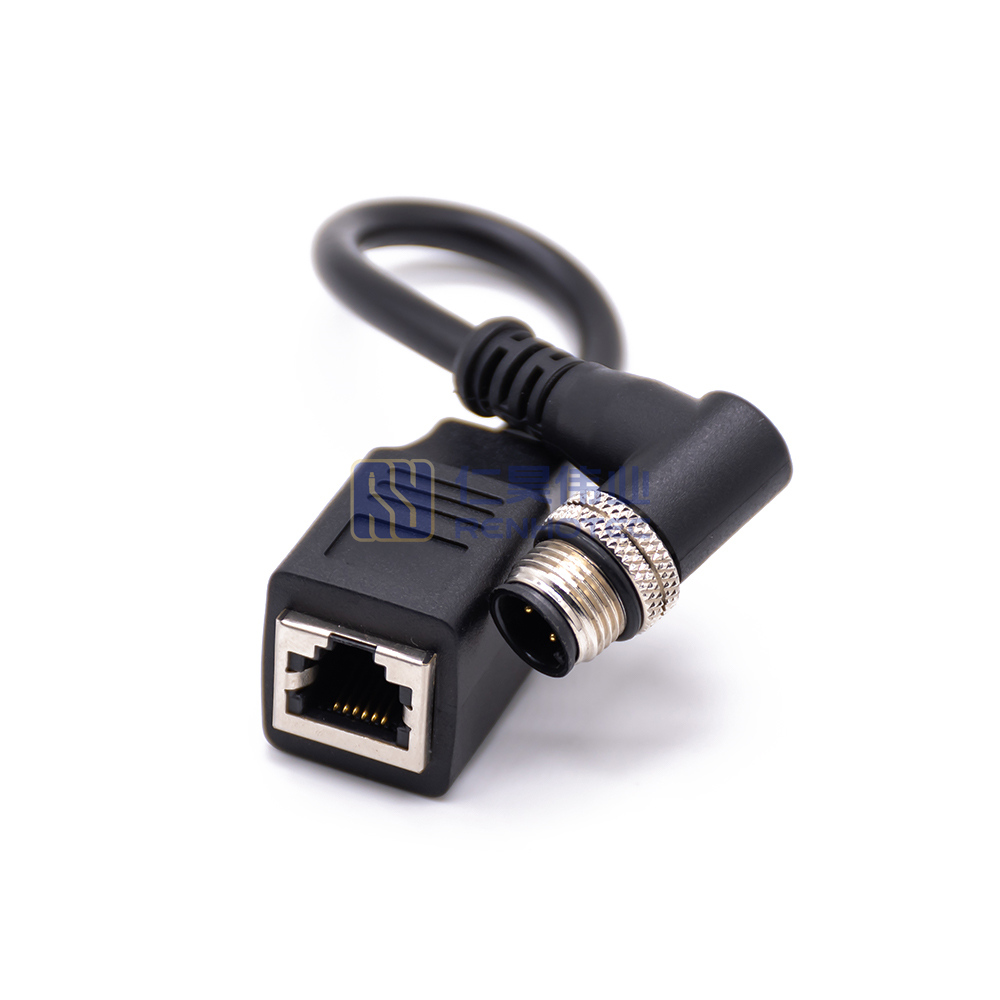

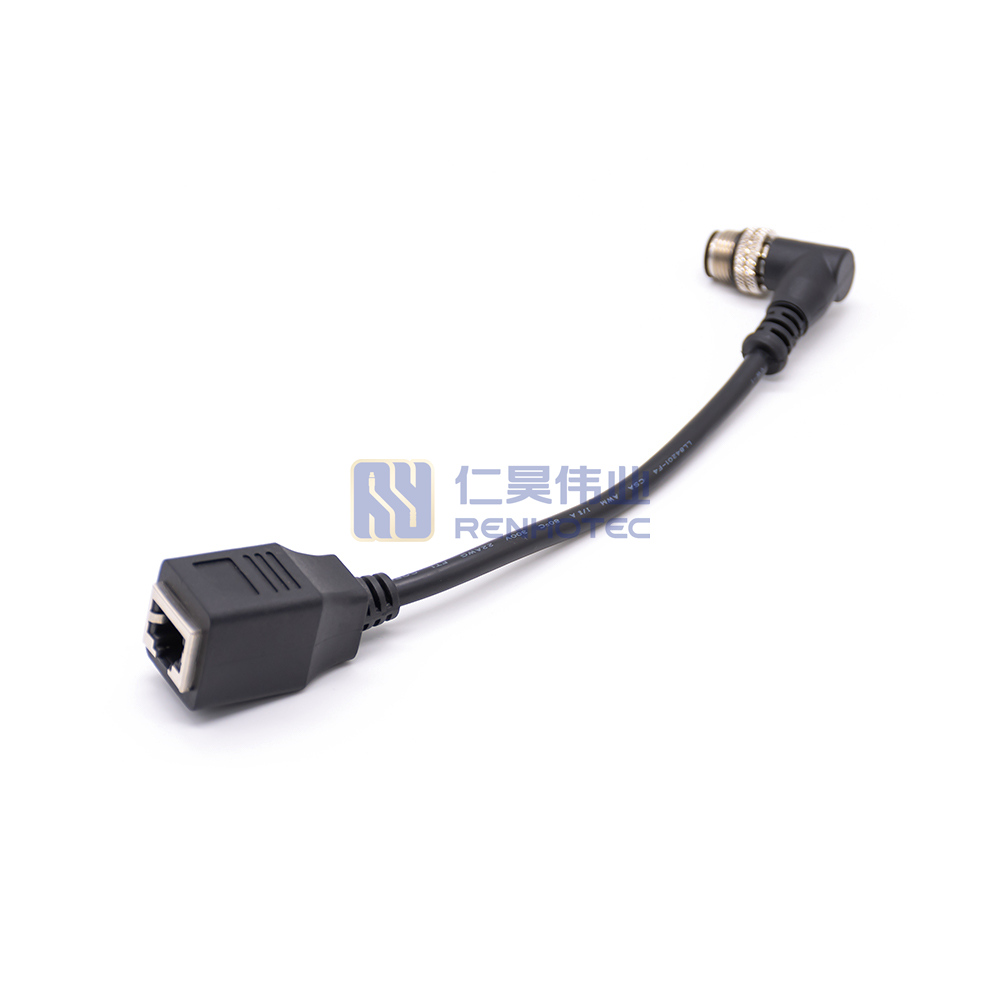

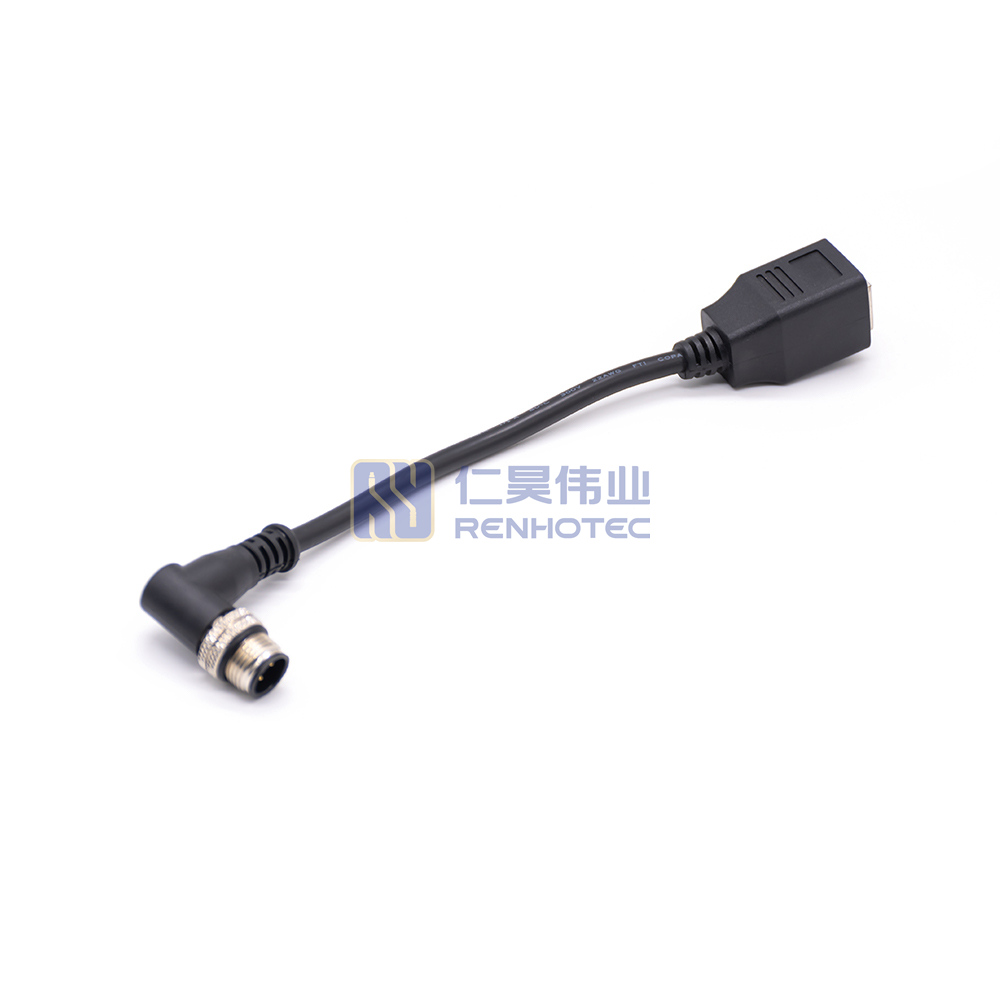

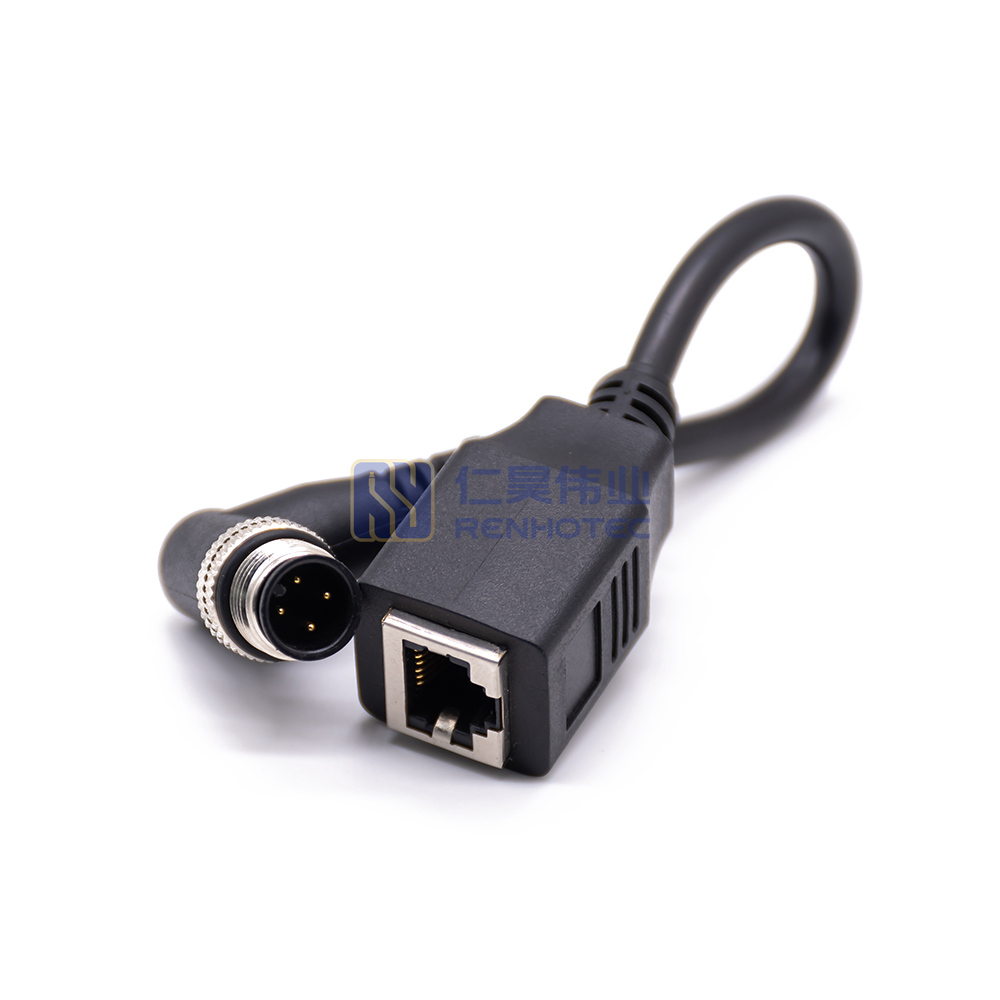

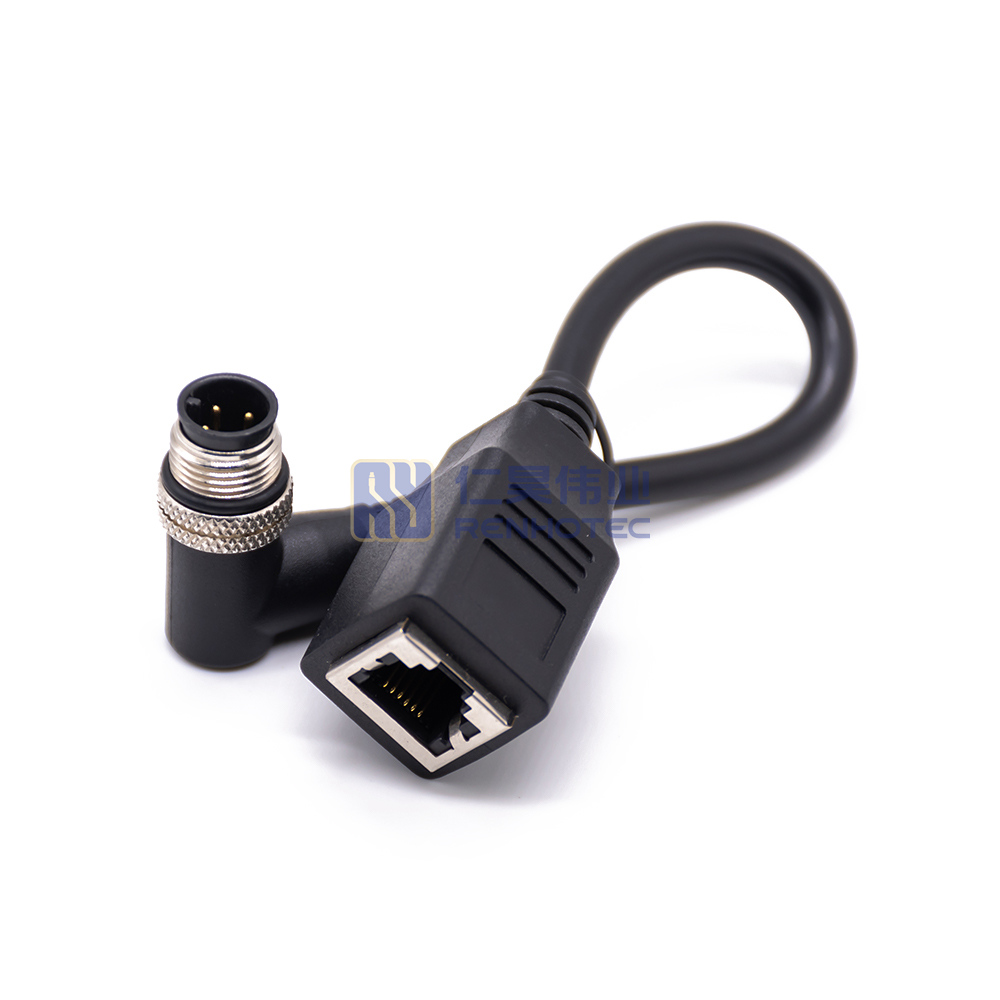

GigE Camera Cable for Data Transmission with M12 4Pin Connector and RJ45 Connector
- Real-time signal transmission, low latency
- 100% electronic function test
- Low noise and good performance when tilted
- Superior shielding function
- The wire harness is resistant to bending and highly flexible
The industrial camera is a key component in the machine vision system. Its most essential function is to convert the optical signal into an ordered electrical signal. The industrial camera harness is used to connect its data transmission and maintain the power supply.Industrial camera harnesses can be divided into 6 categories according to the interface, Camera link cable, IO trigger cable, industrial camera usb cable, industrial Ethernet cable, GigE Ethernet cable and CoaXPress cable. Compatible with most industrial brand cameras.Can be customized with bayonet type or screw type, right angle or straight type, injection molded type or use assembled type; OEM is also acceptable.
When choosing a GigE camera cable, it is important to consider factors such as cable length, data transmission speed, and durability. Some cables are designed for use in harsh environments and are resistant to moisture, heat, and chemicals.
Application Scenarios
1. Industrial imaging technology
2. Machine Vision System
3. Industrial cameras
4. Scan on pipeline processing
5. Product testing
6. Image recognition
7. Factory Automation System
Product Specification
Cable Style | M12 to RJ45 |
||
---|---|---|---|
Cable 1st Connector | M12 Plug,A code |
||
1st Contact Type | Male Pin |
||
1st Connector Number of Positions | 4 Pin |
||
1st Connector Orientation | Right Angle |
||
1st Connector Mounting Type | Cable Type |
||
1st Connector Contact Termination | Solder |
||
Cable 2nd Connector | RJ45 Jack |
||
2nd Connector Orientation | Straight |
||
2nd Connector Mounting Type | Cable Type |
||
2nd Connector Contact Termination | Solder |
||
Cable length | 20cm |
||
Cable Color | Black |
||
Temperature Range | -65℃ to +165℃ |
||
Cable Style | M12 to RJ45 |
Cable 1st Connector | M12 Plug,A code |
1st Contact Type | Male Pin |
1st Connector Number of Positions | 4 Pin |
1st Connector Orientation | Right Angle |
1st Connector Mounting Type | Cable Type |
1st Connector Contact Termination | Solder |
Cable 2nd Connector | RJ45 Jack |
2nd Connector Orientation | Straight |
2nd Connector Mounting Type | Cable Type |
2nd Connector Contact Termination | Solder |
Cable length | 20cm |
Cable Color | Black |
Temperature Range | -65℃ to +165℃ |
Cable Style | M12 to RJ45 |
---|---|
Cable 1st Connector | M12 Plug,A code |
1st Contact Type | Male Pin |
1st Connector Number of Positions | 4 Pin |
1st Connector Orientation | Right Angle |
1st Connector Mounting Type | Cable Type |
1st Connector Contact Termination | Solder |
Cable 2nd Connector | RJ45 Jack |
2nd Connector Orientation | Straight |
2nd Connector Mounting Type | Cable Type |
2nd Connector Contact Termination | Solder |
Cable length | 20cm |
Cable Color | Black |
Temperature Range | -65℃ to +165℃ |
Renhotec Information
We have two factories, one is located in Dongguan city, another in Jiangmen city. Visitors are always welcome.
RF Connector Compatibility
Yes, our RF connector interface dimension conform international standards. Normally it’s interchangeable with similar products of other brands, it’s better to send us the datasheet/sample of other brands for check before order.
We recommend that you provide us with detailed specifications of your existing interfaces and cables, performance requirement and usage environment, so that our technical team can evaluate them.
Please advise your PCB layout dimension requirement, we’ll recommend you the most suitable Renhotec drawing for check.
Customization and Sample Testing
Yes, we offer customization services to meet your specific needs. Please provide your specification, performance requirement or drawing, photos, or samples for evaluation.
Yes, we provide customised services, it has MOQ requirement, please send your requirement for our engineer team evaluation.
Yes, please advise the thread length for evaluation.
Yes, we can. Please send us the datasheet or connector and cable requirement, we can produce as per request.
Yes, please share it and the requirement with us, our engineer team will evaluate it.
RF Connector Specifications
The impedance of an RF connector typically refers to the characteristic impedance of the transmission line it supports. The most common characteristic impedances for RF connectors are 50 ohms and 75 ohms. Please select an RF connector with the appropriate characteristic impedance to ensure optimal signal transmission and minimal signal loss within the system.
Order Lead Time
Lead time depends on the product type, quantity, and production status. For items ready in stock, the lead time is 3-5 working days. For common items, the lead time for 10K is 10-12 working days. The accurate lead time can be provided once the order is confirmed.
Shipping and Packaging
For small quantities, we ship by express. For larger quantities, we ship by sea, air, railway, or truck.
Our standard packaging methods include blister box/polybag with label in a carton box. We can also package as per request.
Payment Methods
Accepted payment methods include T/T, Paypal, etc.
Quality Assurance
Yes, we can provide regular inspection reports. If you have a special requirement, please let us know.
Yes, they conform. RoHS and REACH test reports are available.
Our products have 12 months’ warranty. It’s better to provide the feedback within one month after you receive the goods.
