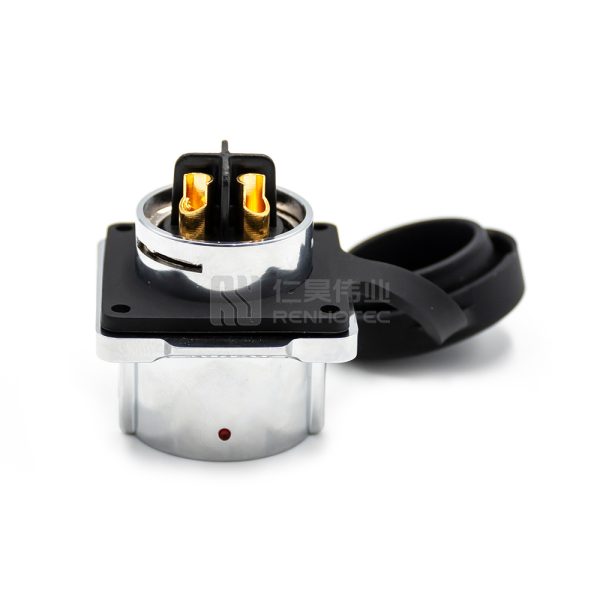

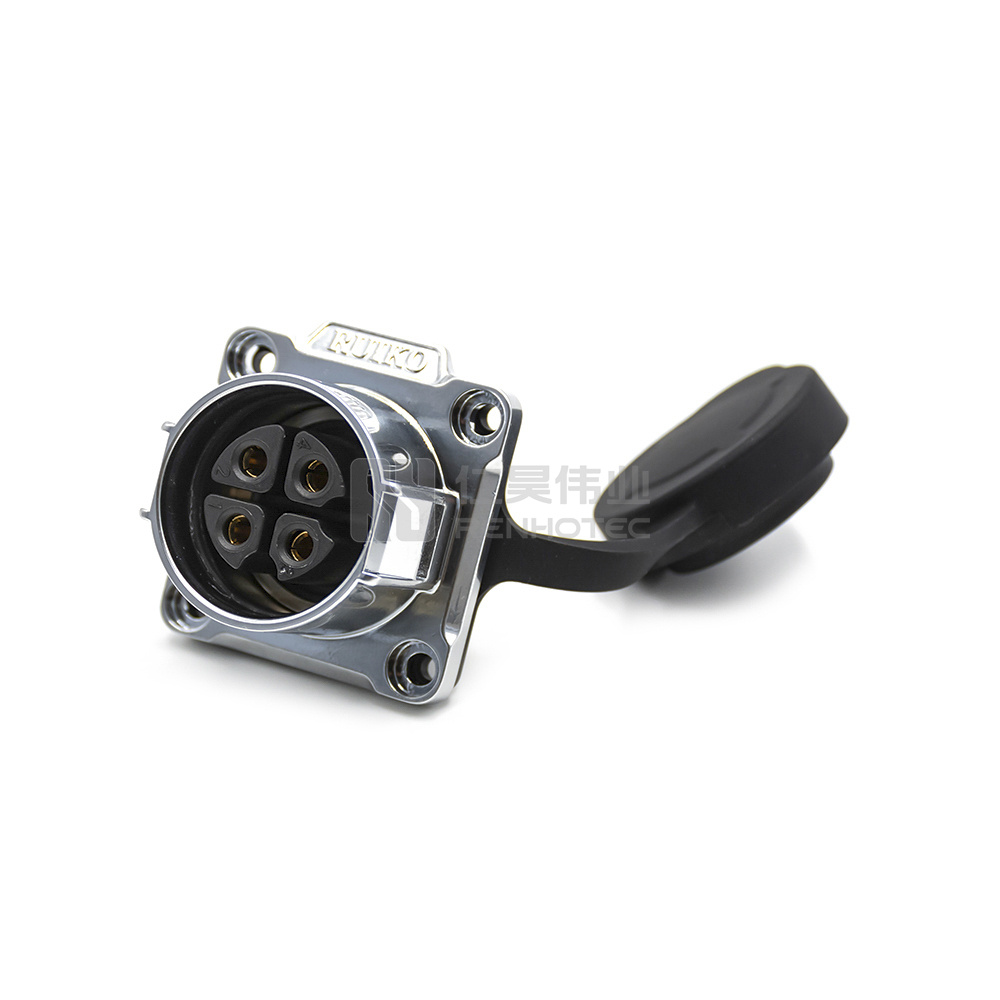

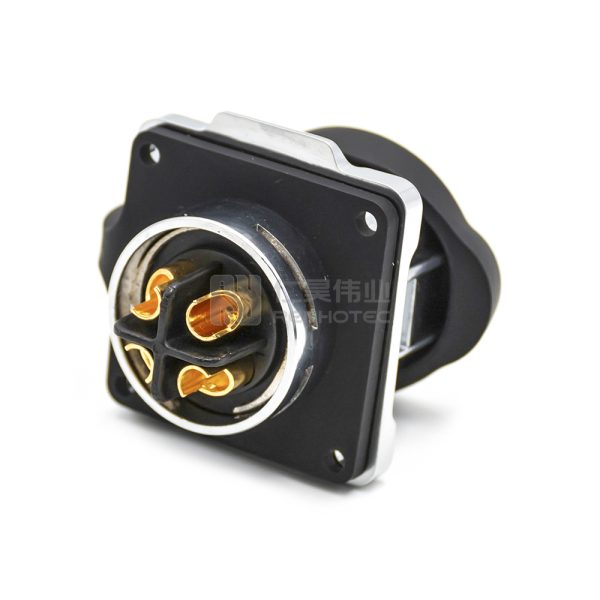

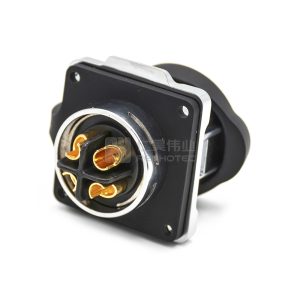

LP-24 Waterproof Circular Power Connector 4-Pin Female Sockets
- Easy to use, quick to plug and remove.
- High-quality PA66, high-performance engineering plastic core.
- Red dot to red dot error-proof.
- Good waterproof performance, good sealing performance.
- Double-locking buckles are more reliable.
- The working performance is stable and should be used in a wide range.
Waterproof Power/Data Transmission Connector
RK series power waterproof connectors are high-reliability, multipurpose connectors, compatible with LP series, and mainly used for power and signal transmission in harsh environments. It has a waterproof design to ensure connector stability and reliability in harsh environments. The connectors are waterproof, dust-proof, shock-proof and high-temperature resistant, suitable for a variety of outdoor environments and industrial applications. In addition, this series of power waterproof connectors also has the advantages of being easy to plug and pull, reliable contact, corrosion resistance, etc., and is a cost-effective connector.
According to the panel installation size, it can be divided into RK12 (12mm) series; RK16 (18mm) series; RK20 (22mm) series; RK24 (25mm) series.
How to choose
Product Dimensions
Docking Cable Plug
Plug
Flange Socket
Bulkhead Socket
How to Order
Application
RK series waterproof power and data connectors are ideal for waterproof, dustproof and corrosion-resistant applications such as outdoor lighting, LED displays, solar photovoltaics, power tools, electric vehicles, marine vessels, marine engineering, petrochemical and other sectors.
- New energy fields: photovoltaic systems, servo motors, e-bikes, inverters and solar chargers.
- Automation equipment: mobile robots, automated warehouse handling systems and torque transducers.
- Communication systems: disinfection robots, vehicle monitoring systems and monitors.
- Lighting: horticultural LEDs, stage lighting, streetlights, LED video walls and landscape lighting.
Industrial Automation
Solar Photovoltaic System
Communication Equipment
LED Plant Growth Lamp
LED Display Screen
Aerospace
Product Specification
Connector Type | Receptacle |
||
---|---|---|---|
Orientation | Straight |
||
Contact Type | Female Pin |
||
Fastening Type | Push-Pull |
||
Mounting Type | Panel Mount |
||
Contact Termination Style | Solder |
||
Contact Material | Phosphor Bronze |
||
Ingress Protection | IP67 |
||
Shell Material | Zinc Alloy |
||
Number of Ports | 4 |
||
Shell Finish | Chromium Plating |
||
Temperature Range | -20℃~+85℃ |
||
Features | Metal Chain |
||
Connector Type | Receptacle |
Orientation | Straight |
Contact Type | Female Pin |
Fastening Type | Push-Pull |
Mounting Type | Panel Mount |
Contact Termination Style | Solder |
Contact Material | Phosphor Bronze |
Ingress Protection | IP67 |
Shell Material | Zinc Alloy |
Number of Ports | 4 |
Shell Finish | Chromium Plating |
Temperature Range | -20℃~+85℃ |
Features | Metal Chain |
Connector Type | Receptacle |
---|---|
Orientation | Straight |
Contact Type | Female Pin |
Fastening Type | Push-Pull |
Mounting Type | Panel Mount |
Contact Termination Style | Solder |
Insulation Material | PA66 |
Contact Material | Phosphor Bronze |
Ingress Protection | IP67 |
Rated Current | 25A |
Shell Material | Zinc Alloy |
Number of Ports | 4 |
Shell Finish | Chromium Plating |
Wire Range | 2.5mm2-4mm2/12-14AWG |
Temperature Range | -20℃~+85℃ |
Features | Metal Chain |
Renhotec Information
We have two factories, one is located in Dongguan city, another in Jiangmen city. Visitors are always welcome.
RF Connector Compatibility
Yes, our RF connector interface dimension conform international standards. Normally it’s interchangeable with similar products of other brands, it’s better to send us the datasheet/sample of other brands for check before order.
We recommend that you provide us with detailed specifications of your existing interfaces and cables, performance requirement and usage environment, so that our technical team can evaluate them.
Please advise your PCB layout dimension requirement, we’ll recommend you the most suitable Renhotec drawing for check.
Customization and Sample Testing
Yes, we offer customization services to meet your specific needs. Please provide your specification, performance requirement or drawing, photos, or samples for evaluation.
Yes, we provide customised services, it has MOQ requirement, please send your requirement for our engineer team evaluation.
Yes, please advise the thread length for evaluation.
Yes, we can. Please send us the datasheet or connector and cable requirement, we can produce as per request.
Yes, please share it and the requirement with us, our engineer team will evaluate it.
RF Connector Specifications
The impedance of an RF connector typically refers to the characteristic impedance of the transmission line it supports. The most common characteristic impedances for RF connectors are 50 ohms and 75 ohms. Please select an RF connector with the appropriate characteristic impedance to ensure optimal signal transmission and minimal signal loss within the system.
Order Lead Time
Lead time depends on the product type, quantity, and production status. For items ready in stock, the lead time is 3-5 working days. For common items, the lead time for 10K is 10-12 working days. The accurate lead time can be provided once the order is confirmed.
Shipping and Packaging
For small quantities, we ship by express. For larger quantities, we ship by sea, air, railway, or truck.
Our standard packaging methods include blister box/polybag with label in a carton box. We can also package as per request.
Payment Methods
Accepted payment methods include T/T, Paypal, etc.
Quality Assurance
Yes, we can provide regular inspection reports. If you have a special requirement, please let us know.
Yes, they conform. RoHS and REACH test reports are available.
Our products have 12 months’ warranty. It’s better to provide the feedback within one month after you receive the goods.
