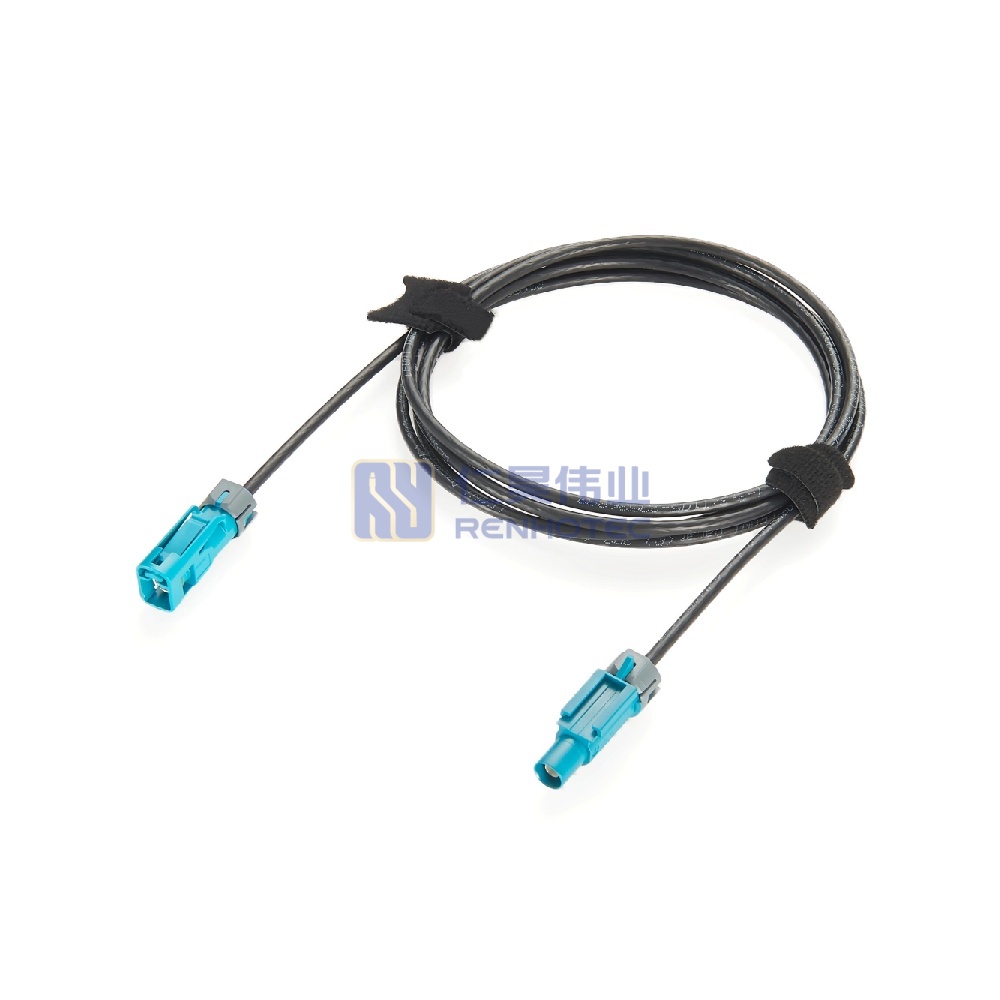

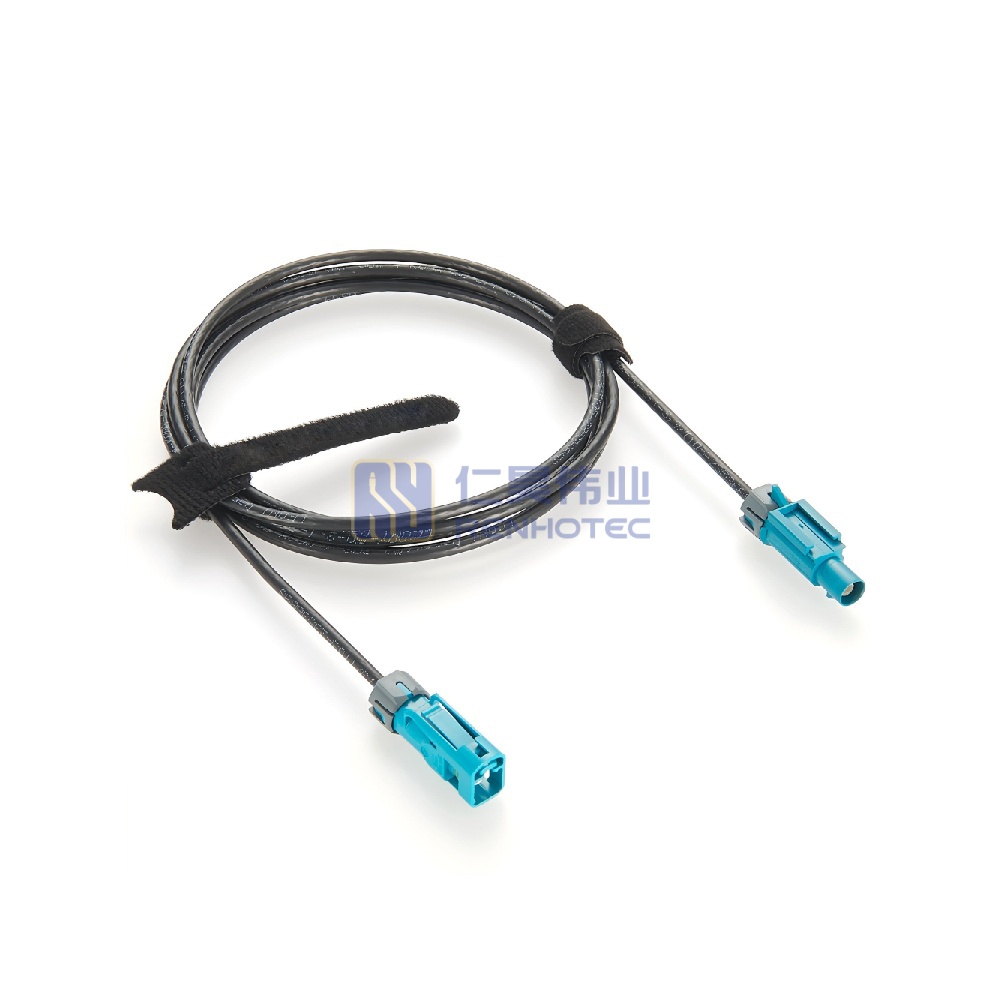

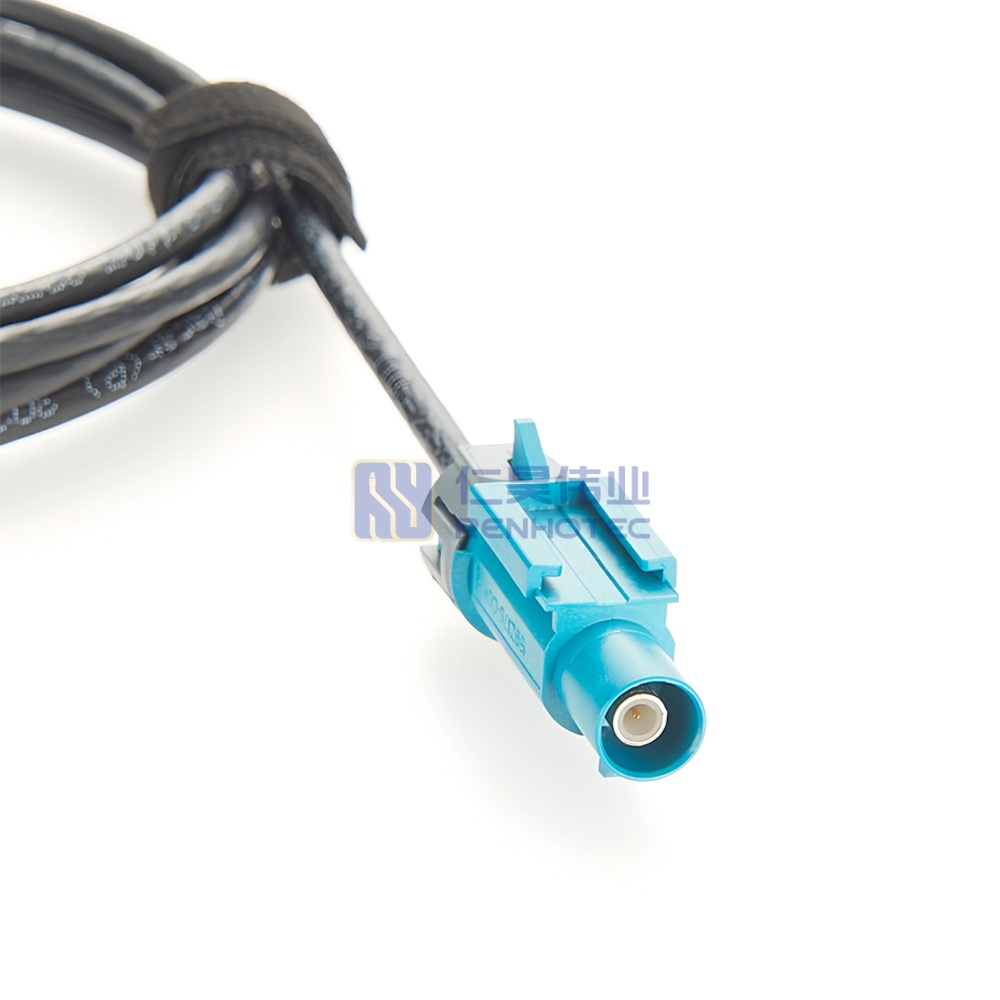

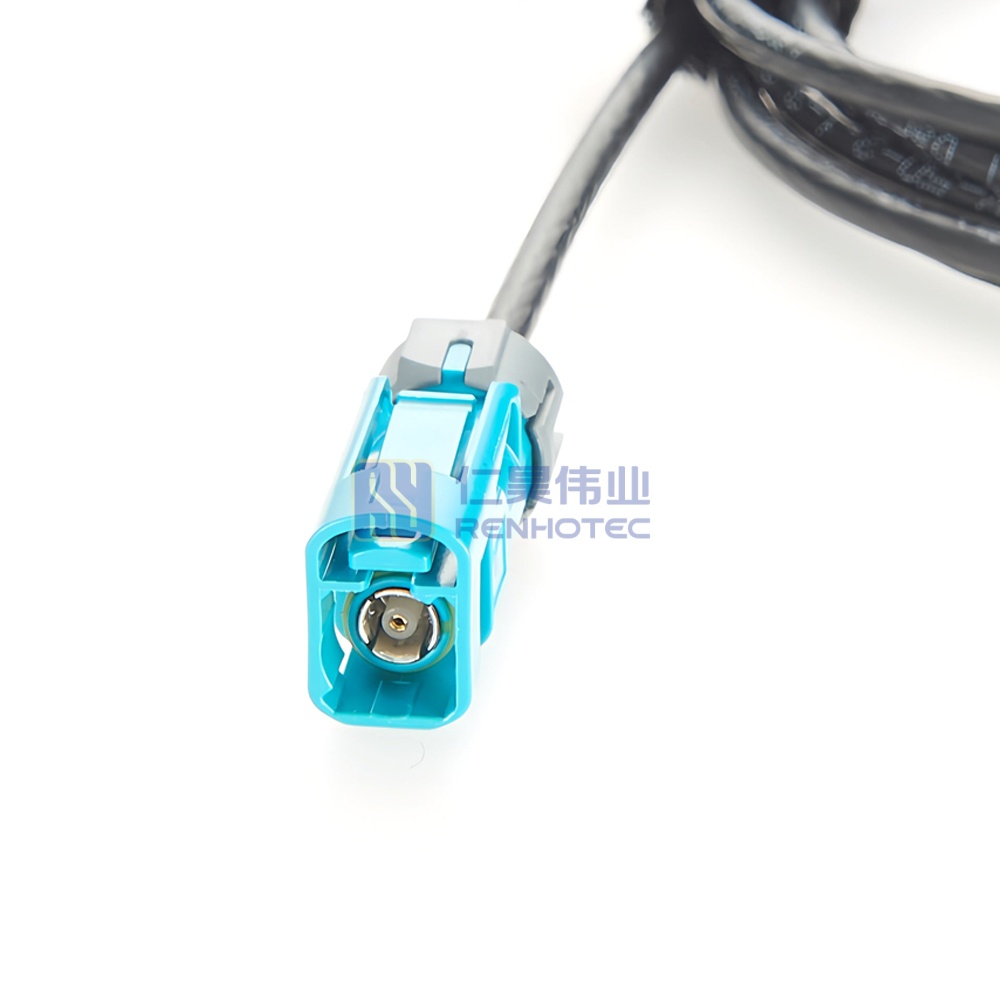

IP67 Waterproof FAKRA Z Male to Female Cable, DACAR 302-4 for Car Antenna GPS Telematics – RHT-605-20837
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF RHT-605-20837 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | RHT-605-20837 |
| Rosenberger Part No. | 1st Connector 59Z176-C01-Z; 2nd Connector 59Z163-003-Z |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.
Product Specification
| RF Cable 1st Connector | Fakra Z |
||
|---|---|---|---|
| RF Cable 2nd Connector | Fakra Z |
||
| 1st Contact Type | Male Pin |
||
| 2nd Contact Type | Female Pin |
||
| 1st Connector | 59Z176-C01-Z |
||
| 2nd Connector | 59Z163-003-Z |
||
| 1st Connector Orientation | Straight |
||
| 2nd Connector Orientation | Straight |
||
| Cable Type | LEONI DACAR 302-4 |
||
| Impedance | 50 ohm |
||
| Frequency Range | DC ~ 6 GHz |
||
| Temperature Range | -40°C to +105°C |
||
| VSWR | 1.80 MAX |
||
| RF Cable 1st Connector | Fakra Z |
RF Cable 2nd Connector | Fakra Z |
| 1st Contact Type | Male Pin |
2nd Contact Type | Female Pin |
| 1st Connector | 59Z176-C01-Z |
2nd Connector | 59Z163-003-Z |
| 1st Connector Orientation | Straight |
2nd Connector Orientation | Straight |
| Cable Type | LEONI DACAR 302-4 |
Impedance | 50 ohm |
| Frequency Range | DC ~ 6 GHz |
Temperature Range | -40°C to +105°C |
| VSWR | 1.80 MAX |
| Length | Customized |
|---|---|
| Length | Customized |
| RF Cable 1st Connector | Fakra Z |
|---|---|
| RF Cable 2nd Connector | Fakra Z |
| 1st Contact Type | Male Pin |
| 2nd Contact Type | Female Pin |
| 1st Connector | 59Z176-C01-Z |
| 2nd Connector | 59Z163-003-Z |
| 1st Connector Orientation | Straight |
| 2nd Connector Orientation | Straight |
| Cable Type | LEONI DACAR 302-4 |
| Length | Customized |
| Impedance | 50 ohm |
| Frequency Range | DC ~ 6 GHz |
| Temperature Range | -40°C to +105°C |
| VSWR | 1.80 MAX |
