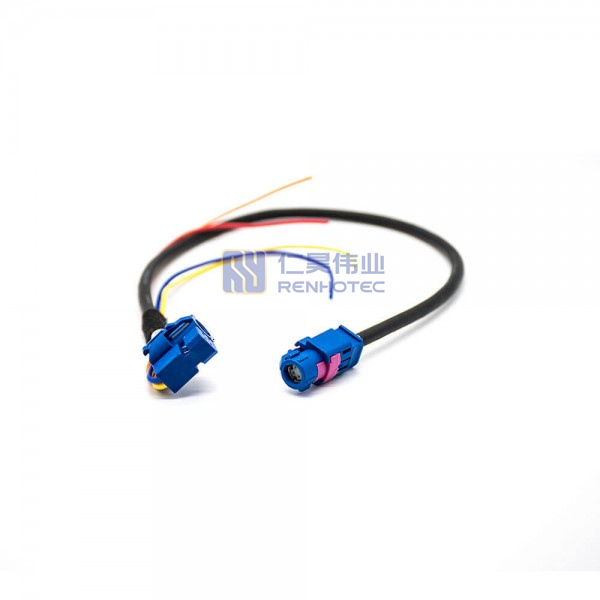

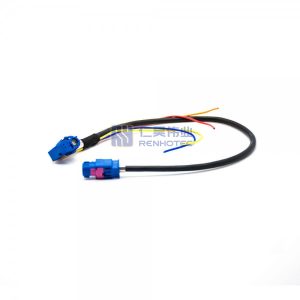

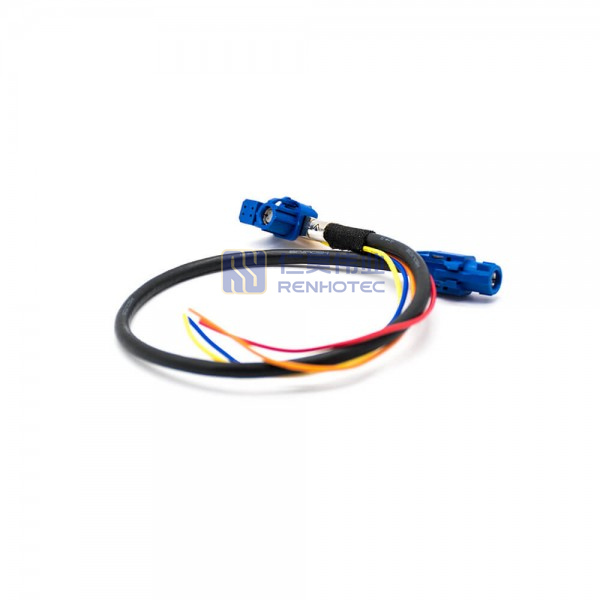

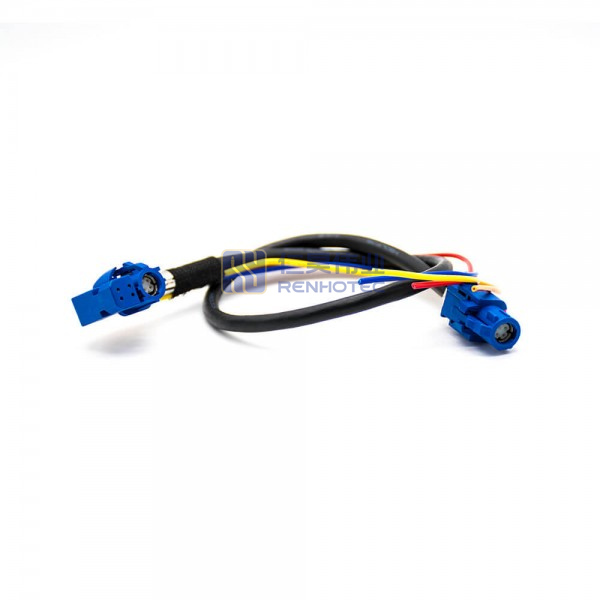

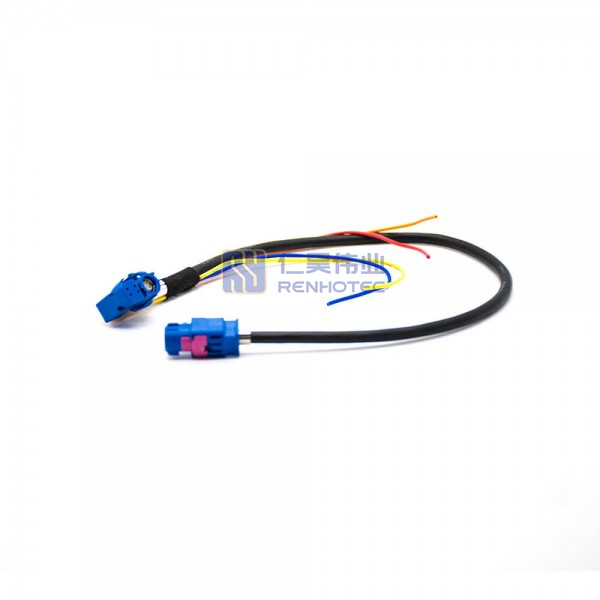

HSD C Jack to HSD C Jack RF Cable Assemblies With 1M Cable

  • High-speed shielded connection system suitable for digital data with performance up to 6 Gbps
  • Fully shielded connection system of different wire diameters and types
  • Compliant with LVDS (Low voltage differential signal), Ethernet and USB protocols
  • Full range of connectors for non-sealed and sealed applications
  • Extend the PCB connector product portfolio
  • High level of process automation and global manufacturing footprint
  • IDB 1394 Automotive Specification
  • USCAR 2, REV 5

HSD connectors provide connectivity solutions for automotive infotainment modules, cameras, consumer equipment ports, and display devices.
The HSD product portfolio is designed for high-speed data transmission to meet automotive data transmission rates up to 6 GHz.
The connector product portfolio can be combined with 1-channel and 4-channel LVDS, IEEE 1394, GVIF, eMOST, and USB 2.0 protocols. These high-speed connectors are compatible with the German AK HSD interface, USCAR 30 (Mini USB) and designated shield connection systems. These connectors can be used for sealing applications.



HSD Interface Dimensions

HSD Connector Coding

Product Specification

RF Cable Style

HSD C to HSD C

RF Cable 1st Connector

HSD C Jack

1st Contact Type

Female Pin

1st Connector Orientation

Straight

RF Cable 2nd Connector

HSD C Jack

2nd Contact Type

Female Pin

2nd Connector Orientation

Straight

Impedance

50 ohm

Cable Color

Black

Frequency Range

0-6GHz

Temperature Range

−65°C to +165°C

Cable length

1m

RF Cable Style

HSD C to HSD C

RF Cable 1st Connector

HSD C Jack

1st Contact Type

Female Pin

1st Connector Orientation

Straight

RF Cable 2nd Connector

HSD C Jack

2nd Contact Type

Female Pin

2nd Connector Orientation

Straight

Impedance

50 ohm

Cable Color

Black

Frequency Range

0-6GHz

Temperature Range

−65°C to +165°C

Cable length

1m

RF Cable Style

HSD C to HSD C

RF Cable 1st Connector

HSD C Jack

1st Contact Type

Female Pin

1st Connector Orientation

Straight

RF Cable 2nd Connector

HSD C Jack

2nd Contact Type

Female Pin

2nd Connector Orientation

Straight

Impedance

50 ohm

Cable Color

Black

Frequency Range

0-6GHz

Temperature Range

−65°C to +165°C

Cable length

1m

Renhotec Information

Where is your factory located? Can I visit your factory?

We have two factories, one is located in Dongguan city, another in Jiangmen city. Visitors are always welcome.

RF Connector Compatibility

Yes, our RF connector interface dimension conform international standards. Normally it’s interchangeable with similar products of other brands, it’s better to send us the datasheet/sample of other brands for check before order.

We recommend that you provide us with detailed specifications of your existing interfaces and cables, performance requirement and usage environment, so that our technical team can evaluate them.

Please advise your PCB layout dimension requirement, we’ll recommend you the most suitable Renhotec drawing for check.

Customization and Sample Testing

Yes, we offer customization services to meet your specific needs. Please provide your specification, performance requirement or drawing, photos, or samples for evaluation.

Yes, we provide customised services, it has MOQ requirement, please send your requirement for our engineer team evaluation.

Yes, please advise the thread length for evaluation.

Yes, we can. Please send us the datasheet or connector and cable requirement, we can produce as per request.

Yes, please share it and the requirement with us, our engineer team will evaluate it.

RF Connector Specifications

The impedance of an RF connector typically refers to the characteristic impedance of the transmission line it supports. The most common characteristic impedances for RF connectors are 50 ohms and 75 ohms. Please select an RF connector with the appropriate characteristic impedance to ensure optimal signal transmission and minimal signal loss within the system.

Order Lead Time

Lead time depends on the product type, quantity, and production status. For items ready in stock, the lead time is 3-5 working days. For common items, the lead time for 10K is 10-12 working days. The accurate lead time can be provided once the order is confirmed.

Shipping and Packaging

For small quantities, we ship by express. For larger quantities, we ship by sea, air, railway, or truck.

Our standard packaging methods include blister box/polybag with label in a carton box. We can also package as per request.

Payment Methods

Accepted payment methods include T/T, Paypal, etc.

Quality Assurance

Yes, we can provide regular inspection reports. If you have a special requirement, please let us know.

Yes, they conform. RoHS and REACH test reports are available.

Our products have 12 months’ warranty. It’s better to provide the feedback within one month after you receive the goods.
