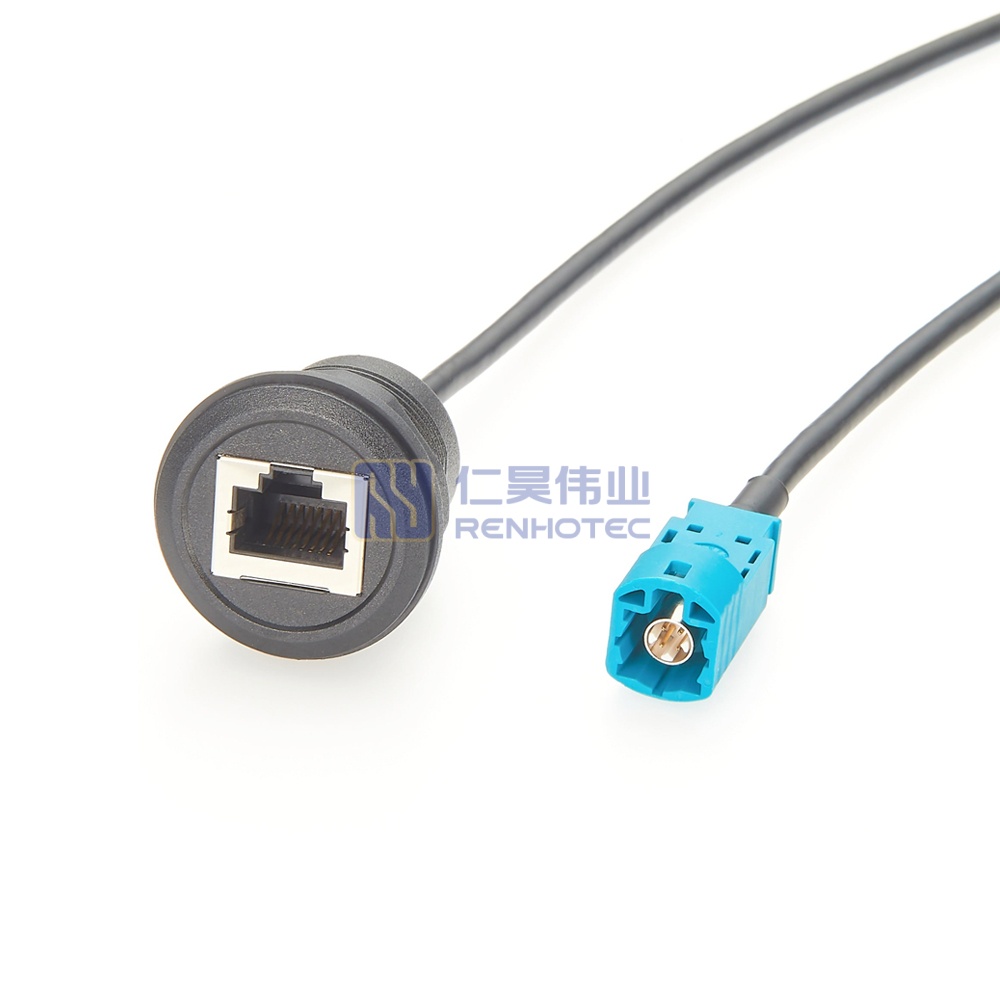

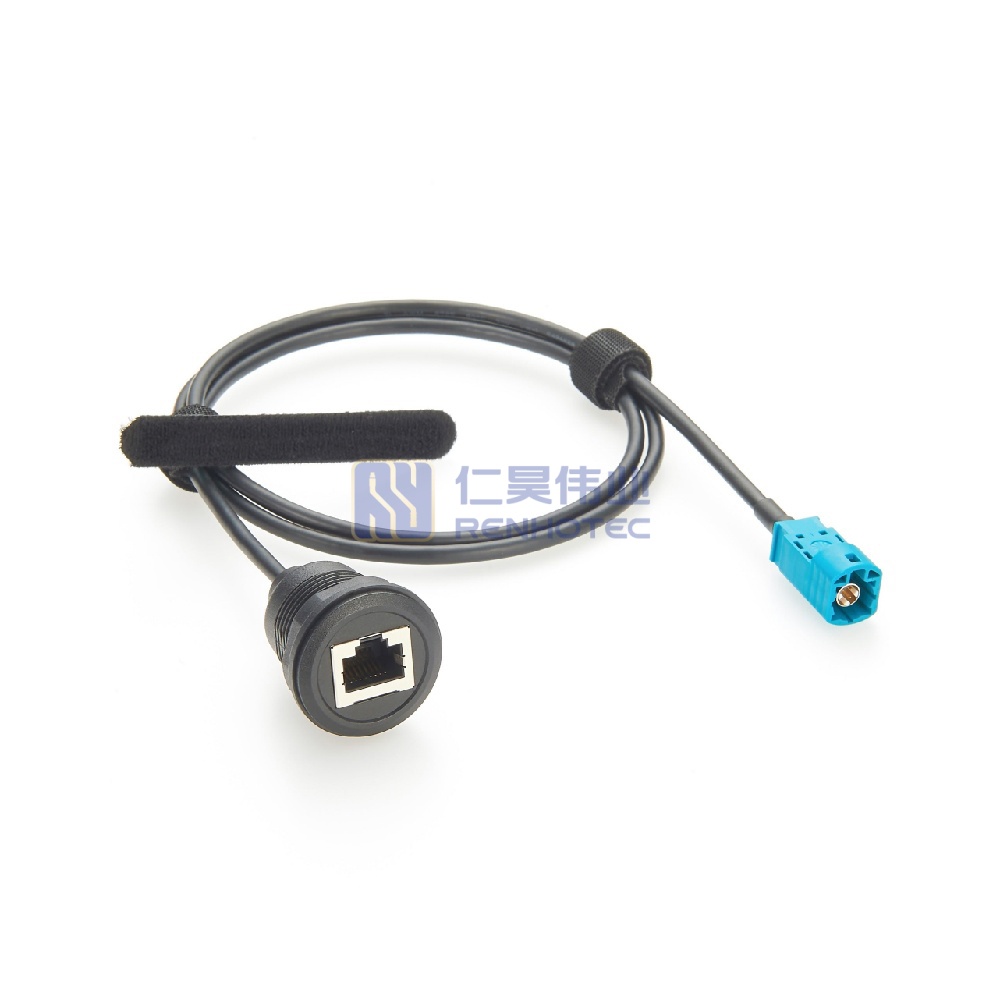

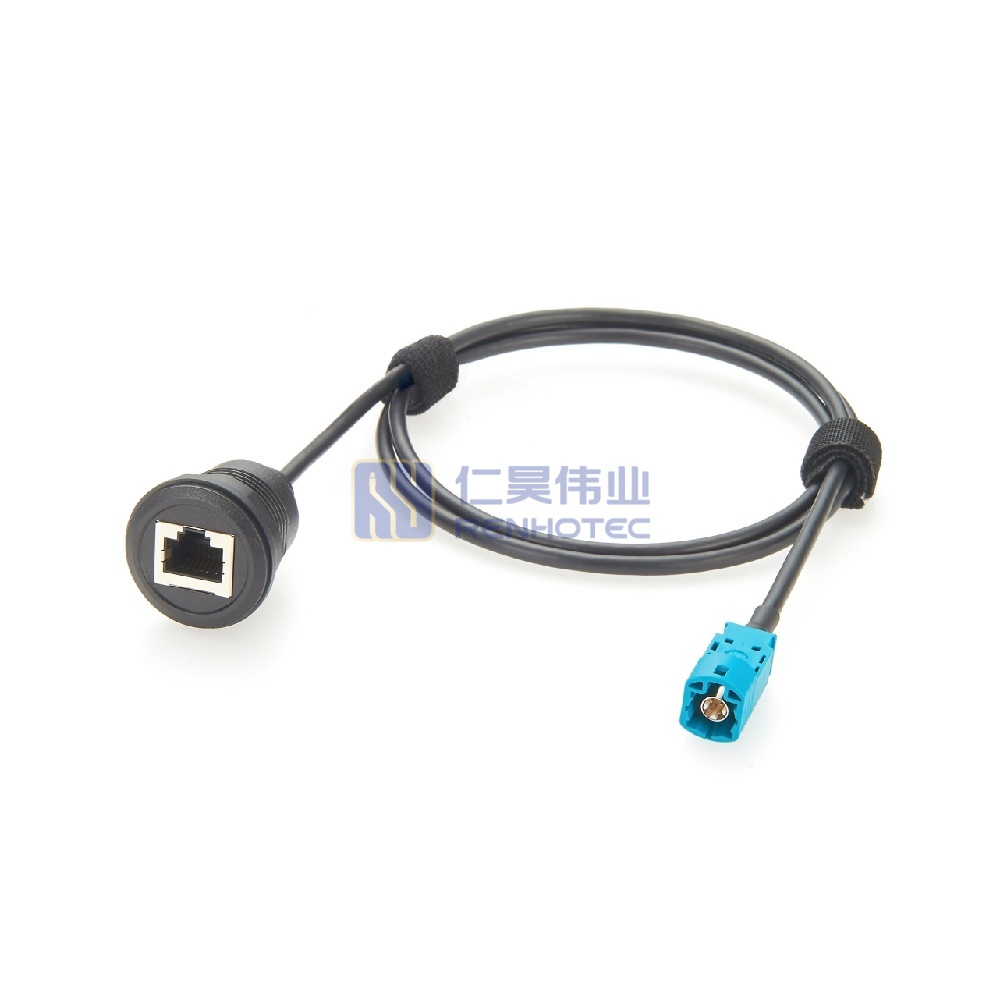

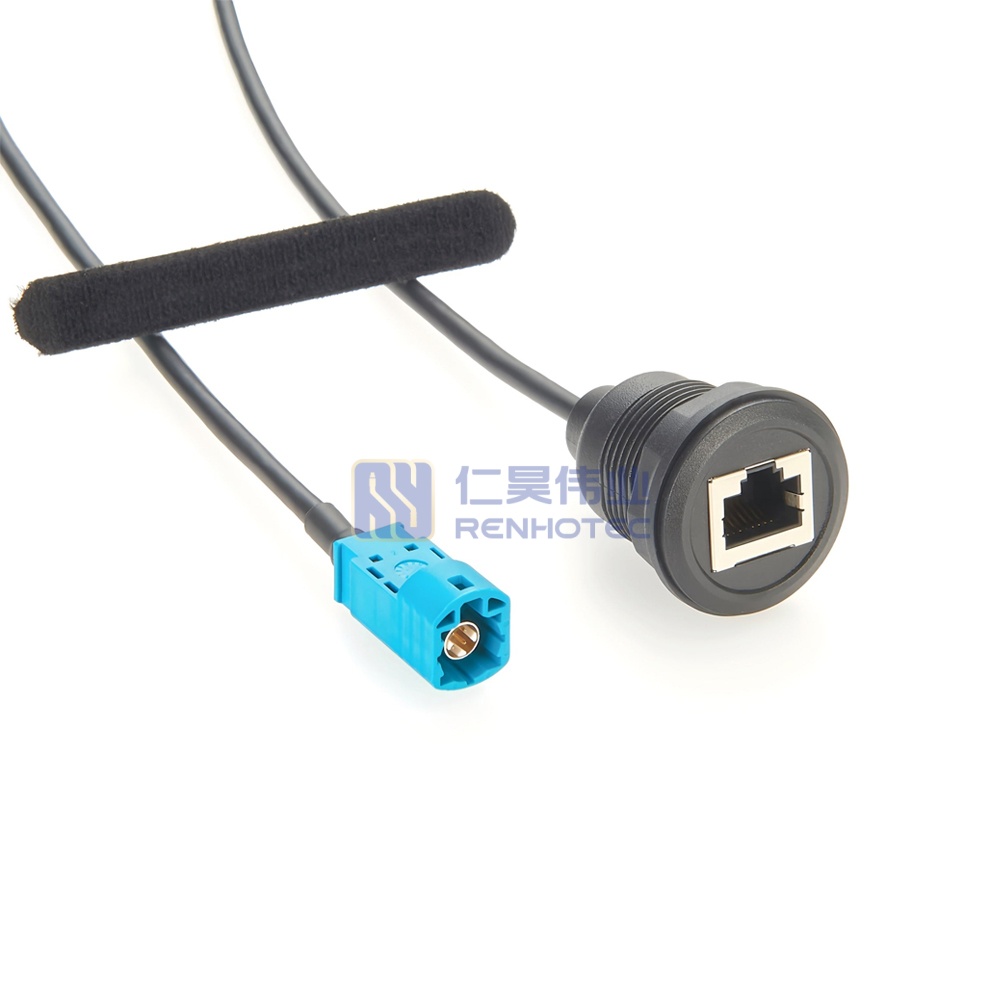

HSD 4P Z Male to RJ45 Female Cable - RHT-605-20841
HSD 4P Z Male to RJ45 Female Cable - RHT-605-20841 - Image 2
HSD 4P Z Male to RJ45 Female Cable - RHT-605-20841 - Image 3
HSD 4P Z Male to RJ45 Female Cable - RHT-605-20841 - Image 4

HSD 4P Z Male to RJ45 Female Cable – RHT-605-20841

SKU RHT-605-20841 Category HSD Cable Assemblies

Product Files

Open drawing and specification files.

Drawing PDF Catalog PDF RHT-605-20841 HSD Cable Assemblies Specs & Datasheet PDF

Product Specification

RF Cable 1st Connector

HSD Z Plug
RF Cable 2nd Connector

RJ45 Jack
1st Contact Type

Male Pin
2nd Contact Type

Female Pin
1st Connector Orientation

Straight
2nd Connector Orientation

Straight
Cable Type

26AWG*2P+AEB
Impedance

100 ohm
Temperature Range

-40°C to +105°C
Insulation Resistance

20 MΩ Min
RF Cable 1st Connector

HSD Z Plug

 RF Cable 2nd Connector

RJ45 Jack
1st Contact Type

Male Pin

 2nd Contact Type

Female Pin
1st Connector Orientation

Straight

 2nd Connector Orientation

Straight
Cable Type

26AWG*2P+AEB

 Impedance

100 ohm
Temperature Range

-40°C to +105°C

 Insulation Resistance

20 MΩ Min

Length

Customized
Length

Customized
RF Cable 1st Connector

HSD Z Plug
RF Cable 2nd Connector

RJ45 Jack
1st Contact Type

Male Pin
2nd Contact Type

Female Pin
1st Connector Orientation

Straight
2nd Connector Orientation

Straight
Cable Type

26AWG*2P+AEB
Length

Customized
Impedance

100 ohm
Temperature Range

-40°C to +105°C
Insulation Resistance

20 MΩ Min
Drawing for RHT-605-20841Download
Automotive Series CatalogDownload
