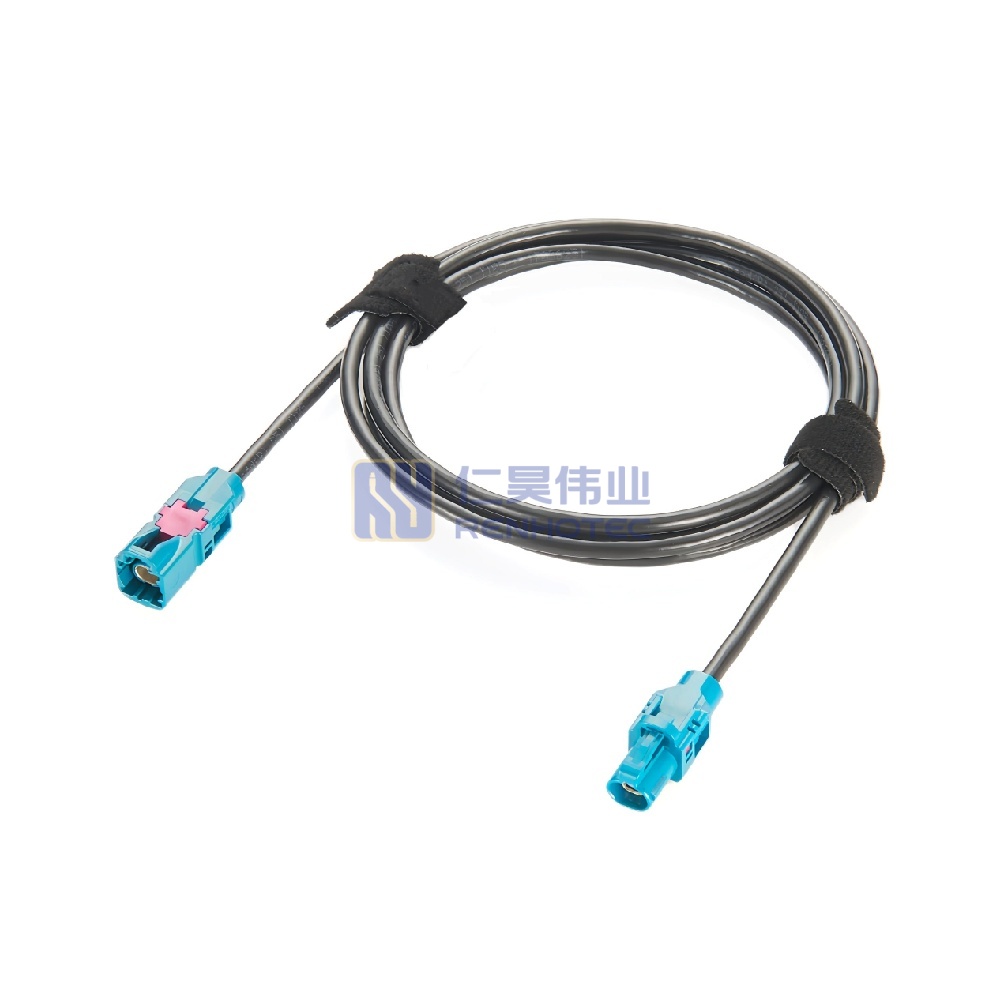

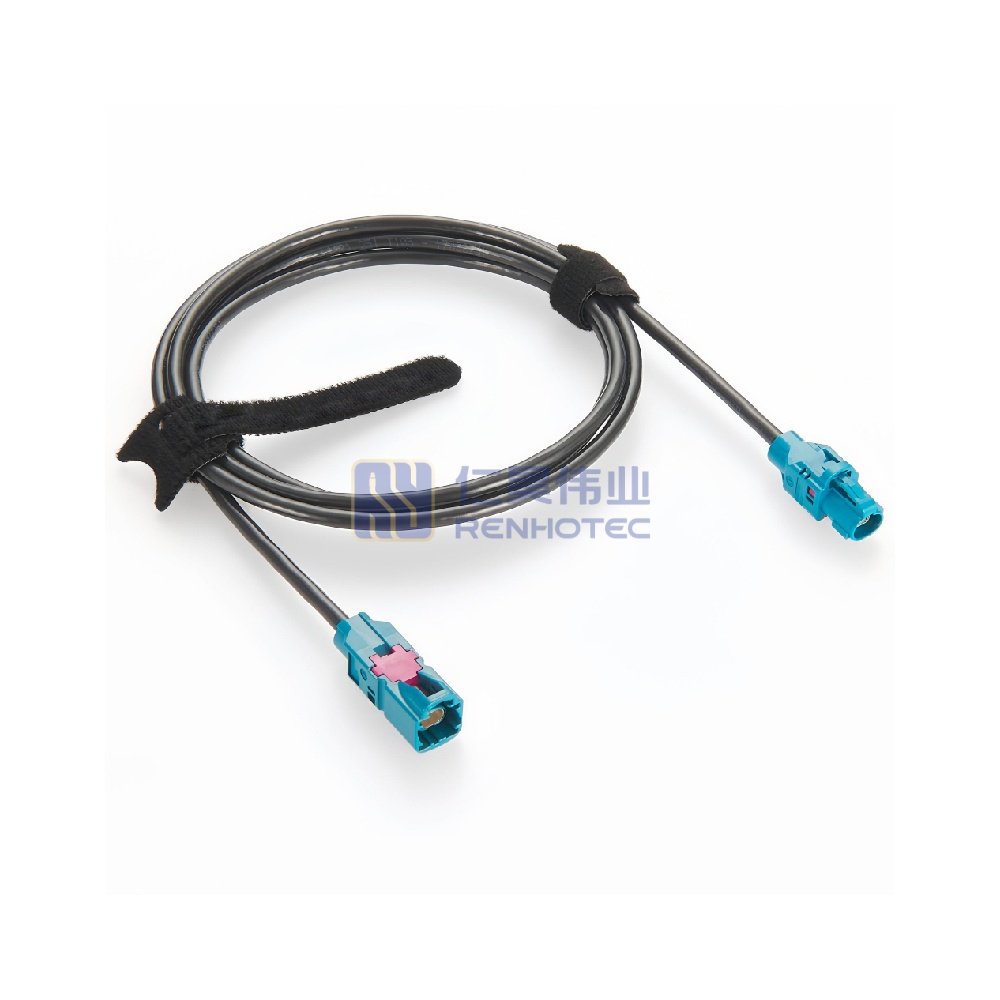

H-MTD Male to Female Extension Automotive Ethernet Cable – RHT-605-20855
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF RHT-605-20855 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | RHT-605-20855 |
| Rosenberger Part No. | 1st Connector E6S10A-1CAZ5-Z; 2nd Connector E6K10A-1CAZ5-Z |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.
Product Specification
| 1st Contact Type | Male Pin |
||
|---|---|---|---|
| 2nd Contact Type | Female Pin |
||
| 1st Connector | E6S10A-1CAZ5-Z |
||
| 2nd Connector | E6K10A-1CAZ5-Z |
||
| 1st Connector Orientation | Straight |
||
| 2nd Connector Orientation | Straight |
||
| Cable Type | GG 2Speed 251 |
||
| Impedance | 100Ω |
||
| Frequency Range | DC ~ 10 GHz |
||
| Temperature Range | -40°C to +105°C |
||
| 1st Contact Type | Male Pin |
2nd Contact Type | Female Pin |
| 1st Connector | E6S10A-1CAZ5-Z |
2nd Connector | E6K10A-1CAZ5-Z |
| 1st Connector Orientation | Straight |
2nd Connector Orientation | Straight |
| Cable Type | GG 2Speed 251 |
Impedance | 100Ω |
| Frequency Range | DC ~ 10 GHz |
Temperature Range | -40°C to +105°C |
| Length | Customized |
|---|---|
| Length | Customized |
| 1st Contact Type | Male Pin |
|---|---|
| 2nd Contact Type | Female Pin |
| 1st Connector | E6S10A-1CAZ5-Z |
| 2nd Connector | E6K10A-1CAZ5-Z |
| 1st Connector Orientation | Straight |
| 2nd Connector Orientation | Straight |
| Cable Type | GG 2Speed 251 |
| Length | Customized |
| Impedance | 100Ω |
| Frequency Range | DC ~ 10 GHz |
| Temperature Range | -40°C to +105°C |
