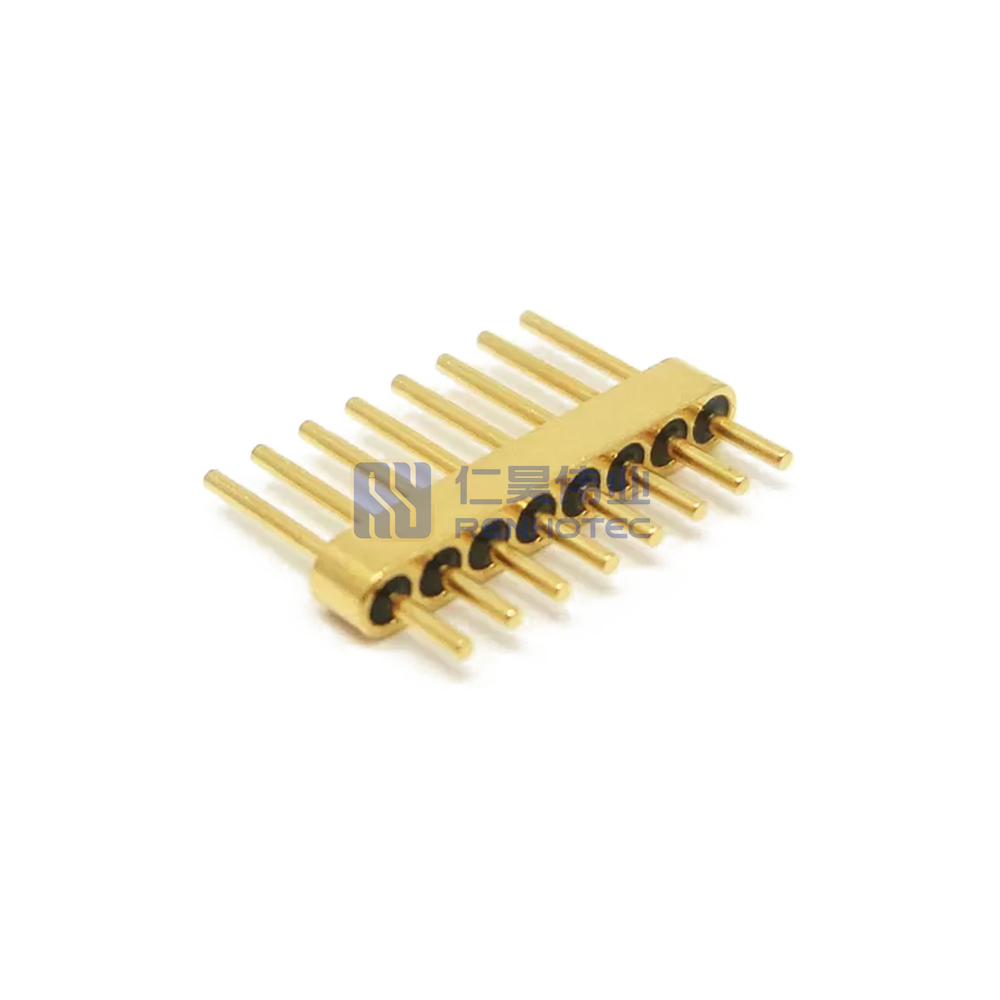

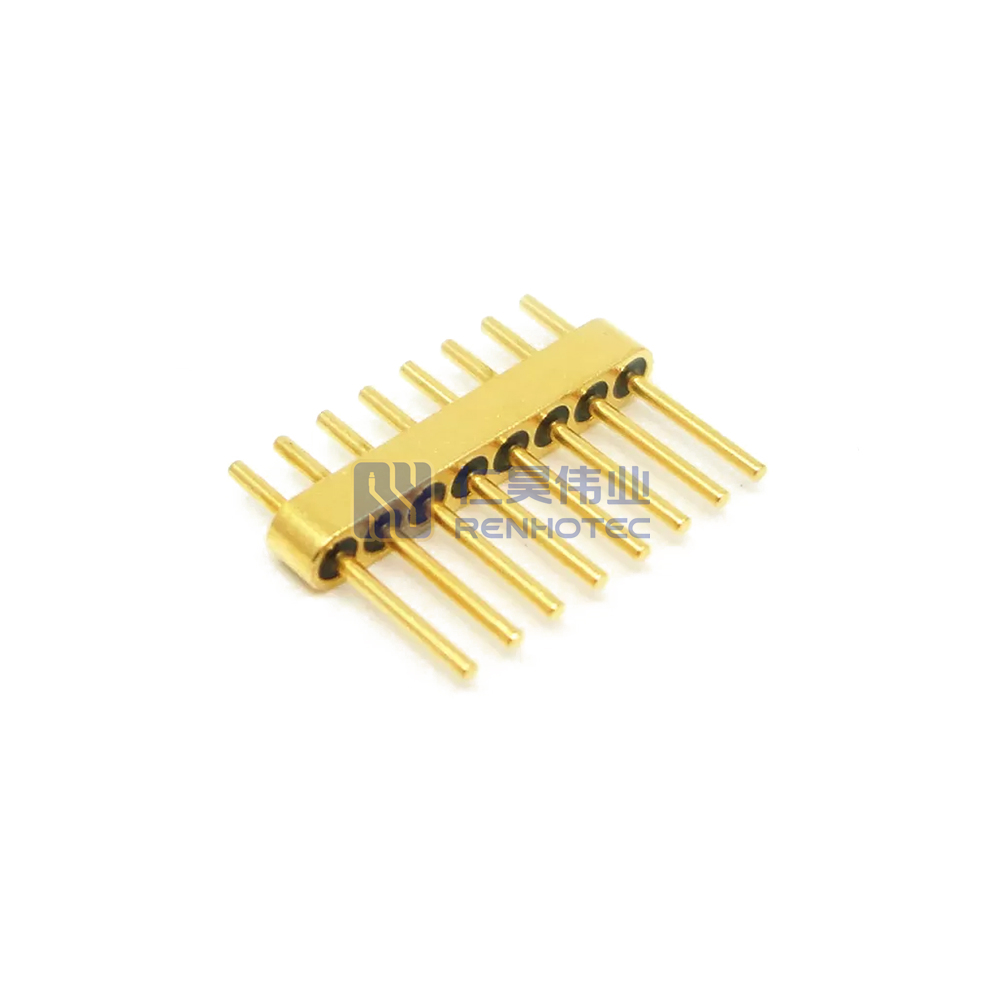

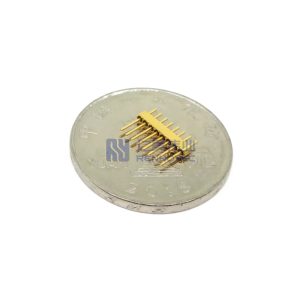

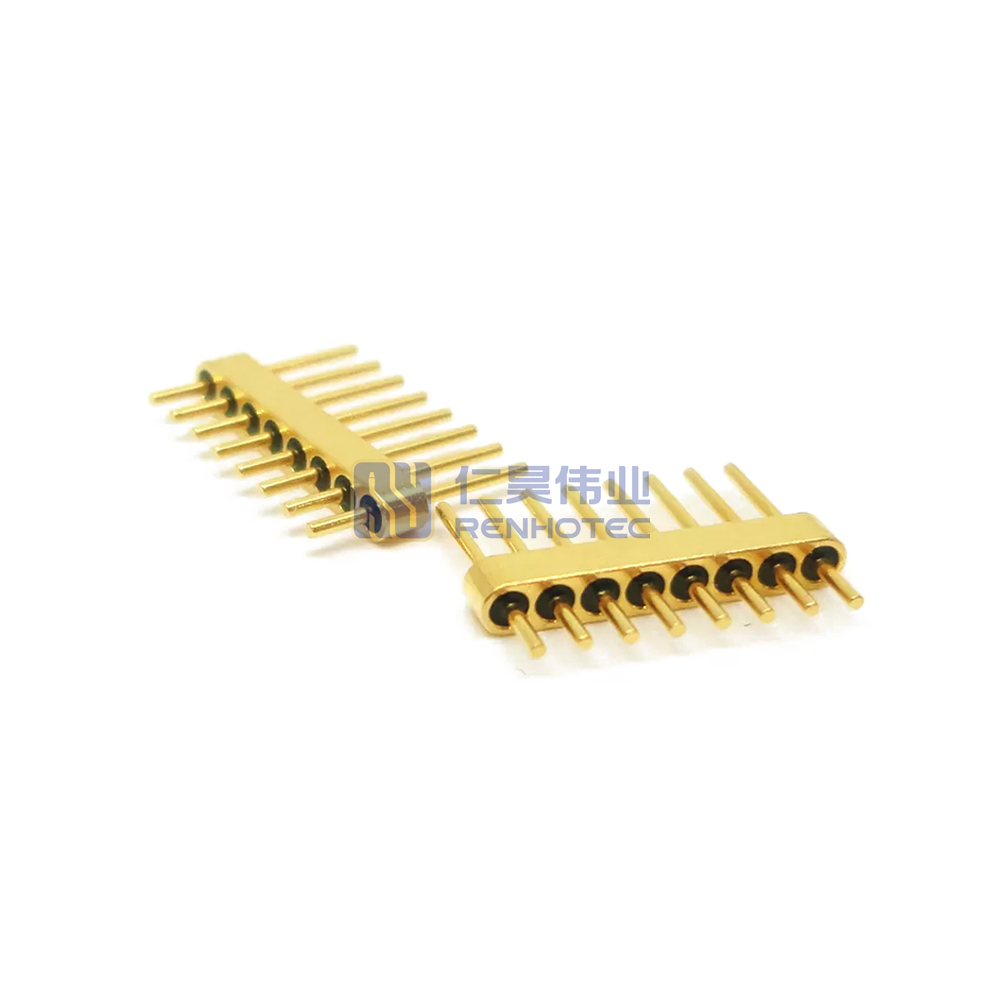

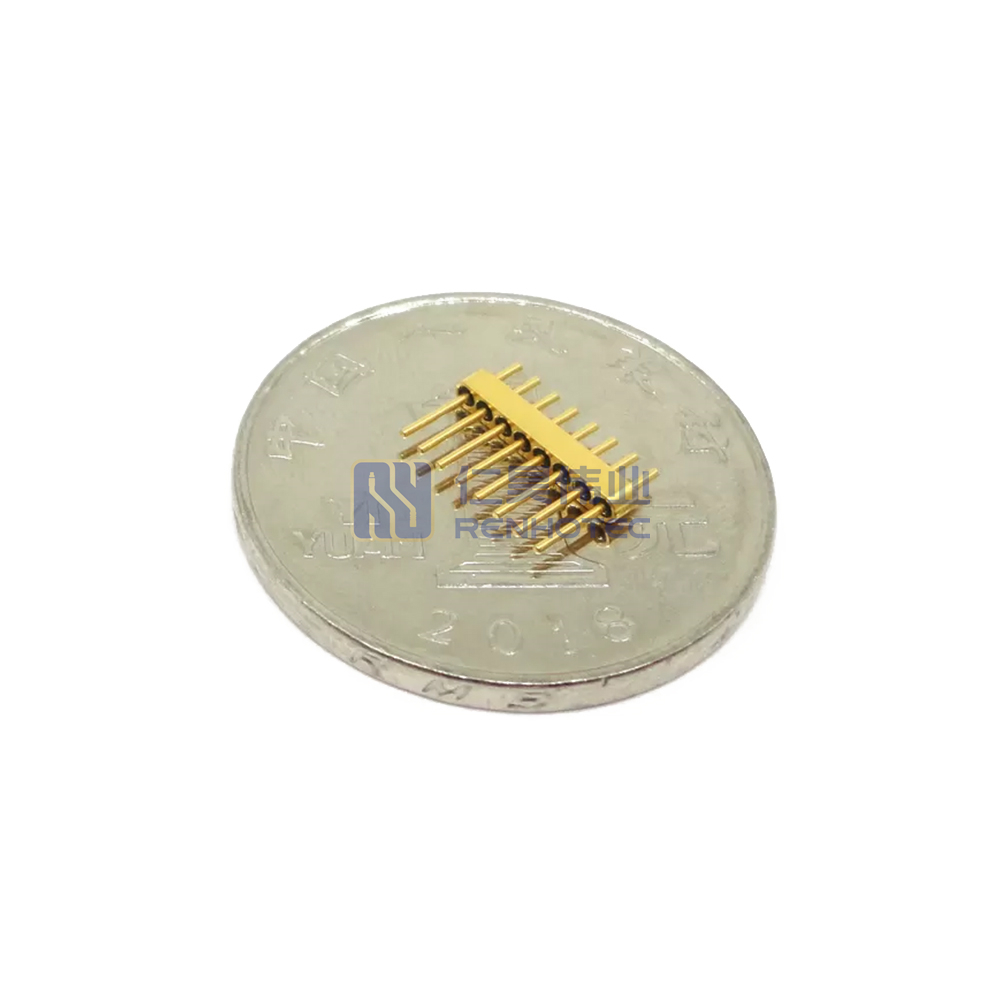

Gold Plated Hermetic Multi Pin Connector Kovar Alloy 4J29 Glass to Metal Seals

Glass to Metal Hermetic RF/DC Feedthroughs/Seals /Multi-pin Headers /Connector is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components. The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The centerconductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.

Glass insulator is composed of three parts: outer conductor/shell, glass medium and center conductor/pin.Its basic structure is shown in the figure.

High Temperature Sensors

Implanted Medical Devices

Batteries and Capacitors

Automotive Airbag

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods
