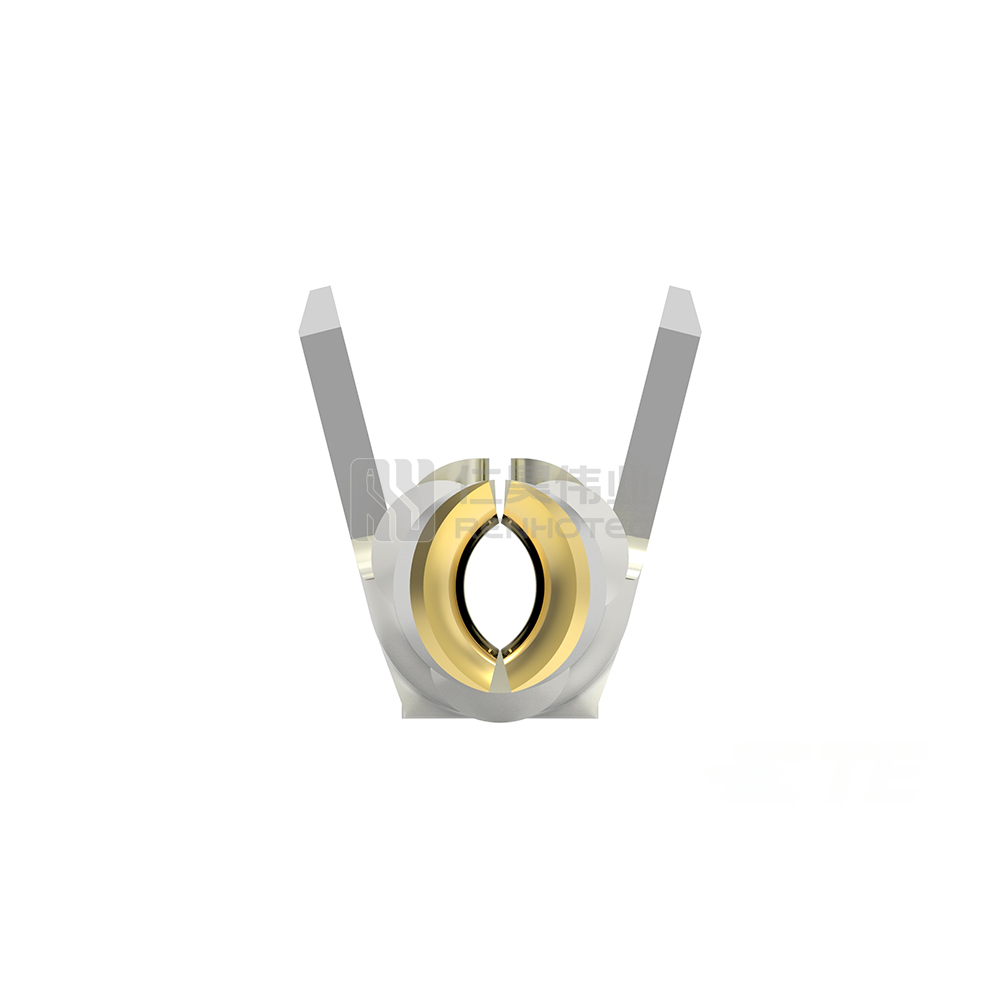

Gold (Au), Socket Contact, 30 VDC, Crimp, Copper Alloy / Phosphor Bronze, Power, FAKRA

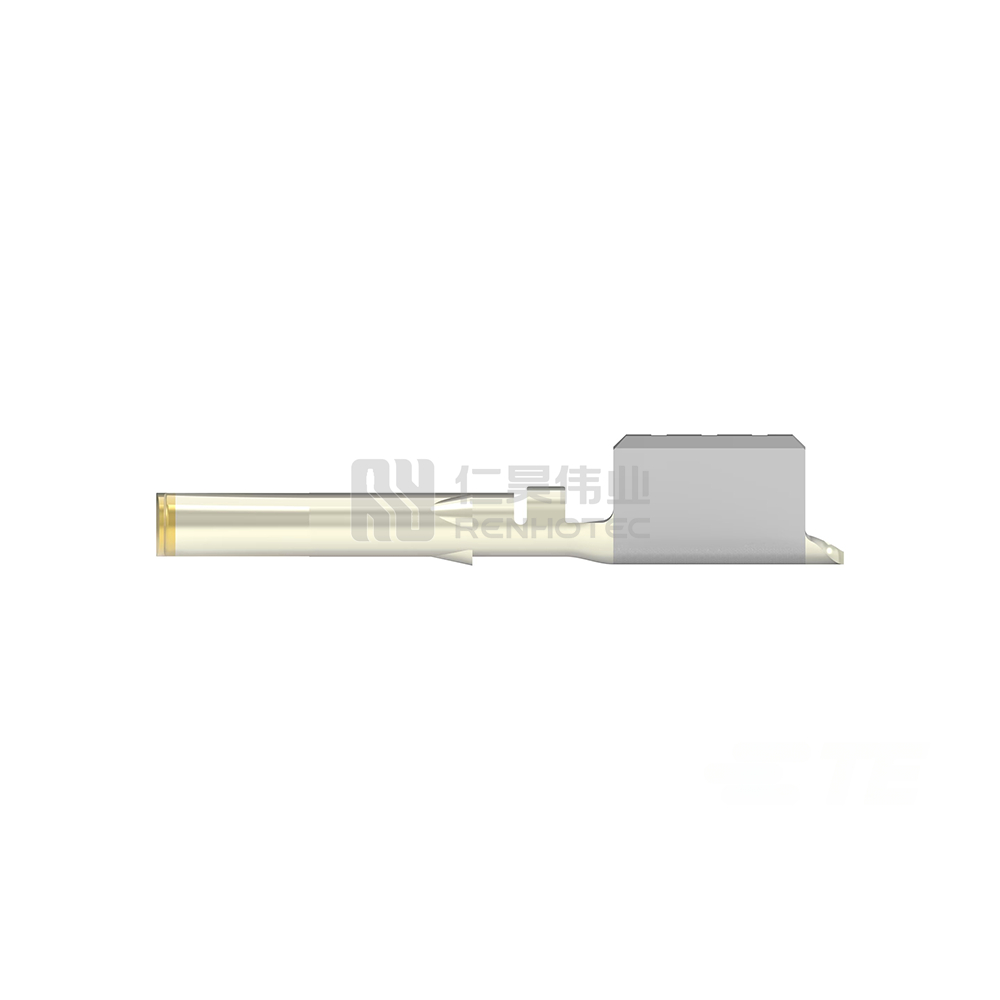

Gold (Au), Socket Contact, 30 VDC, Crimp, Copper Alloy / Phosphor Bronze, Power, FAKRA - Image 2

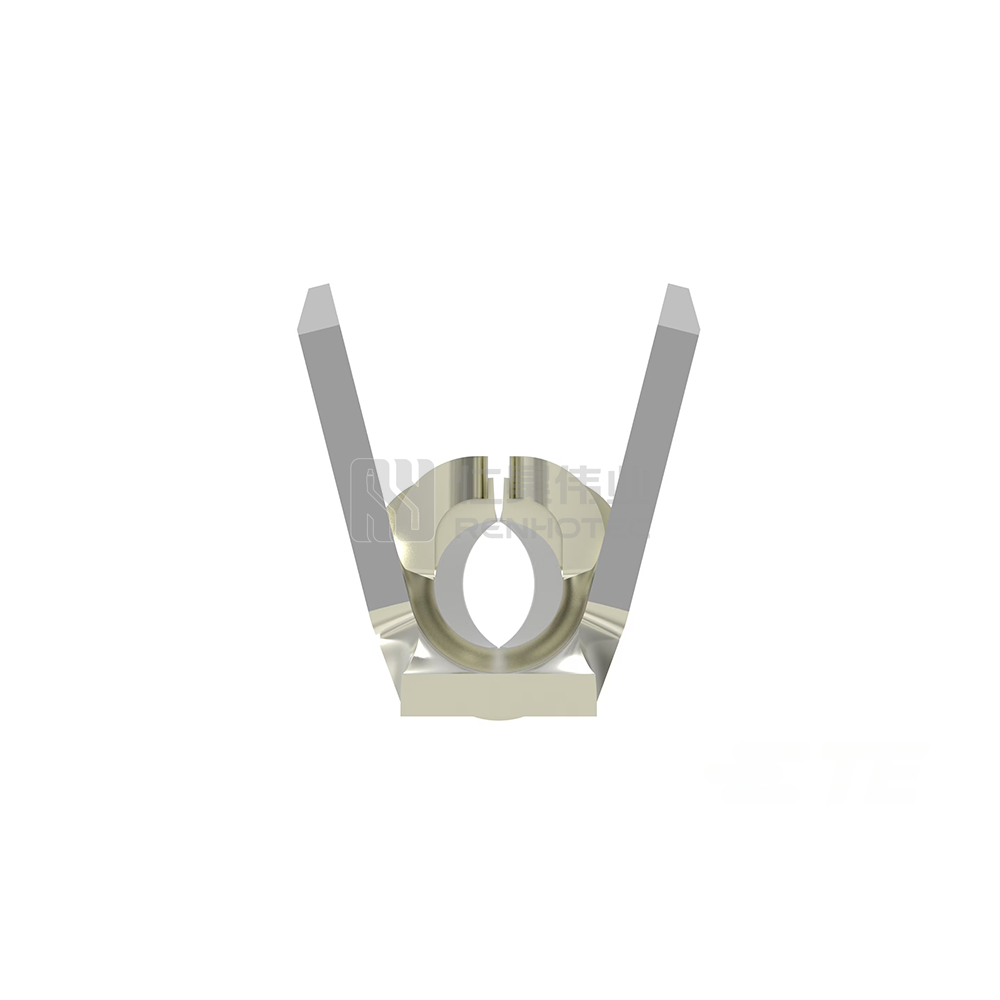

Gold (Au), Socket Contact, 30 VDC, Crimp, Copper Alloy / Phosphor Bronze, Power, FAKRA - Image 3

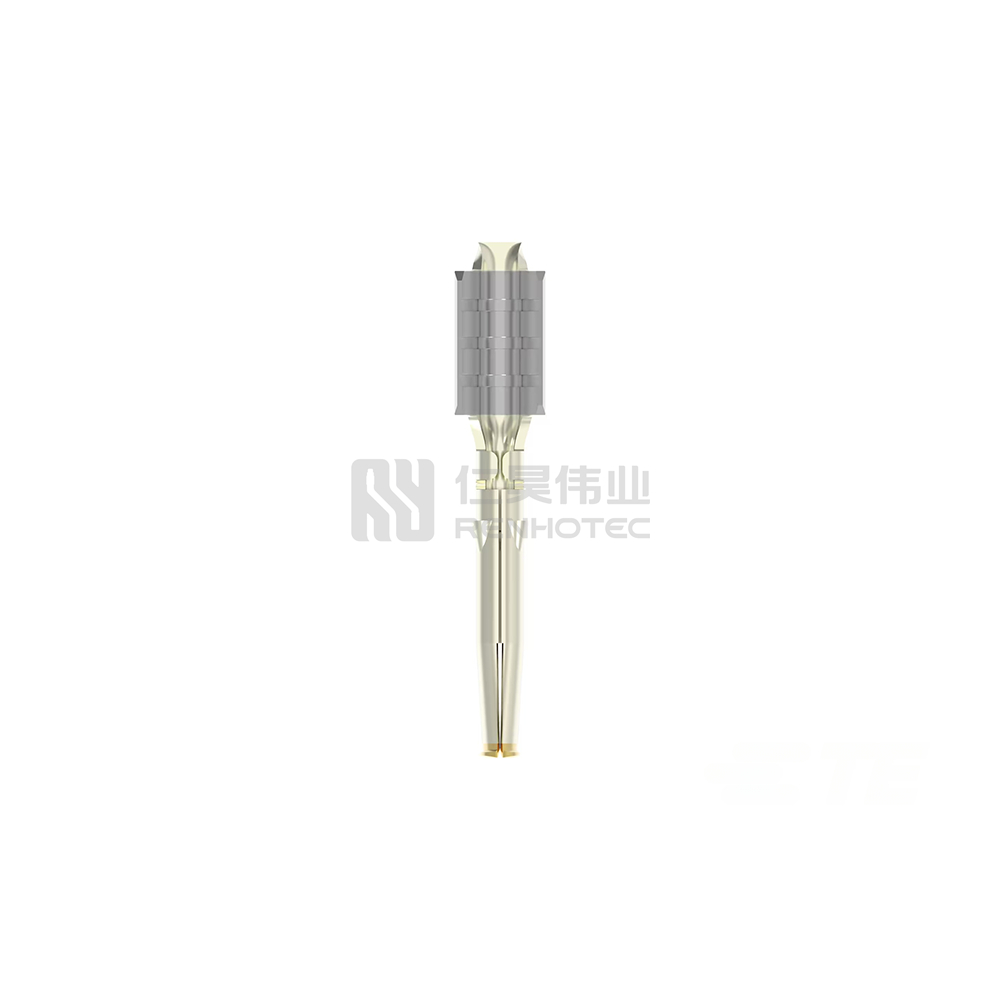

Gold (Au), Socket Contact, 30 VDC, Crimp, Copper Alloy / Phosphor Bronze, Power, FAKRA - Image 4

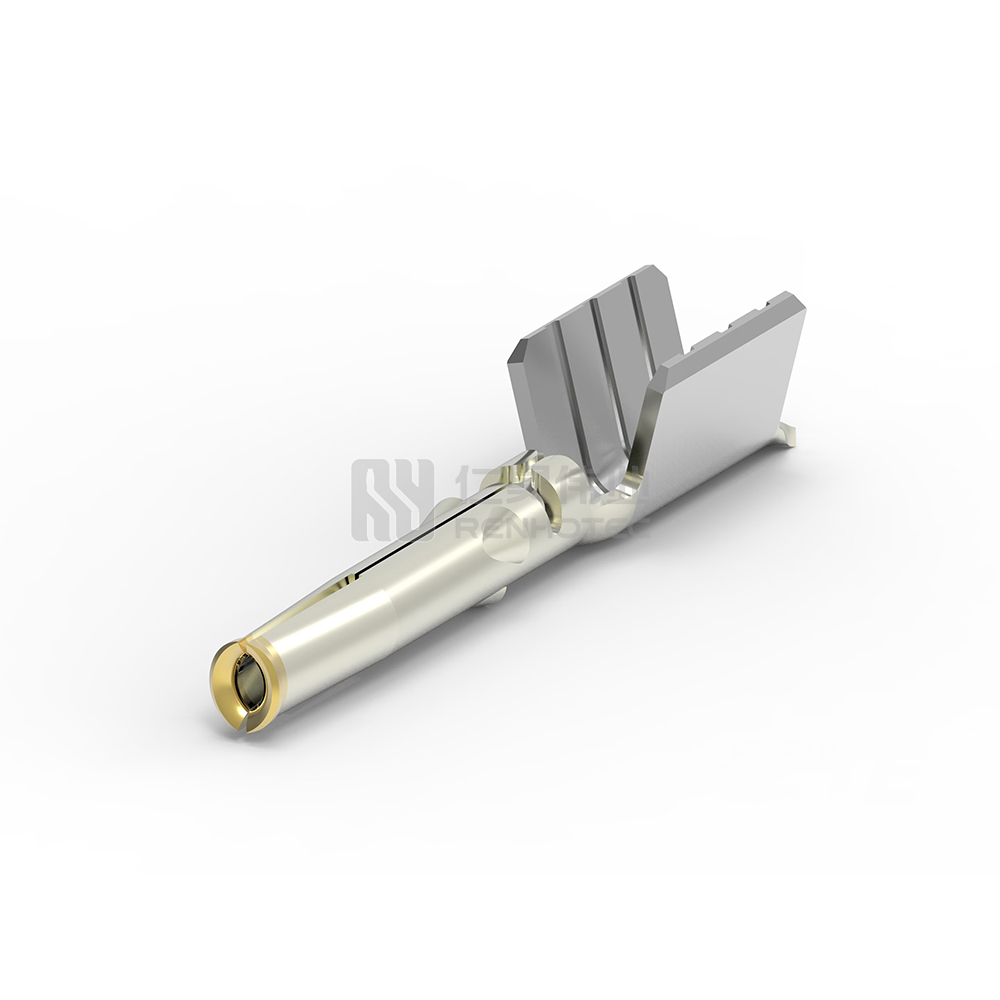

Gold (Au), Socket Contact, 30 VDC, Crimp, Copper Alloy / Phosphor Bronze, Power, FAKRA - Image 5

TE-2203270-4 Fakra Connectors Specs & Datasheet

Request for Quotation

Gold (Au), Socket Contact, 30 VDC, Crimp, Copper Alloy / Phosphor Bronze, Power, FAKRA

Ensure reliable, high-performance connections in demanding automotive and telecom applications with this Gold (Au) plated FAKRA socket contact. It solves signal loss and corrosion issues by offering superior conductivity and durability. The crimp design with copper alloy/phosphor bronze ensures a secure, low-resistance fit for 30 VDC power systems.

Description
Attributes

With advancements in telematics and automotive communications technology, RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards.

Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

PCB End (Male)

Cable End (Male)

Cable End (Female)

Secure primary locking system with tactile and audible locking
Shock and vibration resistant coded housing
Protection against unintentional opening by protective bar and protective strips
High axial holding power of the coaxial insert due to secondary locking
Mechanical and color coding system with 14 different codes

Fastening groove for cable connectors for chassis mounting
Coaxial insert and cable freely rotatable in the housing
Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
Efficient, automated further processing option
Customized packaging possible


Code	A	B	C	D	E	F	G
Color	Deep Black	Cream White	Signal Blue	Bordeaux Violet	Leaf Green	Brown	Blue Gray
Application	Radio with phantom supply	Radio without phantom supply	GPS telematics or navigation	GSM Cellular Phone	TV (UHF)	TV (VHF)	SDARS terrestrial

Code	H	I	K	L	M	N	Z
Color	Violet	Beige	Curry Yellow	Carmine Red	Pastel Orange	Pastel Green	Water Blue
Application	GPS telematics and navigation	Bluetooth Controlled Parking Heating	SDARS satellite	Not defined	Keyless entry Tire pressure monitoring	Not defined	Neutral

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Sealable	No
Pin Diameter	.55 mm [ .021 in ]
Package Qty	15000
Max Temperature	125 °C [ 212 °F ]
Package Method	Reel
Primary Lock	On the Terminal
Cable Termination	Crimp
Contact Size	.54mm
Wire Term Plating	Tin
Contact Fabrication	Stamped & Formed
Crimp Type	F-Crimp
Terminal Type	Socket
Interface Plating	Gold (Au)
Product Termination	Wire
Insulation Option	Uninsulated
Terminal Transmission	0 – 24 A (Low Power)
Cable Type Compatible	Coax Cable
Sealable	No	Pin Diameter	.55 mm [ .021 in ]
Package Qty	15000	Max Temperature	125 °C [ 212 °F ]
Package Method	Reel	Primary Lock	On the Terminal
Cable Termination	Crimp	Contact Size	.54mm
Wire Term Plating	Tin	Contact Fabrication	Stamped & Formed
Crimp Type	F-Crimp	Terminal Type	Socket
Interface Plating	Gold (Au)	Product Termination	Wire
Insulation Option	Uninsulated	Terminal Transmission	0 – 24 A (Low Power)
Cable Type Compatible	Coax Cable

Product Specification

Temperature Range	-55 – 85 °C [ -67 – 185 °F ]
Temperature Range	-55 – 85 °C [ -67 – 185 °F ]

Sealable	No
Pin Diameter	.55 mm [ .021 in ]
Package Qty	15000
Max Temperature	125 °C [ 212 °F ]
Temperature Range	-55 – 85 °C [ -67 – 185 °F ]
Package Method	Reel
Primary Lock	On the Terminal
Cable Termination	Crimp
Contact Size	.54mm
Wire Term Plating	Tin
Contact Fabrication	Stamped & Formed
Crimp Type	F-Crimp
Terminal Type	Socket
Interface Plating	Gold (Au)
Product Termination	Wire
Insulation Option	Uninsulated
Terminal Transmission	0 – 24 A (Low Power)
Cable Type Compatible	Coax Cable
