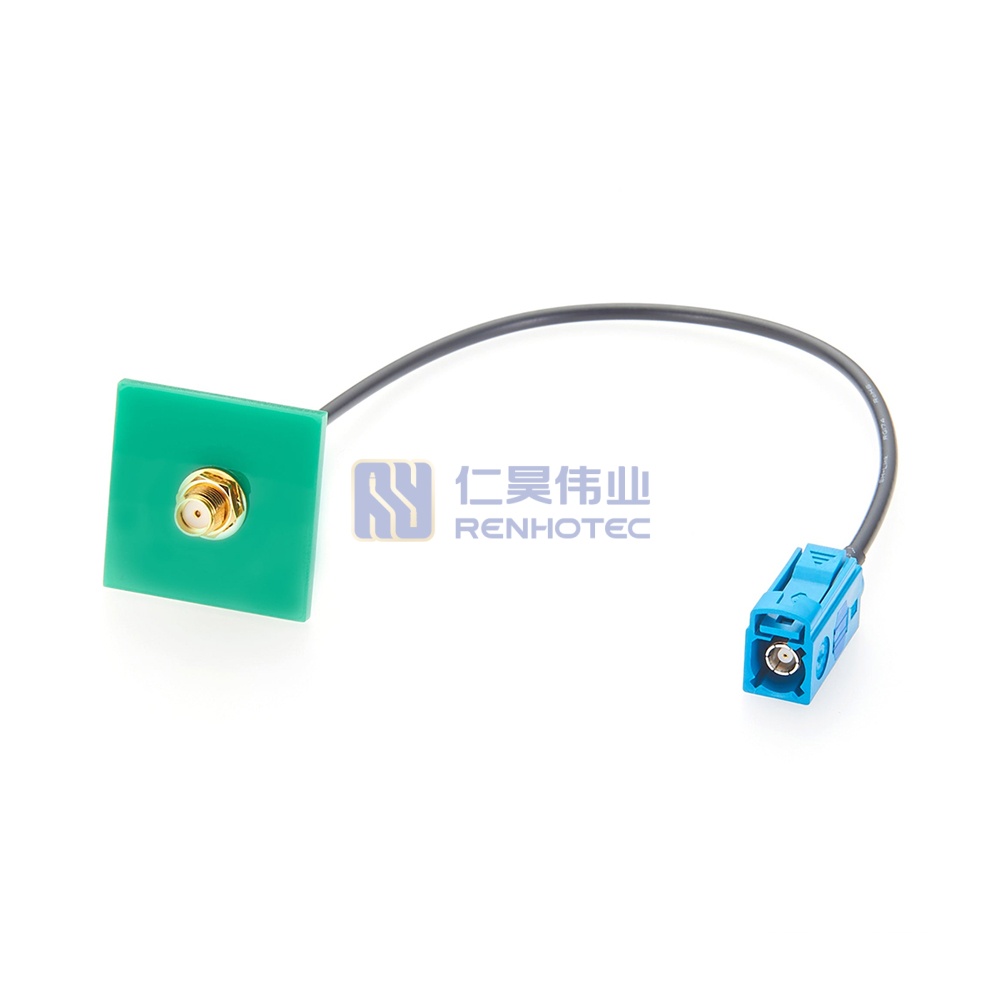

Fakra Female to SMA Bulkhead Mount with Cable RG174 - RHT-605-20912

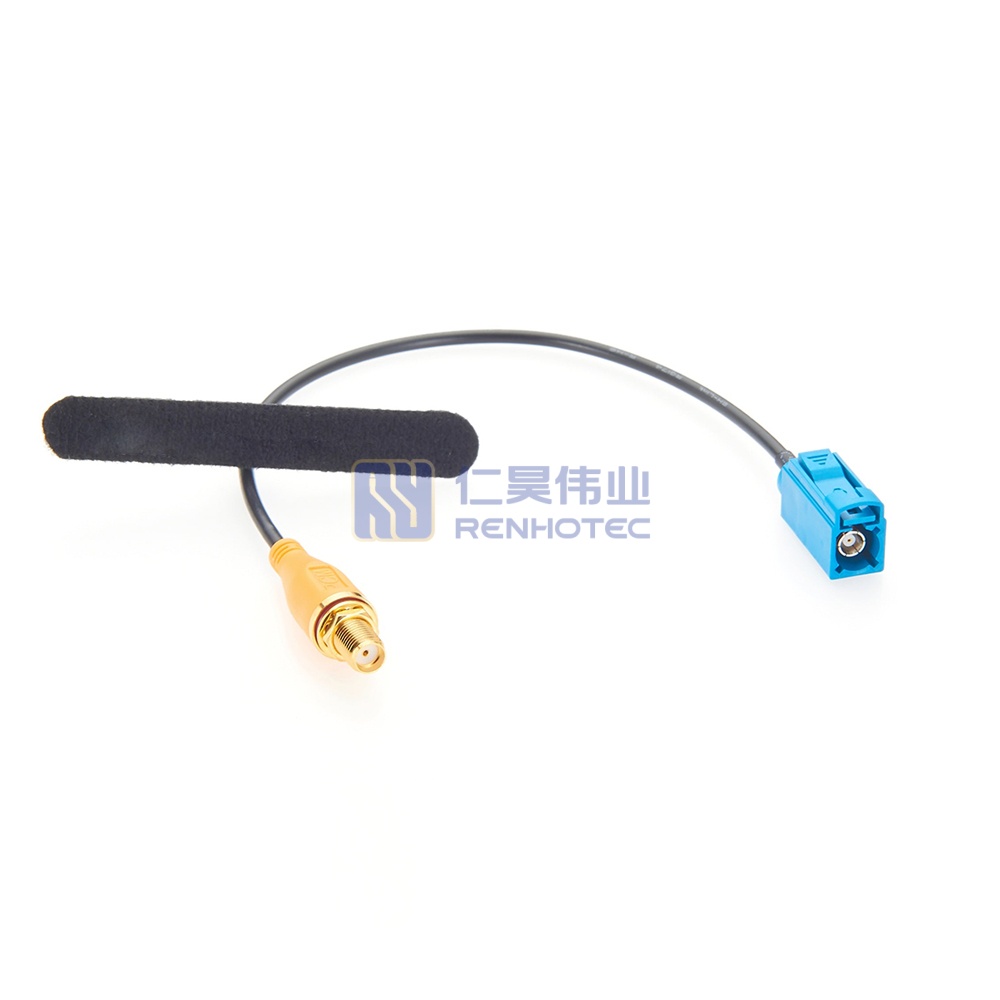

Fakra Female to SMA Bulkhead Mount with Cable RG174 - RHT-605-20912 - Image 2

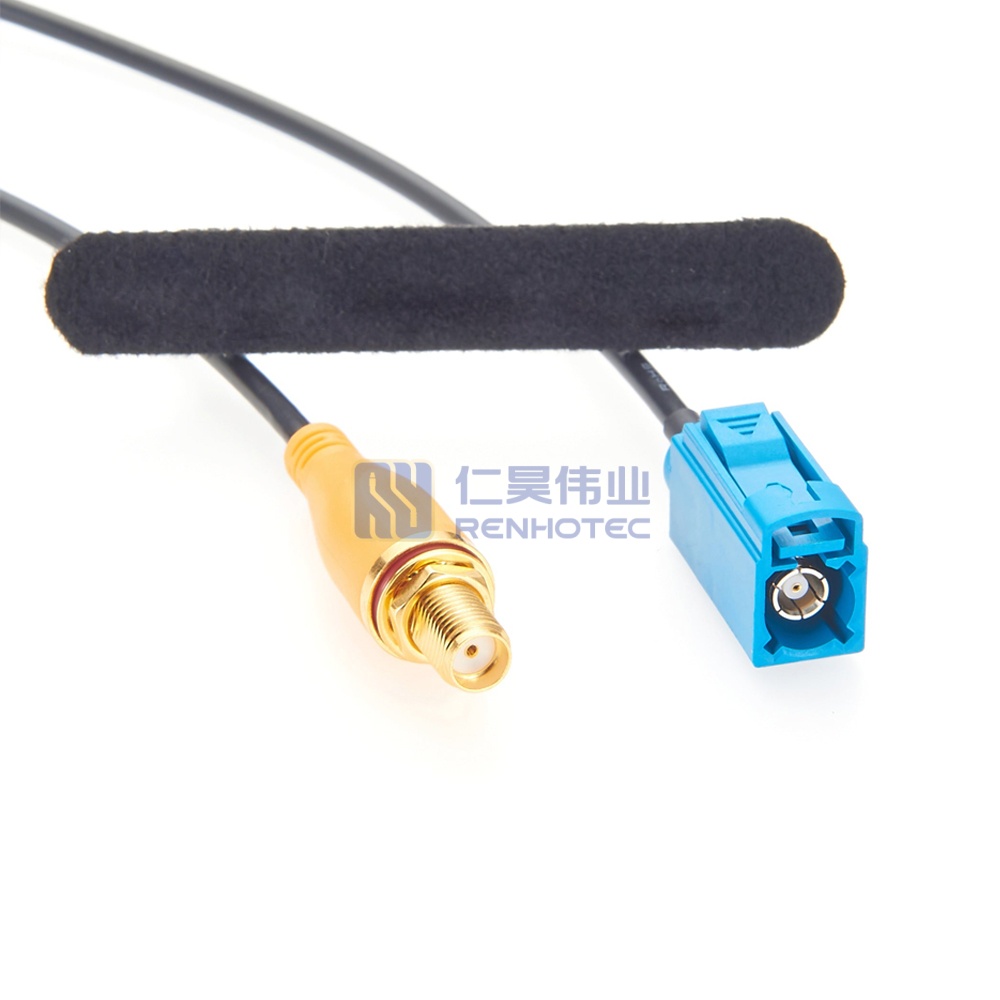

Fakra Female to SMA Bulkhead Mount with Cable RG174 - RHT-605-20912 - Image 3

Request for Quotation

Fakra Female to SMA Bulkhead Mount with Cable RG174 – RHT-605-20912

SKU RHT-605-20912 Category Automotive Series Assemblies, Fakra Cable Assemblies

Product Files

Open drawing and specification files.

Drawing PDF Catalog PDF RHT-605-20912 Fakra Cable Assemblies Specs & Datasheet PDF

Attributes
Downloads

Product Specification

RF Cable 1st Connector	Fakra Z
RF Cable 2nd Connector	SMA
1st Contact Type	Female Pin
2nd Contact Type	Female Pin
1st Connector Orientation	Straight
2nd Connector Orientation	Straight
Cable Type	RG174
Impedance	50 ohm
Frequency Range	DC ~ 3 GHz
Temperature Range	-40°C to +105°C
VSWR	＜1.5
RF Cable 1st Connector	Fakra Z	RF Cable 2nd Connector	SMA
1st Contact Type	Female Pin	2nd Contact Type	Female Pin
1st Connector Orientation	Straight	2nd Connector Orientation	Straight
Cable Type	RG174	Impedance	50 ohm
Frequency Range	DC ~ 3 GHz	Temperature Range	-40°C to +105°C
VSWR	＜1.5

Length	Customized
Length	Customized

RF Cable 1st Connector	Fakra Z
RF Cable 2nd Connector	SMA
1st Contact Type	Female Pin
2nd Contact Type	Female Pin
1st Connector Orientation	Straight
2nd Connector Orientation	Straight
Cable Type	RG174
Length	Customized
Impedance	50 ohm
Frequency Range	DC ~ 3 GHz
Temperature Range	-40°C to +105°C
VSWR	＜1.5

Drawing for RHT-605-20912Download

Automotive Series CatalogDownload
