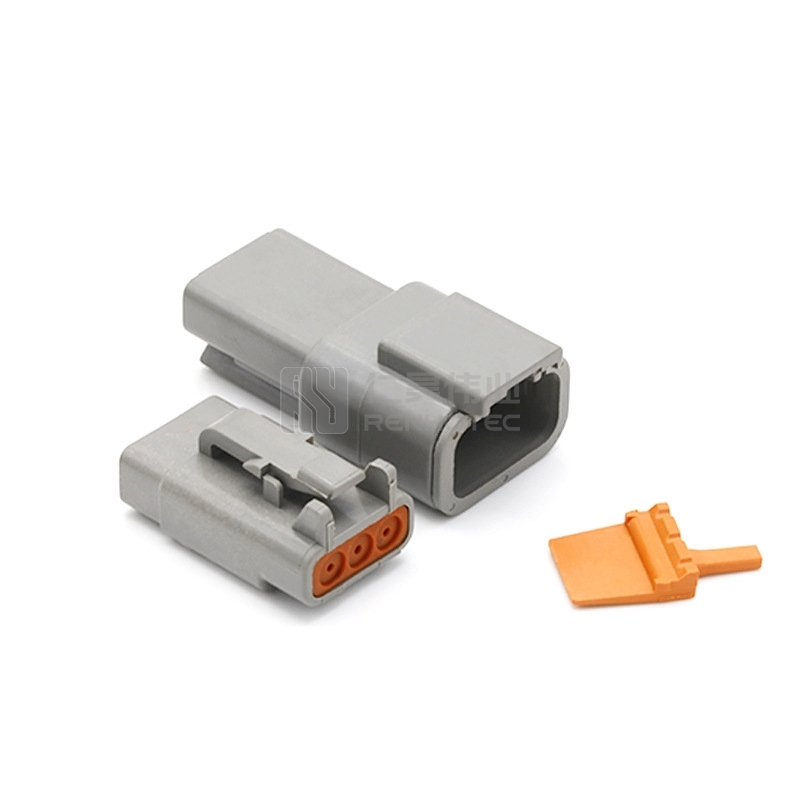

DTM06-3S 3 PINs female automotive connector waterproof DTM Series
- Accommodates wire sizes 12-20 AWG
- Available in 2, 3, 4, 6, 8, 12 and 48 cavity arrangements
- Available for inline, flange mount and PCB mount installations
- Wedgelocks assure contact alignment and retention
DTM Series Products Overview
Product Dimensions
DTM Series 2-Way Connectors
DTM Series 3-Way Connectors
DTM Series 4-Way Connectors
DTM Series 6-Way Connectors
DTM Series 8-Way Connectors
DTM Series 12-Way Connectors
Where would I use DTM series connectors?
DTM series connectors thrive in extreme environments. Robust and versatile, DTM series connectors install quickly and function reliably in any heavy-duty application from marine to industrial.
Bayonet locks provide fast, foolproof mating. Fully sealed to IP67, DTM series connectors protect signals even in harsh conditions.
Product Specification
Series | DTM Series |
||
---|---|---|---|
Shell Material | Thermoplastic |
||
Operating Temperature | -67°F (-55°C) to +257°F (+125°C) |
||
IP Rating | IP67 |
||
Color | Grey |
||
Shape | Rectangular |
||
Number of Ports | 3 |
||
Series | DTM Series |
Shell Material | Thermoplastic |
Operating Temperature | -67°F (-55°C) to +257°F (+125°C) |
IP Rating | IP67 |
Color | Grey |
Shape | Rectangular |
Number of Ports | 3 |
Series | DTM Series |
---|---|
Shell Material | Thermoplastic |
Operating Temperature | -67°F (-55°C) to +257°F (+125°C) |
IP Rating | IP67 |
Color | Grey |
Shape | Rectangular |
Number of Ports | 3 |
