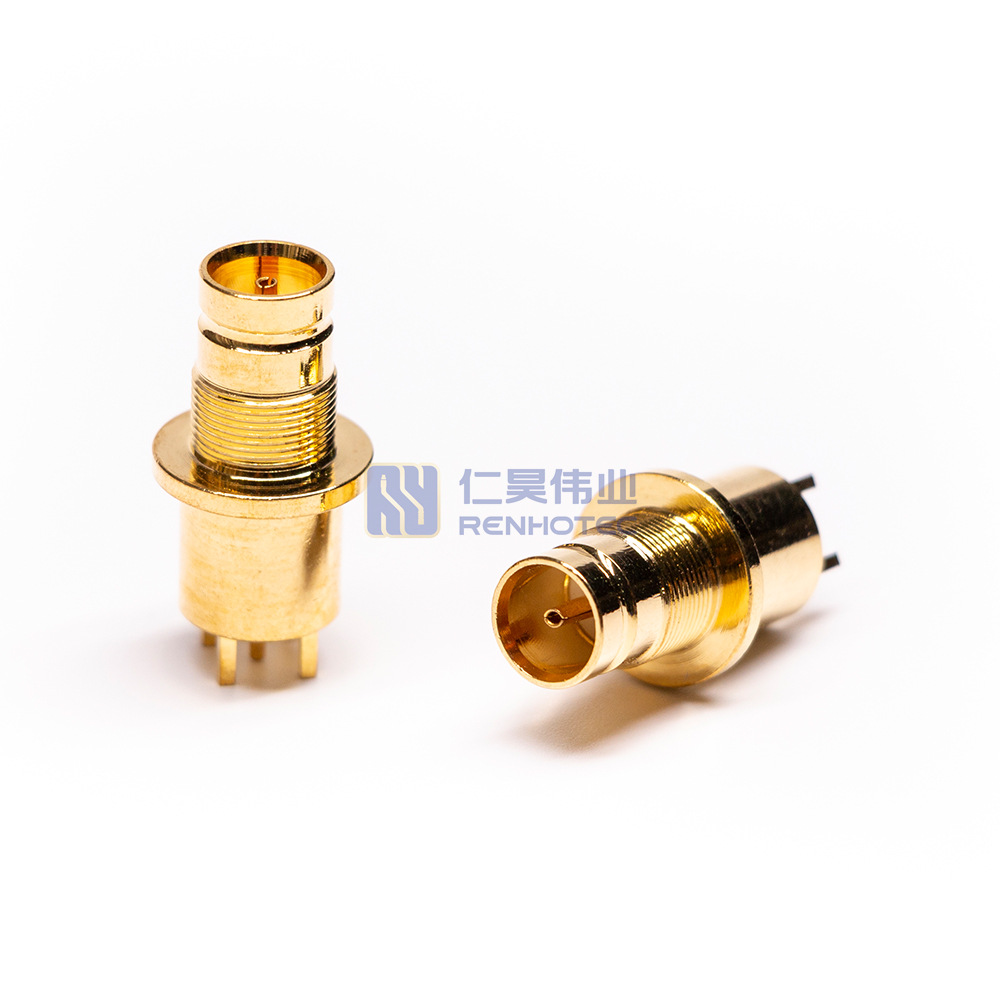

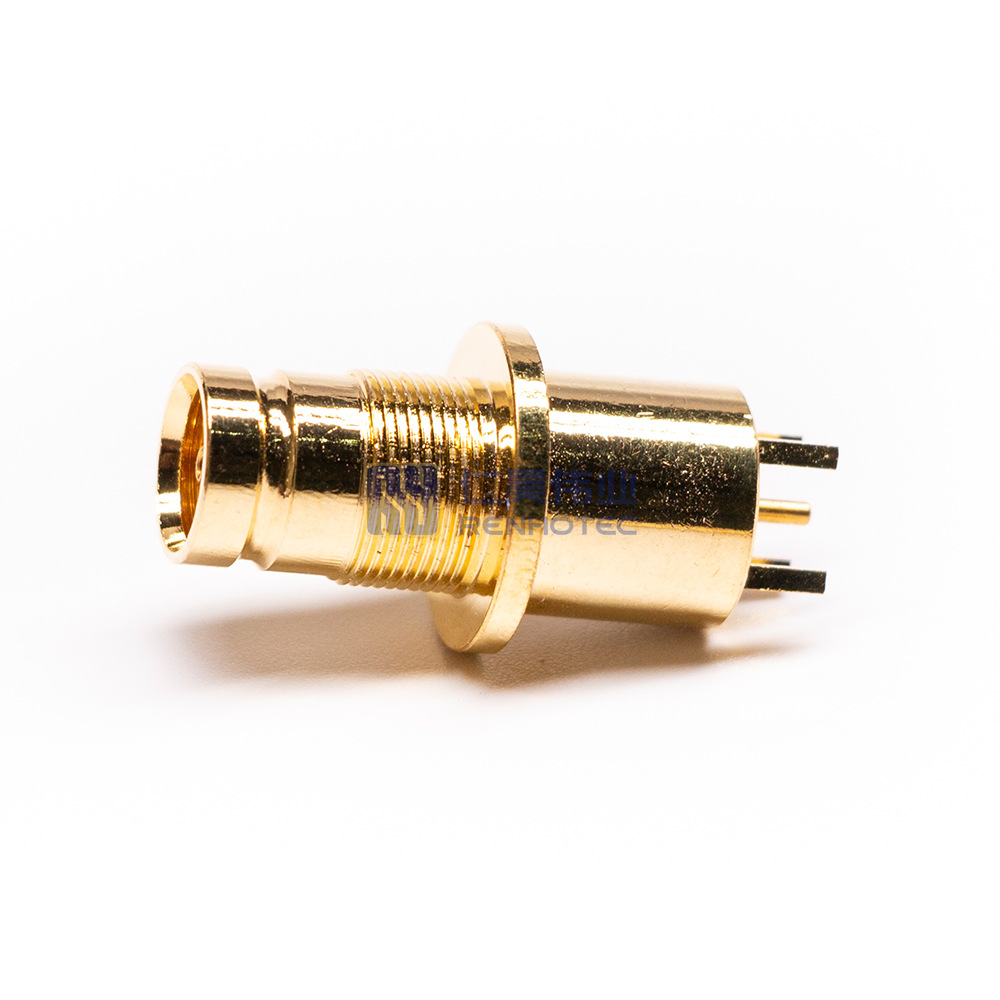

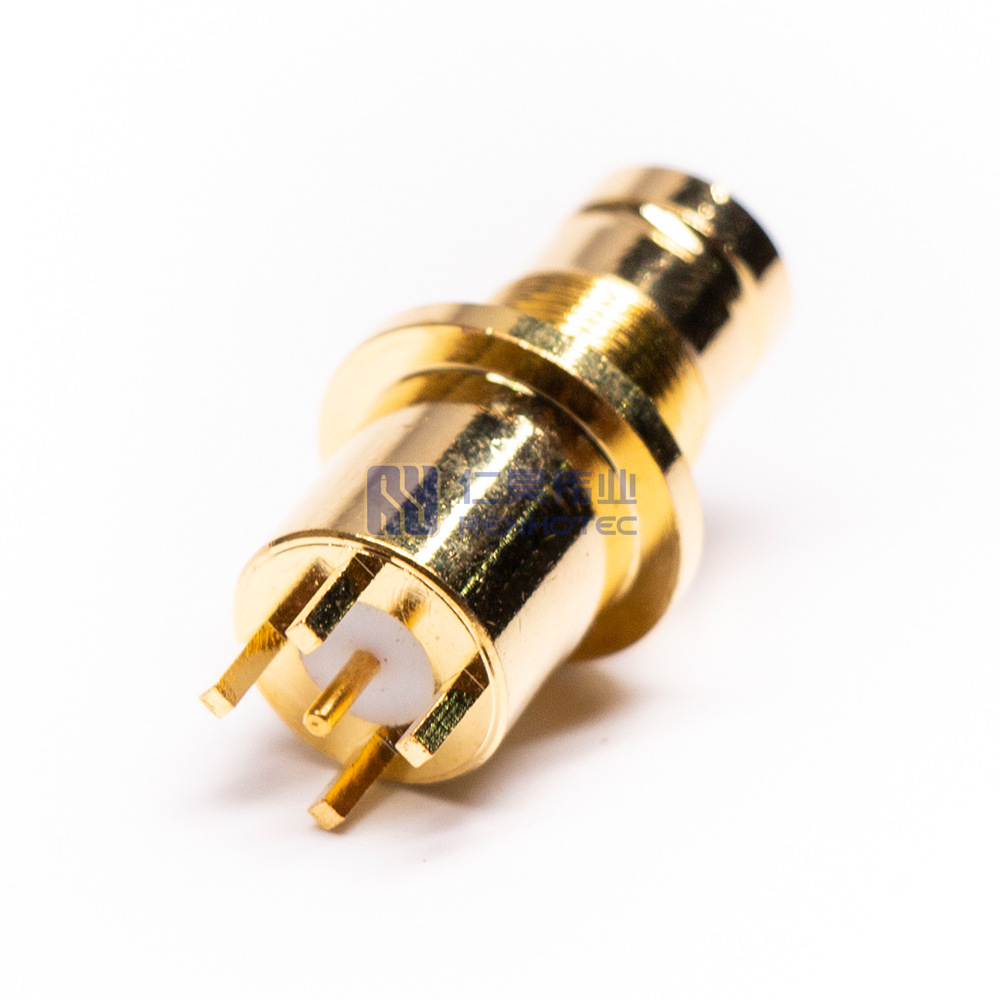

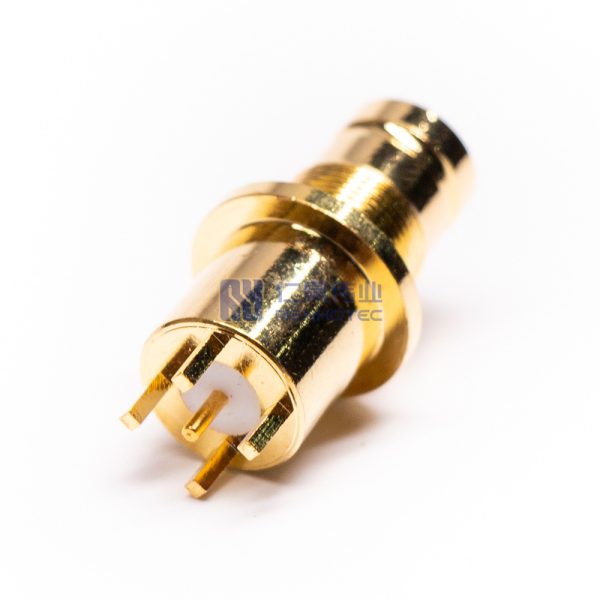

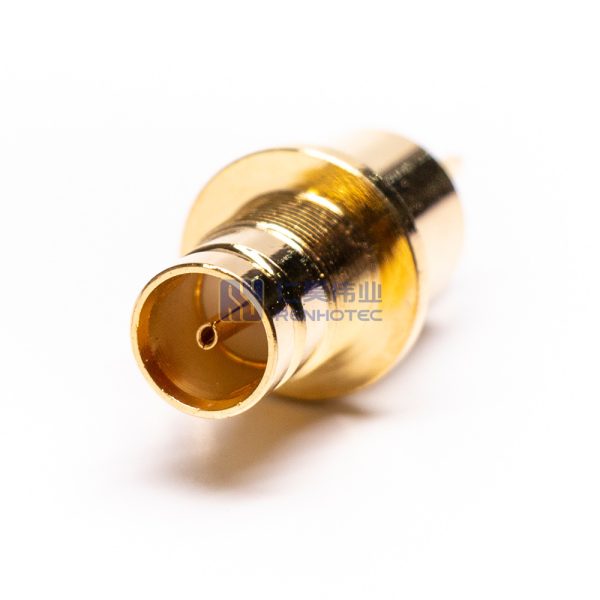

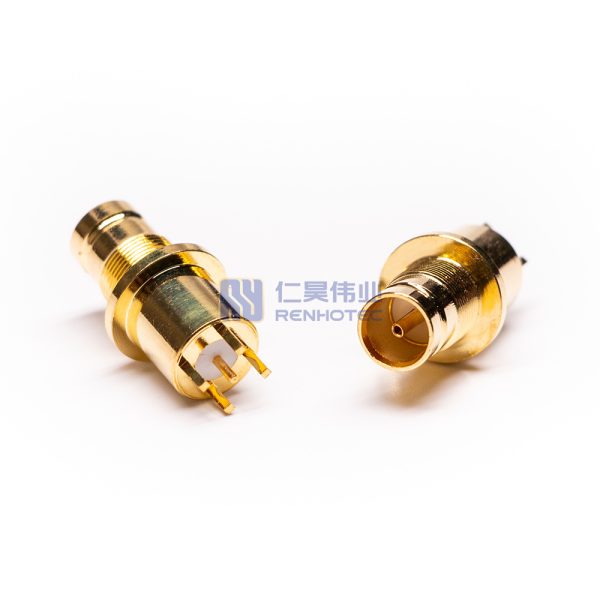

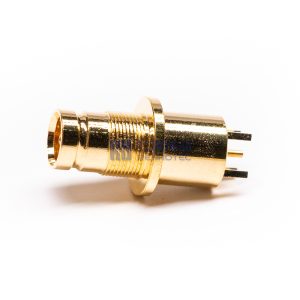

DIN1.6/5.6 Connector Straight Jack Solder Panel Mount Through Hole 75ohm
- Quick connect and disconnect
- Space-saving compact design
- Ideal for high vibration applications
- Available for a wide variety of cable types
- Delivers high conductivity and corrosion resistance
- Self-flared design uses standard hand tools for easy installation
The 1.6-5.6 series performs at 75 ohm up to 1 GHz. The 1.6-5.6 product series has two coupling versions: threaded and push-pull. The threaded coupling version provides positive, familiar mating, while the push-pull coupling version allows quick installation.
Interface
Product Specification
| RF Series | DIN 1.6/5.6 |
||
|---|---|---|---|
| Connector Type | Jack |
||
| Orientation | Straight |
||
| Contact Type | Female Pin |
||
| Contact Termination Style | Solder |
||
| Shield Termination | Solder |
||
| Mounting Type | Panel Mount |
||
| Mounting Feature | Through Hole |
||
| Fastening Type | Threaded |
||
| Number of Ports | 1 |
||
| Impedance | 75 ohm |
||
| Frequency Range | DC-1GHz |
||
| Shell Material | Copper Alloy |
||
| Shell Finish | Gold Plated |
||
| Insulator Material | PTFE |
||
| Contact Material | Beryllium Copper |
||
| Contact Finish | Gold Plated |
||
| Temperature Range | −40°C to +155°C |
||
| Mating Durability | ≥ 500 Cycles |
||
| Rated Voltage | 335 Volts RMS Continuous |
||
| Dielectric Withstanding Voltage | 1000 VRMS Max |
||
| RF Series | DIN 1.6/5.6 |
Connector Type | Jack |
| Orientation | Straight |
Contact Type | Female Pin |
| Contact Termination Style | Solder |
Shield Termination | Solder |
| Mounting Type | Panel Mount |
Mounting Feature | Through Hole |
| Fastening Type | Threaded |
Number of Ports | 1 |
| Impedance | 75 ohm |
Frequency Range | DC-1GHz |
| Shell Material | Copper Alloy |
Shell Finish | Gold Plated |
| Insulator Material | PTFE |
Contact Material | Beryllium Copper |
| Contact Finish | Gold Plated |
Temperature Range | −40°C to +155°C |
| Mating Durability | ≥ 500 Cycles |
Rated Voltage | 335 Volts RMS Continuous |
| Dielectric Withstanding Voltage | 1000 VRMS Max |
| RF Series | DIN 1.6/5.6 |
|---|---|
| Connector Type | Jack |
| Orientation | Straight |
| Contact Type | Female Pin |
| Contact Termination Style | Solder |
| Shield Termination | Solder |
| Mounting Type | Panel Mount |
| Mounting Feature | Through Hole |
| Fastening Type | Threaded |
| Number of Ports | 1 |
| Impedance | 75 ohm |
| Frequency Range | DC-1GHz |
| Shell Material | Copper Alloy |
| Shell Finish | Gold Plated |
| Insulator Material | PTFE |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold Plated |
| Temperature Range | −40°C to +155°C |
| Mating Durability | ≥ 500 Cycles |
| Rated Voltage | 335 Volts RMS Continuous |
| Dielectric Withstanding Voltage | 1000 VRMS Max |
