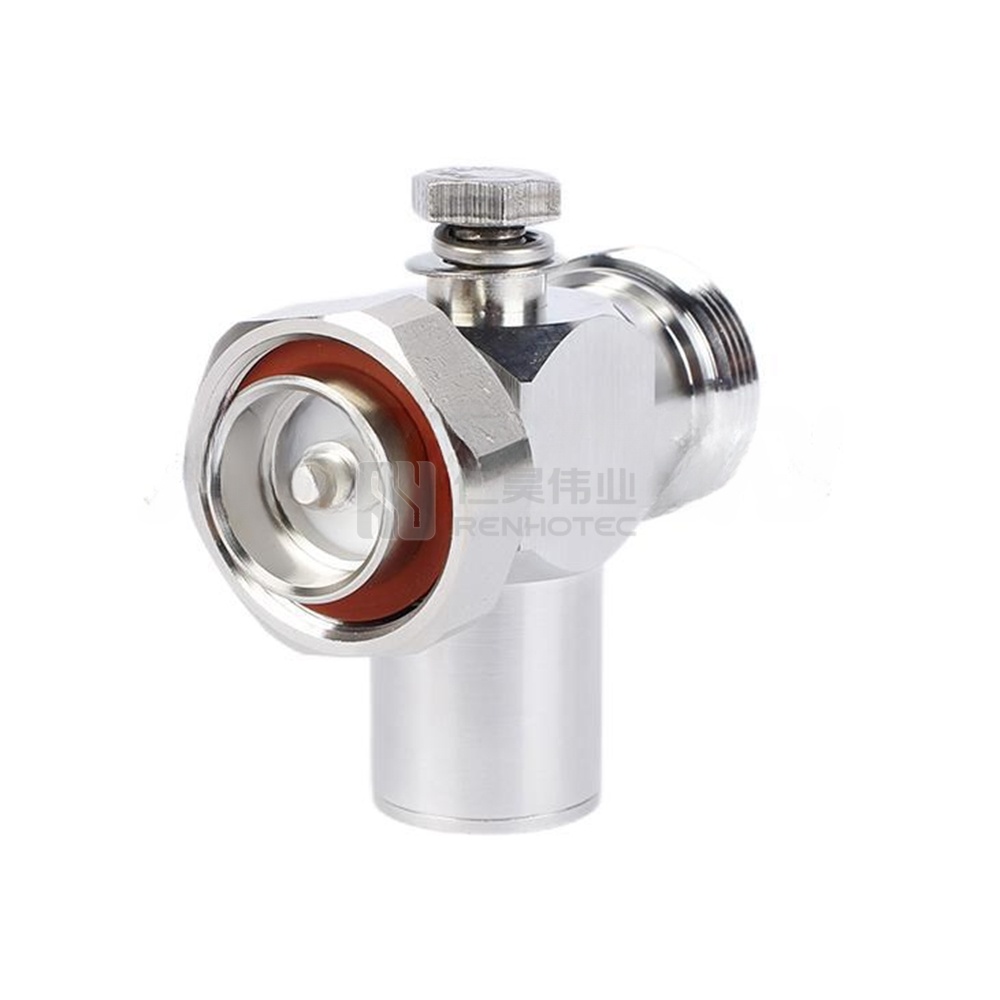

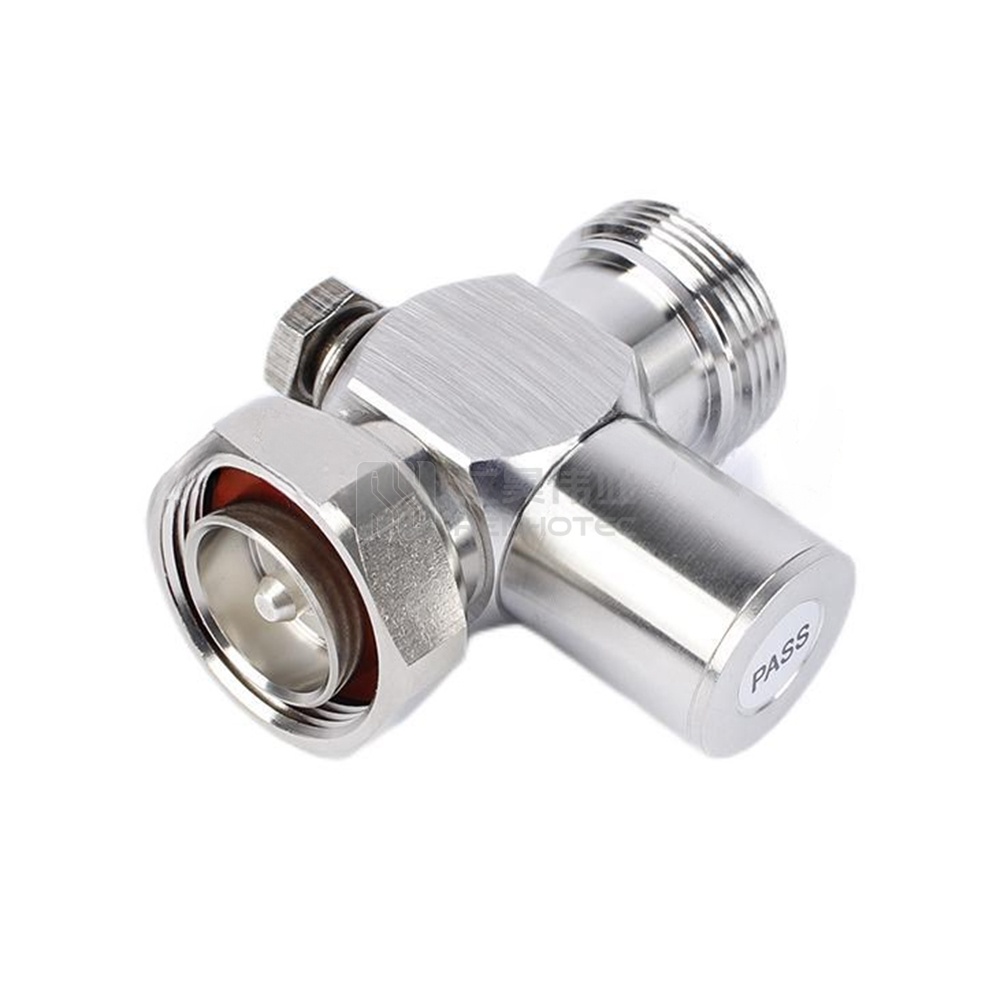

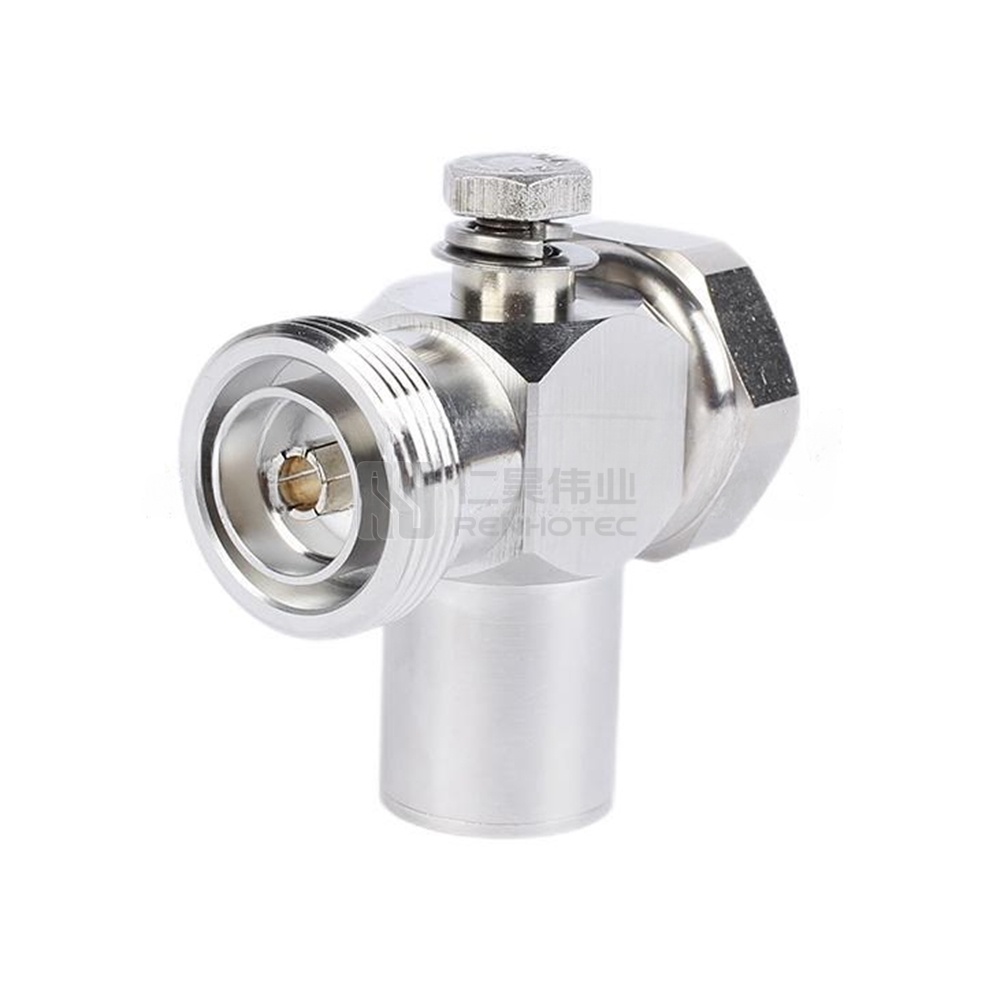

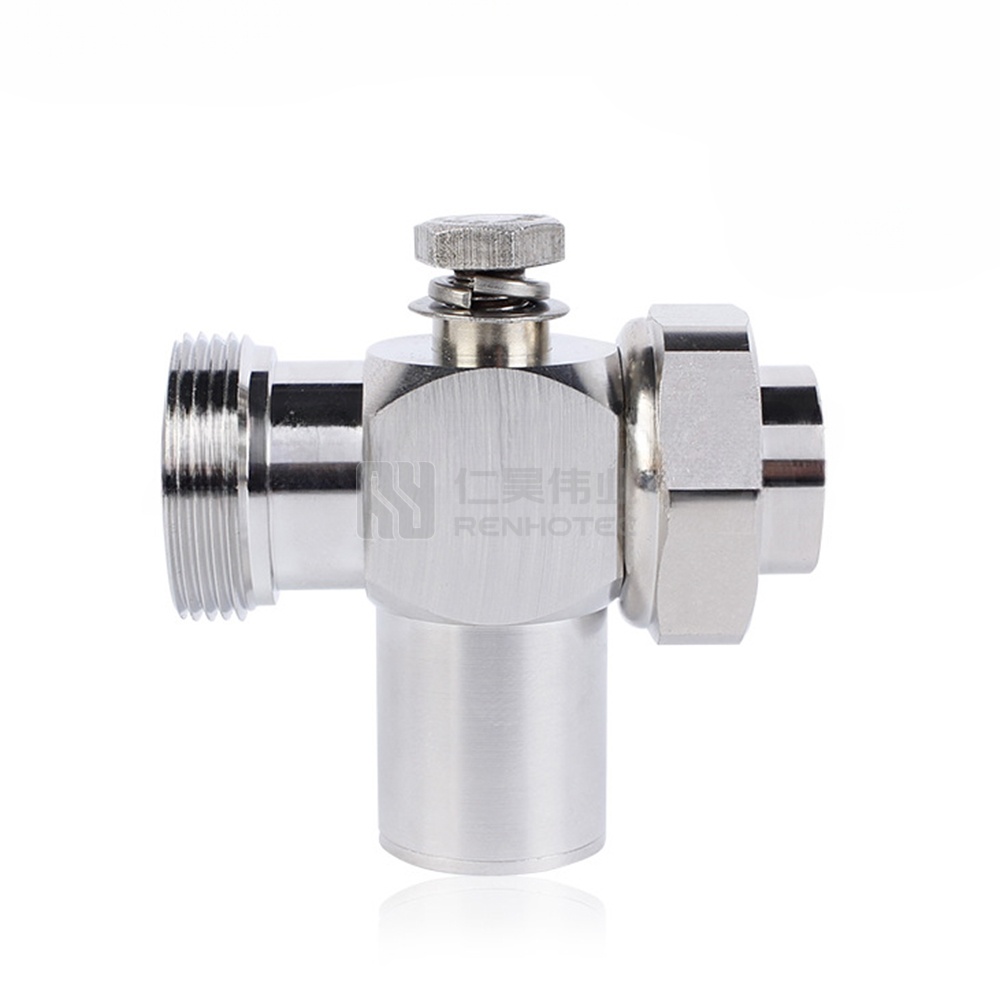

DIN 7/16 50Ω 800-2600MHz 1/4 Wave Male to Female RF Lightning Arrester – DIN-50JK-1/4(BLQ)

The RF Coaxial Surge Protector (RF Lightning Arrester) is a critical protective component that ensures the stable operation of modern communication systems. Installed in series between the antenna and receiving equipment (such as base stations, satellite receivers), it is specifically designed to divert transient overvoltage and excessive current induced by lightning strikes or power fluctuations on the transmission line. Its core value lies in its ability to channel hazardous energy into the ground within nanoseconds, thereby effectively protecting expensive and sensitive downstream electronic equipment from damage. It minimizes system downtime and financial losses caused by lightning, making it an essential choice for building highly reliable outdoor communication networks.

We offer a comprehensive range of connector types and genders to fit your specific setup, including:

• Interface Types: N-Type, TNC, SMA, BNC, UHF, and DIN 7/16.

• Configurations: Male to Female, Male to Male, and Female to Female, including Bulkhead options for secure panel mounting.

• Impedance: Available in both 50Ω and 75Ω versions to match your system’s requirements.

Application

• Wi-Fi Networks
• CCTV/Security Systems (for BNC 75Ω)
• Ham Radio (for UHF)
• Base Stations (for DIN/N-type)

Installation Guide

1. Placement: Near cable entry or device input. (e.g., router or amplifier).

2. Orientation: Bi-directional (either way)

3. Grounding (Most Important): Connect a copper ground wire (at least 10-12 AWG) from from the screw (on the side of the arrester body) to a ground rod.

4. Weatherproofing: Wrap outdoor connectors with waterproof tape.

5. Tightening: Ensure all coaxial connectors are tightened firmly to prevent signal loss (VSWR).
