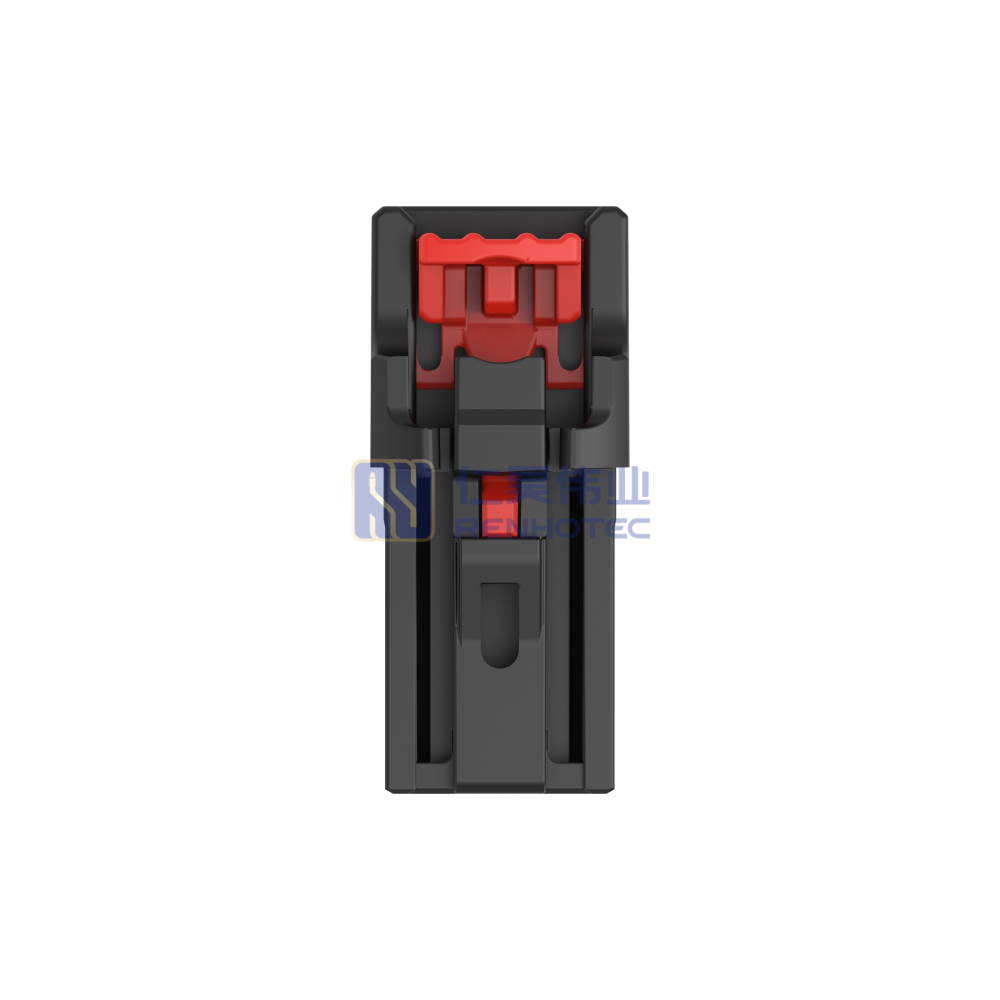

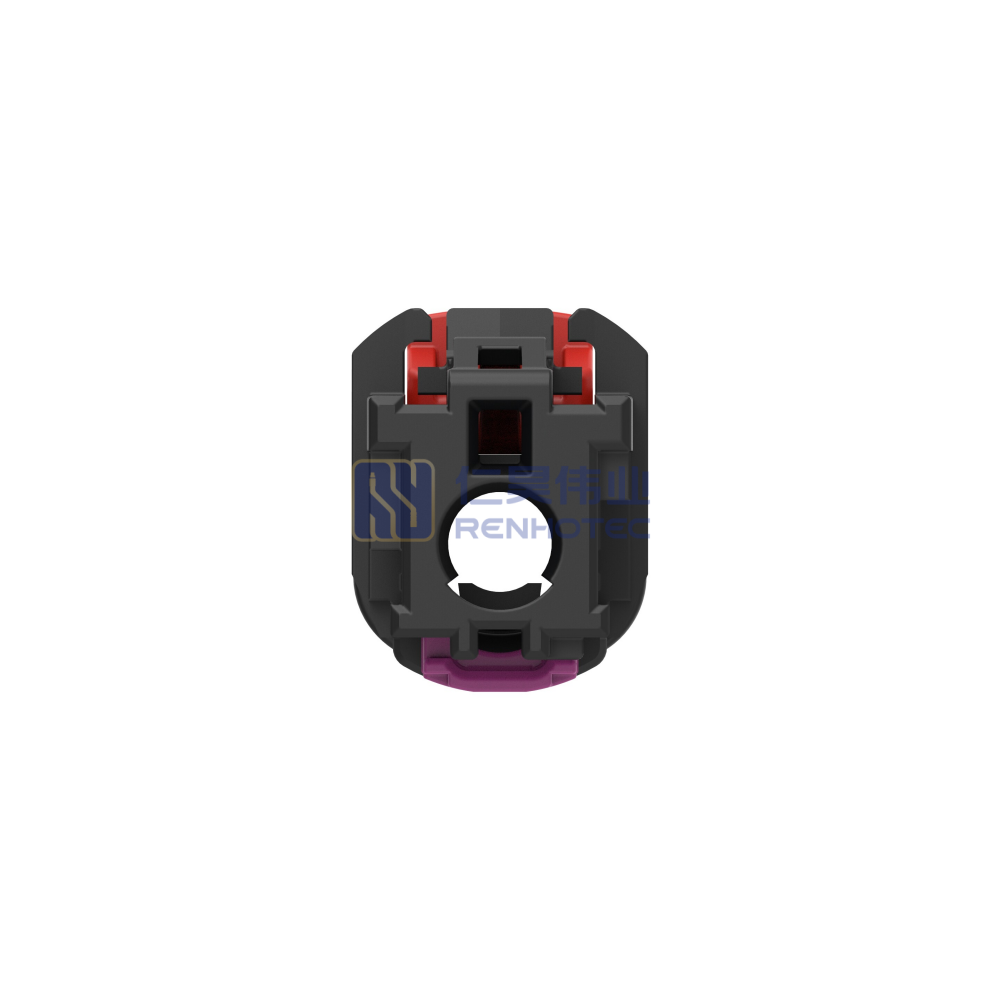

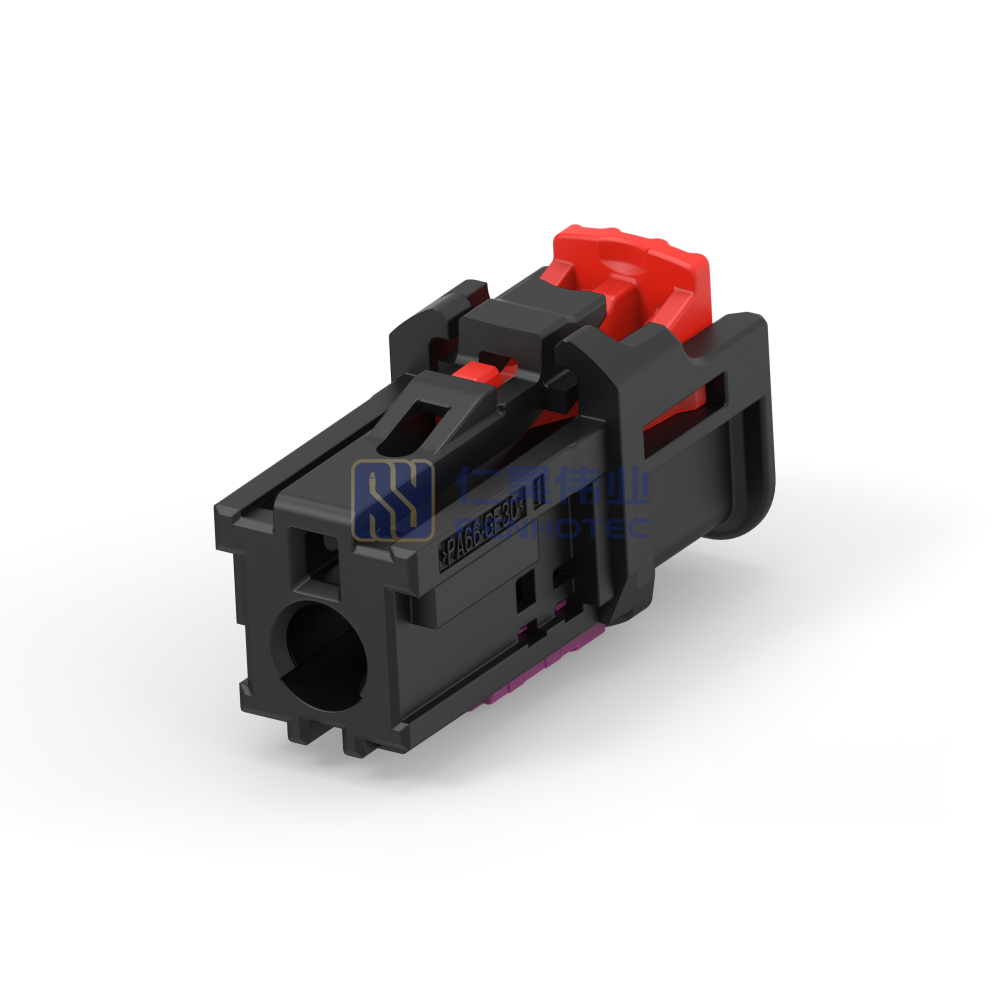

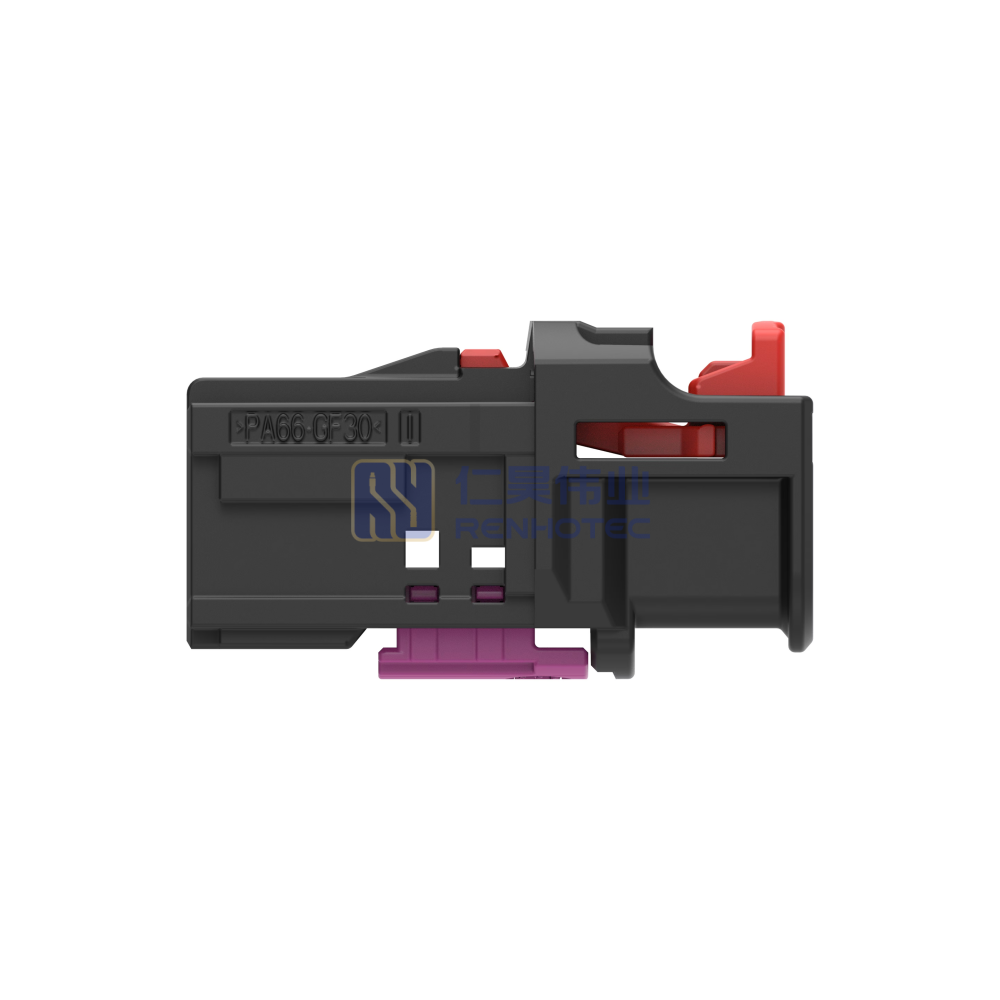

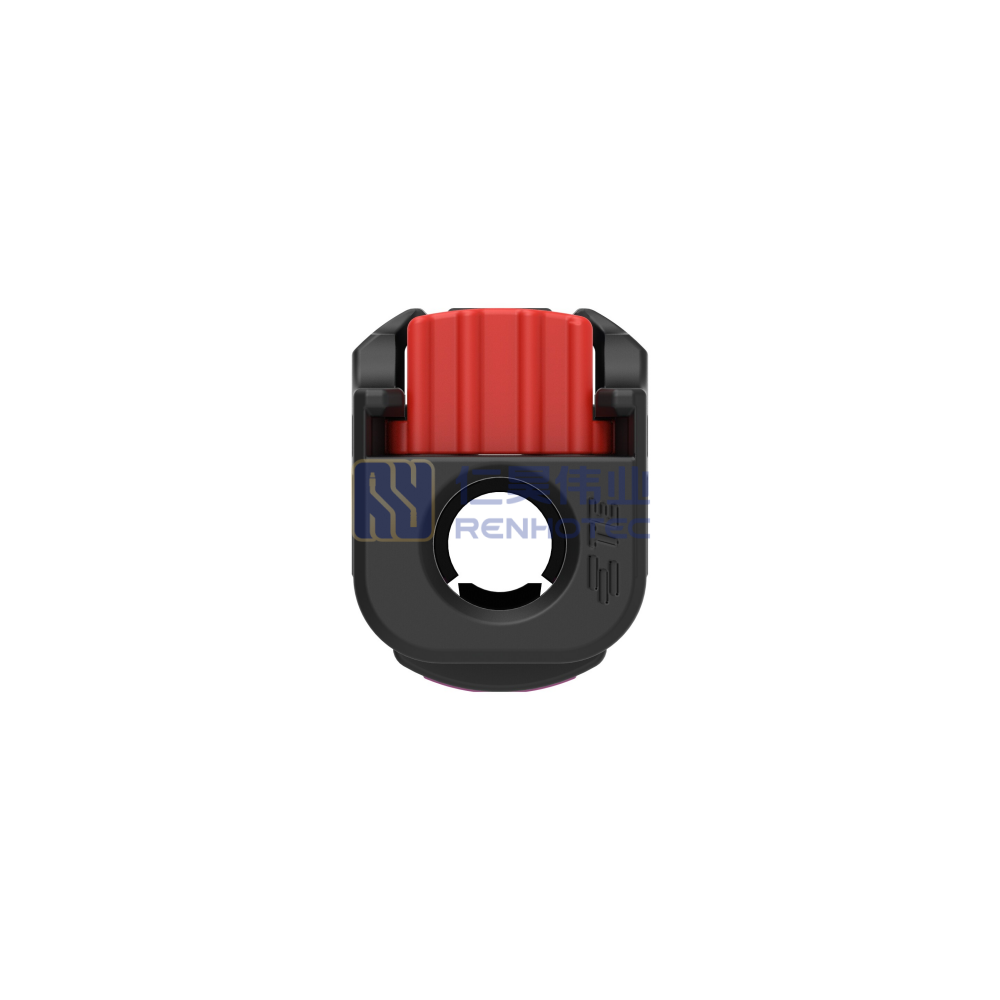

Cable-to-Cable / Wire-to-Wire, 180° Cable Exit, 1 Position, B Code, Housing for Female Terminals, Crimp, High Speed Data, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Cable-to-Cable \| Wire-to-Wire
Sealable	No
Row Count	1
Position Count	1
Key Code	A
Center Contact	With
Contact Plating	Silver (Ag)
Pin Diameter	.4 mm [ .016 in ]
Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Jet Black
Connector Height	10.75 mm [ .42 in ]
Product Length	8.3 mm [ .32 in ]
Product Width	18.8 mm [ .74 in ]
Operating Voltage VDC	60
Body Material	PA66 GF30
Outer Contact Plating	Tin (Sn)
Max Temperature	105 °C [ 221 °F ]
Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals
Snap Lock	Without
Cable Exit Type	Straight
Ferrule	With
Cable Exit Angle	180°
Cable Termination	Crimp
Termination Point	Wire & Cable	Connector System	Cable-to-Cable \| Wire-to-Wire
Sealable	No	Row Count	1
Position Count	1	Key Code	A
Center Contact	With	Contact Plating	Silver (Ag)
Pin Diameter	.4 mm [ .016 in ]	Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)	Housing Color	Jet Black
Connector Height	10.75 mm [ .42 in ]	Product Length	8.3 mm [ .32 in ]
Product Width	18.8 mm [ .74 in ]	Operating Voltage VDC	60
Body Material	PA66 GF30	Outer Contact Plating	Tin (Sn)
Max Temperature	105 °C [ 221 °F ]	Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals	Snap Lock	Without
Cable Exit Type	Straight	Ferrule	With
Cable Exit Angle	180°	Cable Termination	Crimp

Termination Point	Wire & Cable
Connector System	Cable-to-Cable \| Wire-to-Wire
Sealable	No
Row Count	1
Position Count	1
Key Code	A
Contact Type	Socket
Center Contact	With
Contact Plating	Silver (Ag)
Pin Diameter	.4 mm [ .016 in ]
Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Jet Black
Connector Height	10.75 mm [ .42 in ]
Product Length	8.3 mm [ .32 in ]
Product Width	18.8 mm [ .74 in ]
Operating Voltage VDC	60
Body Material	PA66 GF30
Outer Contact Plating	Tin (Sn)
Max Temperature	105 °C [ 221 °F ]
Impedance Ω	50
Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals
Snap Lock	Without
Cable Exit Type	Straight
Ferrule	With
Cable Exit Angle	180°
Cable Termination	Crimp
Cable Type	RG 174 \| RTK 031
