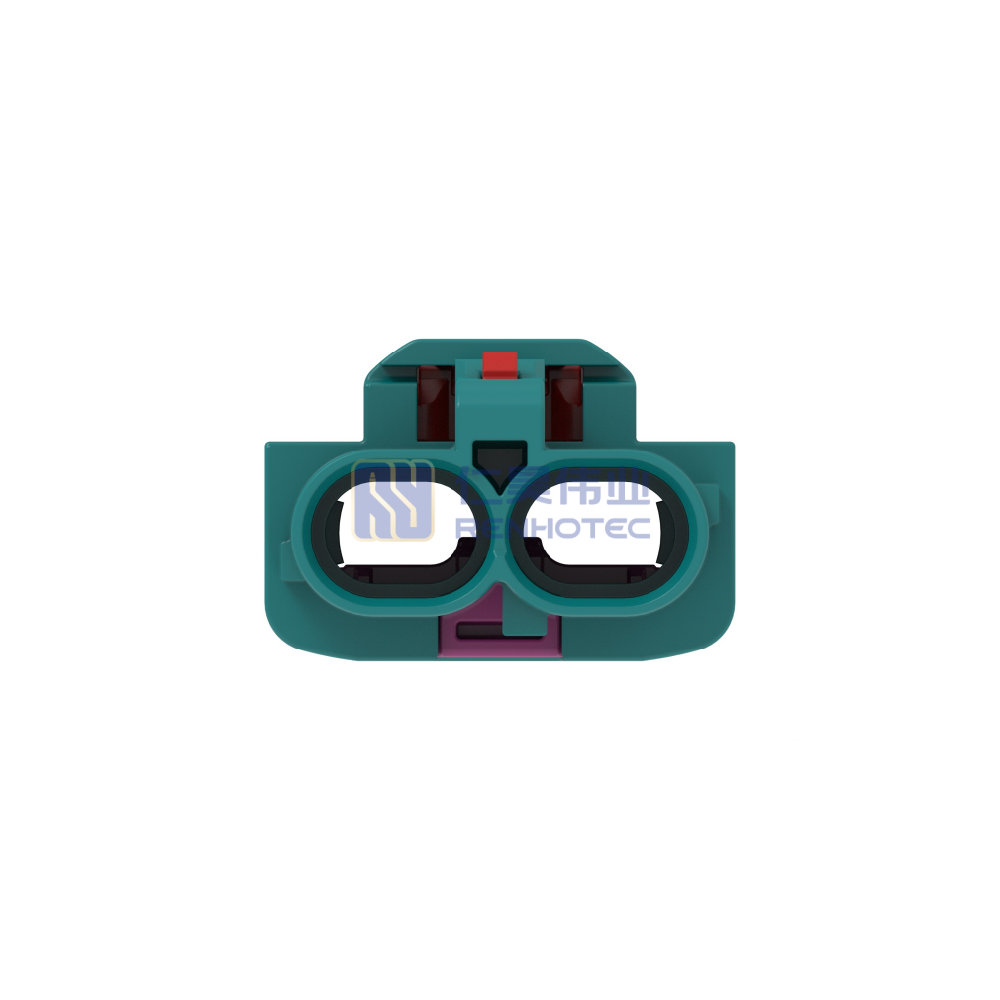

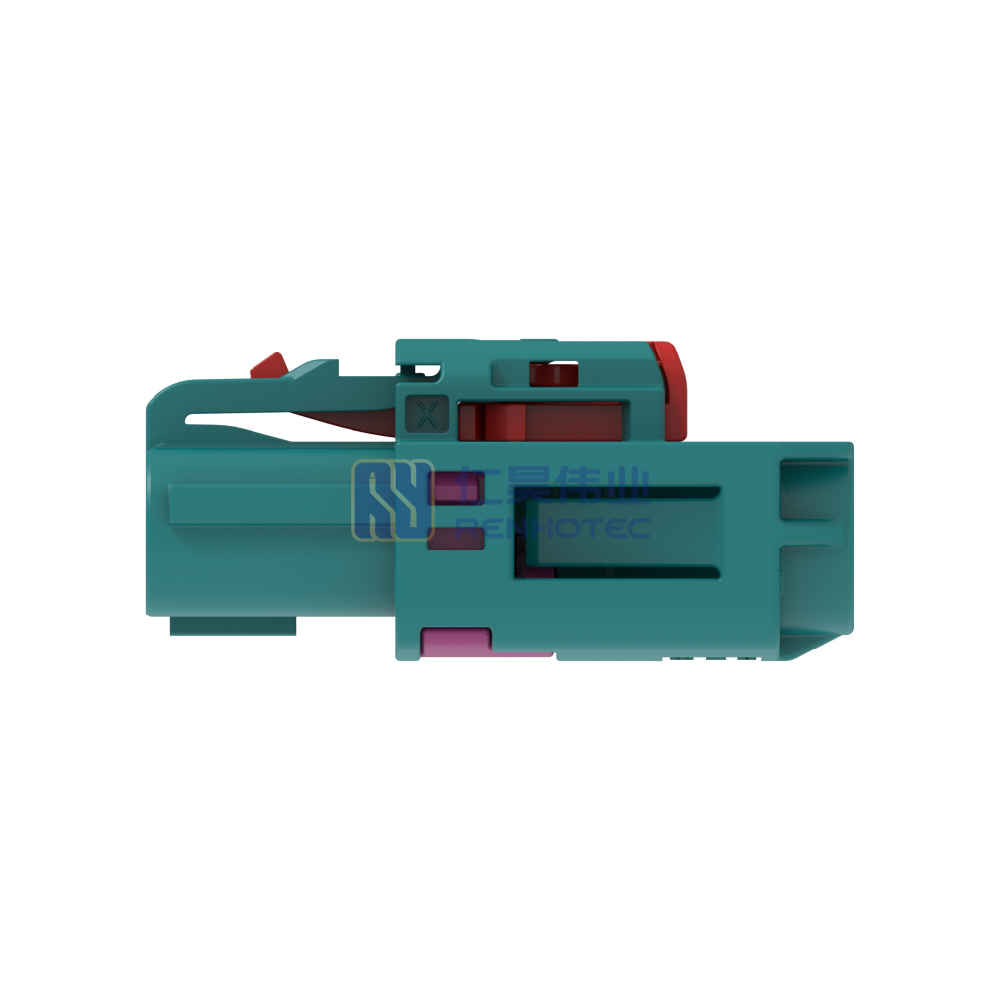

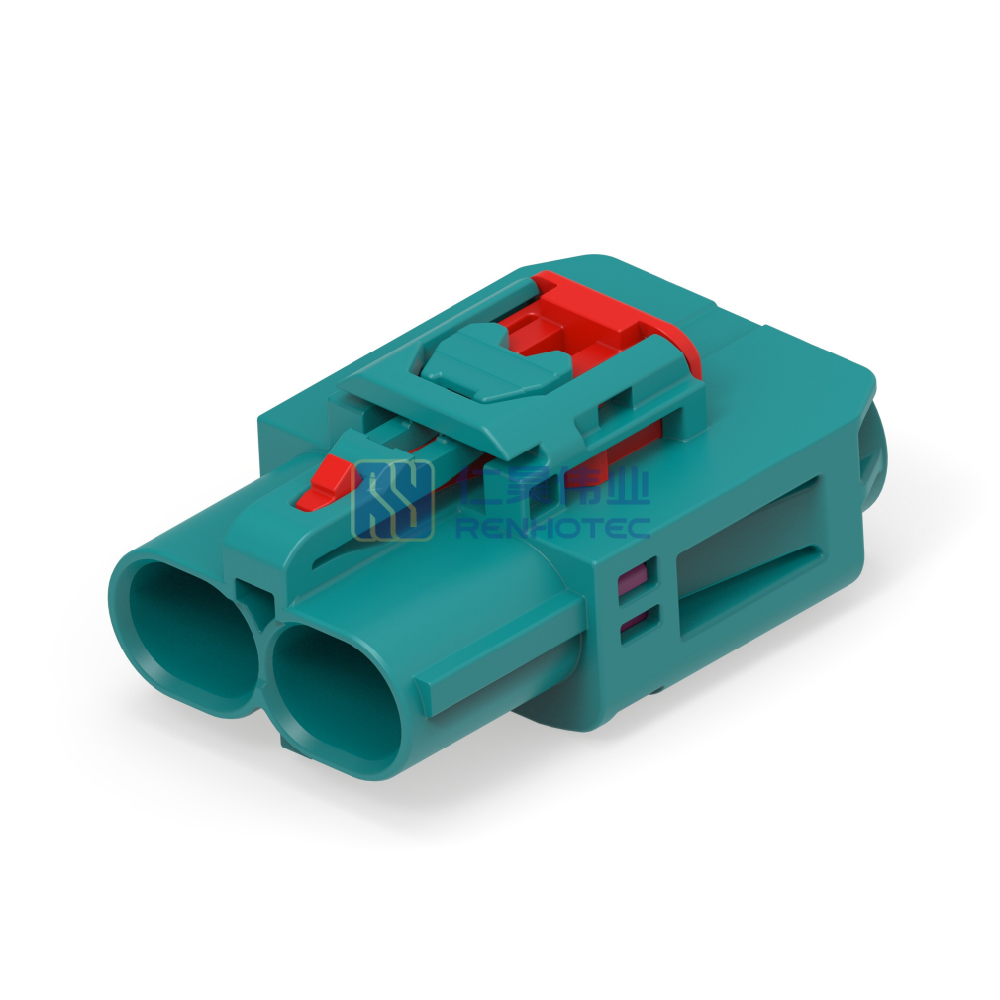

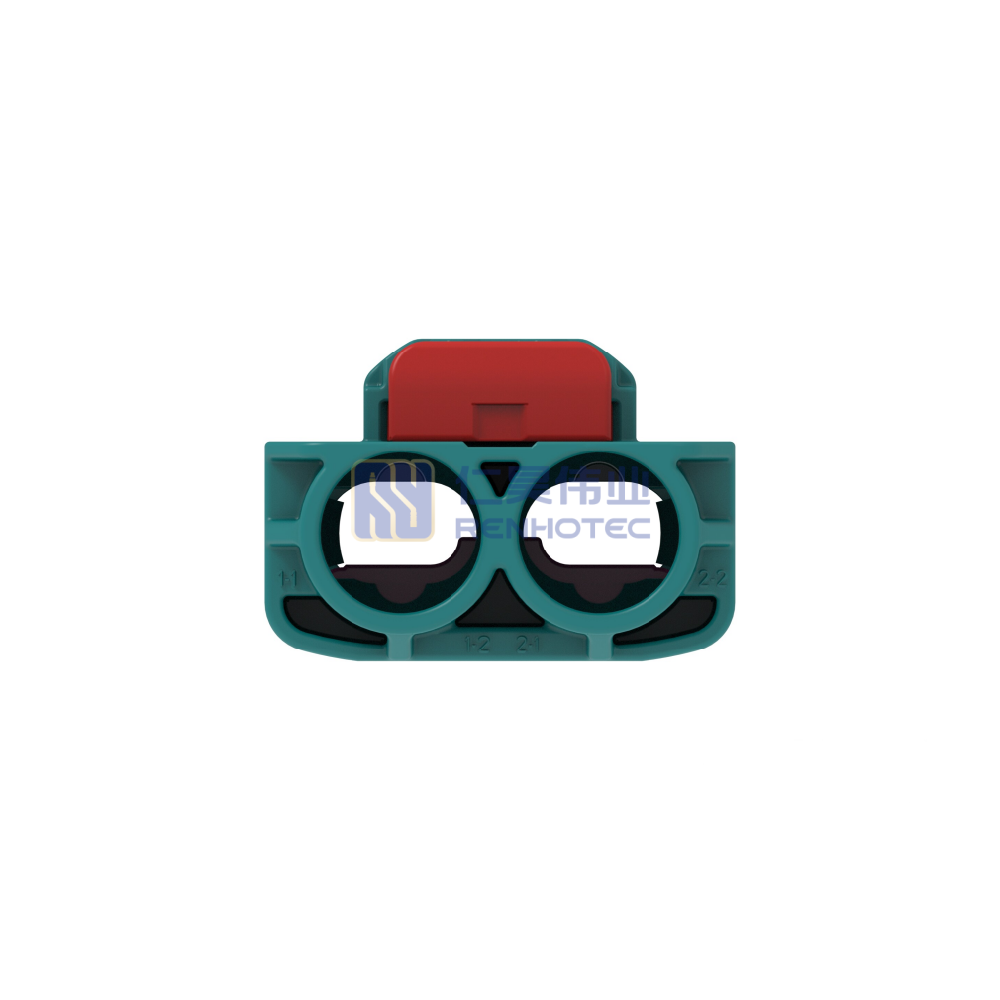

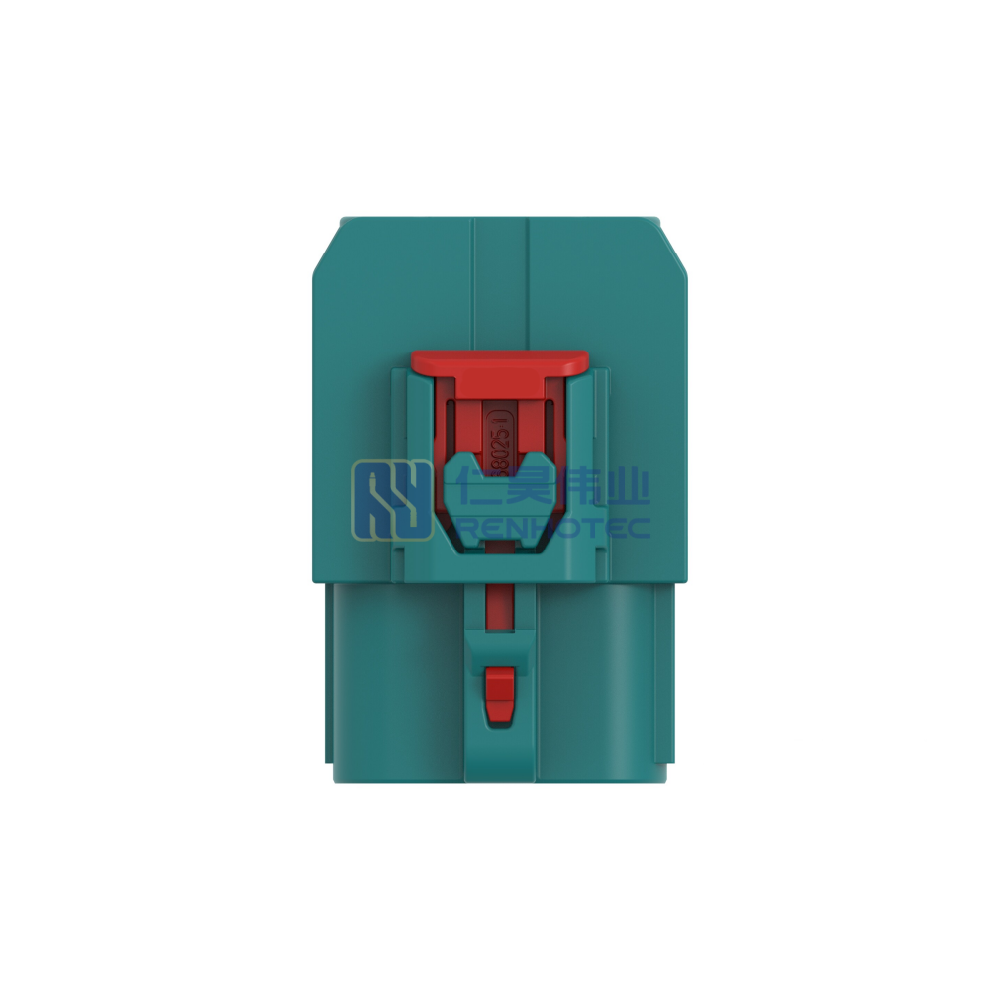

Cable-to-Cable, 180° Cable Exit, 2 Position, Z Code, Housing for Female Terminals, 8 mm Centerline, Crimp, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	No
Row Count	1
Position Count	2
Key Code	Z
Pin Diameter	.5 mm [ .02 in ]
Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Water Blue
Pitch	8 mm [ .315 in ]
Connector Height	13.1 mm [ .516 in ]
Product Length	28.7 mm [ 1.13 in ]
Product Width	19 mm [ .748 in ]
Shielded	No
Circuit Application	High Speed Data
Max Temperature	105 °C [ 221 °F ]
Housing Type	Housing for Female Terminals
Cable Exit Type	Straight
Cable Exit Angle	180°
Cable Termination	Crimp
Position Assurance	Yes
Termination Point	Wire & Cable	Connector System	Cable-to-Cable
Sealable	No	Row Count	1
Position Count	2	Key Code	Z
Pin Diameter	.5 mm [ .02 in ]	Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)	Housing Color	Water Blue
Pitch	8 mm [ .315 in ]	Connector Height	13.1 mm [ .516 in ]
Product Length	28.7 mm [ 1.13 in ]	Product Width	19 mm [ .748 in ]
Shielded	No	Circuit Application	High Speed Data
Max Temperature	105 °C [ 221 °F ]	Housing Type	Housing for Female Terminals
Cable Exit Type	Straight	Cable Exit Angle	180°
Cable Termination	Crimp	Position Assurance	Yes

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	No
Row Count	1
Position Count	2
Key Code	Z
Contact Type	Socket
Pin Diameter	.5 mm [ .02 in ]
Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Water Blue
Pitch	8 mm [ .315 in ]
Connector Height	13.1 mm [ .516 in ]
Product Length	28.7 mm [ 1.13 in ]
Product Width	19 mm [ .748 in ]
Shielded	No
Circuit Application	High Speed Data
Max Temperature	105 °C [ 221 °F ]
Temperature Range	-40 – 105 °C [ -40 – 221 °F ]
Impedance Ω	100
Housing Type	Housing for Female Terminals
Cable Exit Type	Straight
Cable Exit Angle	180°
Cable Termination	Crimp
Cable Type	Ethernet
Position Assurance	Yes
