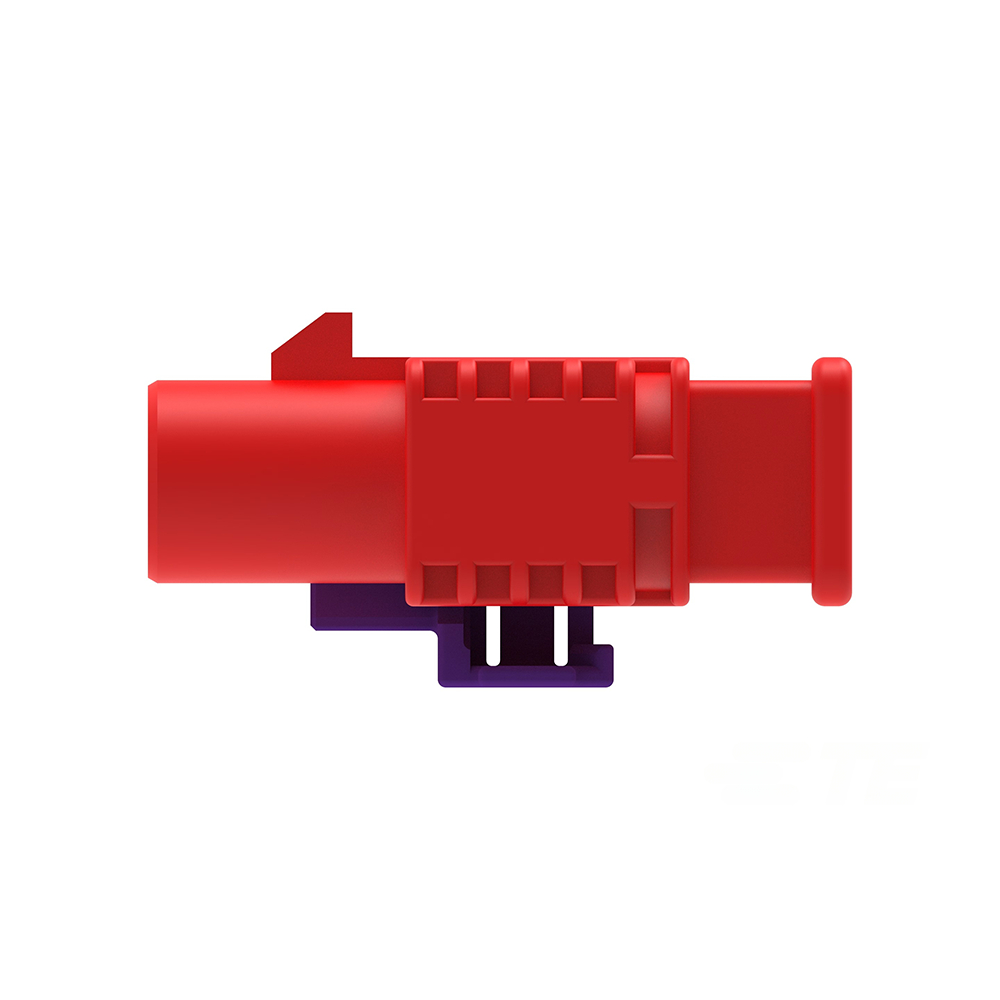

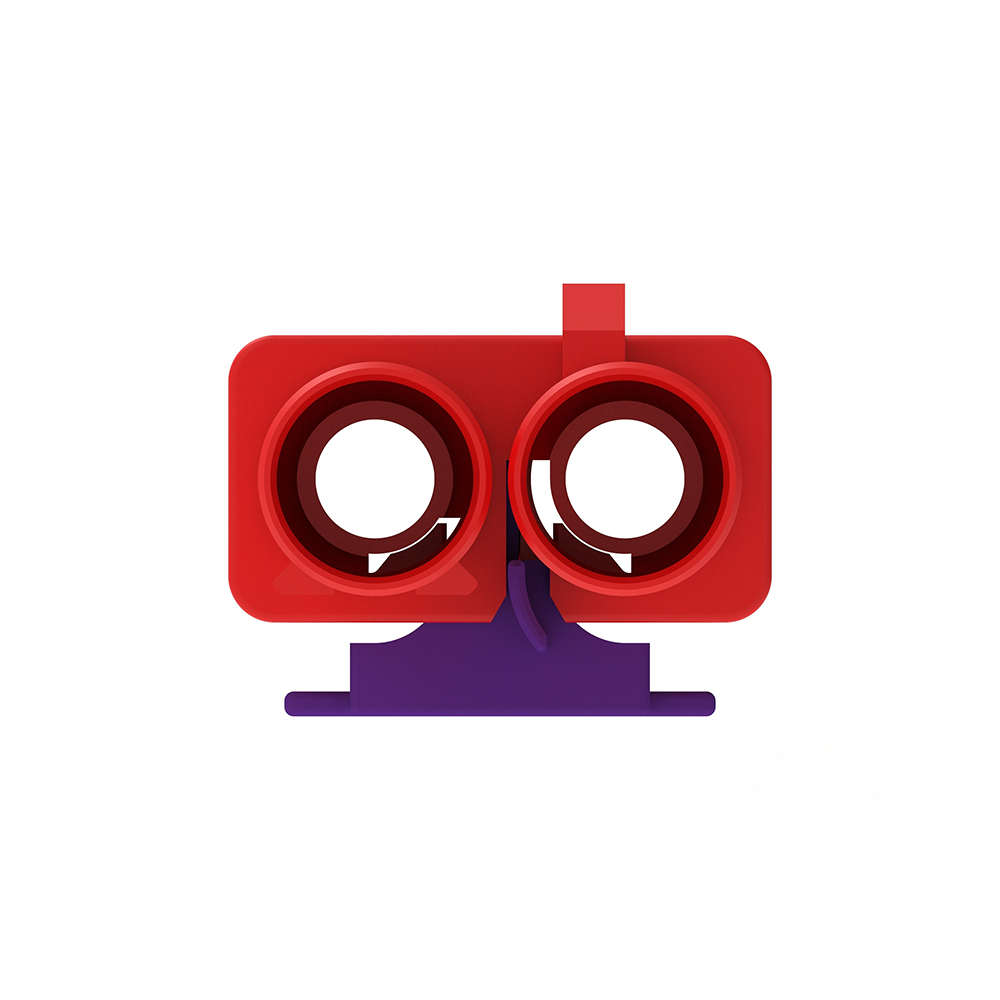

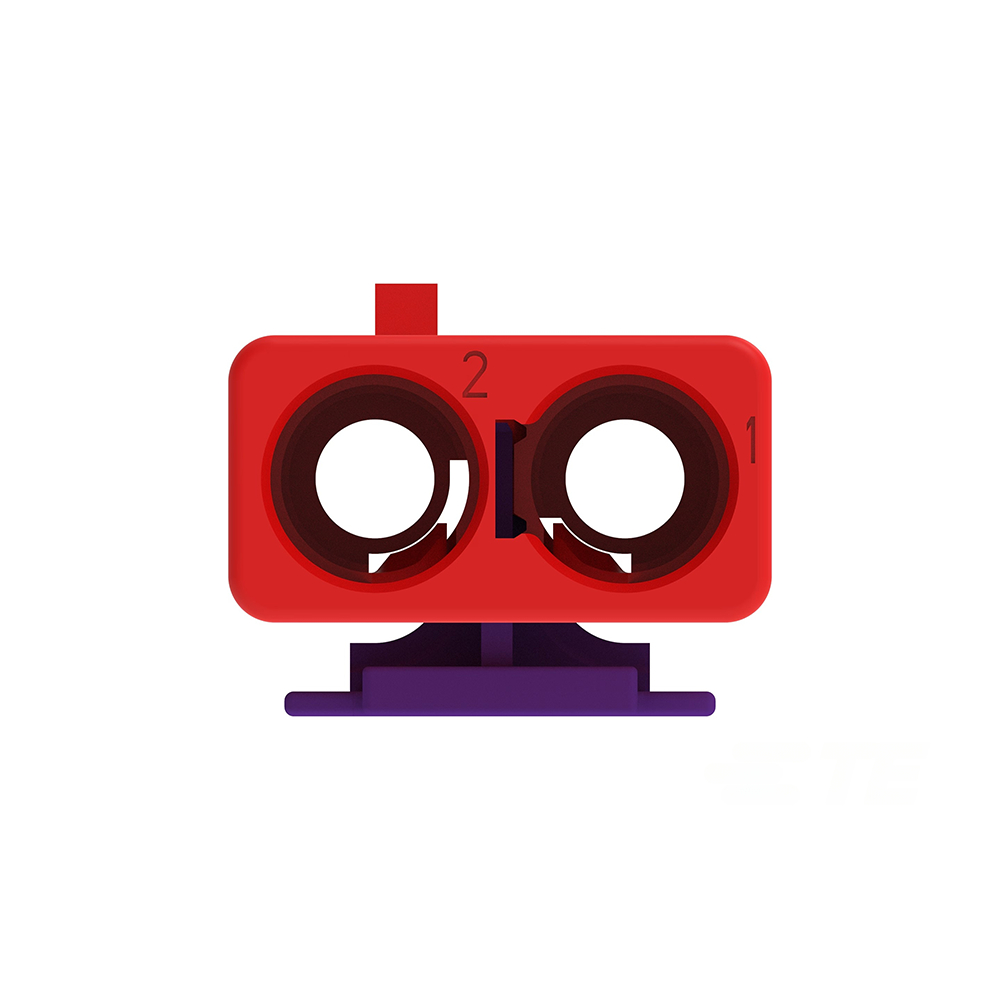

Cable-to-Cable, 180° Cable Exit, 2 Position, M Code, Housing for Male Terminals, 8 mm Centerline, Crimp, FAKRA, Data Connectivity Housings

Termination Point

Wire & Cable
Connector System

Cable-to-Cable
Sealable

No
Row Count

1
Position Count

2
Key Code

L
Pin Diameter

.5 mm [ .02 in ]
Max Current A

1
Mount Type

Cable Mount (Free-Hanging)
Housing Color

Carmine Red
Pitch

8 mm [ .315 in ]
Connector Height

13.9 mm [ .547 in ]
Product Length

26.4 mm [ 1.039 in ]
Product Width

17.4 mm [ .685 in ]
Shielded

No
Body Material

PBT GF
Housing Type

Housing for Male Terminals
Cable Exit Angle

180°
Cable Termination

Crimp
Frequency Range GHz

0 – 6
Position Assurance

No
Nominal Voltage V

800
Max Temperature C

65 | 70 | 75 | 80 | 85
Max Temperature F

149 | 158 | 167 | 176 | 185
Termination Point

Wire & Cable

 Connector System

Cable-to-Cable
Sealable

No

 Row Count

1
Position Count

2

 Key Code

L
Pin Diameter

.5 mm [ .02 in ]

 Max Current A

1
Mount Type

Cable Mount (Free-Hanging)

 Housing Color

Carmine Red
Pitch

8 mm [ .315 in ]

 Connector Height

13.9 mm [ .547 in ]
Product Length

26.4 mm [ 1.039 in ]

 Product Width

17.4 mm [ .685 in ]
Shielded

No

 Body Material

PBT GF
Housing Type

Housing for Male Terminals

 Cable Exit Angle

180°
Cable Termination

Crimp

 Frequency Range GHz

0 – 6
Position Assurance

No

 Nominal Voltage V

800
Max Temperature C

65 | 70 | 75 | 80 | 85

 Max Temperature F

149 | 158 | 167 | 176 | 185

Product Specification

Contact Type

Pin
Temperature Range

-40 – 85 °C [ -40 – 185 °F ]
Cable Type

RG 174
Contact Type

Pin

 Temperature Range

-40 – 85 °C [ -40 – 185 °F ]
Cable Type

RG 174
Termination Point

Wire & Cable
Connector System

Cable-to-Cable
Sealable

No
Row Count

1
Position Count

2
Key Code

L
Contact Type

Pin
Pin Diameter

.5 mm [ .02 in ]
Max Current A

1
Mount Type

Cable Mount (Free-Hanging)
Housing Color

Carmine Red
Pitch

8 mm [ .315 in ]
Connector Height

13.9 mm [ .547 in ]
Product Length

26.4 mm [ 1.039 in ]
Product Width

17.4 mm [ .685 in ]
Shielded

No
Body Material

PBT GF
Temperature Range

-40 – 85 °C [ -40 – 185 °F ]
Impedance Ω

50
Housing Type

Housing for Male Terminals
Cable Exit Angle

180°
Cable Termination

Crimp
Cable Type

RG 174
Frequency Range GHz

0 – 6
Position Assurance

No
Nominal Voltage V

800
Max Temperature C

65 | 70 | 75 | 80 | 85
Max Temperature F

149 | 158 | 167 | 176 | 185
