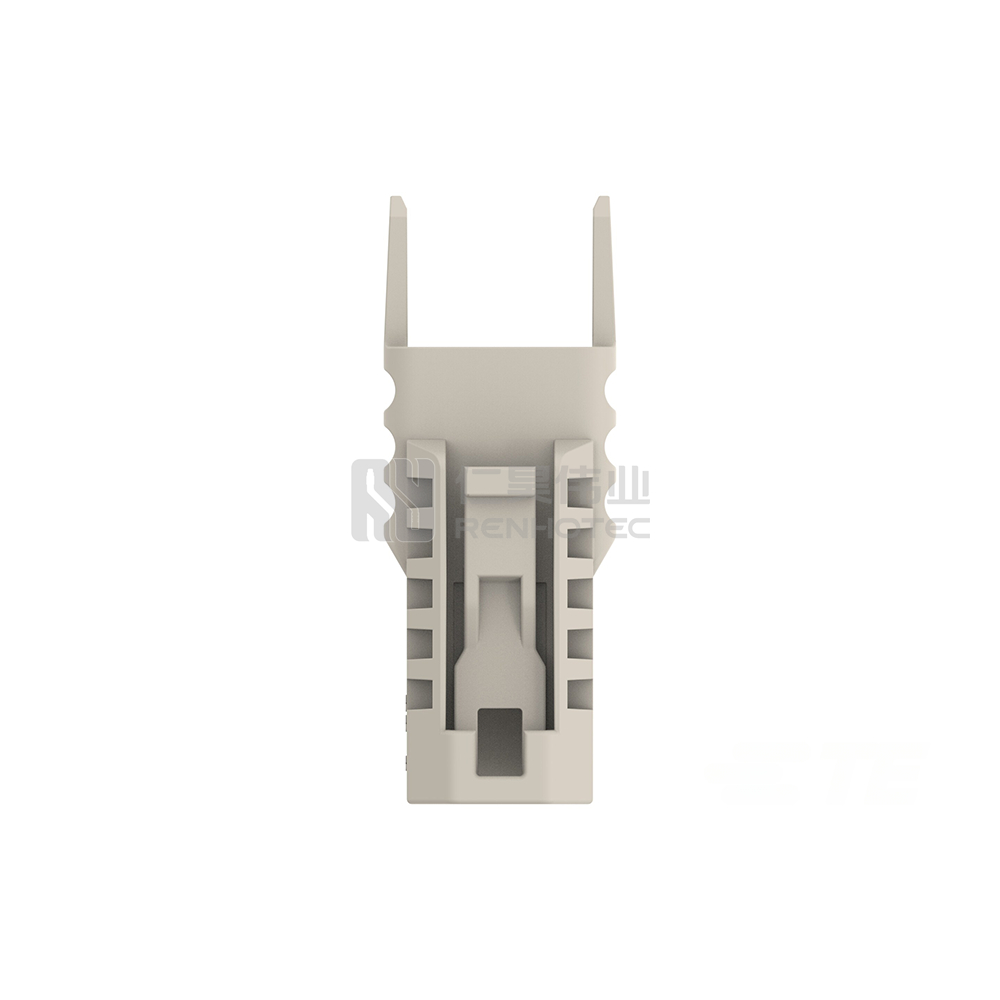

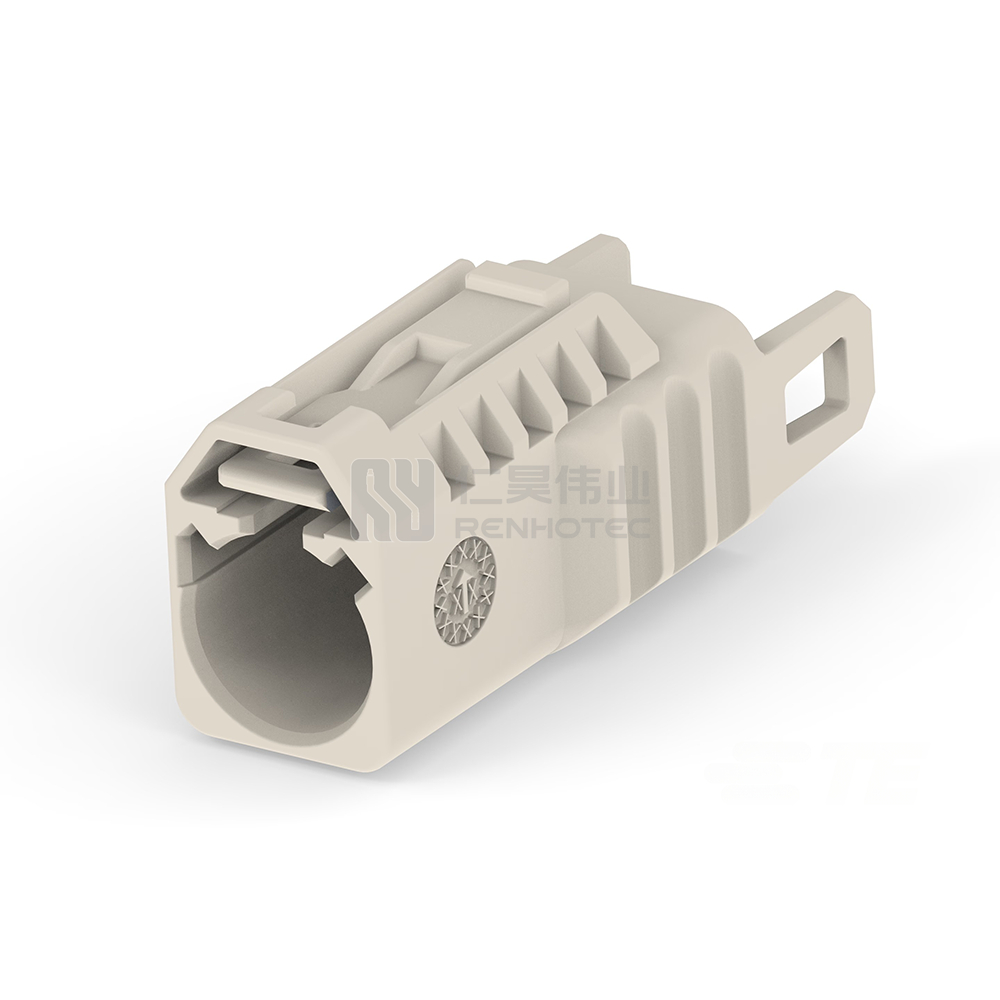

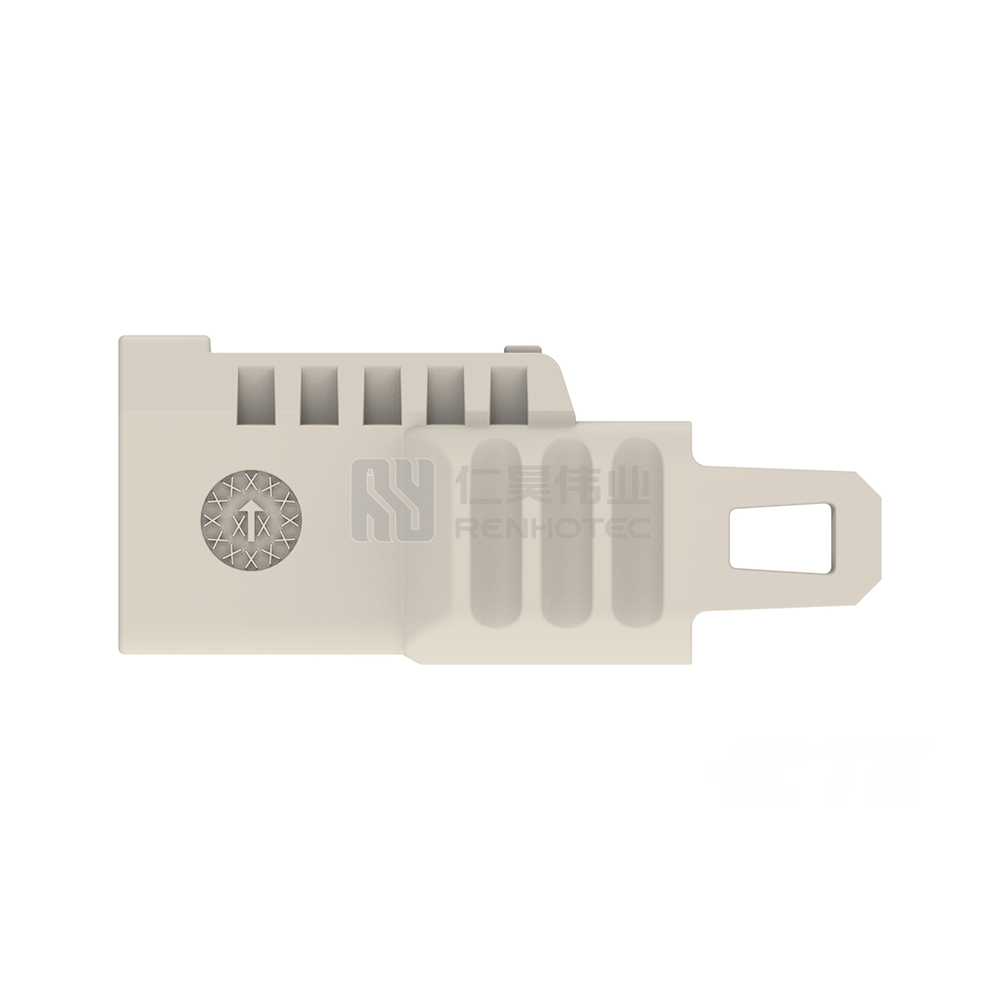

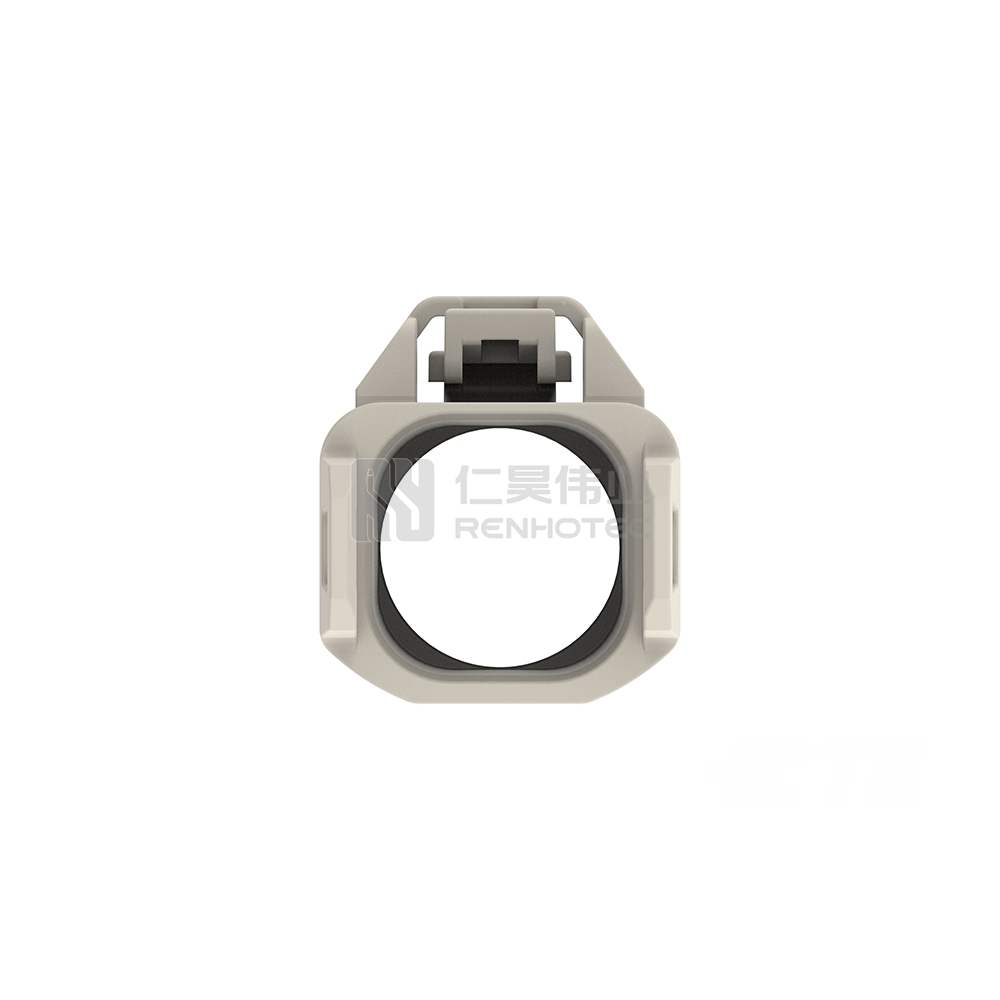

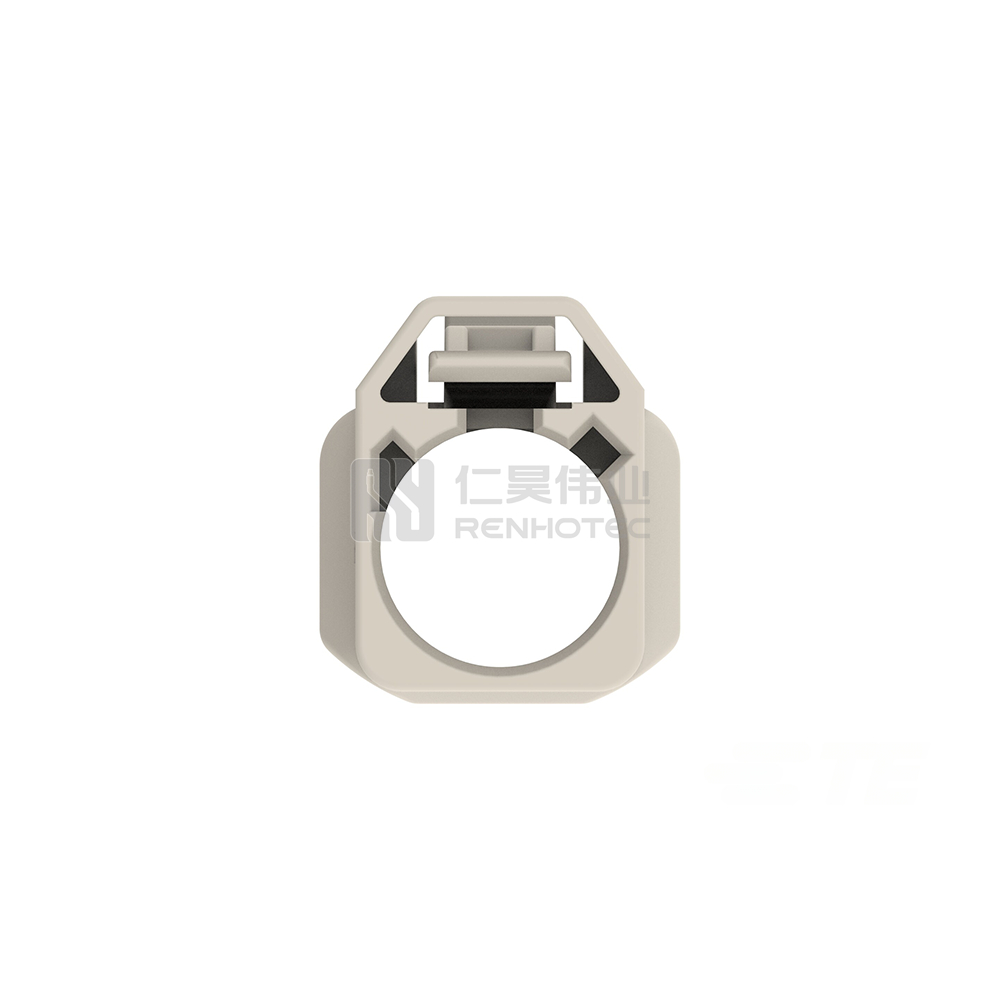

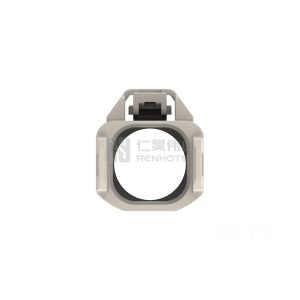

Cable-to-Cable, 180° Cable Exit, 1 Position, A Code, Housing for Male Terminals, Crimp, Signal, FAKRA, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	Yes
Row Count	1
Position Count	1
Key Code	B
Center Contact	With
Pin Diameter	.5 mm [ .02 in ]
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Cream
Connector Height	13.05 mm [ .51 in ]
Product Length	11.55 mm [ .45 in ]
Product Width	30.2 mm [ 1.18 in ]
Shielded	No
Body Material	PBT GF10
Max Temperature	125 °C [ 257 °F ]
Housing Type	Housing for Female Terminals
Snap Lock	Without
Cable Exit Type	Straight
Ferrule	Without
Cable Exit Angle	180°
Cable Termination	Crimp
Position Assurance	No
Standards Certified	SAE/USCAR-17
Operating Voltage VAC	800
Termination Point	Wire & Cable	Connector System	Cable-to-Cable
Sealable	Yes	Row Count	1
Position Count	1	Key Code	B
Center Contact	With	Pin Diameter	.5 mm [ .02 in ]
Mount Type	Cable Mount (Free-Hanging)	Housing Color	Cream
Connector Height	13.05 mm [ .51 in ]	Product Length	11.55 mm [ .45 in ]
Product Width	30.2 mm [ 1.18 in ]	Shielded	No
Body Material	PBT GF10	Max Temperature	125 °C [ 257 °F ]
Housing Type	Housing for Female Terminals	Snap Lock	Without
Cable Exit Type	Straight	Ferrule	Without
Cable Exit Angle	180°	Cable Termination	Crimp
Position Assurance	No	Standards Certified	SAE/USCAR-17
Operating Voltage VAC	800

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	Yes
Row Count	1
Position Count	1
Key Code	B
Contact Type	Socket
Center Contact	With
Pin Diameter	.5 mm [ .02 in ]
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Cream
Connector Height	13.05 mm [ .51 in ]
Product Length	11.55 mm [ .45 in ]
Product Width	30.2 mm [ 1.18 in ]
Shielded	No
Body Material	PBT GF10
Max Temperature	125 °C [ 257 °F ]
Temperature Range	-40 – 125 °C [ -40 – 257 °F ]
Housing Type	Housing for Female Terminals
Snap Lock	Without
Cable Exit Type	Straight
Ferrule	Without
Cable Exit Angle	180°
Cable Termination	Crimp
Cable Type	Coaxial
Position Assurance	No
Standards Certified	SAE/USCAR-17
Operating Voltage VAC	800
