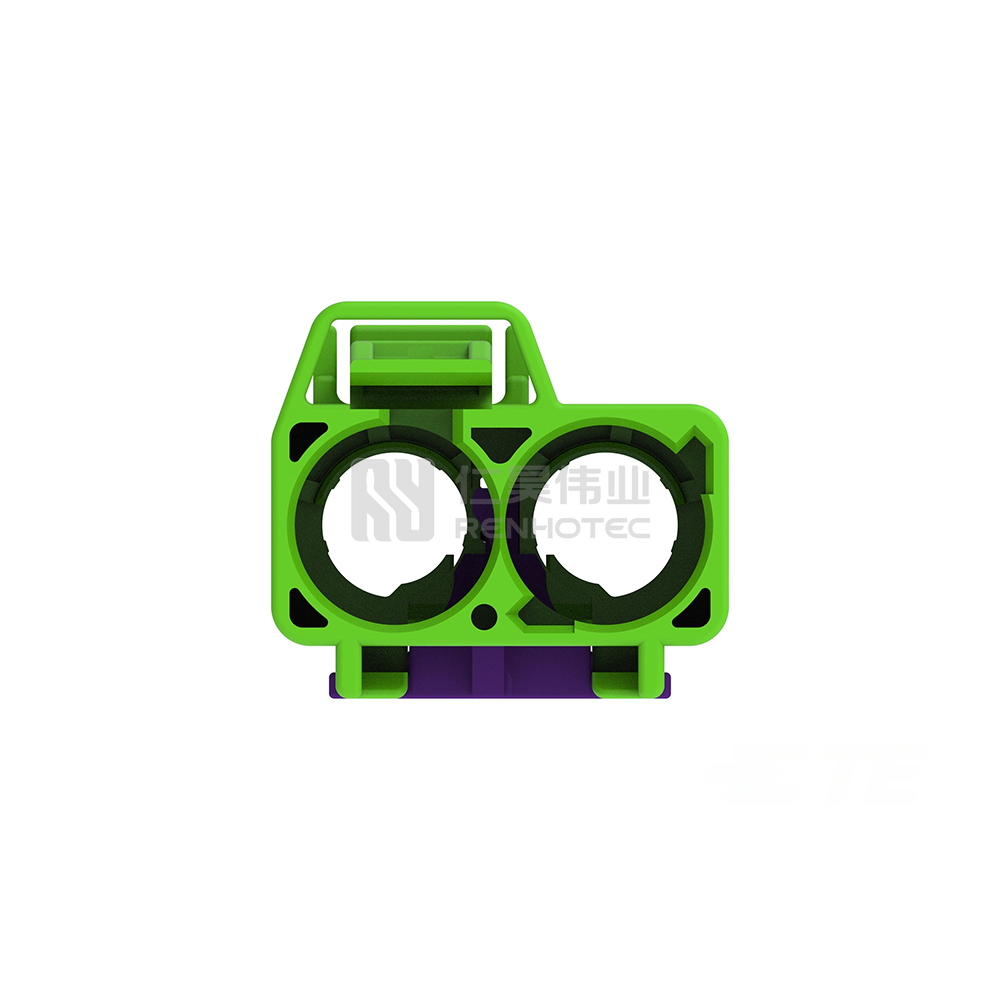

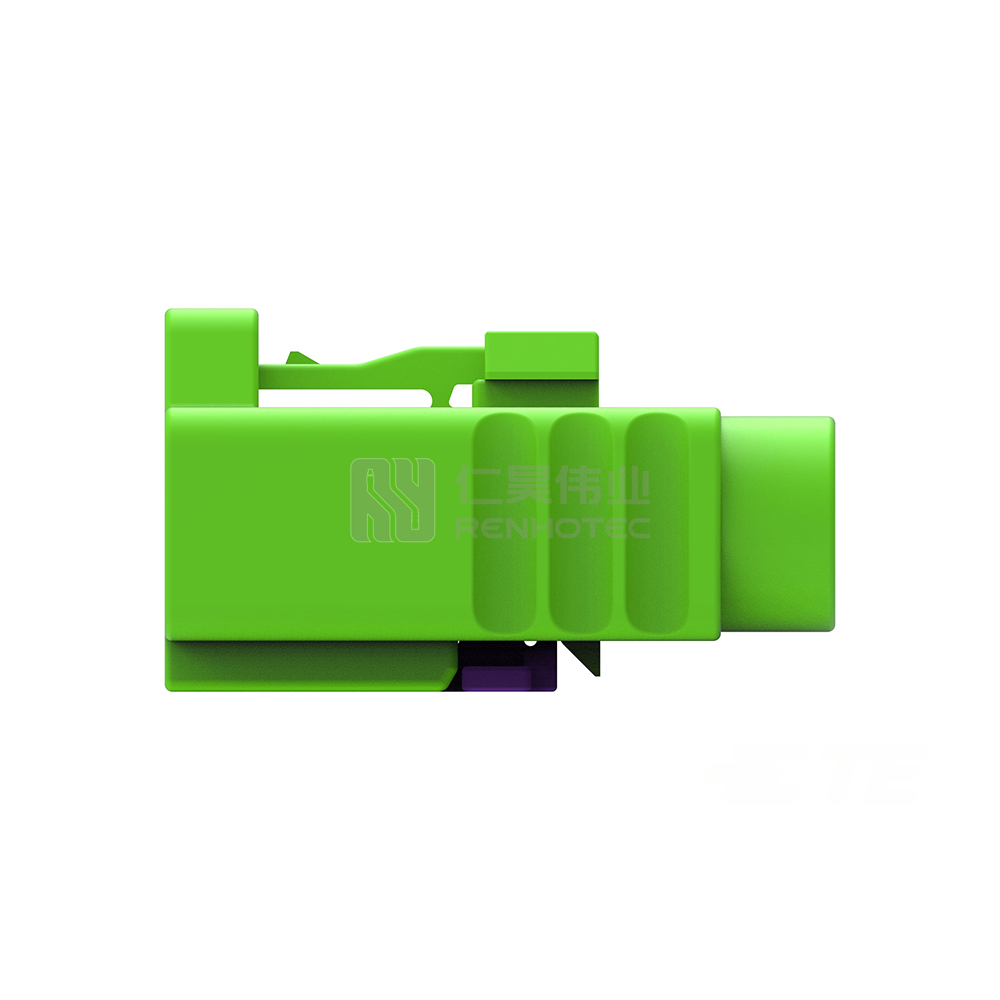

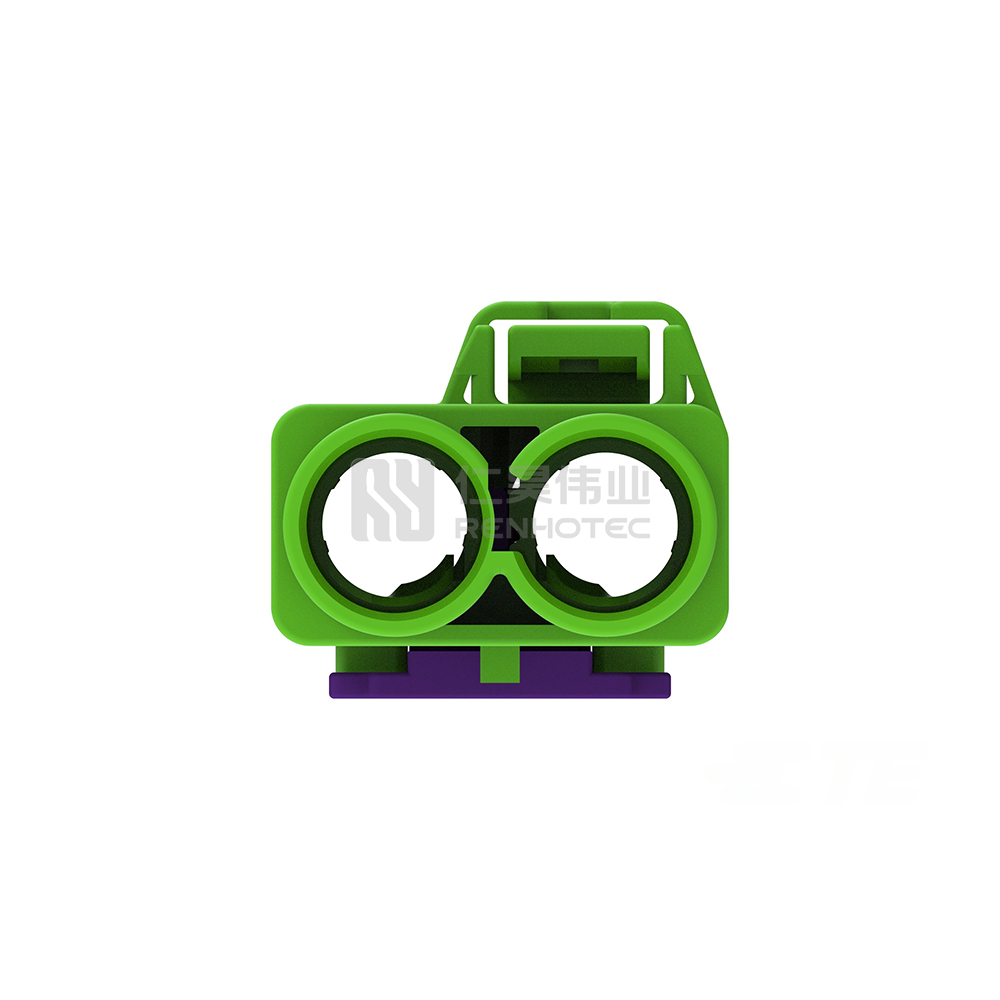

Cable-to-Cable, 180° Cable Exit, 1 Position, A Code, Housing for Male Terminals, Crimp, Cable Mount (Free-Hanging), FAKRA, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	No
Row Count	1
Position Count	2
Key Code	N
Center Contact	With
Contact Plating	Gold (Au)
Pin Diameter	.5 mm [ .02 in ]
Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Pastel Green
Pitch	8 mm [ .31 in ]
Connector Height	13.1 mm [ .51 in ]
Product Length	17.4 mm [ .68 in ]
Product Width	26.4 mm [ 1.03 in ]
Body Material	PBT GF10
Housing Type	Housing for Female Terminals
Snap Lock	Without
Cable Exit Type	Straight
Ferrule	With
Cable Exit Angle	180°
Cable Termination	Crimp
Nominal Voltage V	800
Max Temperature C	65 \| 70 \| 75 \| 80 \| 85
Max Temperature F	149 \| 158 \| 167 \| 176 \| 185
Termination Point	Wire & Cable	Connector System	Cable-to-Cable
Sealable	No	Row Count	1
Position Count	2	Key Code	N
Center Contact	With	Contact Plating	Gold (Au)
Pin Diameter	.5 mm [ .02 in ]	Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)	Housing Color	Pastel Green
Pitch	8 mm [ .31 in ]	Connector Height	13.1 mm [ .51 in ]
Product Length	17.4 mm [ .68 in ]	Product Width	26.4 mm [ 1.03 in ]
Body Material	PBT GF10	Housing Type	Housing for Female Terminals
Snap Lock	Without	Cable Exit Type	Straight
Ferrule	With	Cable Exit Angle	180°
Cable Termination	Crimp	Nominal Voltage V	800
Max Temperature C	65 \| 70 \| 75 \| 80 \| 85	Max Temperature F	149 \| 158 \| 167 \| 176 \| 185

Contact Type	Socket
Contact Type	Socket

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	No
Row Count	1
Position Count	2
Key Code	N
Contact Type	Socket
Center Contact	With
Contact Plating	Gold (Au)
Pin Diameter	.5 mm [ .02 in ]
Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Pastel Green
Pitch	8 mm [ .31 in ]
Connector Height	13.1 mm [ .51 in ]
Product Length	17.4 mm [ .68 in ]
Product Width	26.4 mm [ 1.03 in ]
Body Material	PBT GF10
Impedance Ω	50
Housing Type	Housing for Female Terminals
Snap Lock	Without
Cable Exit Type	Straight
Ferrule	With
Cable Exit Angle	180°
Cable Termination	Crimp
Nominal Voltage V	800
Max Temperature C	65 \| 70 \| 75 \| 80 \| 85
Max Temperature F	149 \| 158 \| 167 \| 176 \| 185
