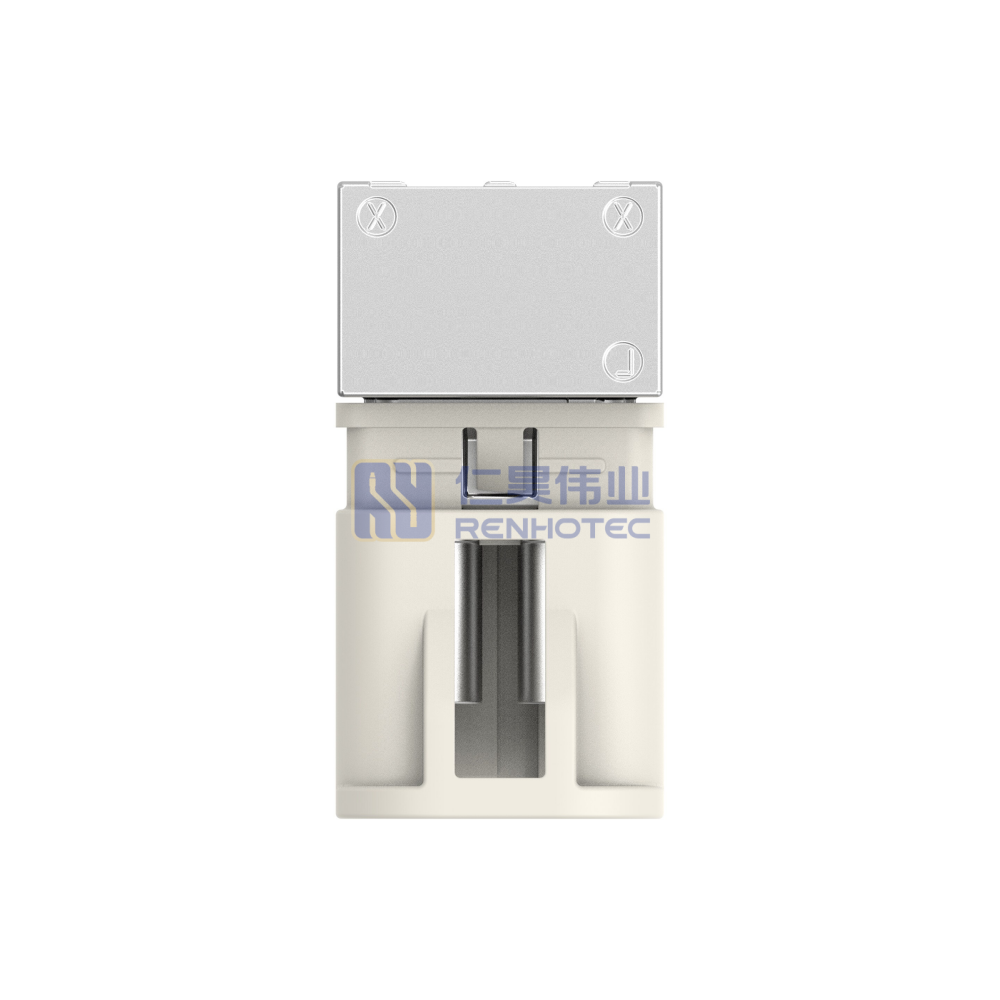

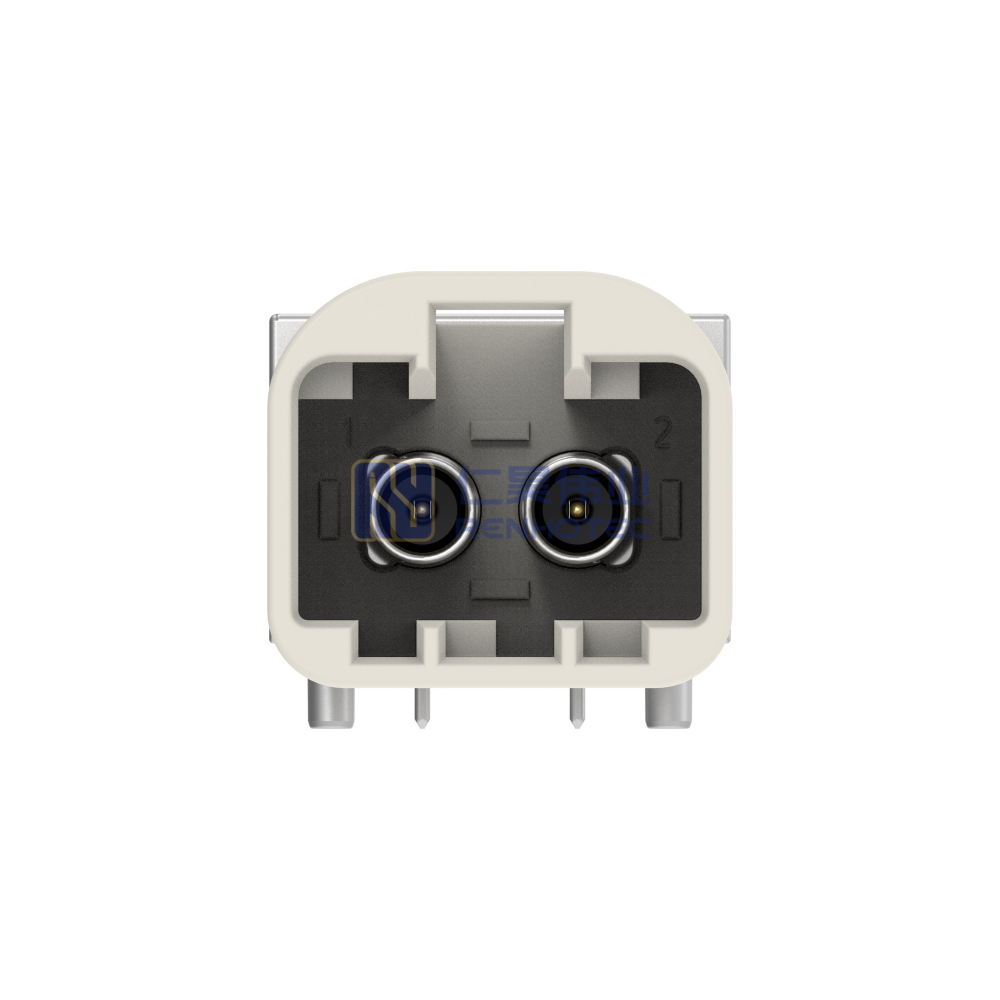

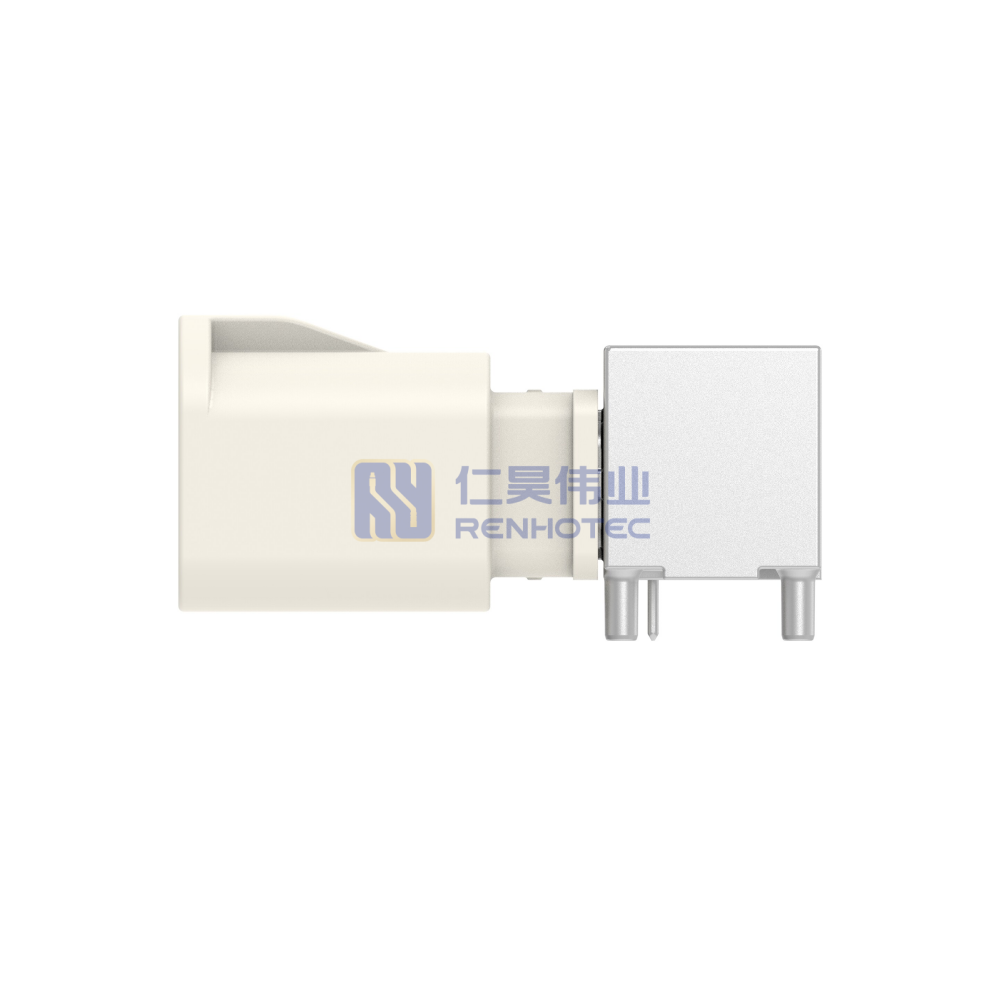

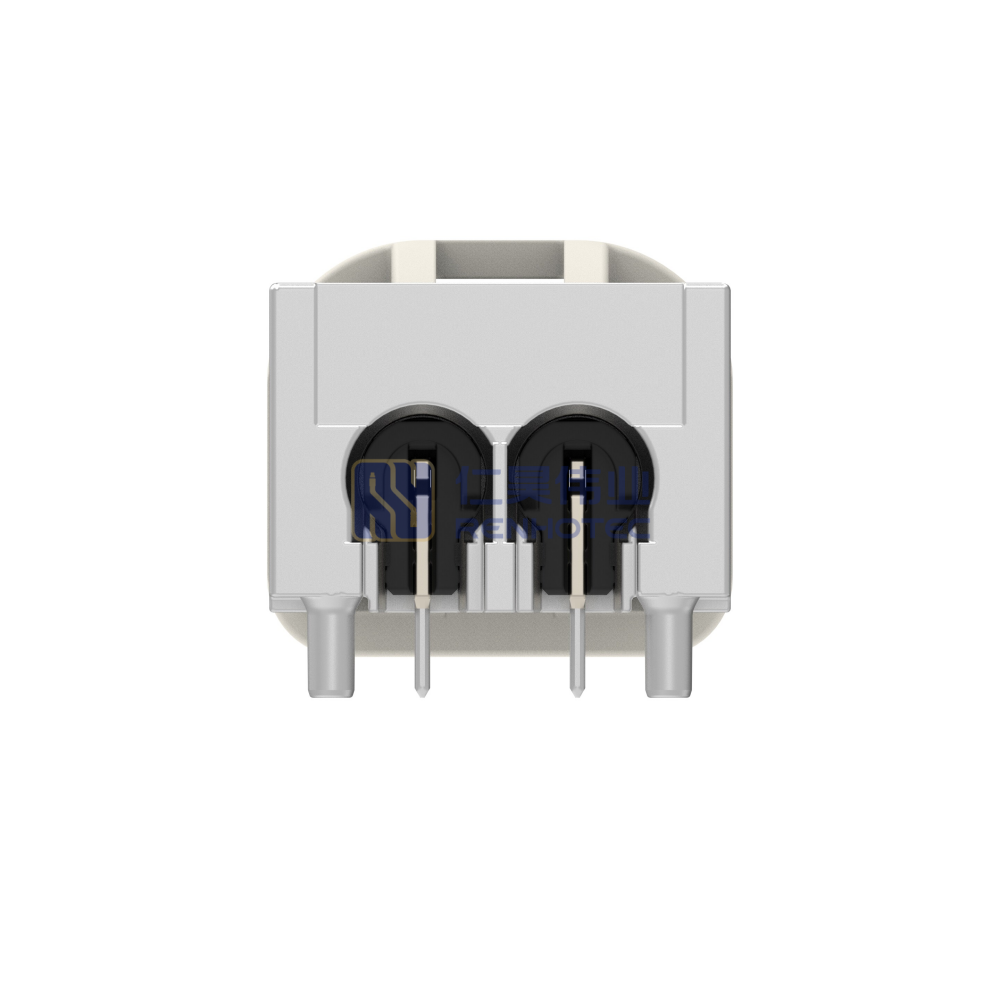

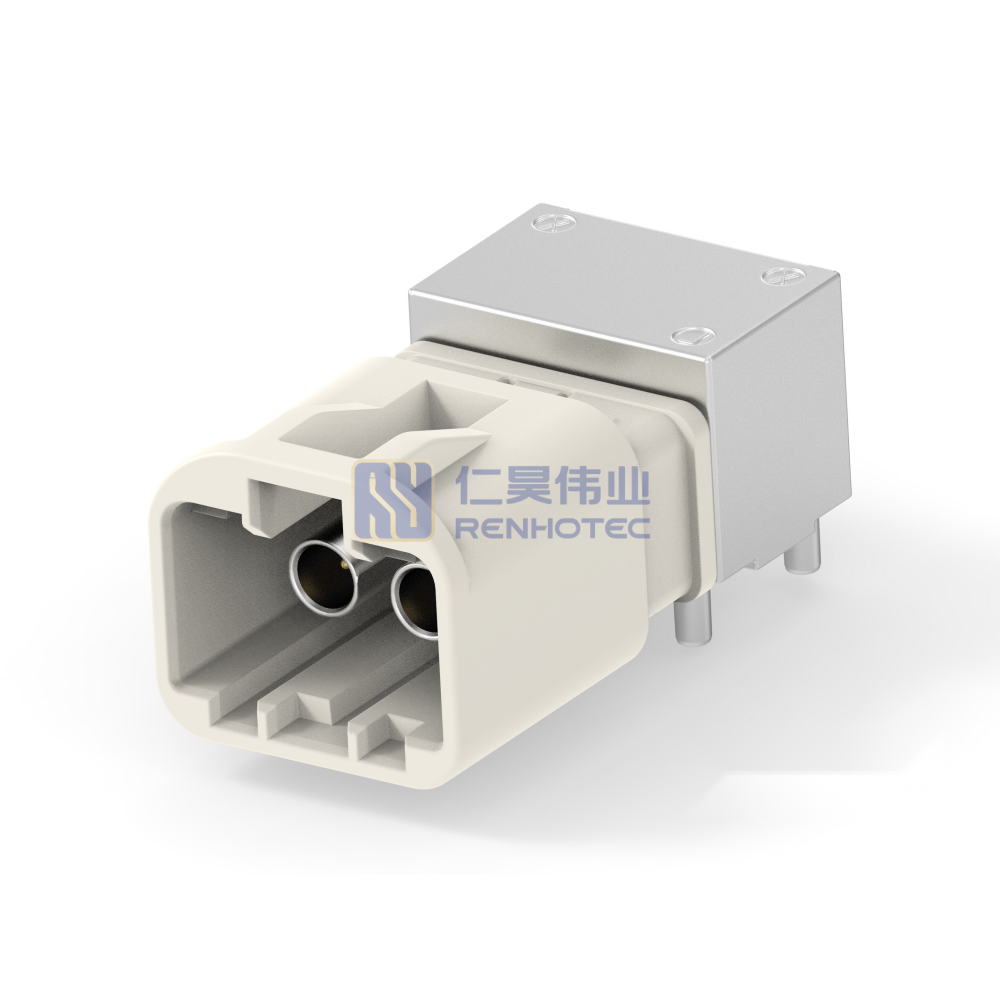

Cable-to-Board Shielded Horizontal 2 Position Board Mount B Code 4 mm Centerline Signal Data Connectivity Headers

Compatible Part Number

ManufacturerPart Number
TETE-2-2306368-2

Product Type

Header

Circuit Application

Signal

Connector System

Cable-to-Board

Contact Plating

Silver (Ag)

Housing Color

White

Key Code

B

Max Current A

3

Max Temperature

105 °C [ 221 °F ]

Mount Type

Board Mount

Outer Contact Plating

Tin (Sn)

PCB Orientation

Horizontal

PCB Termination

Through Hole – Solder

Package Method

Reel

Package Qty

370

Pin Diameter

.4 mm [ .016 in ]

Pitch

4 mm [ .15 in ]

Position Count

2

Row Count

1

Sealable

No

Shielded

Yes

Termination Point

Printed Circuit Board

UL Flammability Rating

UL 94HB

Product Type

Header

Circuit Application

Signal

Connector System

Cable-to-Board

Contact Plating

Silver (Ag)

Housing Color

White

Key Code

B

Max Current A

3

Max Temperature

105 °C [ 221 °F ]

Mount Type

Board Mount

Outer Contact Plating

Tin (Sn)

PCB Orientation

Horizontal

PCB Termination

Through Hole – Solder

Package Method

Reel

Package Qty

370

Pin Diameter

.4 mm [ .016 in ]

Pitch

4 mm [ .15 in ]

Position Count

2

Row Count

1

Sealable

No

Shielded

Yes

Termination Point

Printed Circuit Board

UL Flammability Rating

UL 94HB

Product Specification

Contact Type

Pin

Temperature Range

-40 – 105 °C [ -40 – 221 °F ]

Contact Type

Pin

Temperature Range

-40 – 105 °C [ -40 – 221 °F ]

Product Type

Header

Circuit Application

Signal

Connector System

Cable-to-Board

Contact Plating

Silver (Ag)

Contact Type

Pin

Housing Color

White

Key Code

B

Max Current A

3

Max Temperature

105 °C [ 221 °F ]

Mount Type

Board Mount

Outer Contact Plating

Tin (Sn)

PCB Orientation

Horizontal

PCB Termination

Through Hole – Solder

Package Method

Reel

Package Qty

370

Pin Diameter

.4 mm [ .016 in ]

Pitch

4 mm [ .15 in ]

Position Count

2

Row Count

1

Sealable

No

Shielded

Yes

Temperature Range

-40 – 105 °C [ -40 – 221 °F ]

Termination Point

Printed Circuit Board

UL Flammability Rating

UL 94HB
