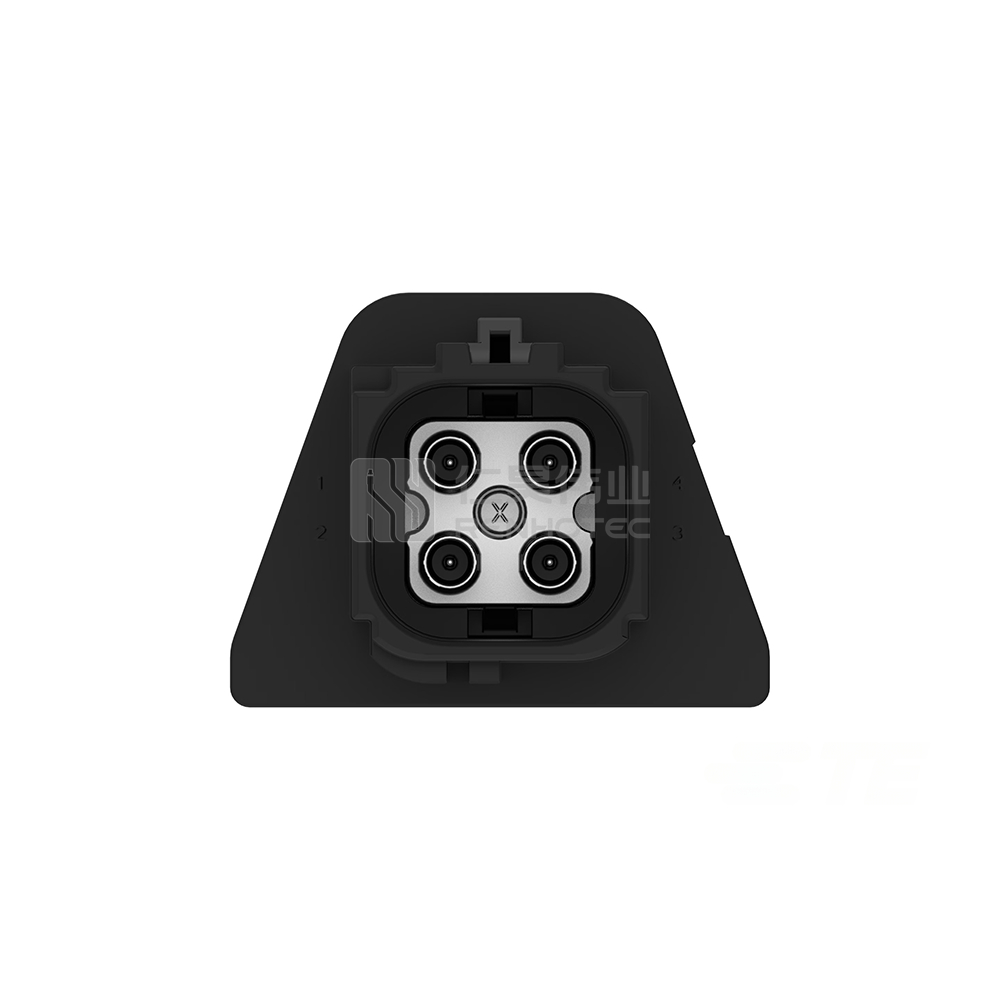

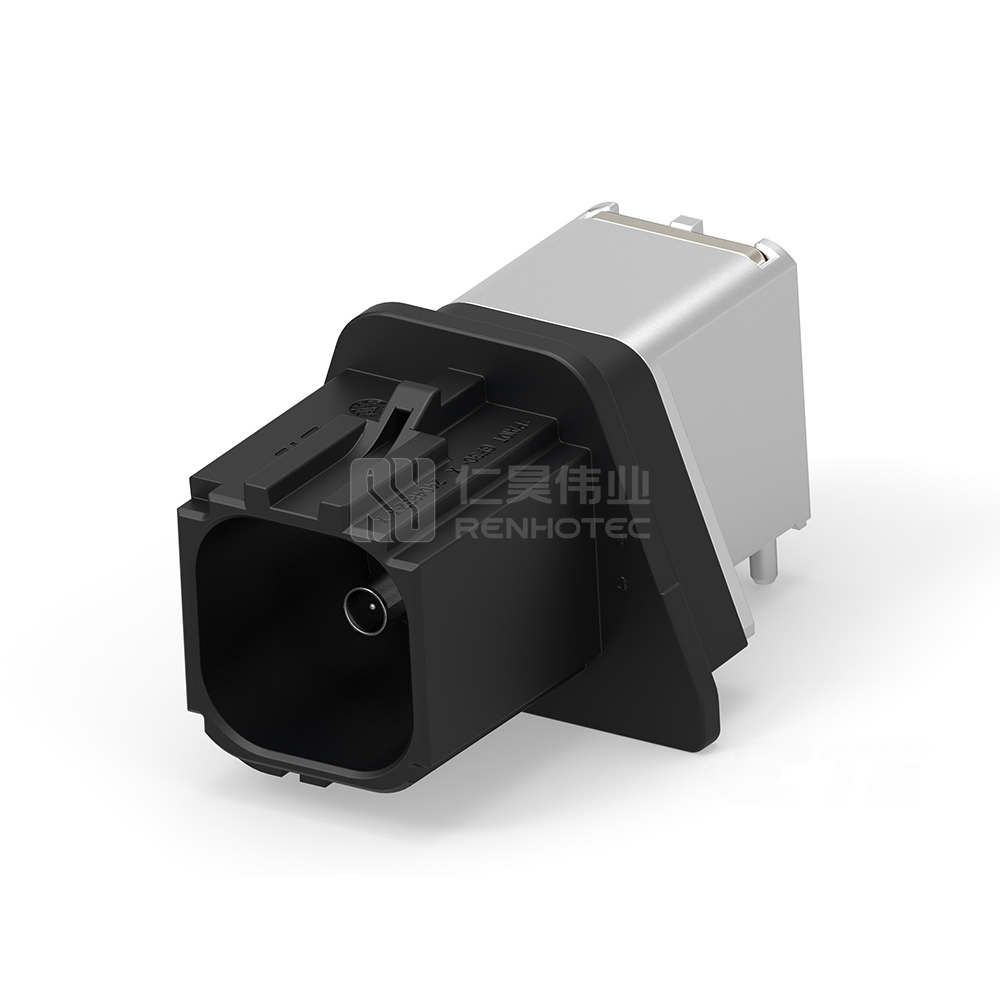

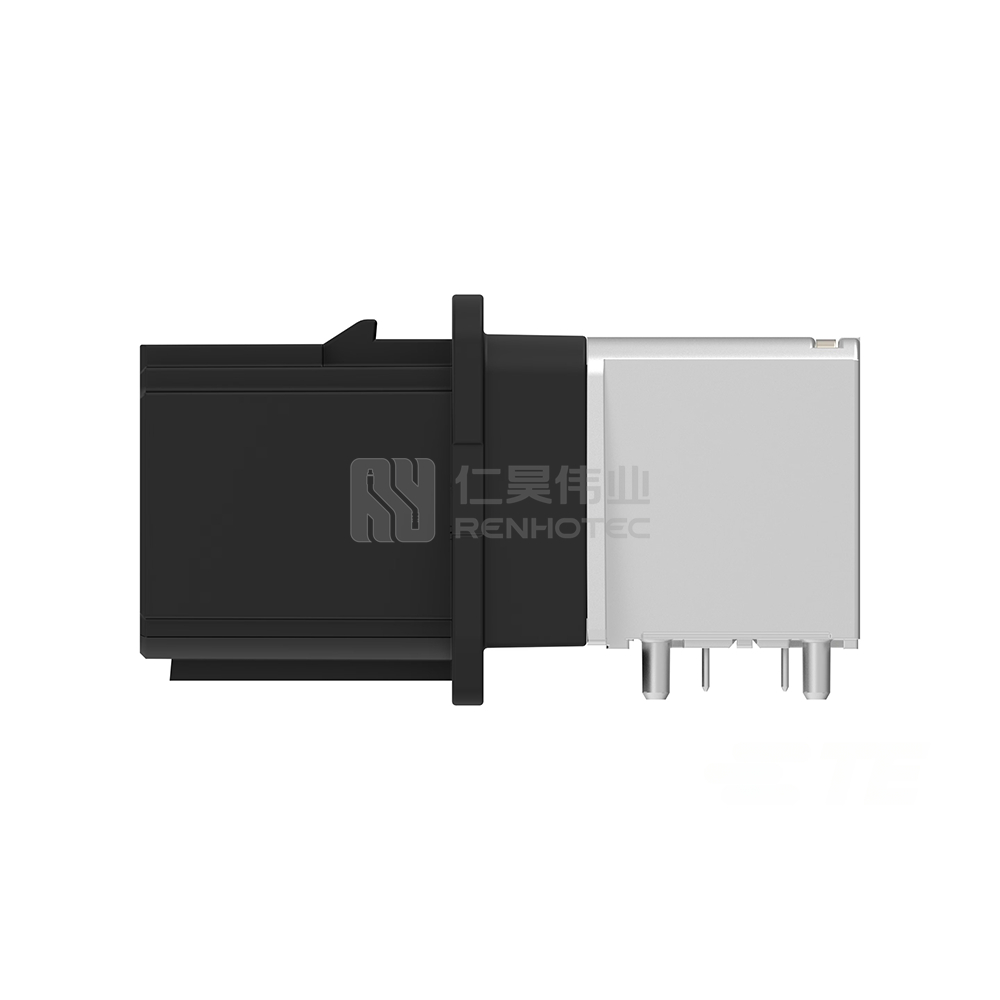

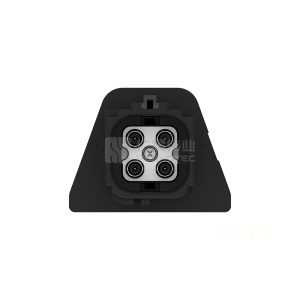

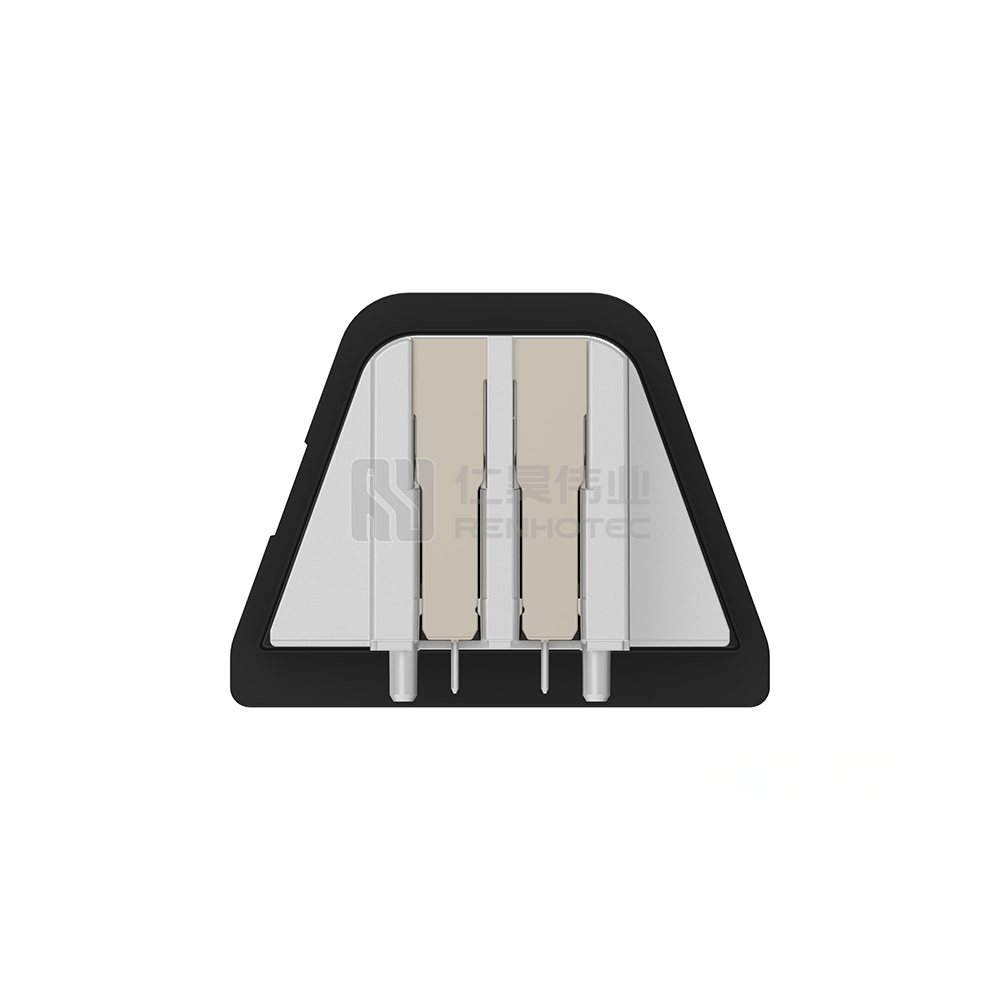

Cable-to-Board, Sealable, Shielded, Right Angle, 4 Position, Board Mount, A Code, 5 mm Centerline, Signal, Data Connectivity Headers

Termination Point

Printed Circuit Board
Connector System

Cable-to-Board
Sealable

Yes
Row Count

2
PCB Orientation

Right Angle
Position Count

4
Key Code

A
Center Contact

With
Contact Plating

Silver (Ag)
Center Contact Plating

Silver (Ag)
Pin Diameter

.4 mm [ .016 in ]
Max Current A

3
PCB Termination

Through Hole – Solder
Mount Type

Board Mount
Housing Color

Jet Black
Pitch

5 mm [ .197 in ]
Connector Height

20.7 mm [ .817 in ]
Product Length

27 mm [ 1.06 in ]
Product Width

27 mm [ 1.063 in ]
Solder Process

Reflow Solder Capable
Operating Voltage VDC

60
Body Material

PA GF
Outer Contact Plating

Tin (Sn)
Max Temperature

105 °C [ 221 °F ]
Operating Voltage VAC

12
Assembly Feature

Carrier Tape
Termination Point

Printed Circuit Board

 Connector System

Cable-to-Board
Sealable

Yes

 Row Count

2
PCB Orientation

Right Angle

 Position Count

4
Key Code

A

 Center Contact

With
Contact Plating

Silver (Ag)

 Center Contact Plating

Silver (Ag)
Pin Diameter

.4 mm [ .016 in ]

 Max Current A

3
PCB Termination

Through Hole – Solder

 Mount Type

Board Mount
Housing Color

Jet Black

 Pitch

5 mm [ .197 in ]
Connector Height

20.7 mm [ .817 in ]

 Product Length

27 mm [ 1.06 in ]
Product Width

27 mm [ 1.063 in ]

 Solder Process

Reflow Solder Capable
Operating Voltage VDC

60

 Body Material

PA GF
Outer Contact Plating

Tin (Sn)

 Max Temperature

105 °C [ 221 °F ]
Operating Voltage VAC

12

 Assembly Feature

Carrier Tape

Product Specification

Contact Type

Pin
Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Contact Type

Pin

 Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Termination Point

Printed Circuit Board
Connector System

Cable-to-Board
Sealable

Yes
Row Count

2
PCB Orientation

Right Angle
Position Count

4
Key Code

A
Contact Type

Pin
Center Contact

With
Contact Plating

Silver (Ag)
Center Contact Plating

Silver (Ag)
Pin Diameter

.4 mm [ .016 in ]
Max Current A

3
PCB Termination

Through Hole – Solder
Mount Type

Board Mount
Housing Color

Jet Black
Pitch

5 mm [ .197 in ]
Connector Height

20.7 mm [ .817 in ]
Product Length

27 mm [ 1.06 in ]
Product Width

27 mm [ 1.063 in ]
Solder Process

Reflow Solder Capable
Operating Voltage VDC

60
Body Material

PA GF
Outer Contact Plating

Tin (Sn)
Max Temperature

105 °C [ 221 °F ]
Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Impedance Ω

50
Operating Voltage VAC

12
Assembly Feature

Carrier Tape
