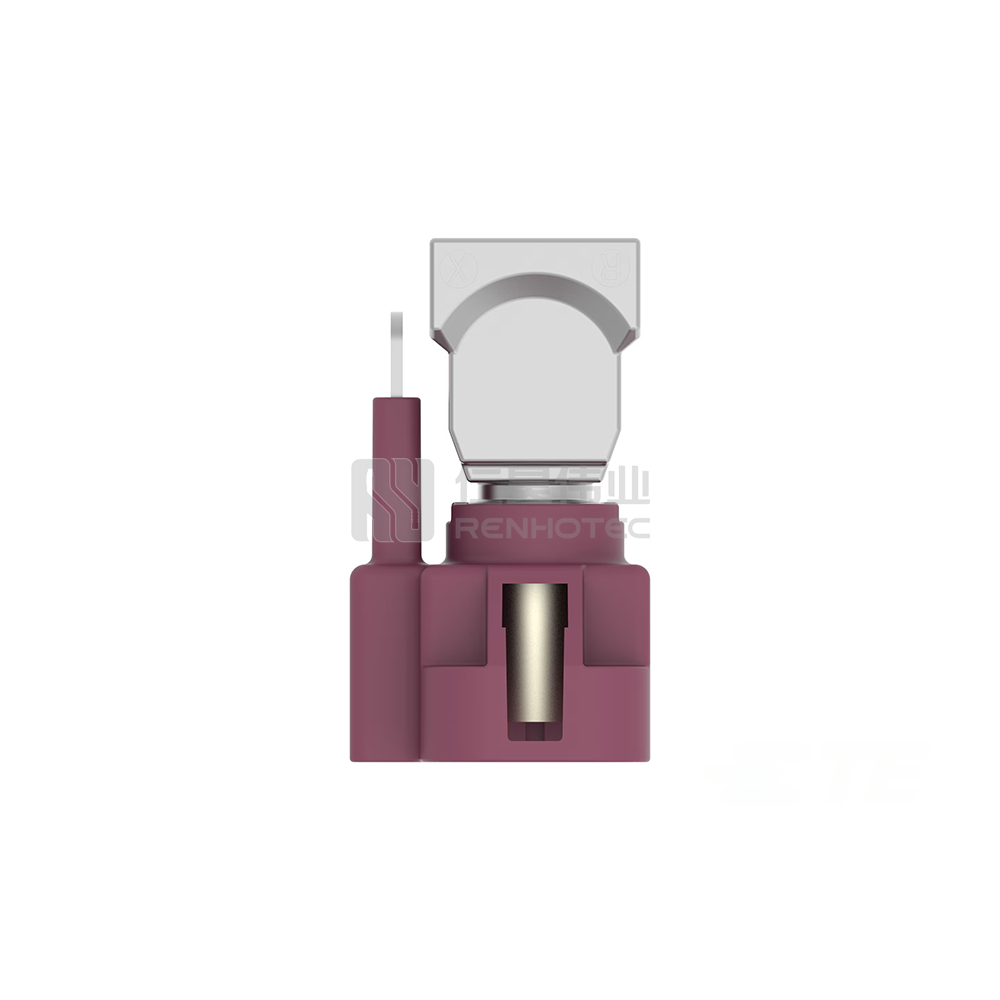

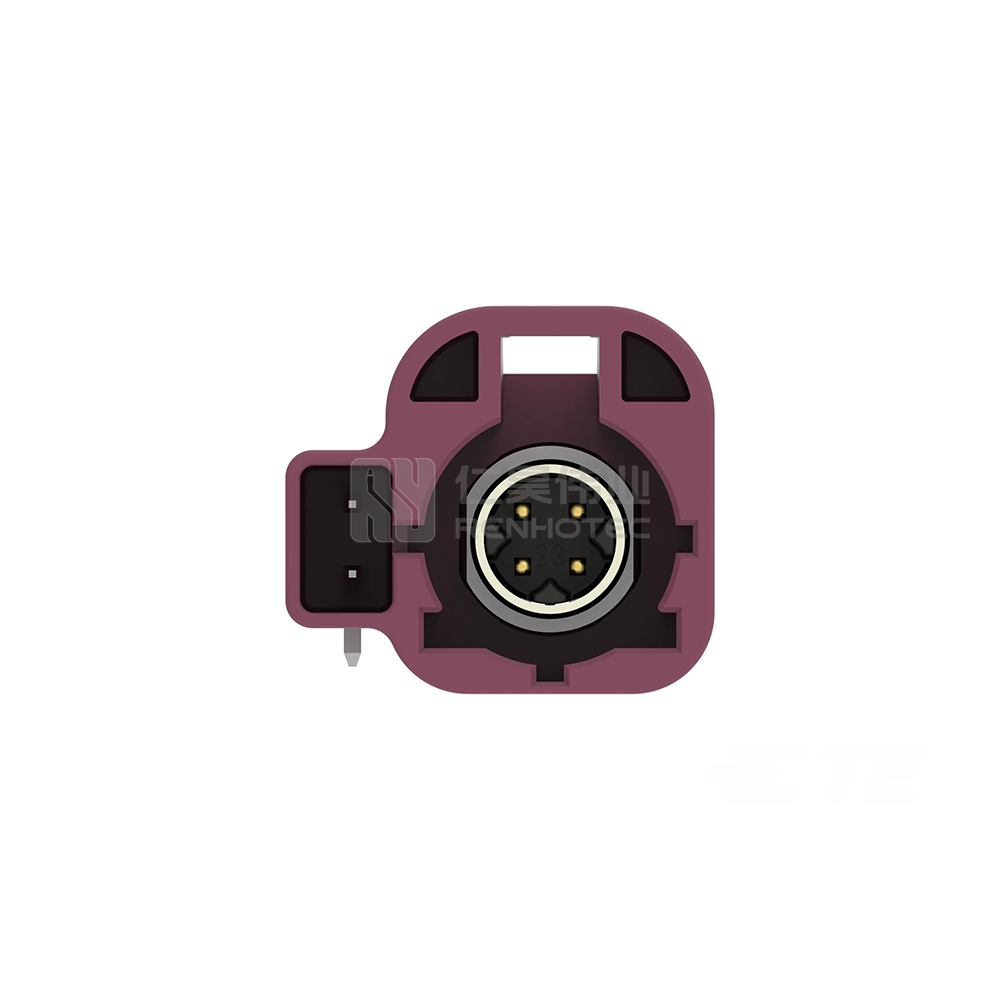

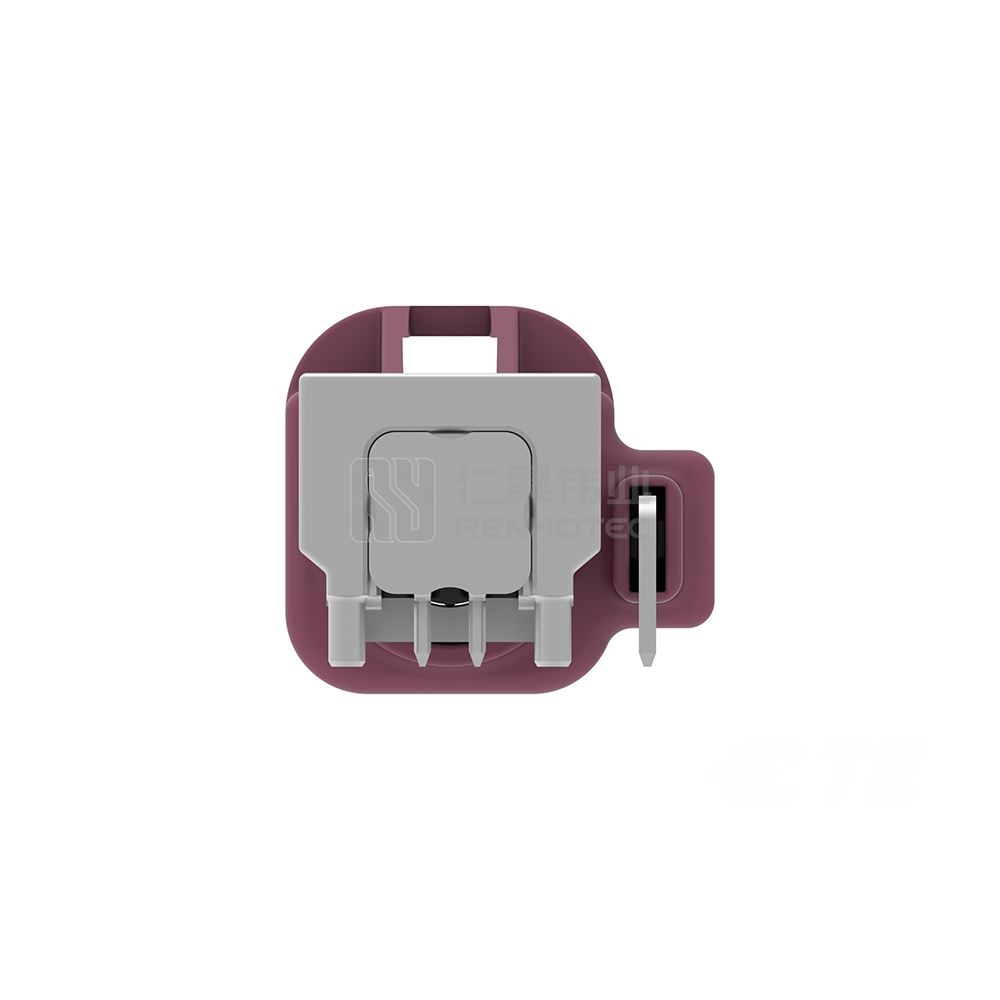

Board-to-Board / Wire-to-Board, Shielded, Horizontal, 6 Position, Board Mount, D Code, Automotive HSD, Data Connectivity Headers

Termination Point

Printed Circuit Board
Connector System

Board-to-Board | Wire-to-Board
Sealable

No
Row Count

2
PCB Orientation

Horizontal
Position Count

6
Key Code

D
Center Contact

With
Contact Plating

Gold (Au)
Center Contact Plating

Gold (Au)
Pin Diameter

.6 mm [ .02 in ]
Max Current A

2.5
PCB Termination

Through Hole – Solder
Mating Retention

With
PCB Retention

With
Mount Type

Board Mount
Housing Color

Bordeaux
Pitch

2 mm [ .07 in ]
Connector Height

10.95 mm [ .431 in ]
Product Length

15.65 mm [ .616 in ]
Operating Voltage VDC

60
Body Material

PPA GF25 | Zinc Alloy
Outer Contact Plating

Tin (Sn)
Tab Width

.63 mm [ .02 in ]
Tab Thickness

.63 mm [ .02 in ]
PCB Retention Type

Solder Tail
PCB Retention Plating

Tin
Termination Point

Printed Circuit Board

 Connector System

Board-to-Board | Wire-to-Board
Sealable

No

 Row Count

2
PCB Orientation

Horizontal

 Position Count

6
Key Code

D

 Center Contact

With
Contact Plating

Gold (Au)

 Center Contact Plating

Gold (Au)
Pin Diameter

.6 mm [ .02 in ]

 Max Current A

2.5
PCB Termination

Through Hole – Solder

 Mating Retention

With
PCB Retention

With

 Mount Type

Board Mount
Housing Color

Bordeaux

 Pitch

2 mm [ .07 in ]
Connector Height

10.95 mm [ .431 in ]

 Product Length

15.65 mm [ .616 in ]
Operating Voltage VDC

60

 Body Material

PPA GF25 | Zinc Alloy
Outer Contact Plating

Tin (Sn)

 Tab Width

.63 mm [ .02 in ]
Tab Thickness

.63 mm [ .02 in ]

 PCB Retention Type

Solder Tail
PCB Retention Plating

Tin

Product Specification

Contact Type

Pin
Contact Type

Pin
Termination Point

Printed Circuit Board
Connector System

Board-to-Board | Wire-to-Board
Sealable

No
Row Count

2
PCB Orientation

Horizontal
Position Count

6
Key Code

D
Contact Type

Pin
Center Contact

With
Contact Plating

Gold (Au)
Center Contact Plating

Gold (Au)
Pin Diameter

.6 mm [ .02 in ]
Max Current A

2.5
PCB Termination

Through Hole – Solder
Mating Retention

With
PCB Retention

With
Mount Type

Board Mount
Housing Color

Bordeaux
Pitch

2 mm [ .07 in ]
Connector Height

10.95 mm [ .431 in ]
Product Length

15.65 mm [ .616 in ]
Operating Voltage VDC

60
Body Material

PPA GF25 | Zinc Alloy
Outer Contact Plating

Tin (Sn)
Tab Width

.63 mm [ .02 in ]
Tab Thickness

.63 mm [ .02 in ]
PCB Retention Type

Solder Tail
PCB Retention Plating

Tin
Impedance Ω

100
