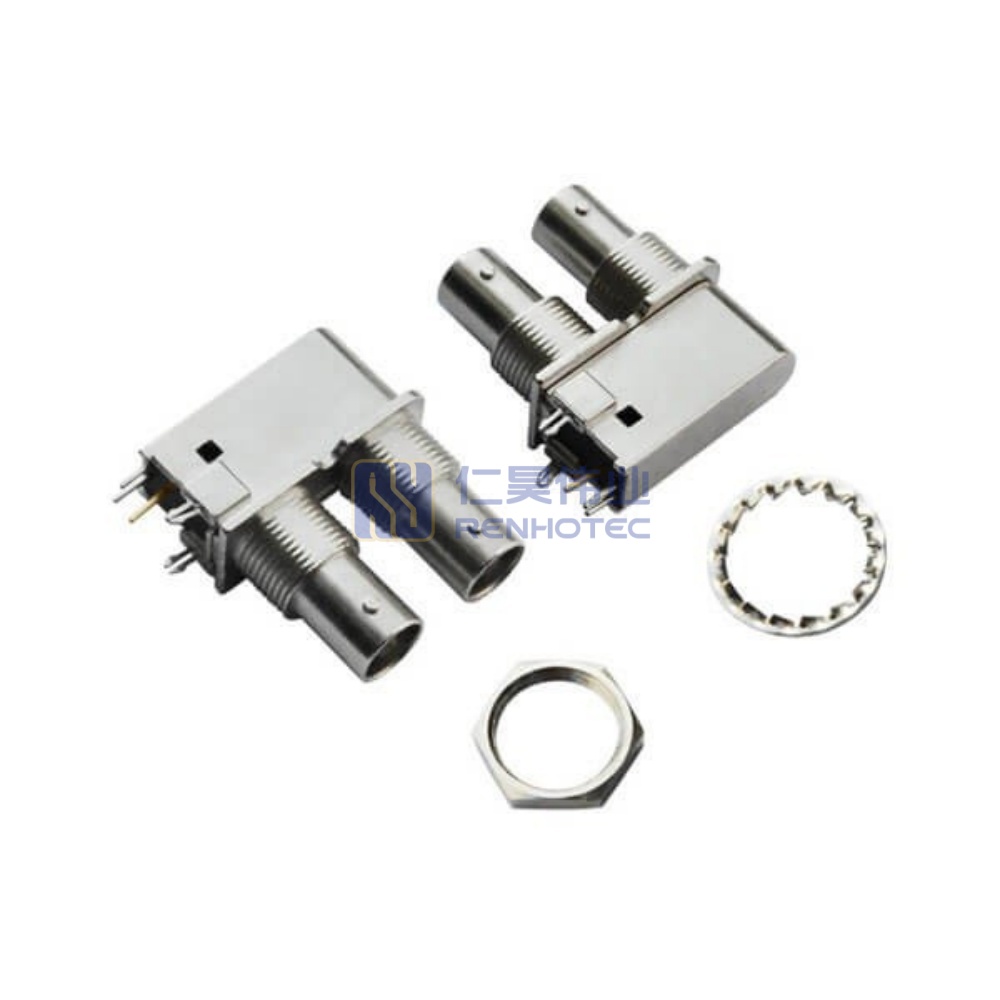

BNC Female Right Angle Bulkhead Connector PCB Mount RHT-610-0054
- Right-angle design for tight-space PCB mounting
- Secure bulkhead connection for durable setups
- Easy installation with flange and nut system
- Ideal for RF systems and test equipment
| Body Material | Zinc |
||
|---|---|---|---|
| Connector Style | BNC Connector |
||
| Insulation Plastic | ABS Black |
||
| Termination | Through Hole |
||
| Body Material | Zinc |
Connector Style | BNC Connector |
| Insulation Plastic | ABS Black |
Termination | Through Hole |
Product Specification
| Connector Type | Jack |
||
|---|---|---|---|
| Contact Finish | Nickel Plating |
||
| Contact Material | Phosphor copper |
||
| Contact Type | Female Pin |
||
| Fastening Type | Bayonet |
||
| Impedance | 75ohm |
||
| Insulation Resistance | 5000 Ohms min |
||
| Insulator Material | PTFE |
||
| Mounting Type | Panel Mount |
||
| Number of Ports | 2 |
||
| Orientation | Right Angle |
||
| Shell Finish | Nickel Plating |
||
| Temperature Range | -55°C to +155°C |
||
| VSWR | 1.3MAX |
||
| Working Voltage | 500V rms |
||
| Connector Type | Jack |
Contact Finish | Nickel Plating |
| Contact Material | Phosphor copper |
Contact Type | Female Pin |
| Fastening Type | Bayonet |
Impedance | 75ohm |
| Insulation Resistance | 5000 Ohms min |
Insulator Material | PTFE |
| Mounting Type | Panel Mount |
Number of Ports | 2 |
| Orientation | Right Angle |
Shell Finish | Nickel Plating |
| Temperature Range | -55°C to +155°C |
VSWR | 1.3MAX |
| Working Voltage | 500V rms |
| Body Material | Zinc |
|---|---|
| Connector Style | BNC Connector |
| Connector Type | Jack |
| Contact Finish | Nickel Plating |
| Contact Material | Phosphor copper |
| Contact Type | Female Pin |
| Fastening Type | Bayonet |
| Frequency(Max） | 4G |
| Impedance | 75ohm |
| Insulation Plastic | ABS Black |
| Insulation Resistance | 5000 Ohms min |
| Insulator Material | PTFE |
| Mounting Type | Panel Mount |
| Number of Ports | 2 |
| Orientation | Right Angle |
| Shell Finish | Nickel Plating |
| Temperature Range | -55°C to +155°C |
| Termination | Through Hole |
| VSWR | 1.3MAX |
| Working Voltage | 500V rms |
