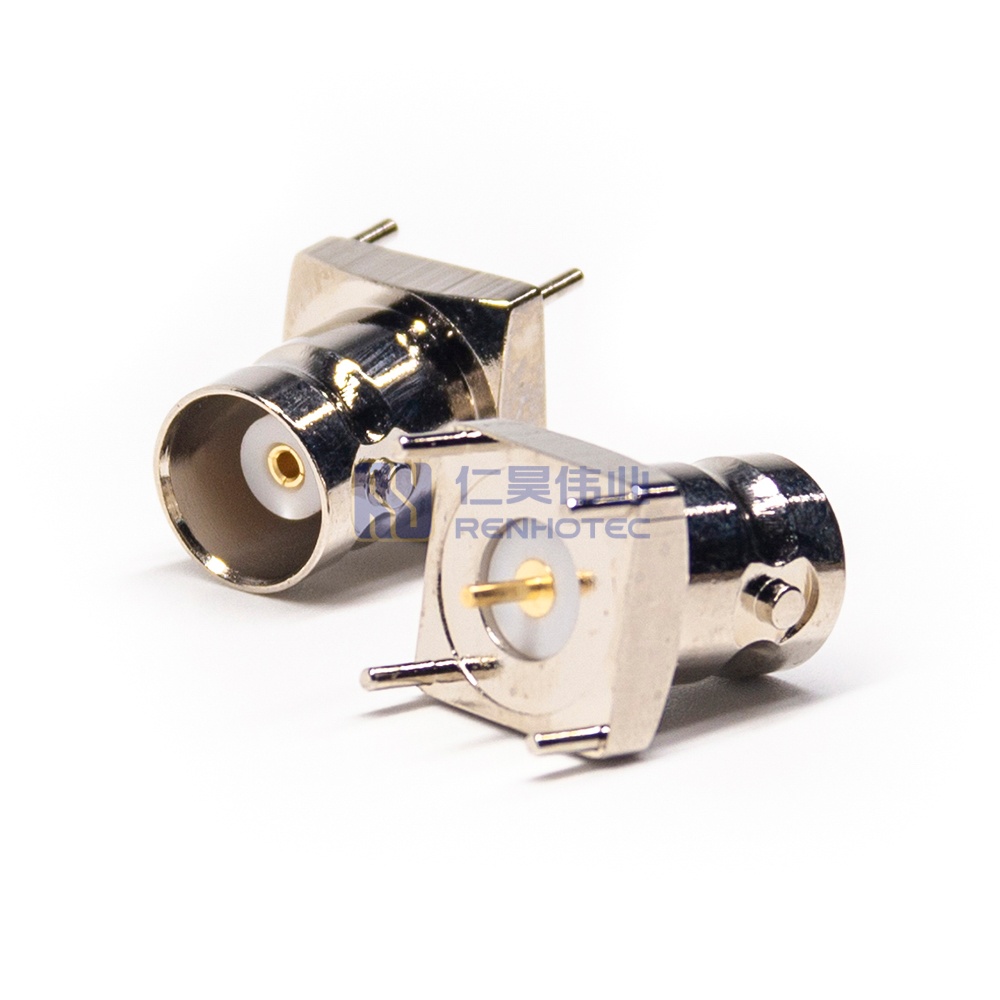

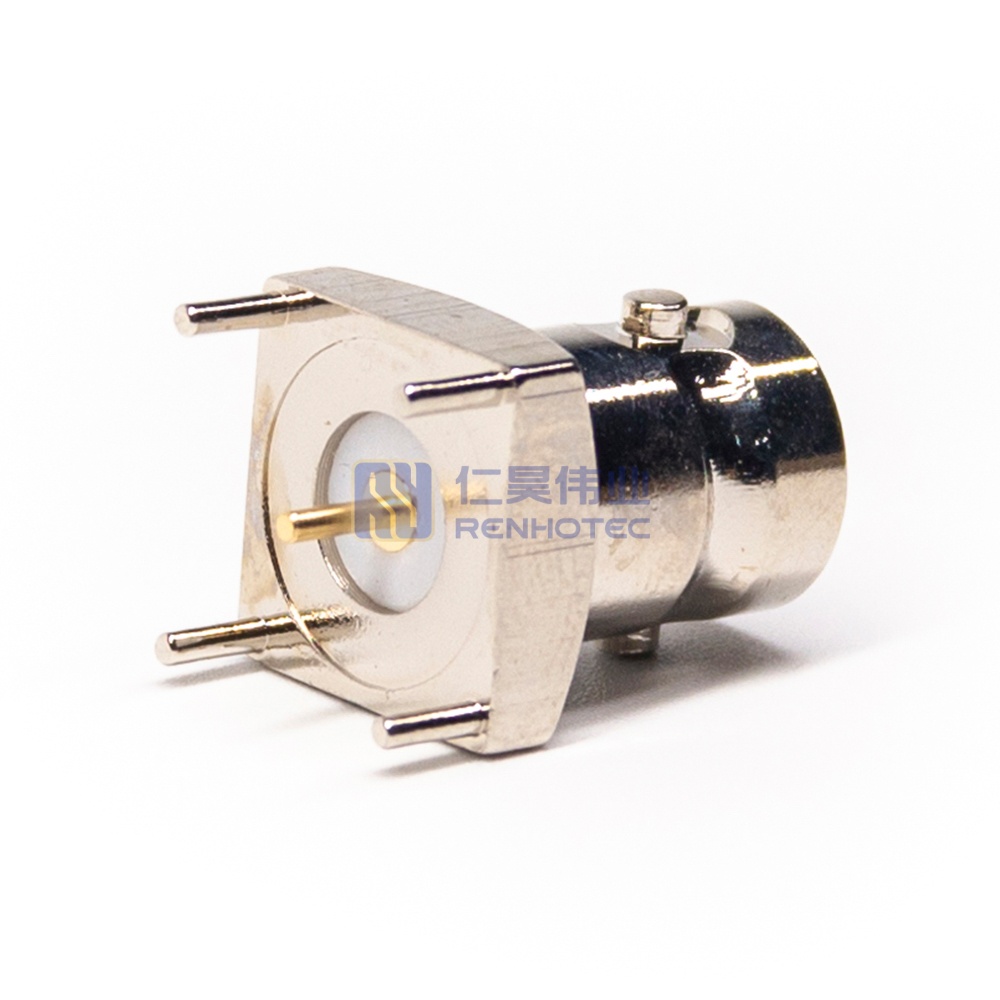

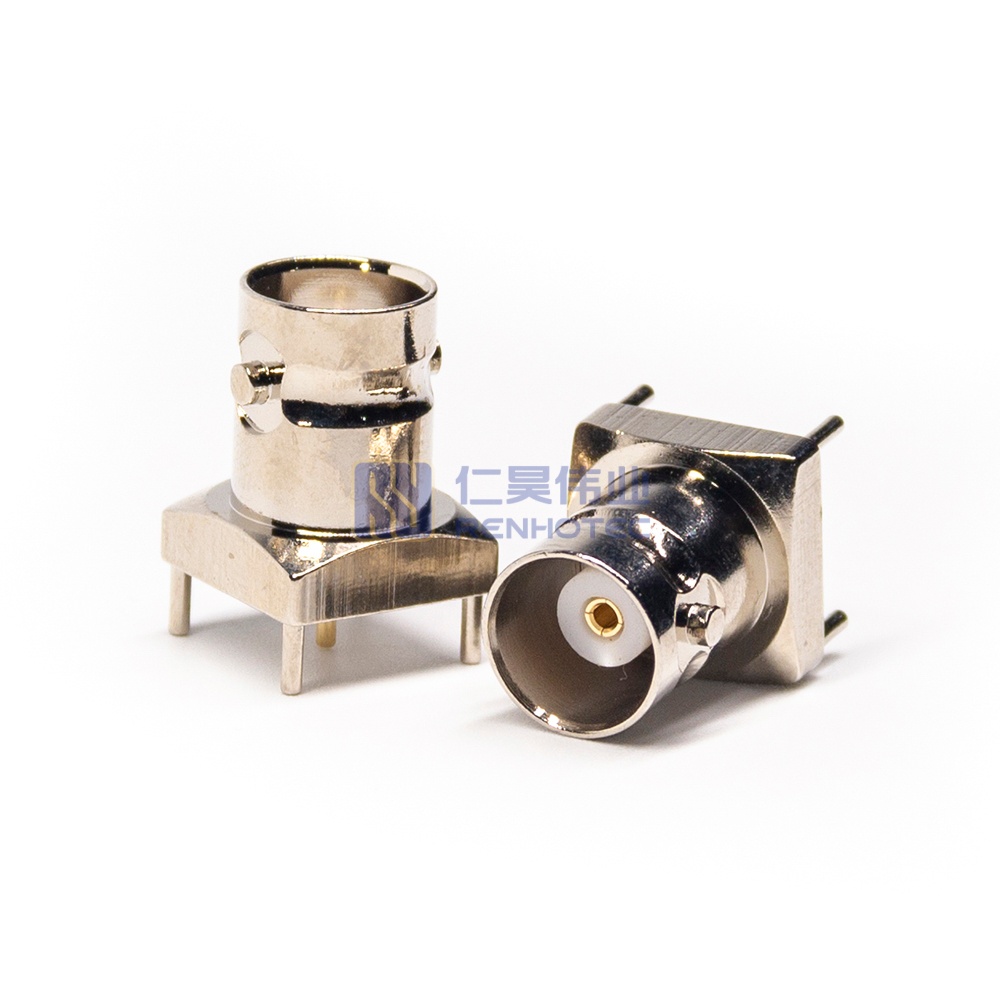

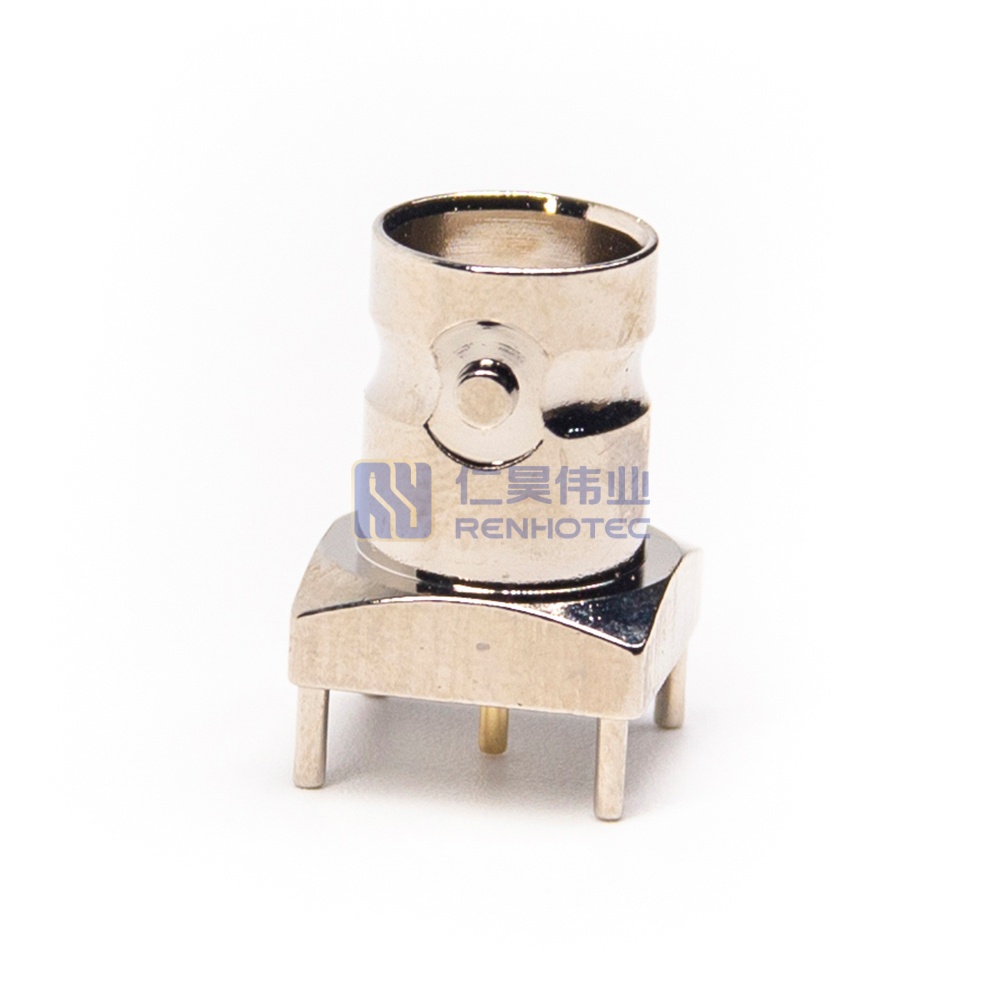

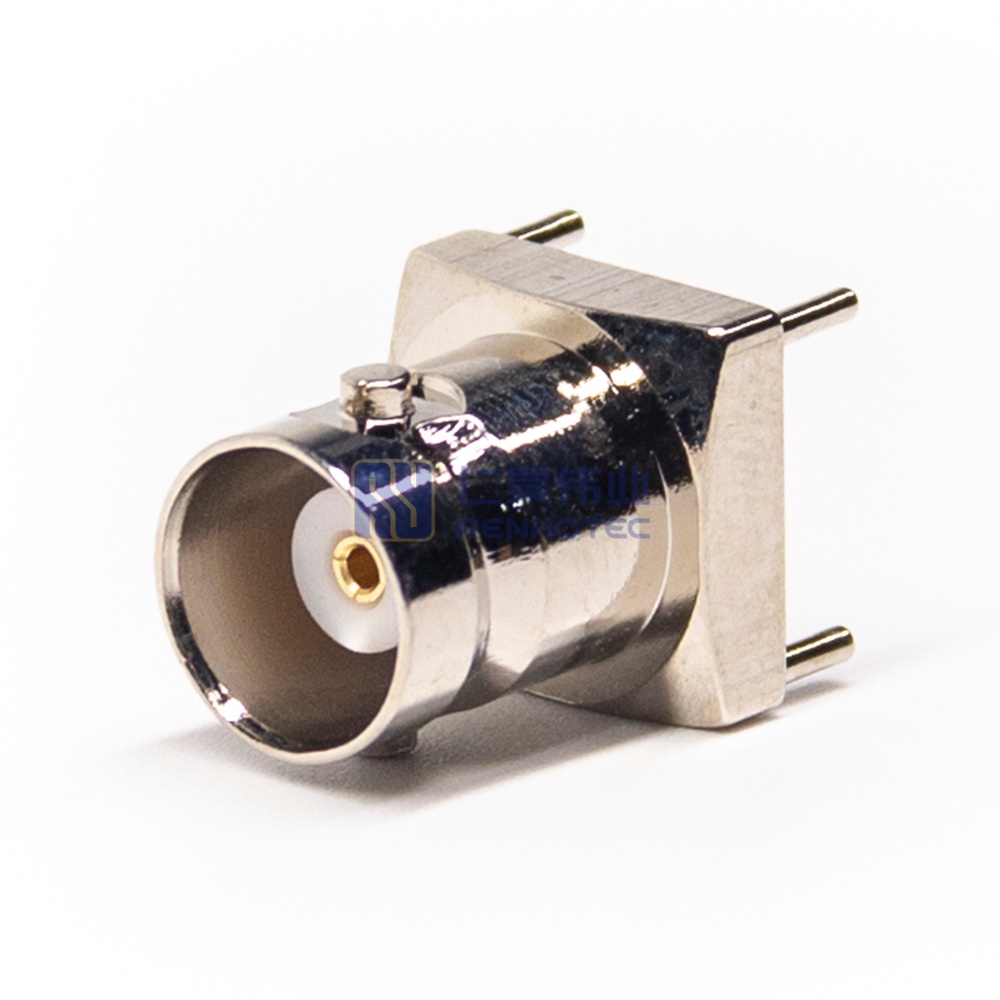

BNC Connector Straight Jack Panel Mount Through Hole – RHT-610-5038
- BNC connector straight jack for secure signal connections
- Panel mount through hole design for firm installation
- Easy to install, directly solders onto circuit boards
- Ideal for RF applications needing stable transmission
- SKU RHT-610-5038: durable, space-saving solution
| Body Material | Cooper |
||
|---|---|---|---|
| Connector Style | BNC Connector |
||
| Mount Feature | Through Hole |
||
| Termination | Through Hole |
||
| Body Material | Cooper |
Connector Style | BNC Connector |
| Mount Feature | Through Hole |
Termination | Through Hole |
Product Specification
| Connector Type | Jack |
||
|---|---|---|---|
| Contact Finish | Gold Plating |
||
| Contact Material | Copper |
||
| Contact Type | Female Pin |
||
| Fastening Type | Bayonet |
||
| Impedance | 50ohm |
||
| Ingress Protection | IP65 |
||
| Insulation Resistance | ≥5000 MΩ |
||
| Insulator Material | Teflon White |
||
| Mounting Type | Panel Mount |
||
| Number of Ports | 1 |
||
| Orientation | Straight |
||
| Shell Finish | Nickel Plating |
||
| Temperature Range | -45°C to +125°C |
||
| VSWR | 1.5MAX |
||
| Working Voltage | 500V rms |
||
| Connector Type | Jack |
Contact Finish | Gold Plating |
| Contact Material | Copper |
Contact Type | Female Pin |
| Fastening Type | Bayonet |
Impedance | 50ohm |
| Ingress Protection | IP65 |
Insulation Resistance | ≥5000 MΩ |
| Insulator Material | Teflon White |
Mounting Type | Panel Mount |
| Number of Ports | 1 |
Orientation | Straight |
| Shell Finish | Nickel Plating |
Temperature Range | -45°C to +125°C |
| VSWR | 1.5MAX |
Working Voltage | 500V rms |
| Body Material | Cooper |
|---|---|
| Connector Style | BNC Connector |
| Connector Type | Jack |
| Contact Finish | Gold Plating |
| Contact Material | Copper |
| Contact Type | Female Pin |
| Fastening Type | Bayonet |
| Frequency(Max） | 4G |
| Impedance | 50ohm |
| Ingress Protection | IP65 |
| Insulation Resistance | ≥5000 MΩ |
| Insulator Material | Teflon White |
| Mount Feature | Through Hole |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Orientation | Straight |
| Shell Finish | Nickel Plating |
| Temperature Range | -45°C to +125°C |
| Termination | Through Hole |
| VSWR | 1.5MAX |
| Working Voltage | 500V rms |
Drawing for BNC Connector Straight Jack Panel Mount Through HoleDownload
