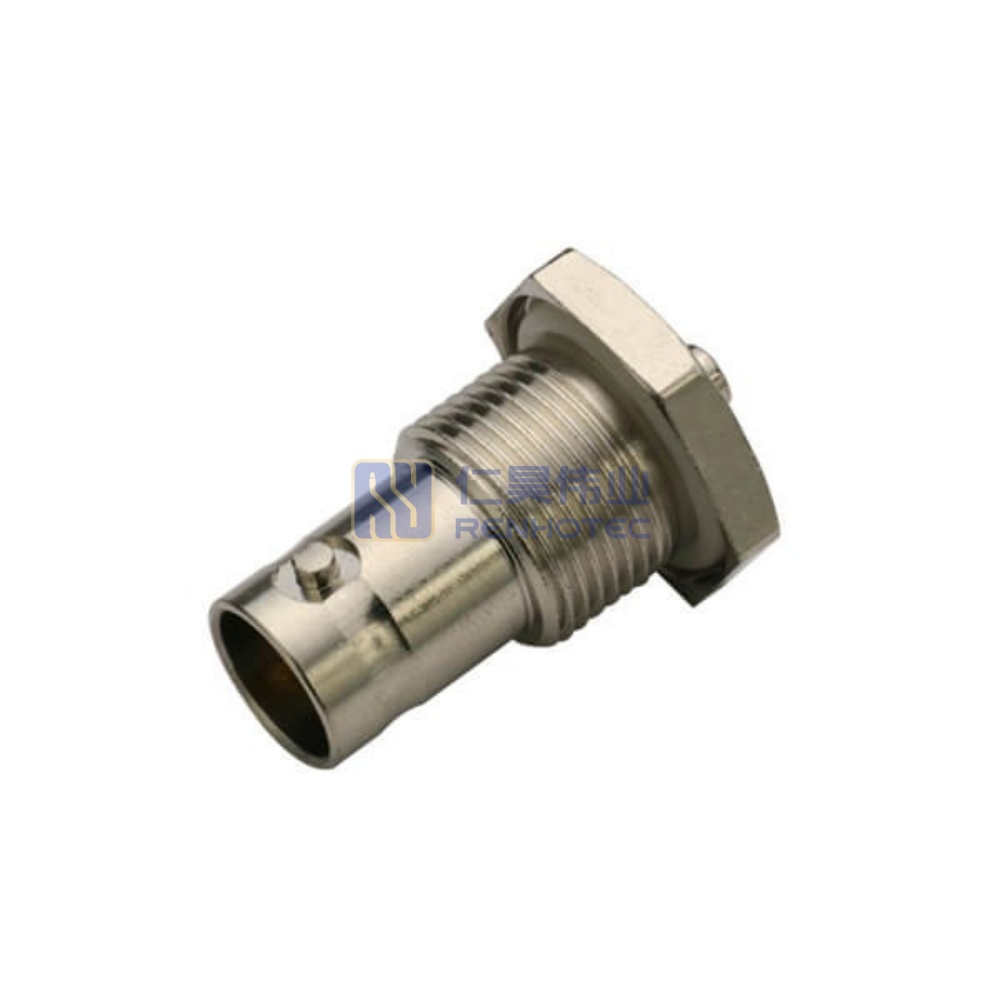

BNC Connector Straight Jack Cable/Panel Mount Solder - RHT-610-0214

BNC Connector Straight Jack Cable/Panel Mount Solder – RHT-610-0214

SKU RHT-610-0214 Category BNC Connector, RF Connectors
Product Files

Open drawing and specification files.

Drawing PDF RHT-610-0214 BNC Connector Specs & Datasheet PDF

  • Professional BNC connector for secure cable and panel connections.
  • Straight jack design simplifies soldering installation.
  • Dependable signal transmission in RF and video applications.
  • Durable construction withstands frequent connect-disconnect cycles.
  • Compatible with RG58/59 cables for flexible system integration.

Connector Type

Jack
Contact Finish

Gold Plating
Contact Material

Copper
Contact Type

Female Pin
Fastening Type

Bayonet
Ingress Protection

IP65
Insulator Material

Teflon White
Mounting Feature

Bulkhead
Mounting Type

Cable/Panel Mount
Number of Ports

1
Orientation

Straight
RF Series

BNC Type
Shell Finish

Nickel Plating
Shell Material

Cooper
Suitable Cable

UT085
Connector Type

Jack

 Contact Finish

Gold Plating
Contact Material

Copper

 Contact Type

Female Pin
Fastening Type

Bayonet

 Ingress Protection

IP65
Insulator Material

Teflon White

 Mounting Feature

Bulkhead
Mounting Type

Cable/Panel Mount

 Number of Ports

1
Orientation

Straight

 RF Series

BNC Type
Shell Finish

Nickel Plating

 Shell Material

Cooper
Suitable Cable

UT085

Feature

Waterproof
Termination

Solder
Feature

Waterproof

 Termination

Solder
Connector Type

Jack
Contact Finish

Gold Plating
Contact Material

Copper
Contact Type

Female Pin
Fastening Type

Bayonet
Feature

Waterproof
Frequency(Max）

4G
Ingress Protection

IP65
Insulator Material

Teflon White
Mounting Feature

Bulkhead
Mounting Type

Cable/Panel Mount
Number of Ports

1
Orientation

Straight
RF Series

BNC Type
Shell Finish

Nickel Plating
Shell Material

Cooper
Suitable Cable

UT085
Termination

Solder
Drawing for BNC Connector Straight Jack Cable/Panel Mount SolderDownload
