TE-2209201-7 Fakra Connectors Specs & Datasheet

Request for Quotation

Black, PA66, Clip, FAKRA

Secure your FAKRA connections with this durable black PA66 clip. Prevents loose cables and signal loss in automotive and telecom applications. Reliable, easy-to-use solution for organized and stable assemblies.

Description
Attributes

With advancements in telematics and automotive communications technology, RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards.

Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

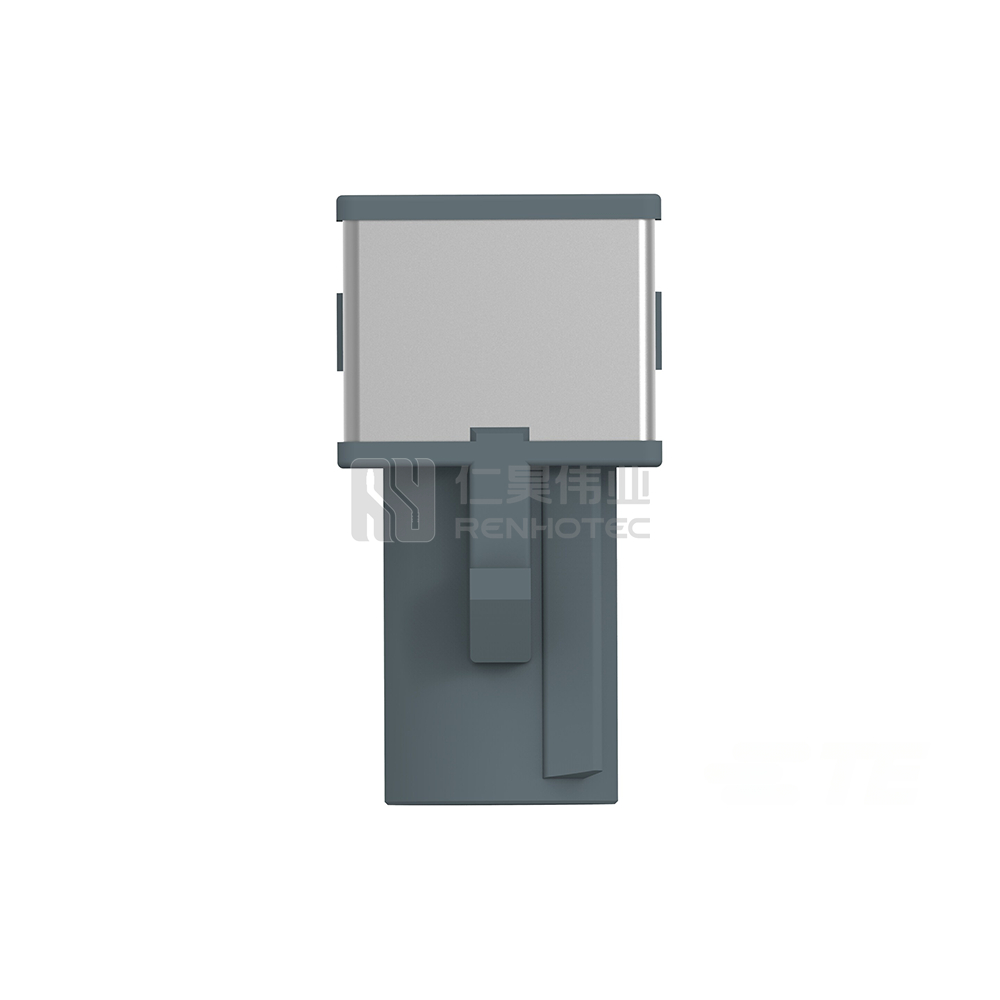

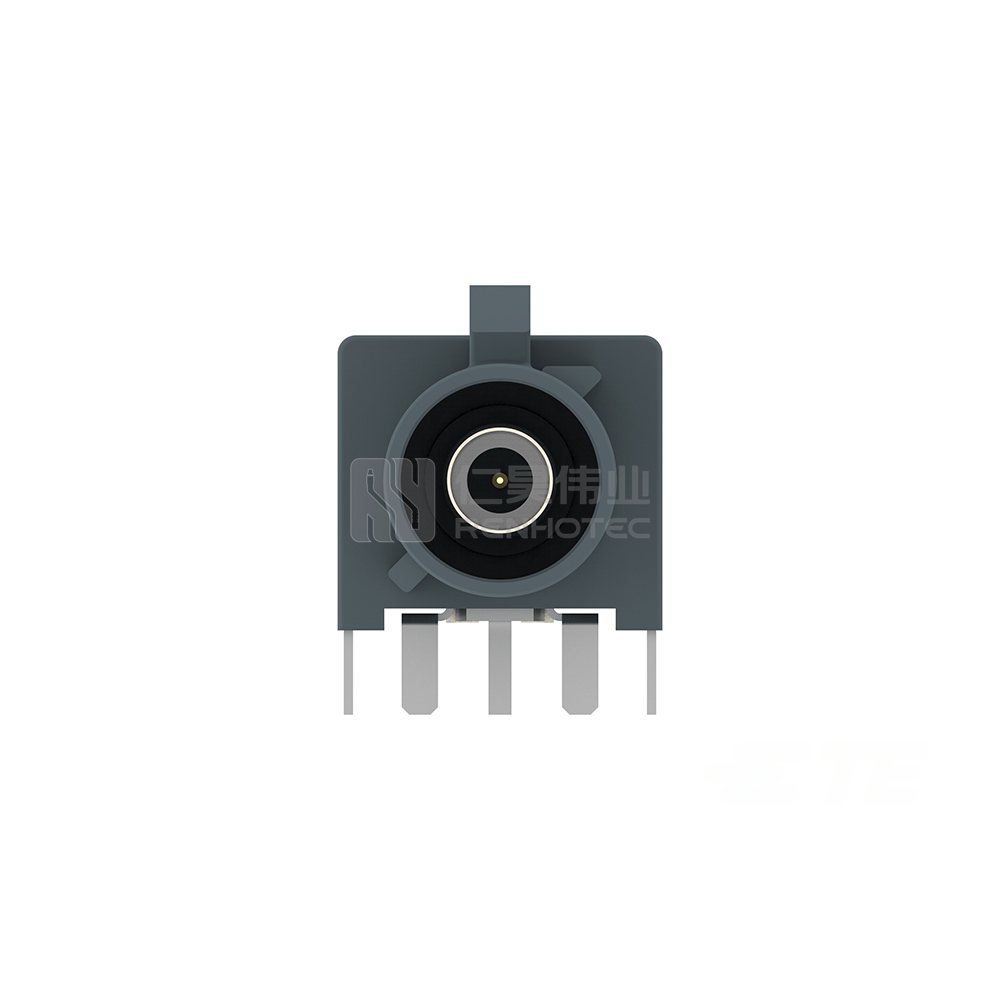

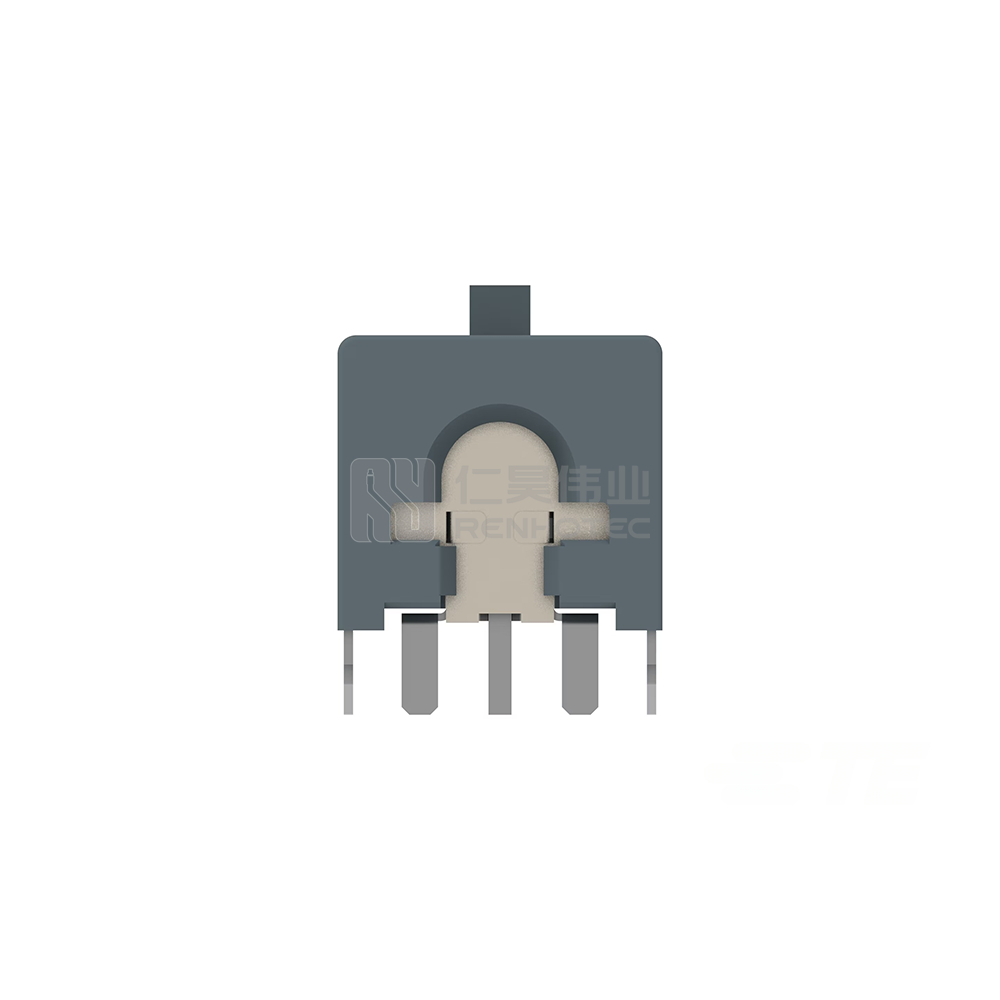

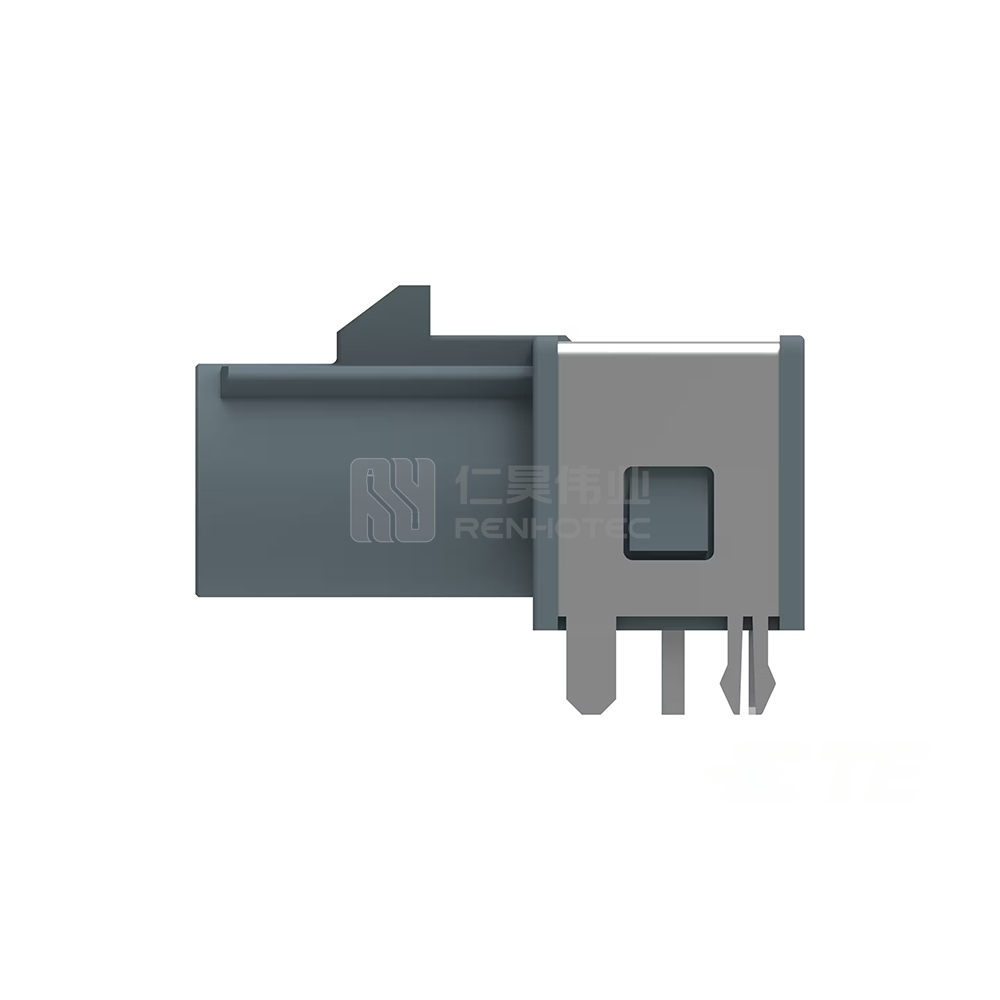

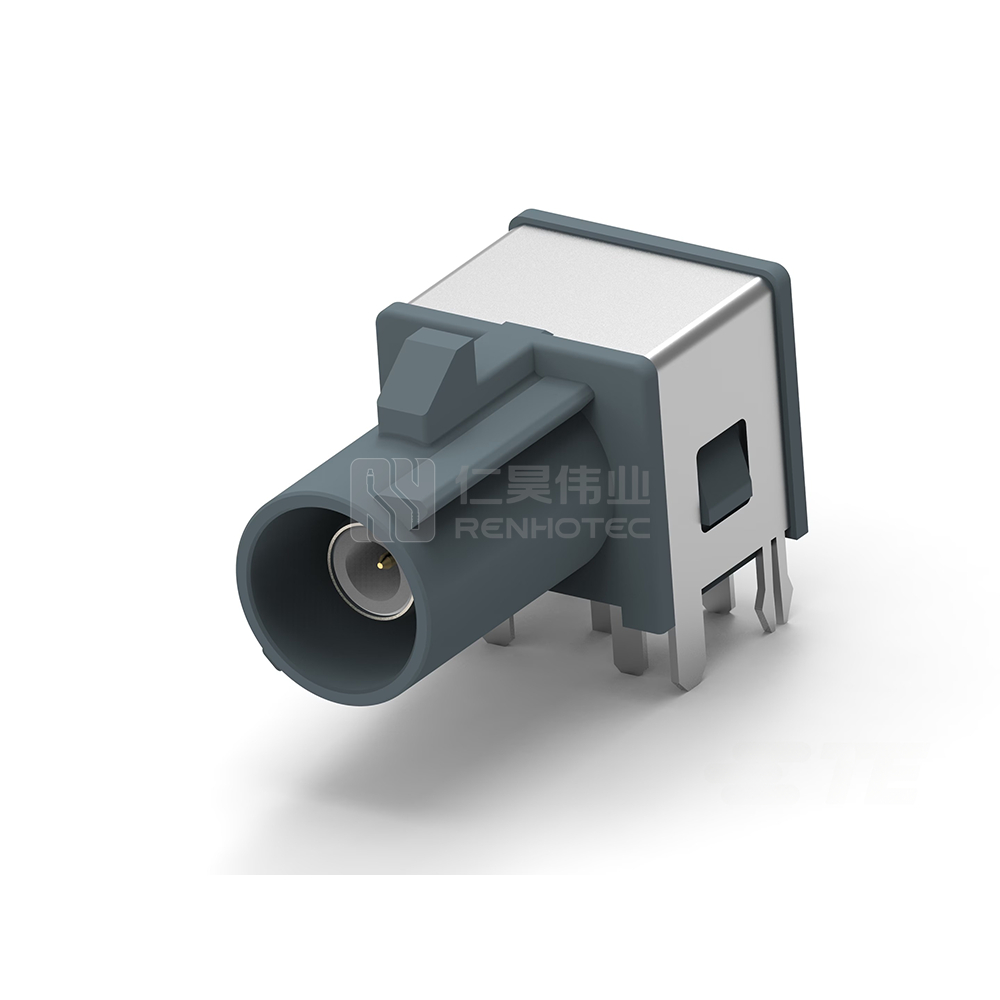

PCB End (Male)

Cable End (Male)

Cable End (Female)

Secure primary locking system with tactile and audible locking
Shock and vibration resistant coded housing
Protection against unintentional opening by protective bar and protective strips
High axial holding power of the coaxial insert due to secondary locking
Mechanical and color coding system with 14 different codes

Fastening groove for cable connectors for chassis mounting
Coaxial insert and cable freely rotatable in the housing
Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
Efficient, automated further processing option
Customized packaging possible


Code	A	B	C	D	E	F	G
Color	Deep Black	Cream White	Signal Blue	Bordeaux Violet	Leaf Green	Brown	Blue Gray
Application	Radio with phantom supply	Radio without phantom supply	GPS telematics or navigation	GSM Cellular Phone	TV (UHF)	TV (VHF)	SDARS terrestrial

Code	H	I	K	L	M	N	Z
Color	Violet	Beige	Curry Yellow	Carmine Red	Pastel Orange	Pastel Green	Water Blue
Application	GPS telematics and navigation	Bluetooth Controlled Parking Heating	SDARS satellite	Not defined	Keyless entry Tire pressure monitoring	Not defined	Neutral

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Termination Point	Printed Circuit Board
Connector System	Wire-to-Board
Sealable	No
Row Count	1
PCB Orientation	Horizontal
Position Count	1
Key Code	G
Contact Plating	Gold (Au)
Pin Diameter	.5 mm [ .02 in ]
Max Current A	1
PCB Termination	Through Hole – Solder
Mating Retention	With
PCB Retention	With
Mount Type	Board Mount
Housing Color	Blue Gray
Connector Height	9.45 mm [ .372 in ]
Product Length	19.5 mm [ .767 in ]
Product Width	10.4 mm [ .409 in ]
Shielded	Yes
Circuit Application	Signal
UL Flammability Rating	UL 94V-0
Operating Voltage VDC	60
Body Material	PA
Outer Contact Plating	Tin (Sn)
PCB Retention Type	Boardlock
Max Temperature	105 °C [ 221 °F ]
Frequency Range GHz	0 – 6
Termination Point	Printed Circuit Board	Connector System	Wire-to-Board
Sealable	No	Row Count	1
PCB Orientation	Horizontal	Position Count	1
Key Code	G	Contact Plating	Gold (Au)
Pin Diameter	.5 mm [ .02 in ]	Max Current A	1
PCB Termination	Through Hole – Solder	Mating Retention	With
PCB Retention	With	Mount Type	Board Mount
Housing Color	Blue Gray	Connector Height	9.45 mm [ .372 in ]
Product Length	19.5 mm [ .767 in ]	Product Width	10.4 mm [ .409 in ]
Shielded	Yes	Circuit Application	Signal
UL Flammability Rating	UL 94V-0	Operating Voltage VDC	60
Body Material	PA	Outer Contact Plating	Tin (Sn)
PCB Retention Type	Boardlock	Max Temperature	105 °C [ 221 °F ]
Frequency Range GHz	0 – 6

Product Specification

Contact Type	Pin
Temperature Range	-40 – 105 °C [ -40 – 221 °F ]
Contact Type	Pin	Temperature Range	-40 – 105 °C [ -40 – 221 °F ]

Termination Point	Printed Circuit Board
Connector System	Wire-to-Board
Sealable	No
Row Count	1
PCB Orientation	Horizontal
Position Count	1
Key Code	G
Contact Type	Pin
Contact Plating	Gold (Au)
Pin Diameter	.5 mm [ .02 in ]
Max Current A	1
PCB Termination	Through Hole – Solder
Mating Retention	With
PCB Retention	With
Mount Type	Board Mount
Housing Color	Blue Gray
Connector Height	9.45 mm [ .372 in ]
Product Length	19.5 mm [ .767 in ]
Product Width	10.4 mm [ .409 in ]
Shielded	Yes
Circuit Application	Signal
UL Flammability Rating	UL 94V-0
Operating Voltage VDC	60
Body Material	PA
Outer Contact Plating	Tin (Sn)
PCB Retention Type	Boardlock
Max Temperature	105 °C [ 221 °F ]
Temperature Range	-40 – 105 °C [ -40 – 221 °F ]
Impedance Ω	50
Frequency Range GHz	0 – 6
