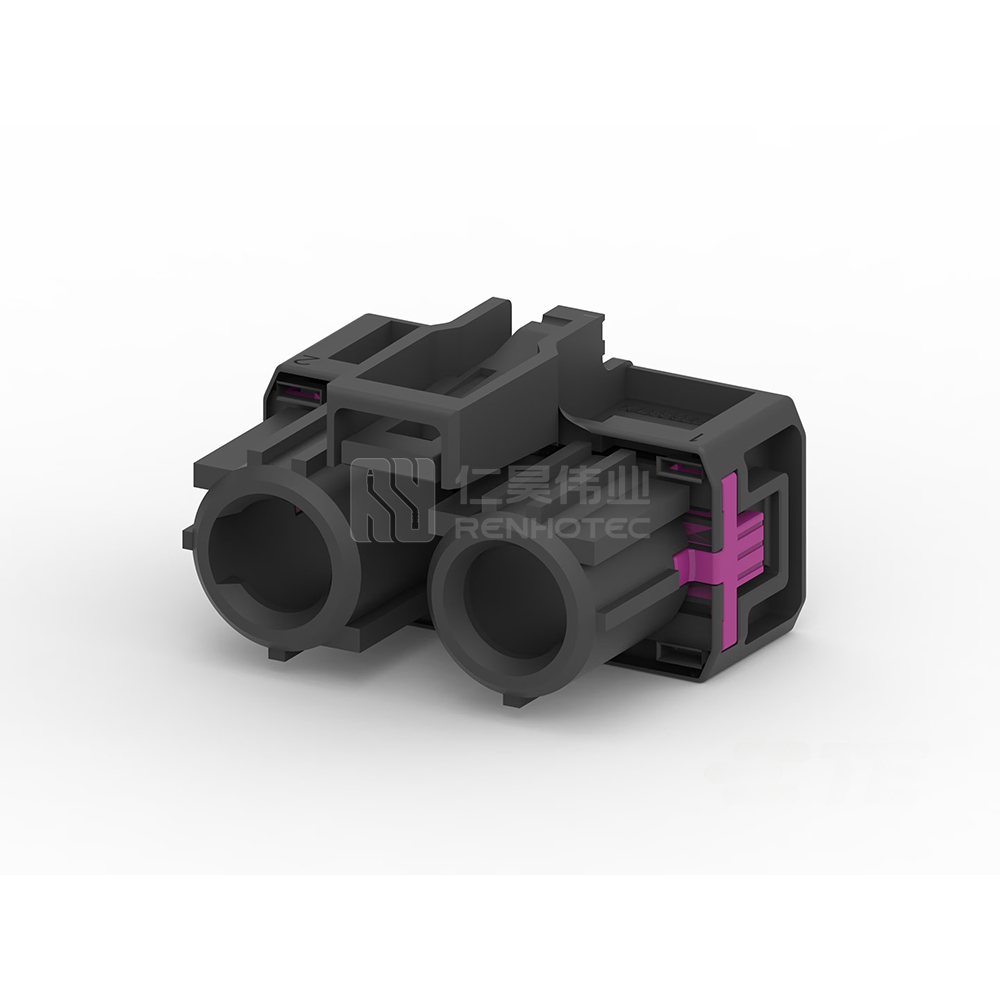

90?? Cable Exit, 8 Position, A Code, Housing for Female Terminals, 12.7 mm Centerline, Crimp, Automotive HSD, Data Connectivity Housings

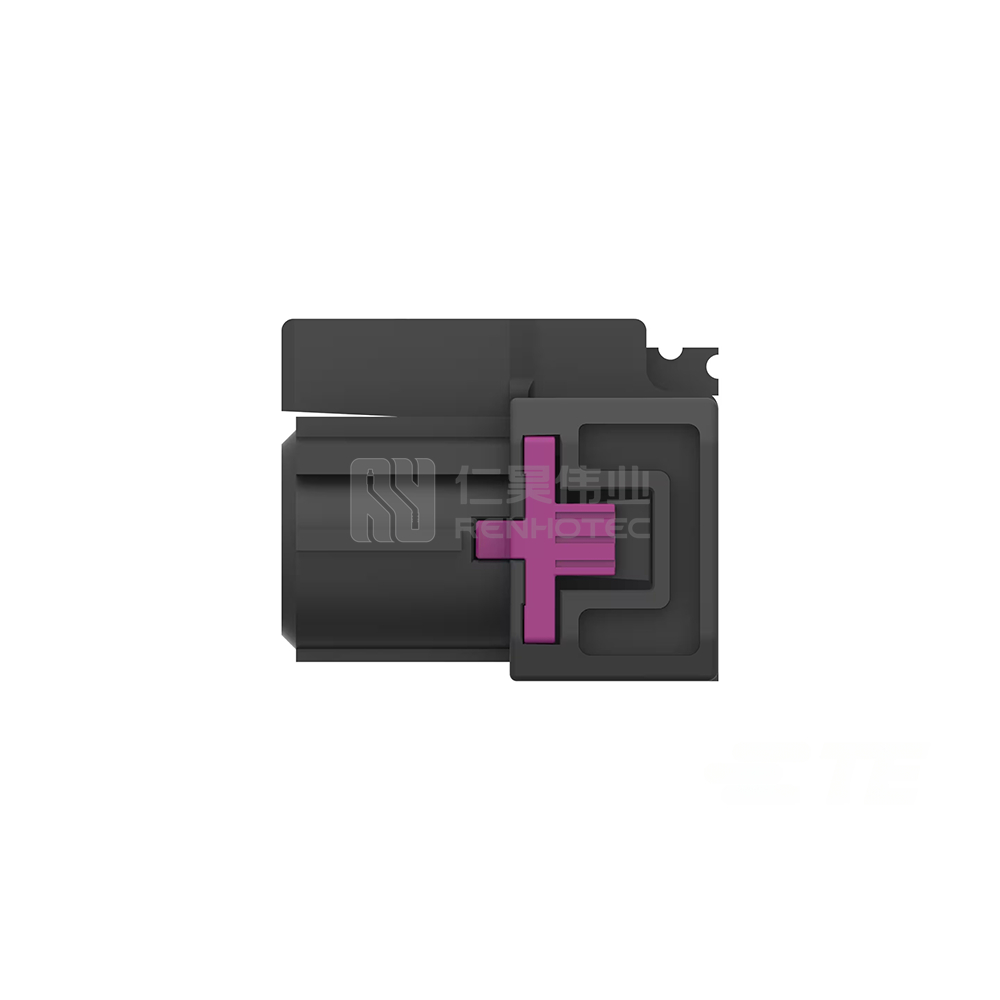

90?? Cable Exit, 8 Position, A Code, Housing for Female Terminals, 12.7 mm Centerline, Crimp, Automotive HSD, Data Connectivity Housings - Image 2

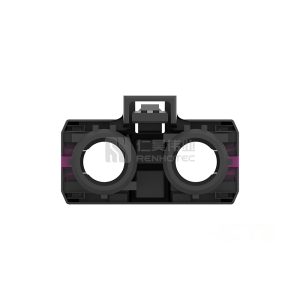

90?? Cable Exit, 8 Position, A Code, Housing for Female Terminals, 12.7 mm Centerline, Crimp, Automotive HSD, Data Connectivity Housings - Image 3

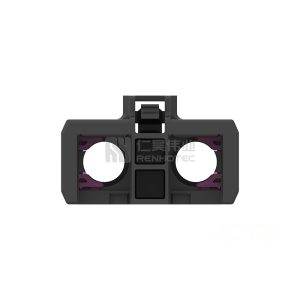

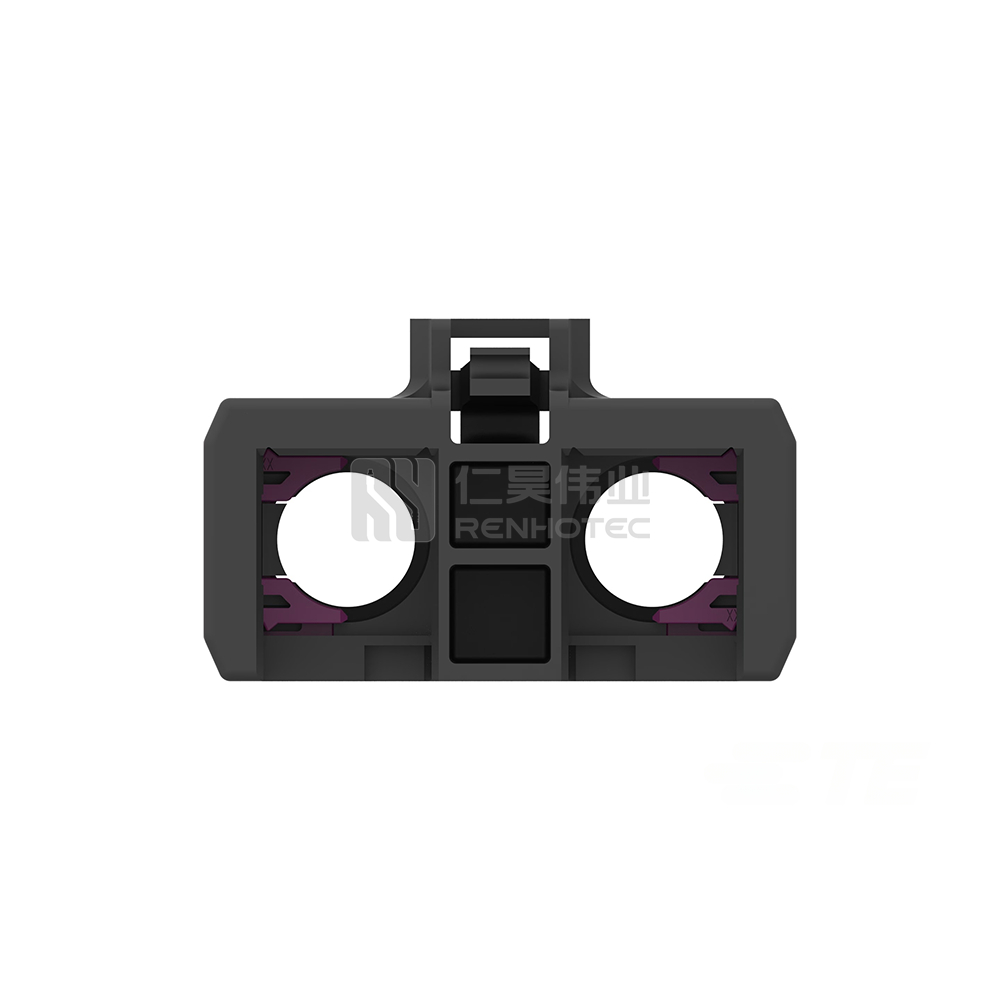

90?? Cable Exit, 8 Position, A Code, Housing for Female Terminals, 12.7 mm Centerline, Crimp, Automotive HSD, Data Connectivity Housings - Image 4

TE-1-2236888-1 HSD Connectors Specs & Datasheet

Request for Quotation

90?? Cable Exit, 8 Position, A Code, Housing for Female Terminals, 12.7 mm Centerline, Crimp, Automotive HSD, Data Connectivity Housings

Description
Attributes

HSD connectors provide connectivity solutions for automotive infotainment modules, cameras, consumer equipment ports, and display devices.
The HSD product portfolio is designed for high-speed data transmission to meet automotive data transmission rates up to 6 GHz.
The connector product portfolio can be combined with 1-channel and 4-channel LVDS, IEEE 1394, GVIF, eMOST, and USB 2.0 protocols. These high-speed connectors are compatible with the German AK HSD interface, USCAR 30 (Mini USB) and designated shield connection systems. These connectors can be used for sealing applications.

HSD stands for High Speed Data and is a 4-pin interface that can be used to create shielded high-speed connection systems. The interface is designed based on the “star-four principle”, which means that the opposite wires form a wire pair.

HSD plug and jack in schematic view with pin assignment

Code	A	B	C	D	E	F	G
Color	Jet black	Cream	Signal blue	Claret violet	Leaf green	Nut brown	Blue grey
Male
Female
Code	H	J	K	L	M	O	Z
Color	Heather violet	Beige	Curry	Yellow green	Pastel orange	Pastel green	Water blue
Male
Female

As included in the name, HSD serves the high speed data transfer. In addition to the interference safety just described, HSD offers high signal quality, which is why its main area of application is the automotive industry.

connects components of electrical engineering and electronics in vehicles
offers connection solutions for vehicle infotainment modules, camereas, device connectors for vehicle occupants and screens
creating connections for driver assistance systems

HSD connector systems can transmit USB signals, signals from LVDS cameras or from IEEE 1394. This makes HSD suitable for digital infotainment applications or head-up displays, HD entertainment, symmetrical networks, Ethernet data connections, telematics, video transmission via GVIF and also mobile phone base stations.

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Termination Point	Wire & Cable
Sealable	No
Row Count	1
Position Count	8
Key Code	A
Center Contact	Without
Contact Plating	Unplated
Pin Diameter	.6 mm [ .024 in ]
Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Black
Pitch	12.7 mm [ .5 in ]
Connector Height	15.1 mm [ .6 in ]
Product Length	27.9 mm [ 1.09 in ]
Product Width	18.2 mm [ .71 in ]
Body Material	PBT GF
Primary Lock	Clean Body
Housing Type	Housing for Female Terminals
Snap Lock	With
Cable Exit Type	Fixed
Ferrule	Without
Cable Exit Angle	90°
Cable Termination	Crimp
Panel Style	Rear Mount
Termination Point	Wire & Cable	Sealable	No
Row Count	1	Position Count	8
Key Code	A	Center Contact	Without
Contact Plating	Unplated	Pin Diameter	.6 mm [ .024 in ]
Mating Retention	With	Mount Type	Cable Mount (Free-Hanging)
Housing Color	Black	Pitch	12.7 mm [ .5 in ]
Connector Height	15.1 mm [ .6 in ]	Product Length	27.9 mm [ 1.09 in ]
Product Width	18.2 mm [ .71 in ]	Body Material	PBT GF
Primary Lock	Clean Body	Housing Type	Housing for Female Terminals
Snap Lock	With	Cable Exit Type	Fixed
Ferrule	Without	Cable Exit Angle	90°
Cable Termination	Crimp	Panel Style	Rear Mount

Product Specification

Contact Type	Socket
Temperature Range	-40 – 105 °C [ -40 – 221 °F ]
Cable Type	SSQ
Contact Type	Socket	Temperature Range	-40 – 105 °C [ -40 – 221 °F ]
Cable Type	SSQ

Termination Point	Wire & Cable
Sealable	No
Row Count	1
Position Count	8
Key Code	A
Contact Type	Socket
Center Contact	Without
Contact Plating	Unplated
Pin Diameter	.6 mm [ .024 in ]
Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Black
Pitch	12.7 mm [ .5 in ]
Connector Height	15.1 mm [ .6 in ]
Product Length	27.9 mm [ 1.09 in ]
Product Width	18.2 mm [ .71 in ]
Body Material	PBT GF
Temperature Range	-40 – 105 °C [ -40 – 221 °F ]
Impedance Ω	100
Primary Lock	Clean Body
Housing Type	Housing for Female Terminals
Snap Lock	With
Cable Exit Type	Fixed
Ferrule	Without
Cable Exit Angle	90°
Cable Termination	Crimp
Panel Style	Rear Mount
Cable Type	SSQ

90?? Cable Exit, 8 Position, A Code, Housing for Female Terminals, 12.7 mm Centerline, Crimp, Automotive HSD, Data Connectivity Housings
