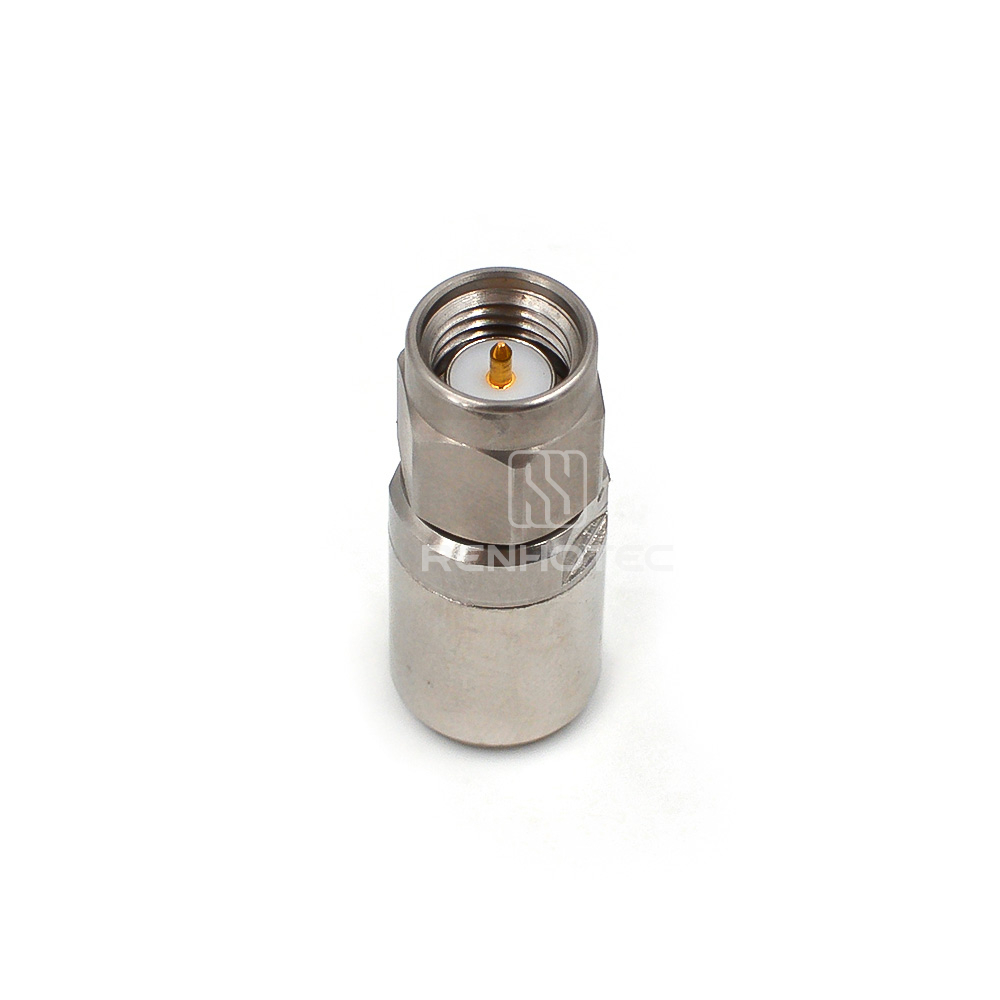

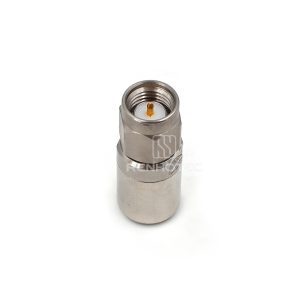

2W SMA Male RF Coaxial Load Termination, 50 Ω Dummy Load, DC–18 GHz

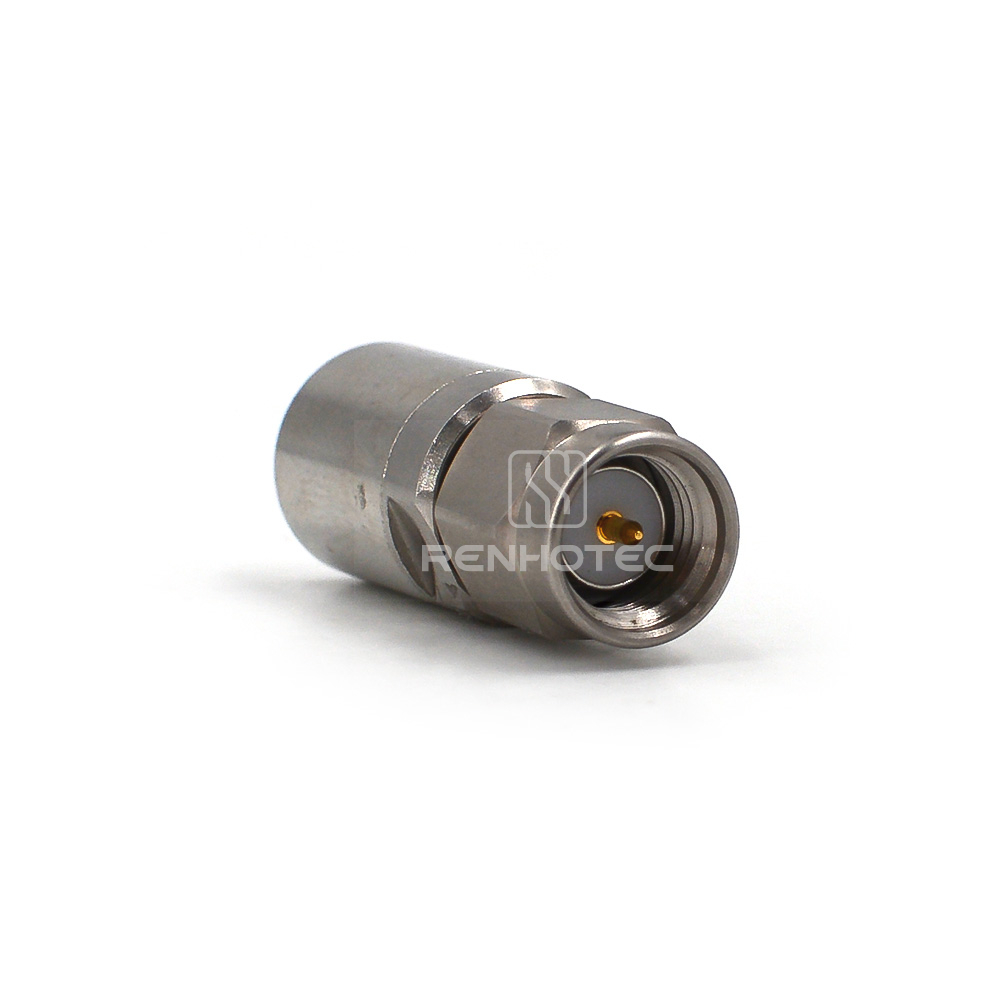

2W SMA Male RF Coaxial Load Termination, 50 Ω Dummy Load, DC–18 GHz - Image 2

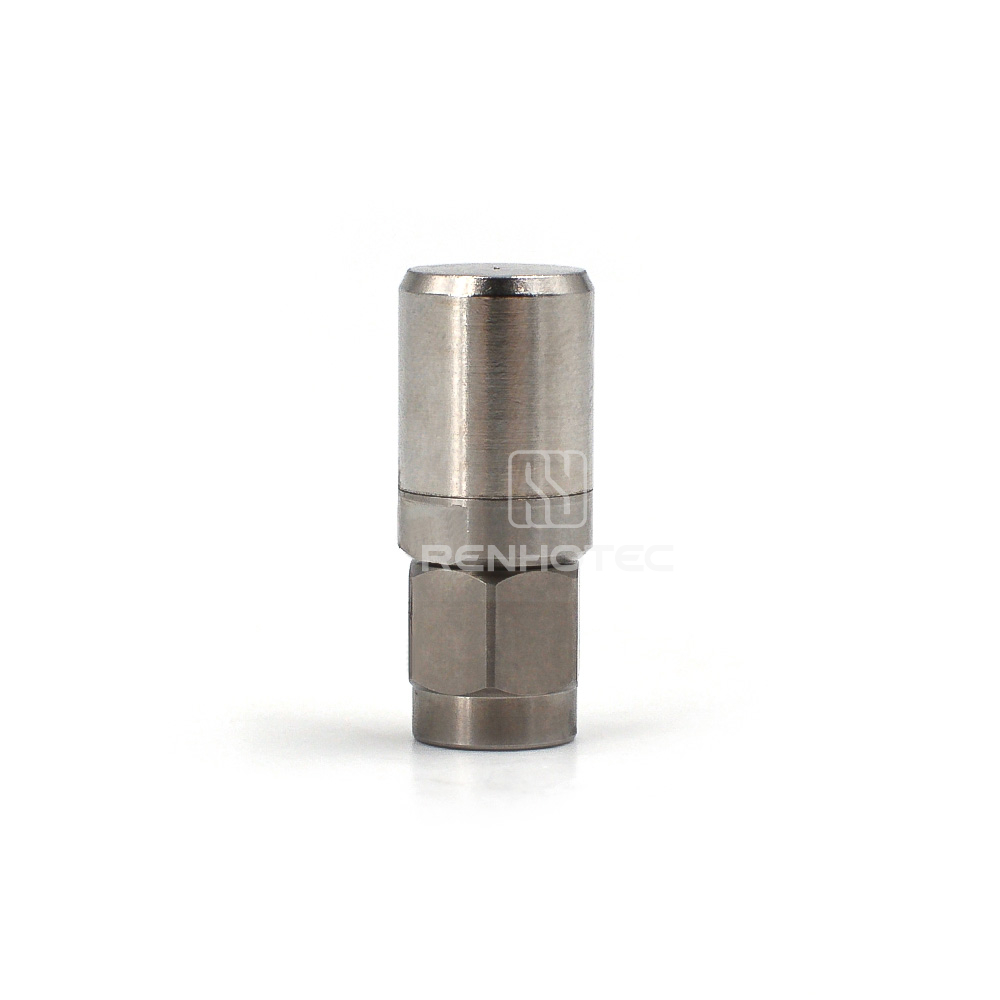

2W SMA Male RF Coaxial Load Termination, 50 Ω Dummy Load, DC–18 GHz - Image 3

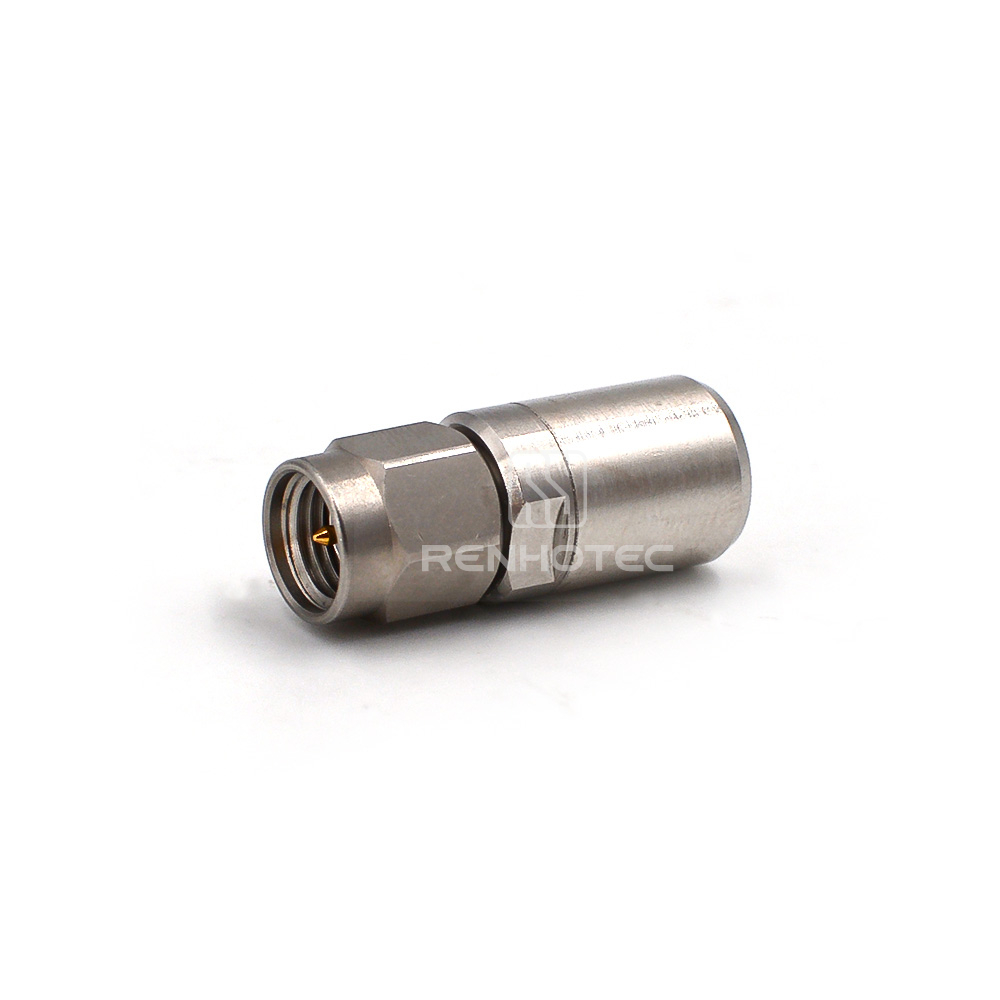

2W SMA Male RF Coaxial Load Termination, 50 Ω Dummy Load, DC–18 GHz - Image 4

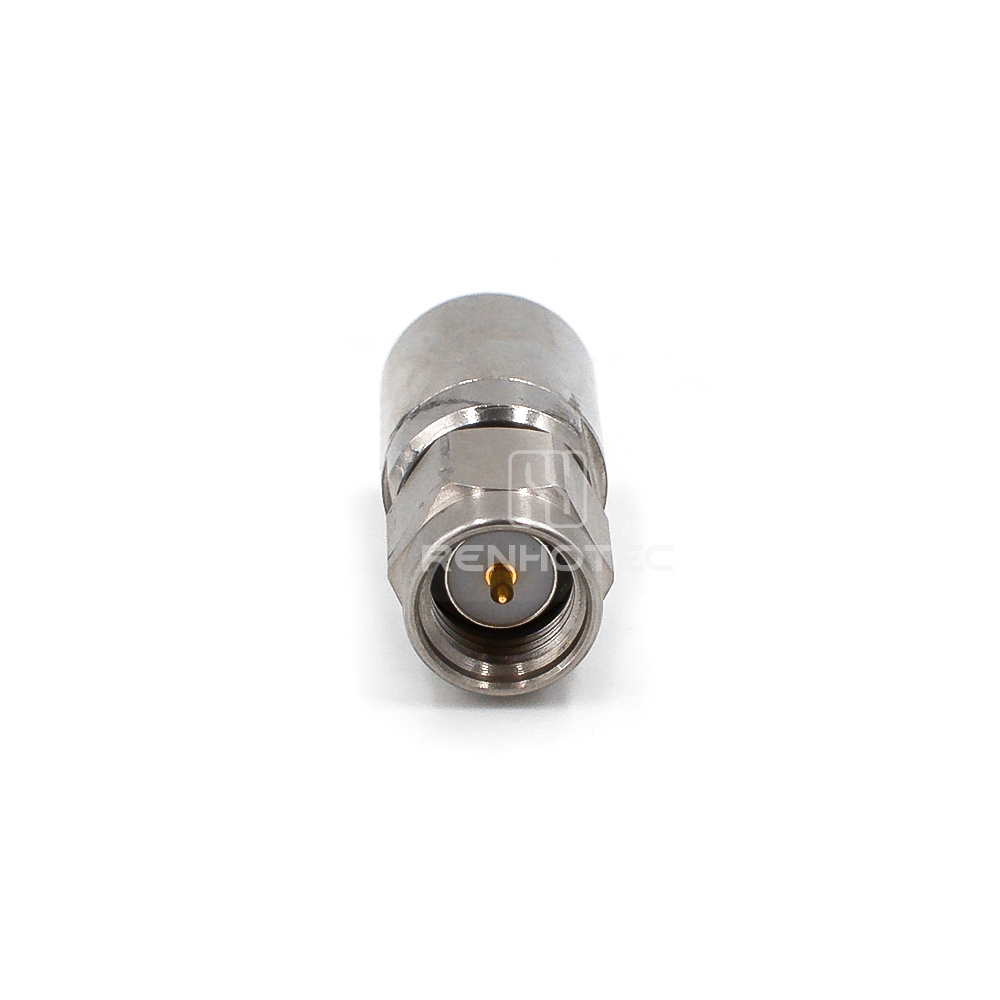

2W SMA Male RF Coaxial Load Termination, 50 Ω Dummy Load, DC–18 GHz - Image 5
SKU: RHT-SMAJL-18-2W-GD Category:

2W SMA Male RF Coaxial Load Termination, 50 Ω Dummy Load, DC–18 GHz

  • Wide Frequency Range: Low VSWR with broadband coverage from DC to 67 GHz.
  • Connector Versatility: Compatible with multiple RF connector types for flexible use.
  • High Power Handling: Reliable absorption across broad power levels.
  • Stable & Durable: Delivers consistent performance even in harsh environments.
  • Customizable Solutions: Tailored designs to meet specific application needs.

RF coaxial loads are basic components in the RF signal chain, typically placed at the end of the line and also known as RF terminators. Their main function is to fully absorb microwave energy from the transmission line, thereby improving circuit matching, preventing unwanted reflections, and minimizing interference. In addition, they can control power levels, serve as decoupling elements, act as reference standards, and help reduce interference in radar systems.

Renhotec RF Coaxial Load

Product Features

  • Core functions: Efficiently absorbs microwave energy, improves circuit matching, reduces reflections and interference, and ensures overall system stability.
  • Versatile and adaptable: Controls power, isolates interference, supports calibration testing, reduces radar system interference, and adapts to multiple application scenarios.
  • Reliable performance: Standard impedance compatibility, low VSWR for improved efficiency and signal quality, supports a wide range of power levels, frequencies, and temperatures, ensuring stable and dependable operation.
RF load connector type

Application Scenarios

  • Wireless communication: devices such as base stations, mobile phones, satellite communications, etc.
  • Instrumentation: network analyzers, signal generators, etc.
  • Aerospace: communication, navigation, and radar systems for aircraft.
RF Load Application
RF Load Application (1)
RF Load Application (3)
RF Load Application (2)

RF Coaxial Loads FAQ

The main ones are frequency range, power capacity, and impedance matching.

No. They need to be used with transmission lines that have corresponding connectors.

It can cause signal reflections, which may reduce efficiency or even damage the equipment.

Common types include fixed and adjustable loads. They can also be categorized as low, medium, or high-power loads based on power rating.

With normal use, service life typically ranges from a few years to over ten years, depending on the operating environment.

Product Specification

Connector Type

SMA-Male
Frequency Range

DC-18GHz
VSWR

1.20:1(max)
Impedance

50Ω
IP Rating

IP20
Insulation Resistance

≥5000Ω
Operating Temperature

-55℃～+125℃
Connector Type

SMA-Male

 Frequency Range

DC-18GHz
VSWR

1.20:1(max)

 Impedance

50Ω
IP Rating

IP20

 Insulation Resistance

≥5000Ω
Operating Temperature

-55℃～+125℃

Power Handling

2W
Withstanding Voltage

1000V
Inner Conductor Material

Beryllium Copper, Gold Plating
Outer Conductor Material

Brass, Ternary Alloy Plating
Coupling Nut Material

Passivation, Stainless Steel
Insulation Material

PTFE
Durability

≥500 Cycles
Power Handling

2W

 Withstanding Voltage

1000V
Inner Conductor Material

Beryllium Copper, Gold Plating

 Outer Conductor Material

Brass, Ternary Alloy Plating
Coupling Nut Material

Passivation, Stainless Steel

 Insulation Material

PTFE
Durability

≥500 Cycles
Connector Type

SMA-Male
Frequency Range

DC-18GHz
VSWR

1.20:1(max)
Impedance

50Ω
IP Rating

IP20
Power Handling

2W
Withstanding Voltage

1000V
Insulation Resistance

≥5000Ω
Inner Conductor Material

Beryllium Copper, Gold Plating
Outer Conductor Material

Brass, Ternary Alloy Plating
Coupling Nut Material

Passivation, Stainless Steel
Insulation Material

PTFE
Operating Temperature

-55℃～+125℃
Durability

≥500 Cycles
