Introduction
- Robust: Built to Russian military specs for extreme conditions. Machined brass shell and precious metal contacts.
- High contact density: Up to 37 gold or silver-plated contacts in a small circular interface. Enables power/signal transmission between armored vehicles, aircraft and weapons.
- Keyed and locked: Shell is keyed and thread-locked to prevent disconnection under heavy vibration. Ensures proper mating even in low visibility.
- Environmentally sealed: Meet IP68, immersible to 200m. Silicone/polyurethane seals block moisture, oils, chemicals from -60°C to +125°C.
- 5Customizable: Available with alternative platings (gold, silver), insulations (PTFE,PEI), inserts (fiber optic), protections (EMI/RFI shielding) and mounts (cable, panel) for specialized military uses.
About Russian Standard 2PM Connector
2PM series connector mainly adopts the technology of Russian connector, which is widely used in electrical connection and signal transmission between equipment, and its unique shape and structure design can make up some defects in use of many other similar connectors, such as the unique design of the shell threading hole and the tail screw, make it more convenient and scientific to use. The structural design of the internal insulator and pin socket also enhances its unique stability and reliability. This series of connectors also has a certain waterproof performance, which can prevent outdoor rain and other phenomena. Now there are mainly 2PM14-4, 2PM18 -4, 2PM18-7 and other specifications, its special structure and performance have won the general recognition of the market.
How to Choose
2PM14
2PM18

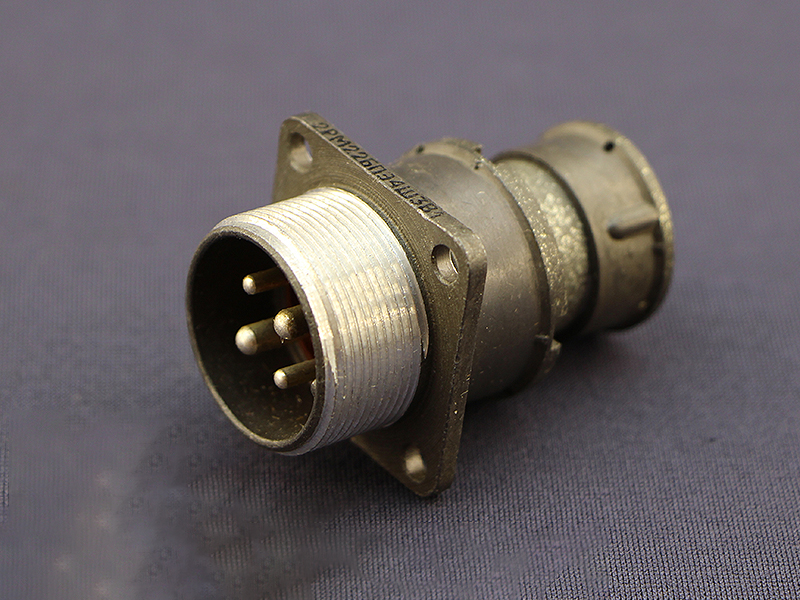

2PM22

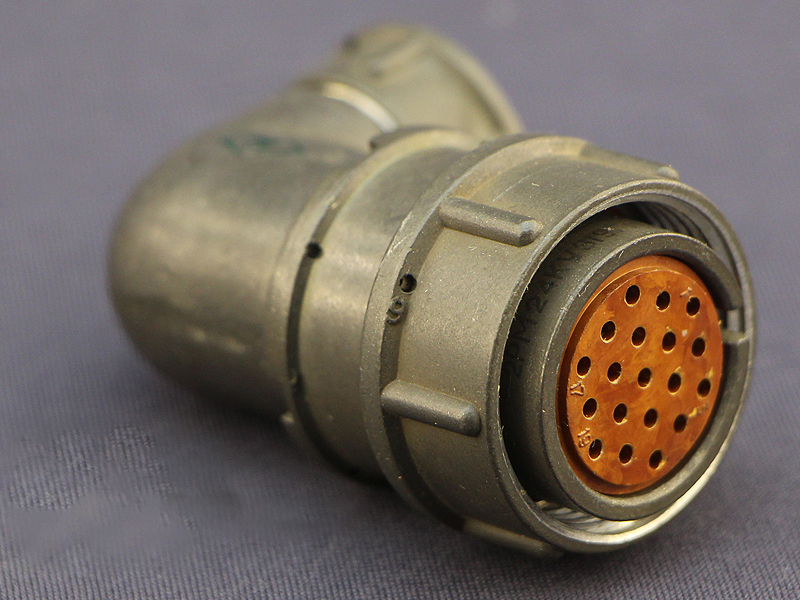

2PM24

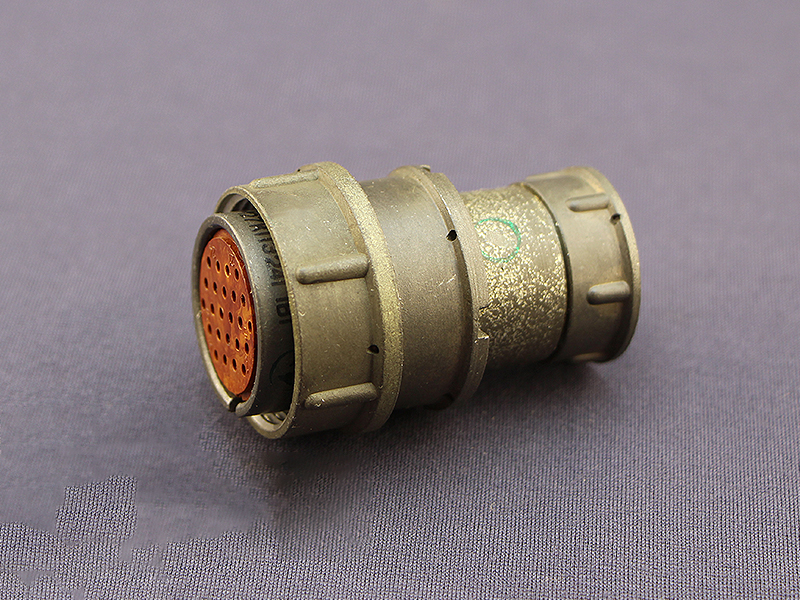

2PM27
2PM30

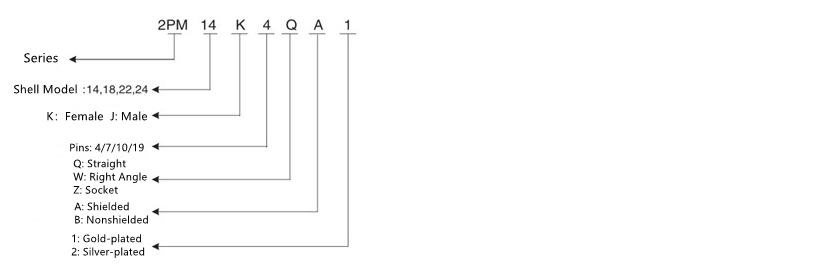

How to Order

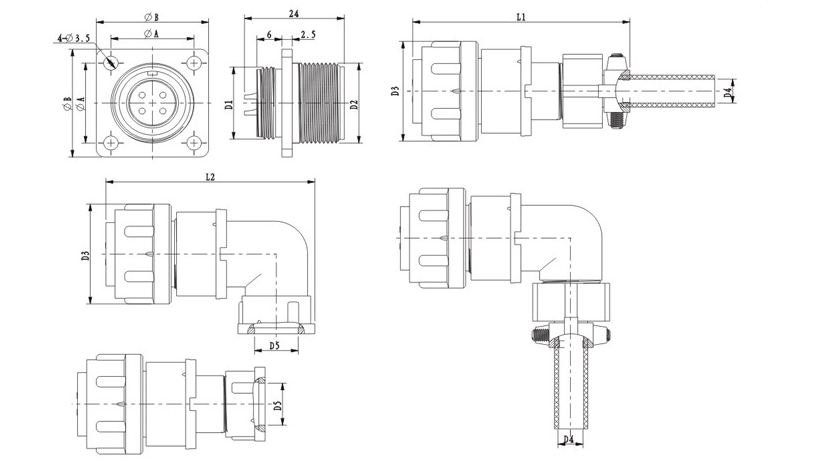

Dimensions

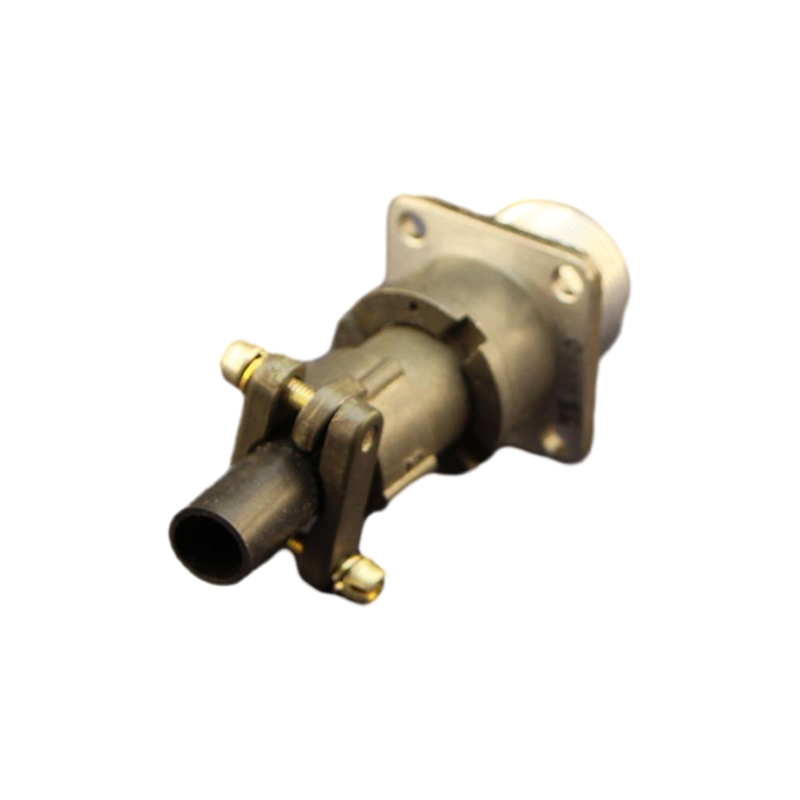

Product Specification
| Connector Type | Plug |
||
|---|---|---|---|
| Orientation | Straight |
||
| Contact Type | Male Pin |
||
| Number of Ports | 4 |
||
| Fastening Type | Threaded |
||
| Mounting Type | Panel Mount |
||
| Mounting Feature | Flange |
||
| Contact Termination Style | Solder |
||
| Shell Material | Aluminum Alloy |
||
| Shell Finish | Anodizing |
||
| Insulator Material | Rubberwood PBT |
||
| Contact Material | Brass |
||
| Contact Finish | Gold Plated |
||
| Rated Voltage | 400V |
||
| Temperature Range | -60℃~+150℃ |
||
| Connector Type | Plug |
Orientation | Straight |
| Contact Type | Male Pin |
Number of Ports | 4 |
| Fastening Type | Threaded |
Mounting Type | Panel Mount |
| Mounting Feature | Flange |
Contact Termination Style | Solder |
| Shell Material | Aluminum Alloy |
Shell Finish | Anodizing |
| Insulator Material | Rubberwood PBT |
Contact Material | Brass |
| Contact Finish | Gold Plated |
Rated Voltage | 400V |
| Temperature Range | -60℃~+150℃ |
Specifications
| Shielding | Unshielded |
|---|---|
| Shielding | Unshielded |
| Connector Type | Plug |
|---|---|
| Orientation | Straight |
| Contact Type | Male Pin |
| Number of Ports | 4 |
| Shell Size | 2PM14 |
| Fastening Type | Threaded |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Contact Termination Style | Solder |
| Shell Material | Aluminum Alloy |
| Shell Finish | Anodizing |
| Insulator Material | Rubberwood PBT |
| Contact Material | Brass |
| Contact Finish | Gold Plated |
| Shielding | Unshielded |
| Rated Voltage | 400V |
| Rated Current | 5A |
| Temperature Range | -60℃~+150℃ |
