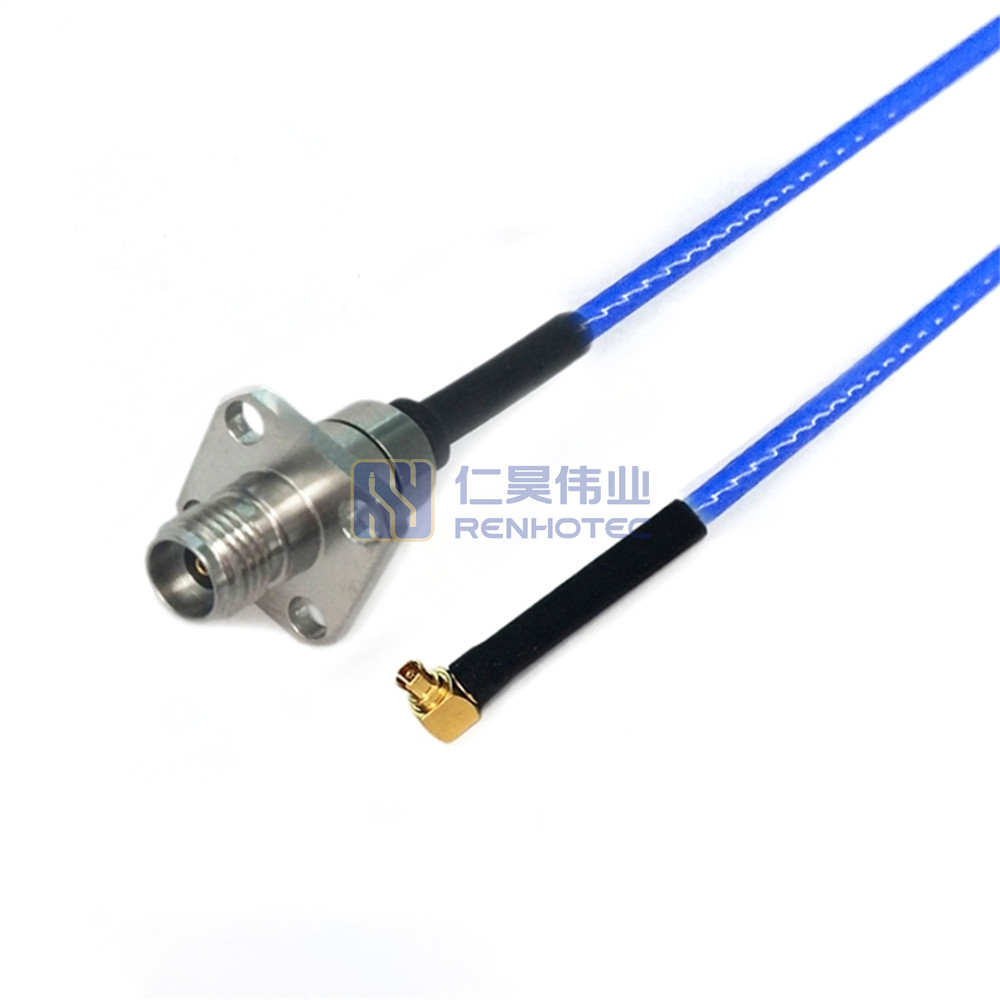

2.92mm (K-Type) Flange Female to Mini-SMP Right Angle Female with RG405 Coax Cable, SHF

SKU RF-2.92F-MiniSMPF-50-01 Category High Frequency Cable Assemblies, 2.92mm Cable Assemblies, +1

2.92mm Flange Female to Mini-SMP Right Angle Female for secure connections
RG405 coax cable ensures high-frequency signal integrity in SHF environments
Compact and space-saving right angle design for flexible installation
Minimal signal loss, offering reliable performance in demanding systems
Ideal for applications in telecommunications, aerospace, and high-precision electronics

Attributes
Description

Product Specification

RF Cable 1st Connector	2.92mm
RF Cable 2nd Connector	MiniSMP
1st Contact Type	Female Pin
2nd Contact Type	Female Pin
1st Connector Orientation	Straight
2nd Connector Orientation	Right Angle
RF Cable Style	2.92mm to Mini-SMP
Armor Material	FEP
Cable Type	RG405
Contact Material	Silver Plated Copper
Frequency Range	DC-18GHz
Impedance	50 ohm
Insulating Materials	Solid PTFE
Temperature Range	-40°C to +125°C
RF Cable 1st Connector	2.92mm	RF Cable 2nd Connector	MiniSMP
1st Contact Type	Female Pin	2nd Contact Type	Female Pin
1st Connector Orientation	Straight	2nd Connector Orientation	Right Angle
RF Cable Style	2.92mm to Mini-SMP	Armor Material	FEP
Cable Type	RG405	Contact Material	Silver Plated Copper
Frequency Range	DC-18GHz	Impedance	50 ohm
Insulating Materials	Solid PTFE	Temperature Range	-40°C to +125°C

RF Cable 1st Connector	2.92mm
RF Cable 2nd Connector	MiniSMP
1st Contact Type	Female Pin
2nd Contact Type	Female Pin
1st Connector Orientation	Straight
2nd Connector Orientation	Right Angle
RF Cable Style	2.92mm to Mini-SMP
Armor Material	FEP
Cable Type	RG405
Contact Material	Silver Plated Copper
Frequency Range	DC-18GHz
Impedance	50 ohm
Insulating Materials	Solid PTFE
Temperature Range	-40°C to +125°C

Why Choose RENHOTEC

RENHOTEC supports custom coaxial cable assemblies for prototype development, sample evaluation, and small-batch production.

100% VNA Testing

VNA testing for applicable cable assemblies to evaluate electrical performance against specified requirements.

Prototype to Production

Support for sample development, prototype evaluation, and small-batch production.

Flexible Cable Options

Cable types, lengths, and assembly structures can be specified according to project requirements.

High-Frequency Coaxial Cable Assemblies

RENHOTEC provides high-frequency coaxial cable assemblies for RF and microwave applications, including equipment interconnections, test and measurement systems, and compact electronic modules. Designed around high-frequency connector interfaces and coaxial cable configurations, these assemblies support different connection layouts, frequency requirements, and installation constraints.

Connector Interface Options

SMP to SMP and Mini-SMP to Mini-SMP
SMA to SMP, Mini-SMP, or SSMP
1.85mm to Mini-SMP
2.4mm to SMP, Mini-SMP, or SMPS
2.92mm to SMPS or SSMP
Other compatible interface combinations based on project requirements

Coaxial Cable Options for Custom Assemblies

RENHOTEC offers a range of RF coaxial cables for SMP series cable assemblies, including flexible, semi-rigid, and other cable configurations. Cable selection and connector compatibility depend on the specific assembly requirements.
