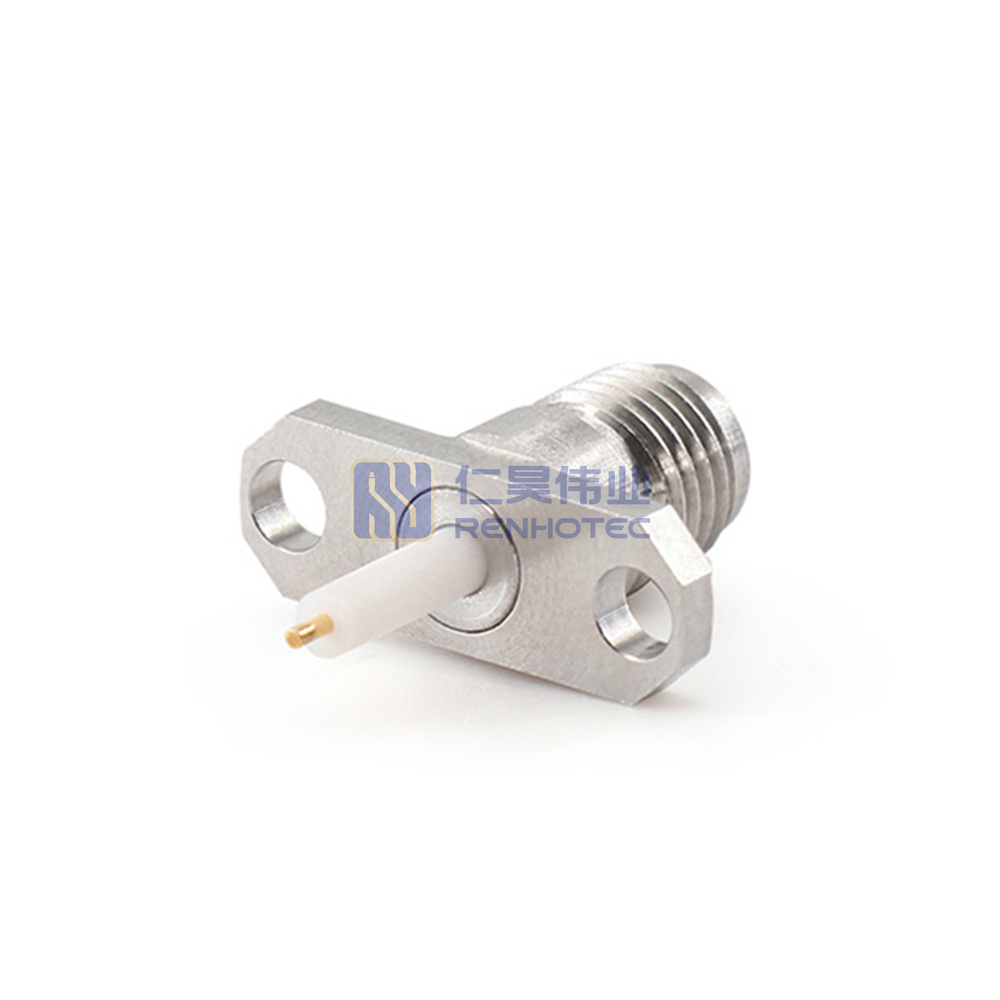

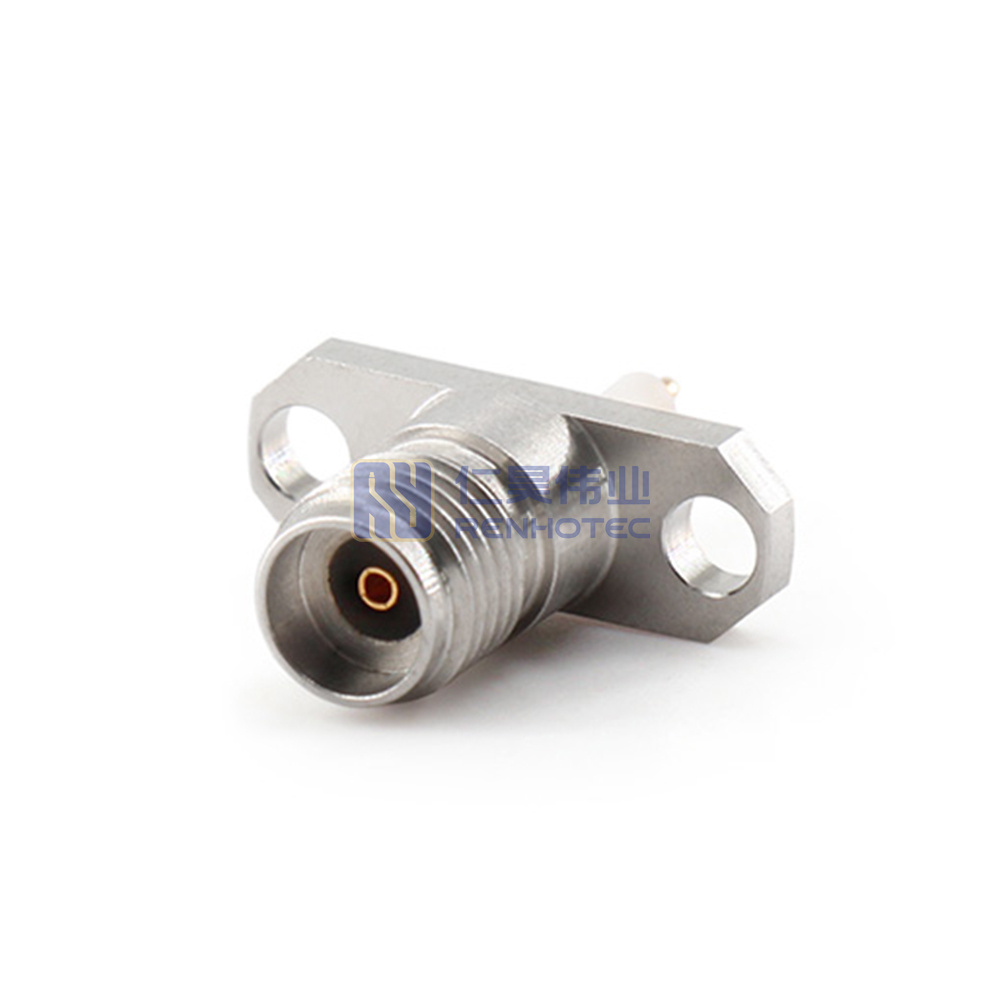

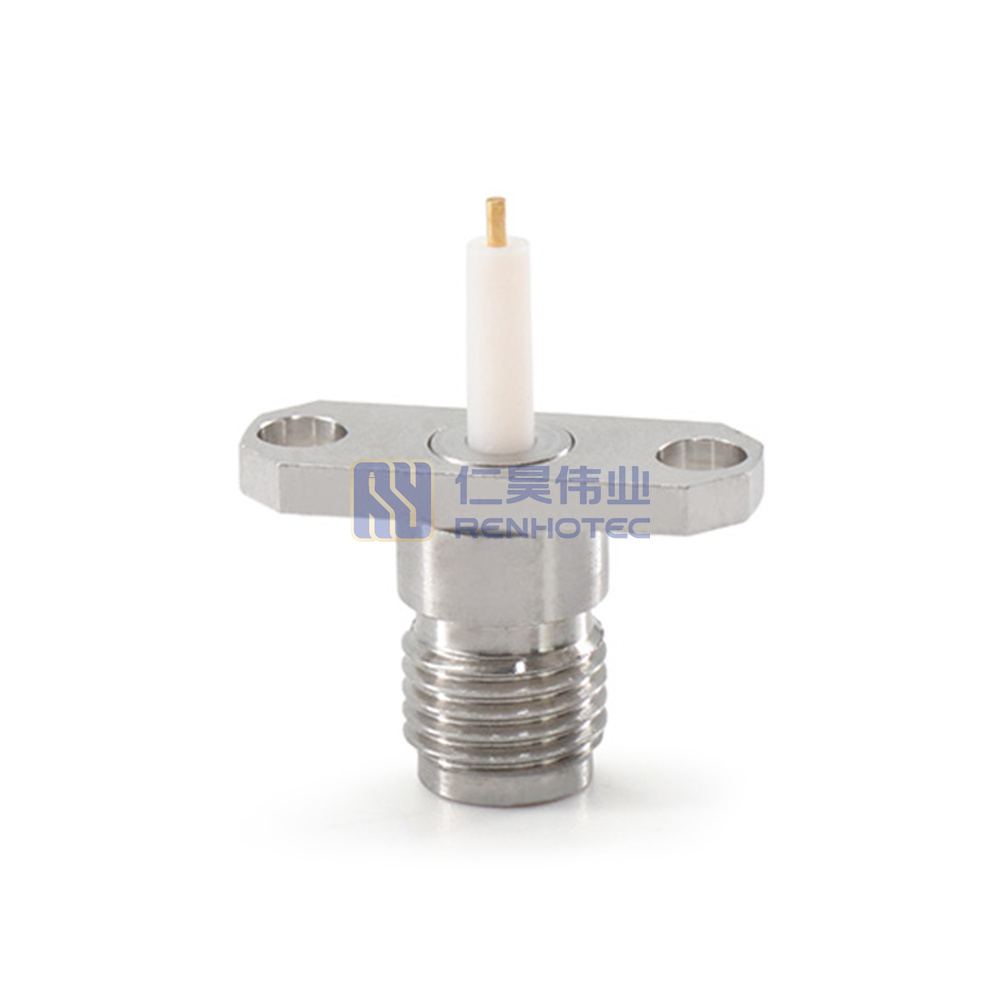

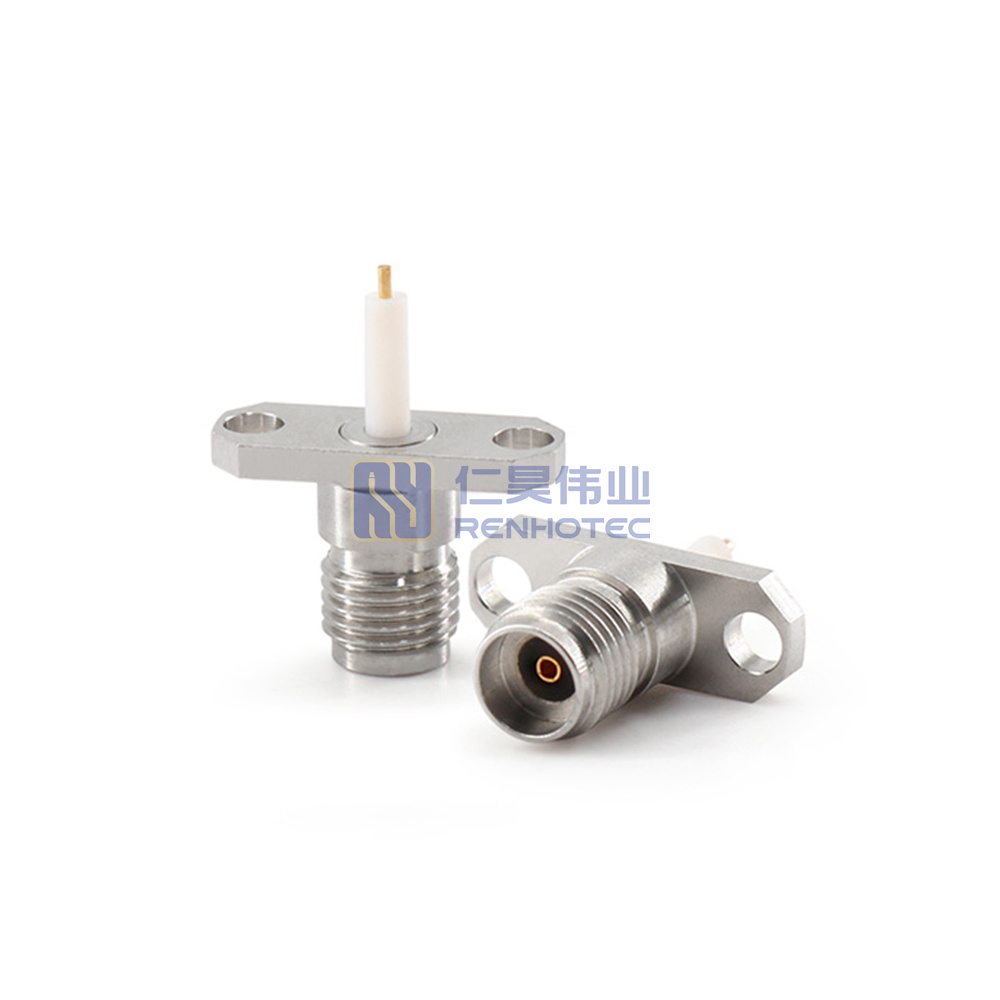

2.92mm (K-Type) Female High Frequency RF Connectors DC-40GHz Stainless Steel Material – RHT-2.92-KFD9GT
- Frequency range: DC to 40GHz, ideal for high-frequency applications
- 2.92mm interface for low-loss, high-reliability signal transmission
- Made from stainless steel for strength and long-lasting performance
- Designed for precision in RF and microwave systems
- Perfect for use in telecommunications, radar, and testing equipment
Product Specification
| Connector Type | Jack |
||
|---|---|---|---|
| Contact Finish | Gold Plated |
||
| Contact Material | Beryllium Bronze |
||
| Contact Type | Female Pin |
||
| Frequency Range | DC-40GHz |
||
| Impedance | 50 ohm |
||
| Insulation Resistance | ≥5000MΩ |
||
| Insulator Material | PEI |
||
| Mating Durability | ≥ 500 Cycles |
||
| Mounting Type | Panel Mount |
||
| Number of Ports | 1 |
||
| Orientation | Straight |
||
| RF Series | 2.92mm |
||
| Shell Material | Stainless Steel |
||
| Temperature Range | -55℃-165℃ |
||
| Connector Type | Jack |
Contact Finish | Gold Plated |
| Contact Material | Beryllium Bronze |
Contact Type | Female Pin |
| Frequency Range | DC-40GHz |
Impedance | 50 ohm |
| Insulation Resistance | ≥5000MΩ |
Insulator Material | PEI |
| Mating Durability | ≥ 500 Cycles |
Mounting Type | Panel Mount |
| Number of Ports | 1 |
Orientation | Straight |
| RF Series | 2.92mm |
Shell Material | Stainless Steel |
| Temperature Range | -55℃-165℃ |
| Connector Type | Jack |
|---|---|
| Contact Finish | Gold Plated |
| Contact Material | Beryllium Bronze |
| Contact Type | Female Pin |
| Frequency Range | DC-40GHz |
| Impedance | 50 ohm |
| Insulation Resistance | ≥5000MΩ |
| Insulator Material | PEI |
| Mating Durability | ≥ 500 Cycles |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Orientation | Straight |
| RF Series | 2.92mm |
| Shell Material | Stainless Steel |
| Temperature Range | -55℃-165℃ |
The 2.92mm connector, also known as a K connector, is a precision coaxial connector used in high-frequency applications. Known for its excellent electrical performance and mechanical stability, this connector operates at frequencies up to 40 GHz, making it suitable for microwave and high-speed digital applications. The 2.92mm connector features a bayonet coupling mechanism for quick and secure mating, ensuring reliable connections in critical applications such as telecommunications, test and measurement equipment, and laboratory setups. Its small size and high-frequency capabilities make it a preferred choice for engineers and technicians working with advanced RF systems.
Features
- High performance up to 40 GHz
- Low VSWR
- Excellent return loss and insertion loss
- Ruggedized construction for repeatability
- Compitable to mate with SMA, 3.5 mm and other K or 2.92 mm connectors
2.92mm Connector Types
Cable Mount
Panel Mount
2.92mm Adapter
Applications
