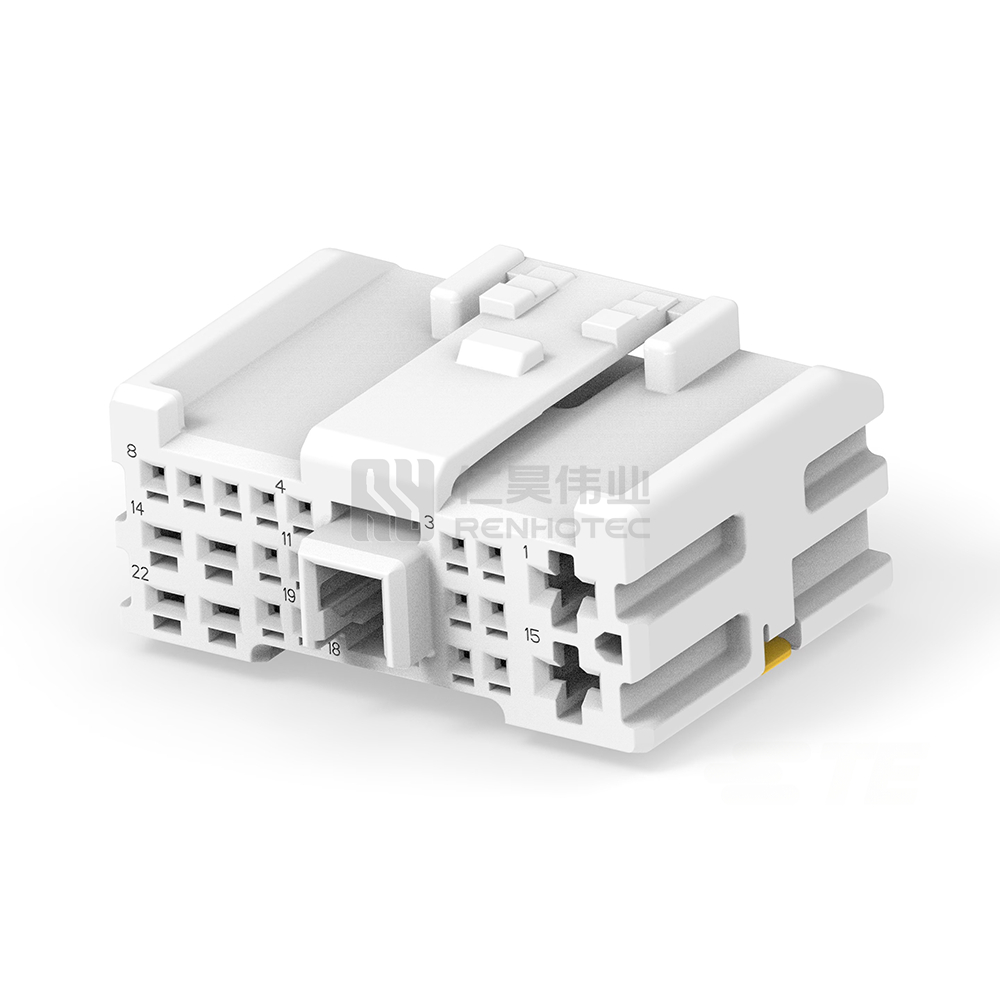

12 V, 22 Position, Automotive Housing for Male Terminals, Wire-to-Wire, White, Wire & Cable, Power & Signal, Cable Mount (Free-Hanging), FAKRA

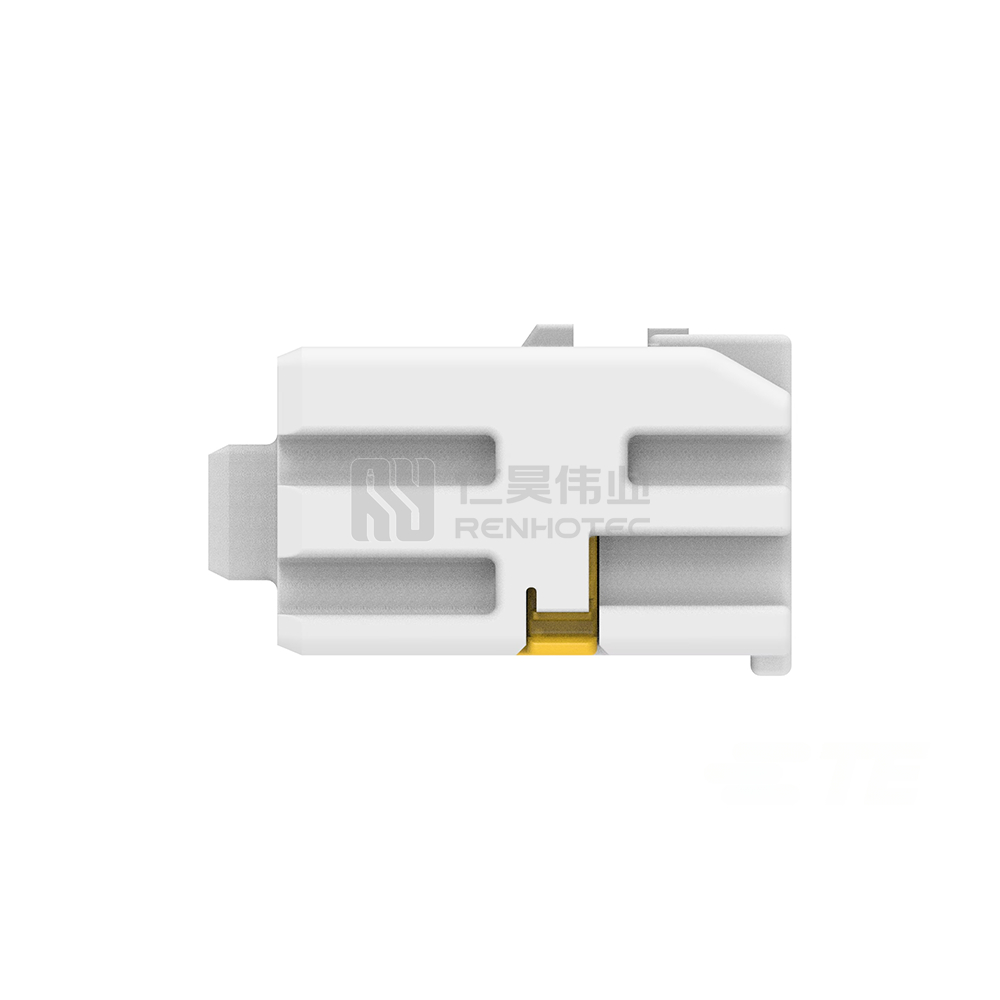

12 V, 22 Position, Automotive Housing for Male Terminals, Wire-to-Wire, White, Wire & Cable, Power & Signal, Cable Mount (Free-Hanging), FAKRA - Image 2

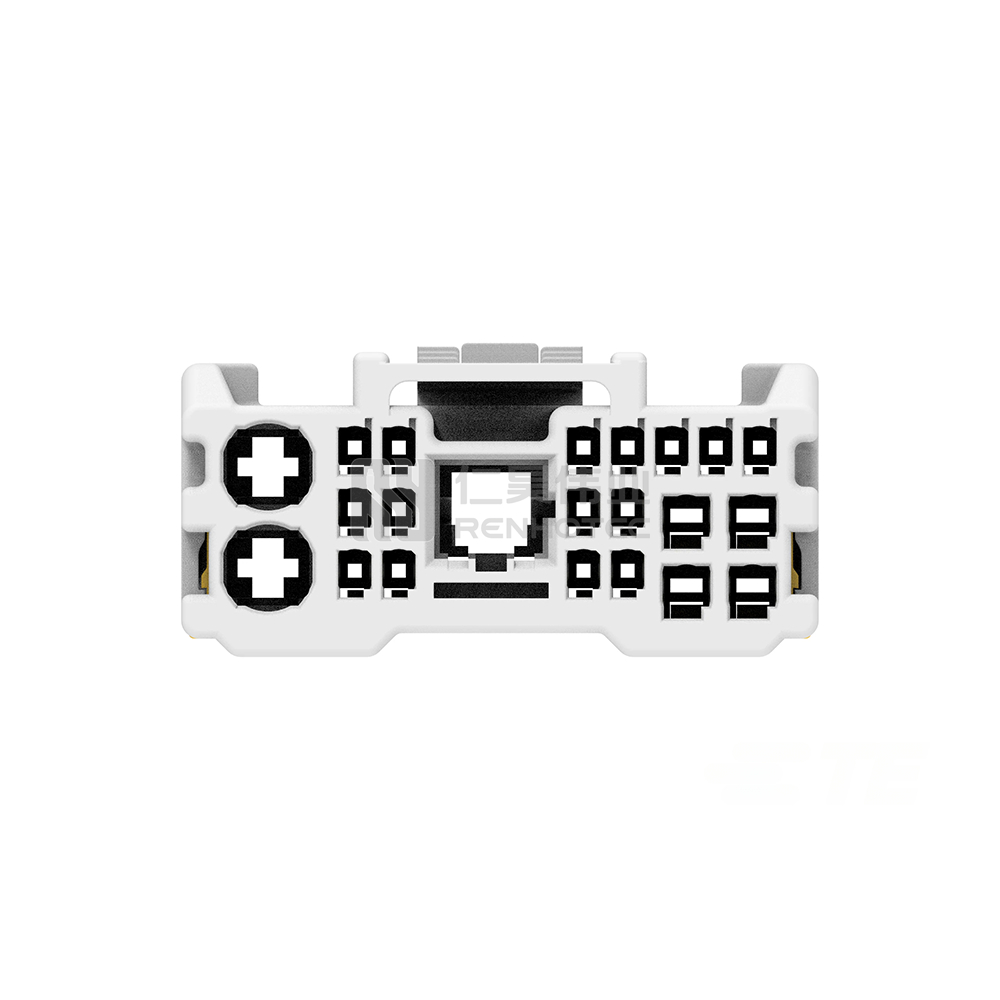

12 V, 22 Position, Automotive Housing for Male Terminals, Wire-to-Wire, White, Wire & Cable, Power & Signal, Cable Mount (Free-Hanging), FAKRA - Image 3

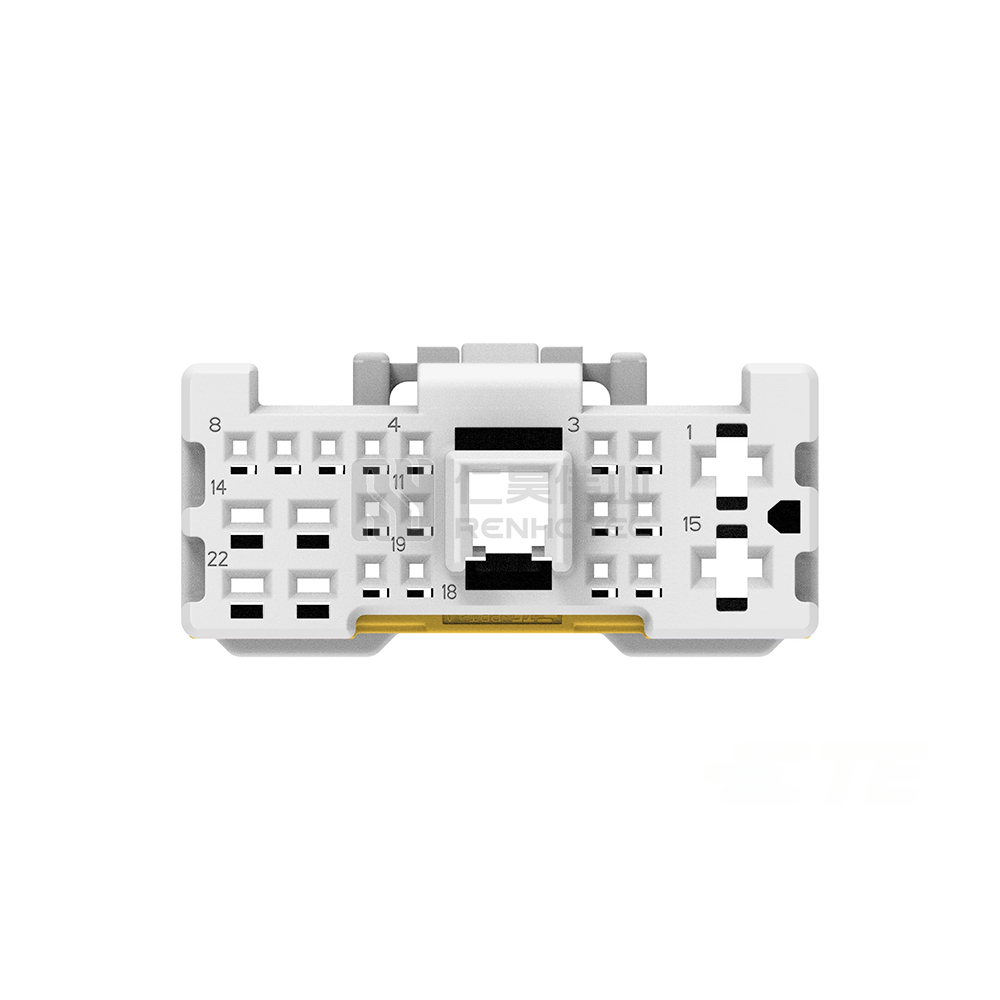

12 V, 22 Position, Automotive Housing for Male Terminals, Wire-to-Wire, White, Wire & Cable, Power & Signal, Cable Mount (Free-Hanging), FAKRA - Image 4

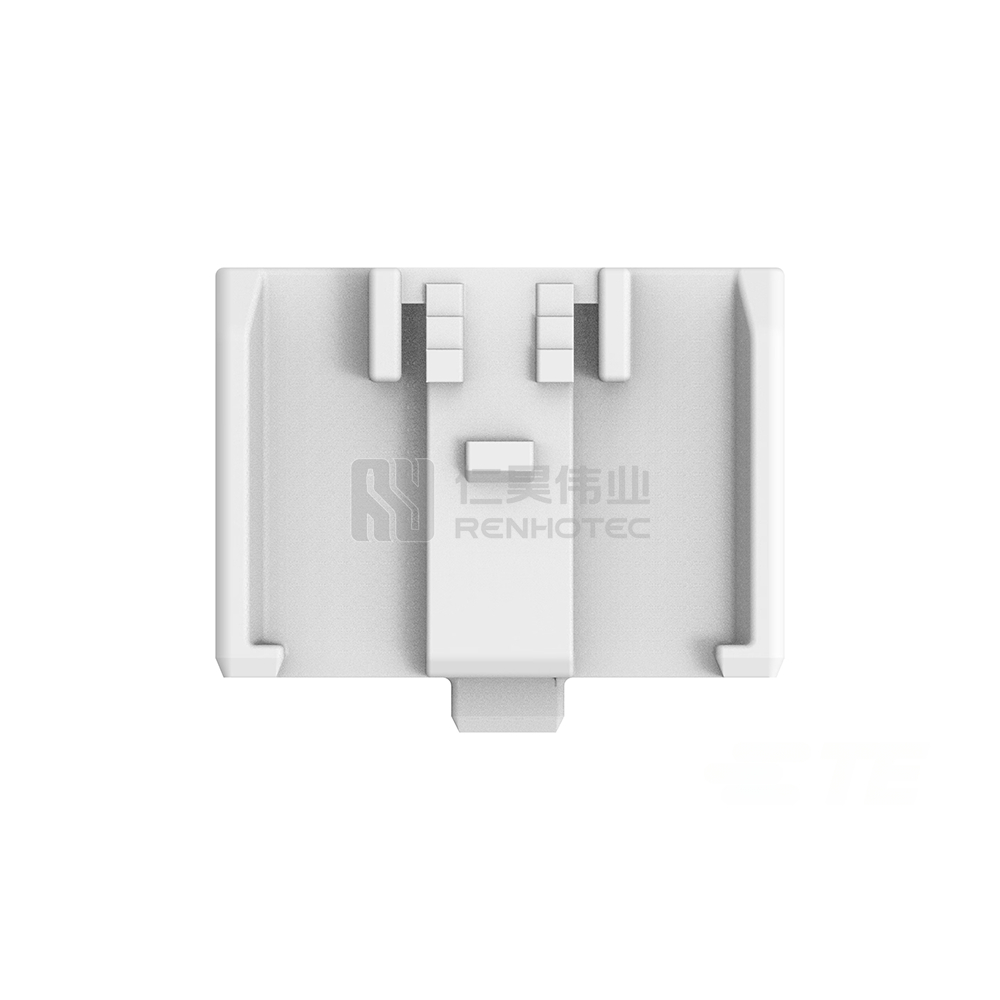

12 V, 22 Position, Automotive Housing for Male Terminals, Wire-to-Wire, White, Wire & Cable, Power & Signal, Cable Mount (Free-Hanging), FAKRA - Image 5

TE-2370474-1 Fakra Connectors Specs & Datasheet

Request for Quotation

12 V, 22 Position, Automotive Housing for Male Terminals, Wire-to-Wire, White, Wire & Cable, Power & Signal, Cable Mount (Free-Hanging), FAKRA

Secure reliable 12V power and signal transmission in automotive applications with this 22-position FAKRA connector. Solves loose connection and signal interference issues, ensuring stable performance for wire-to-wire systems in free-hanging cable mounts.

Description
Attributes

With advancements in telematics and automotive communications technology, RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards.

Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

PCB End (Male)

Cable End (Male)

Cable End (Female)

Secure primary locking system with tactile and audible locking
Shock and vibration resistant coded housing
Protection against unintentional opening by protective bar and protective strips
High axial holding power of the coaxial insert due to secondary locking
Mechanical and color coding system with 14 different codes

Fastening groove for cable connectors for chassis mounting
Coaxial insert and cable freely rotatable in the housing
Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
Efficient, automated further processing option
Customized packaging possible


Code	A	B	C	D	E	F	G
Color	Deep Black	Cream White	Signal Blue	Bordeaux Violet	Leaf Green	Brown	Blue Gray
Application	Radio with phantom supply	Radio without phantom supply	GPS telematics or navigation	GSM Cellular Phone	TV (UHF)	TV (VHF)	SDARS terrestrial

Code	H	I	K	L	M	N	Z
Color	Violet	Beige	Curry Yellow	Carmine Red	Pastel Orange	Pastel Green	Water Blue
Application	GPS telematics and navigation	Bluetooth Controlled Parking Heating	SDARS satellite	Not defined	Keyless entry Tire pressure monitoring	Not defined	Neutral

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Termination Point	Wire & Cable
Connector System	Wire-to-Wire
Sealable	No
Row Count	3
Position Count	22
Mount Type	Cable Mount (Free-Hanging)
Circuit Application	Power & Signal
Package Qty	1120
Package Method	Bag
Primary Lock	Integrated in Housing
Housing Type	Housing for Female Terminals
Position Assurance	No
Nominal Voltage V	12
Tab Width mm	.64 \| .8 \| 1.5 \| 2.8
Tab Width in	.02 \| .03 \| .06 \| .11
Connector Shape	Rectangular
Primary Color	White
Mating Alignment	With
Alignment Type	Keyed
Terminal Assurance	Yes
Strain Relief	Without
Housing Material	PBT
Height mm	17.1
Length mm	34.7
Width mm	28.35
Termination Point	Wire & Cable	Connector System	Wire-to-Wire
Sealable	No	Row Count	3
Position Count	22	Mount Type	Cable Mount (Free-Hanging)
Circuit Application	Power & Signal	Package Qty	1120
Package Method	Bag	Primary Lock	Integrated in Housing
Housing Type	Housing for Female Terminals	Position Assurance	No
Nominal Voltage V	12	Tab Width mm	.64 \| .8 \| 1.5 \| 2.8
Tab Width in	.02 \| .03 \| .06 \| .11	Connector Shape	Rectangular
Primary Color	White	Mating Alignment	With
Alignment Type	Keyed	Terminal Assurance	Yes
Strain Relief	Without	Housing Material	PBT
Height mm	17.1	Length mm	34.7
Width mm	28.35

Product Specification

Contact Type	Receptacle
Contact Type	Receptacle

Termination Point	Wire & Cable
Connector System	Wire-to-Wire
Sealable	No
Row Count	3
Position Count	22
Contact Type	Receptacle
Mount Type	Cable Mount (Free-Hanging)
Circuit Application	Power & Signal
Package Qty	1120
Package Method	Bag
Primary Lock	Integrated in Housing
Housing Type	Housing for Female Terminals
Position Assurance	No
Nominal Voltage V	12
Tab Width mm	.64 \| .8 \| 1.5 \| 2.8
Tab Width in	.02 \| .03 \| .06 \| .11
Connector Shape	Rectangular
Primary Color	White
Mating Alignment	With
Alignment Type	Keyed
Terminal Assurance	Yes
Strain Relief	Without
Housing Material	PBT
Height mm	17.1
Length mm	34.7
Width mm	28.35
