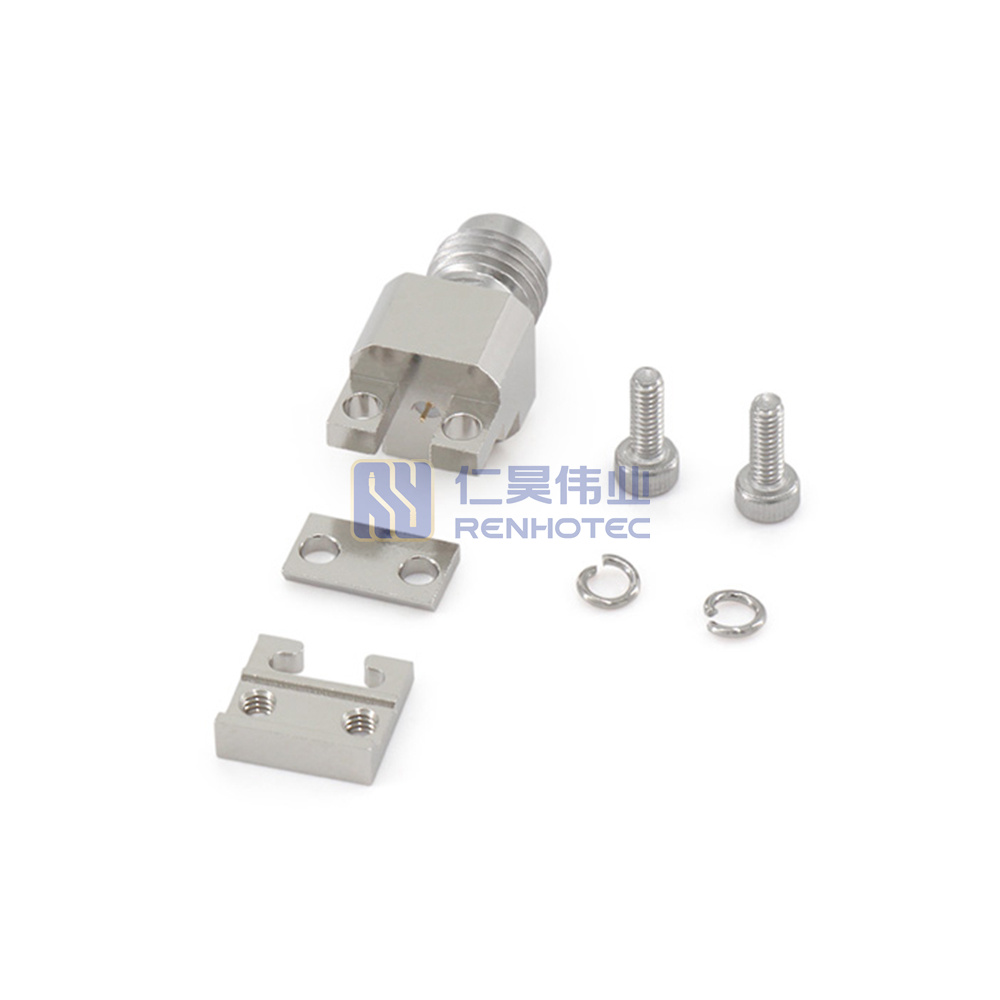

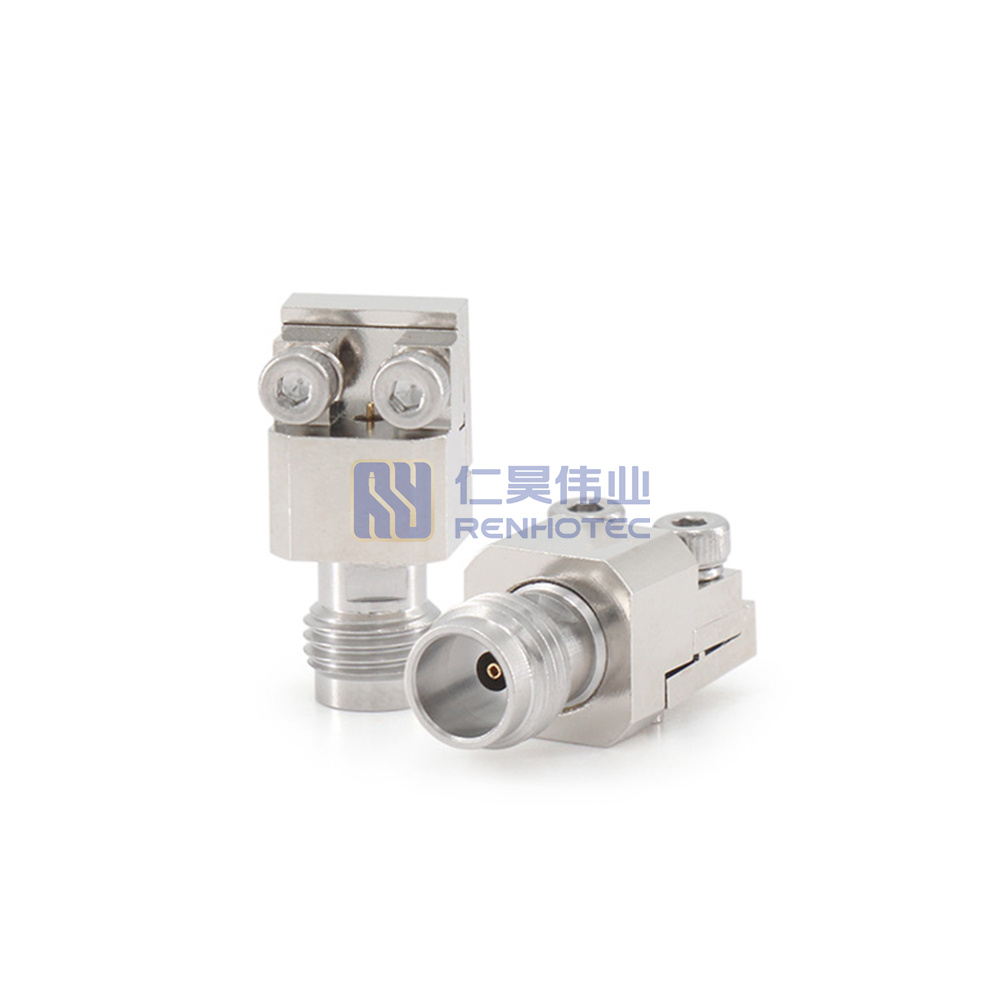

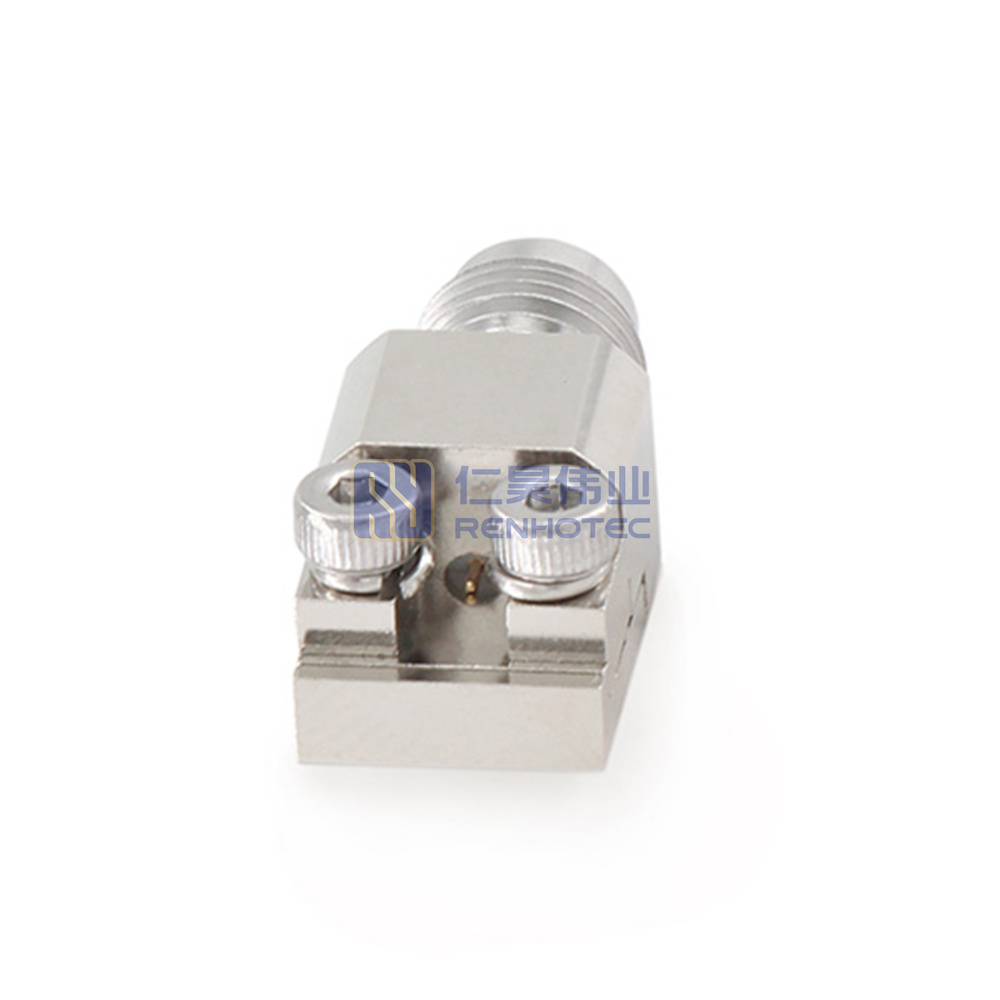

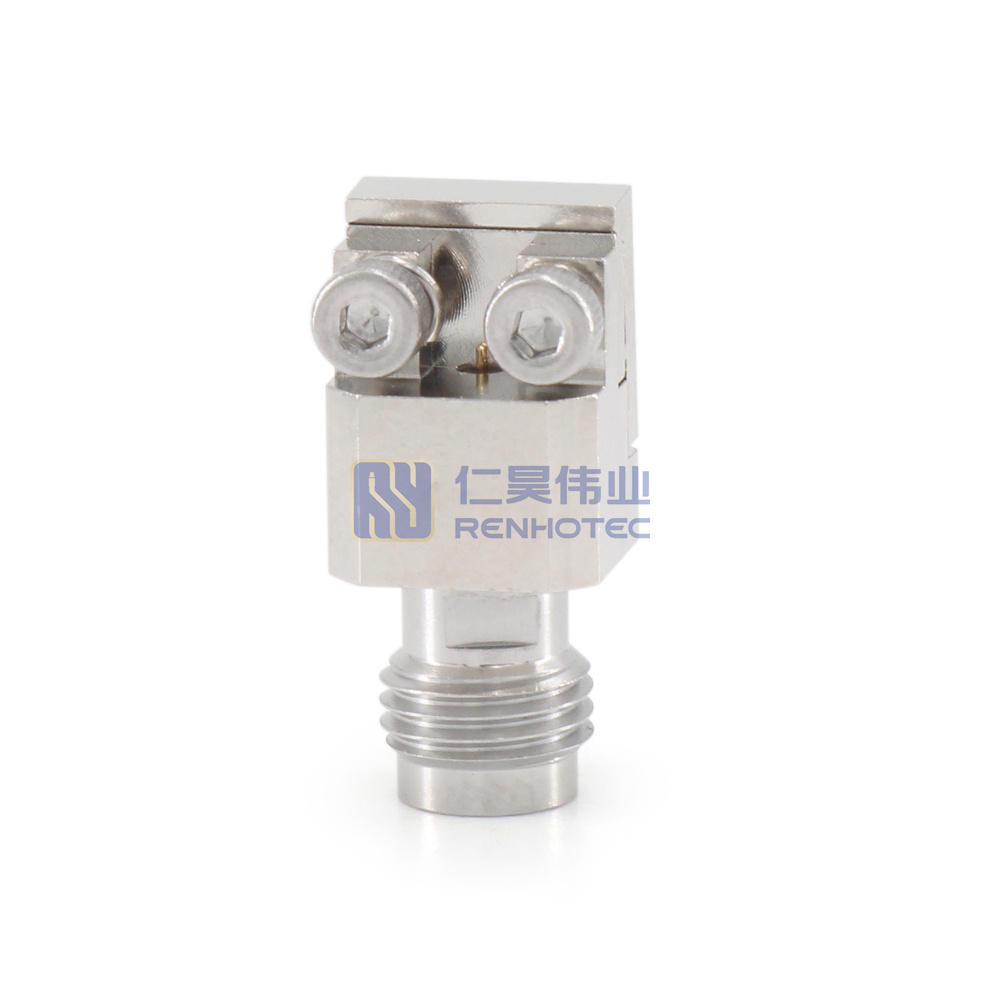

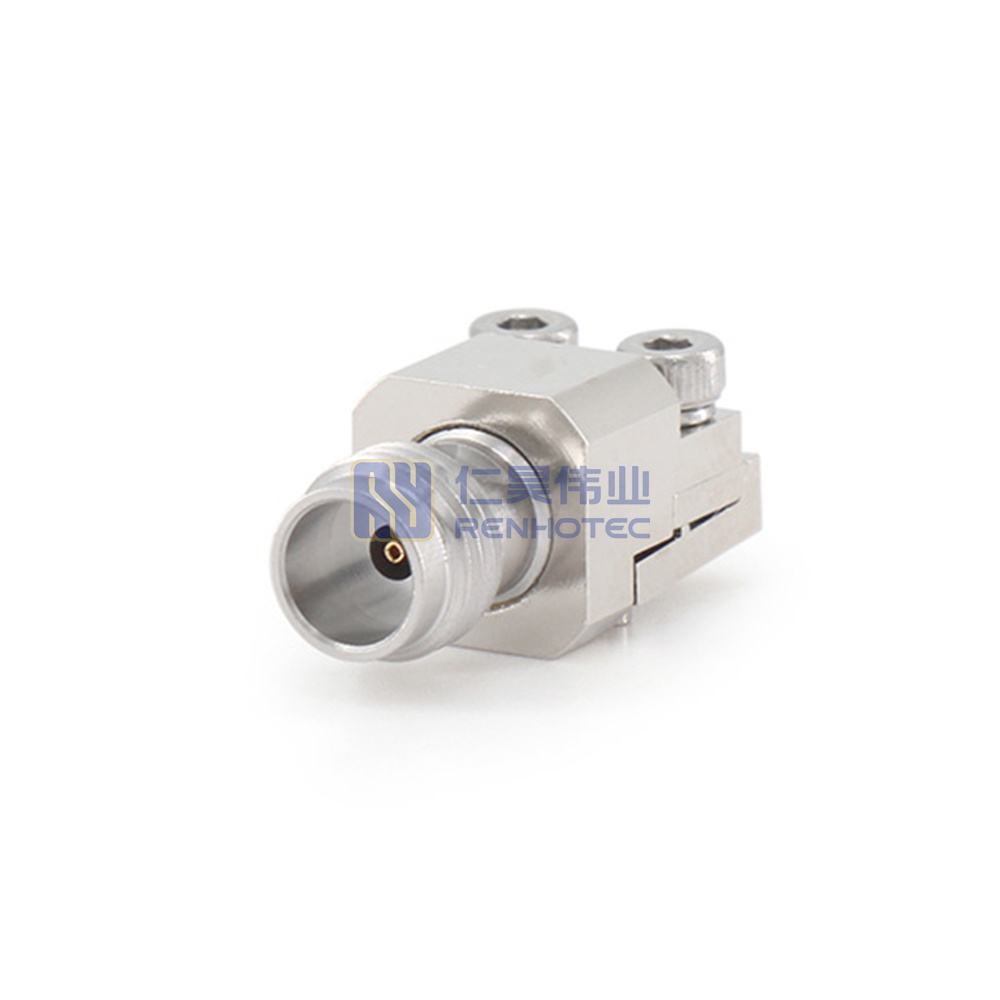

1.85mm (V-Type) Female High Frequency RF Connectors DC-67GHz Stainless Steel – RHT-1.85-KCD01G-0.25GD
- Frequency range: DC to 67GHz, ideal for high-speed RF and microwave applications
- Stainless steel construction for durability, corrosion resistance, and long-term reliability
- 1.85mm interface ensures minimal signal loss and high-performance connections
- Precision design for stable performance in critical RF environments
- Ideal for telecommunications, radar, test equipment, and high-frequency research applications
Product Specification
| RF Series | 1.85mm |
||
|---|---|---|---|
| Connector Type | Jack |
||
| Orientation | Straight |
||
| Contact Type | Female Pin |
||
| Mounting Type | PCB Mount |
||
| Mounting Feature | Edge Mount |
||
| Number of Ports | 1 |
||
| Impedance | 50 ohm |
||
| Frequency Range | DC-67GHz |
||
| Shell Material | Stainless Steel |
||
| Insulator Material | PTFE |
||
| Contact Material | Beryllium Bronze |
||
| Contact Finish | Gold Plated |
||
| Insultation Resistance | ≥5000Ω |
||
| Temperature Range | -55℃-165℃ |
||
| Mating Durability | ≥ 500 Cycles |
||
| RF Series | 1.85mm |
Connector Type | Jack |
| Orientation | Straight |
Contact Type | Female Pin |
| Mounting Type | PCB Mount |
Mounting Feature | Edge Mount |
| Number of Ports | 1 |
Impedance | 50 ohm |
| Frequency Range | DC-67GHz |
Shell Material | Stainless Steel |
| Insulator Material | PTFE |
Contact Material | Beryllium Bronze |
| Contact Finish | Gold Plated |
Insultation Resistance | ≥5000Ω |
| Temperature Range | -55℃-165℃ |
Mating Durability | ≥ 500 Cycles |
| RF Series | 1.85mm |
|---|---|
| Connector Type | Jack |
| Orientation | Straight |
| Contact Type | Female Pin |
| Mounting Type | PCB Mount |
| Mounting Feature | Edge Mount |
| Number of Ports | 1 |
| Impedance | 50 ohm |
| Frequency Range | DC-67GHz |
| Shell Material | Stainless Steel |
| Insulator Material | PTFE |
| Contact Material | Beryllium Bronze |
| Contact Finish | Gold Plated |
| Insultation Resistance | ≥5000Ω |
| Temperature Range | -55℃-165℃ |
| Mating Durability | ≥ 500 Cycles |
Customization & Technical Support for OEM
Physical factory
Having a professional production team, self produced and self sold
Quality assurance
Through strict quality control, ensure quality
Customized
We can customize different specifications according to your needs
After sales system
Actively follow up and promptly address any issues
Precision Millimeter-Wave RF Interconnect Solutions
1.85mm RF connectors, also known as Type V connectors, are precision coaxial interconnects named after the 1.85mm inner diameter of their outer conductor.
Designed for demanding microwave and millimeter-wave applications, 1.85mm connectors typically support operating frequencies up to 67 GHz, with certain designs capable of operation at frequencies approaching 70 GHz. They maintain reliable RF performance even at extremely high frequencies, making them suitable for precision test and measurement equipment, millimeter-wave modules, and other high-frequency systems.
The connector structure can also be designed for integration with glass insulators, providing additional configuration options for specialized RF interconnection requirements.
Features
✦ Up to 67 GHz
Designed for millimeter-wave applications, with certain configurations capable of operation approaching 70 GHz.
✦ IEC 61169 Standard Compliance
Conforms strictly to IEC 61169 standards, ensuring precise dimensions, excellent mechanical compatibility.
✦ Air Dielectric Design
Precision coaxial structure with an air dielectric, supporting excellent electrical performance at high frequencies.
✦ Robust Mechanical & Glass Insulator Options
Engineered for structural stability in demanding RF environments, with optional configurations designed for integration with specialized glass insulators.
✦ Premium Material & Passivation Process
Constructed with 304 stainless steel and finished with a passivation treatment, providing superior corrosion and oxidation resistance to meet 48-hour salt spray test requirements.
Connector Configurations
- Cable Mount Connectors
- PCB Mount Connectors
- Flange Mount Connectors
- End-Launch Connectors
- Bulkhead Mount Connectors
- 1.85mm RF Adapters
Applications
Microwave & Millimeter-Wave Modules
High-frequency RF modules, test fixtures, and microwave components.
Satellite & Communication Systems
Precision RF interconnections in high-frequency communication equipment.
RF Test & Measurement
Vector network analyzers (VNAs), microwave test equipment, and precision RF measurement setups.
Semiconductor Testing
Millimeter-wave device characterization and high-frequency test interfaces.
