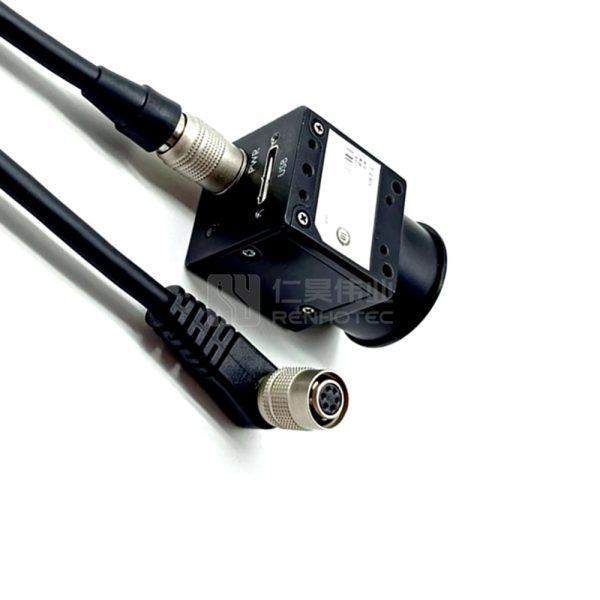

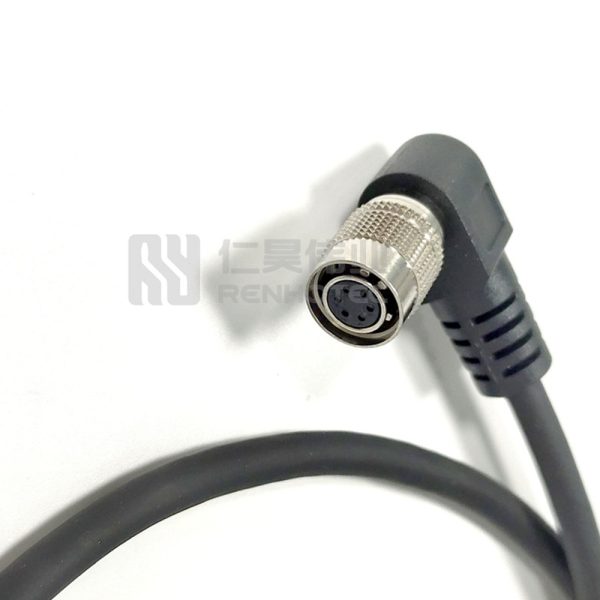

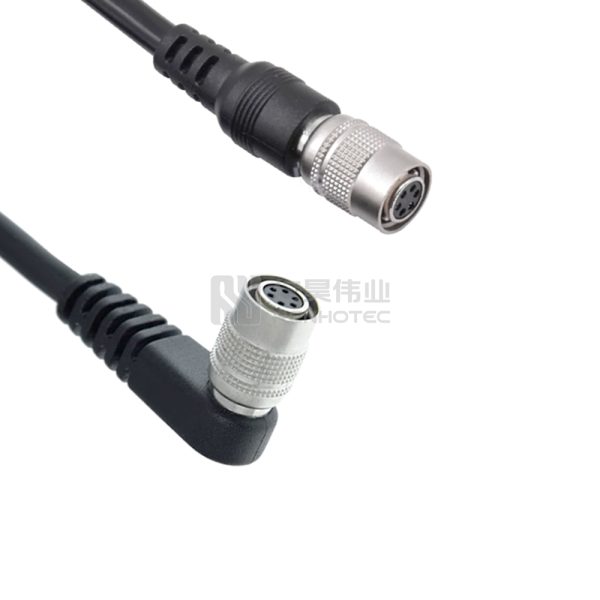

Compatible Hikvision Dahua Industrial Camera 6pin Plug HR10A-7P-6S Power Cable
- Braided from tinned copper, not easy to oxidize, longer service life. Tinned end for easy installation
- The connector adopts foolproof interface design, which improves working efficiency and is not easy to make mistakes
- Wrapped with special PVC material, oil and abrasion resistant, more suitable for use in industrial environments
- Standard cables and drag chain cables are available, and the drag chain cables have passed more than 10 million times of drag chain test
- UL compliant with flame retardant rating up to VW-1
- RoHS 2.0 and CE compliant
The industrial camera harness is used to connect its data transmission and maintain the power supply.Industrial camera harnesses can be divided into 4 categories according to the interface, Camera link cable, I/O cable, USB cable, Industrial Ethernet cable.
I/O cables are designed to provide power to the camera. These cables typically have a power connector on one end that plugs into a power source such as an AC outlet or power supply unit, and a data connector on the other end that plugs into the camera.I/O cables are an important part of an industrial camera system because they provide the necessary power to ensure that the equipment operates properly.

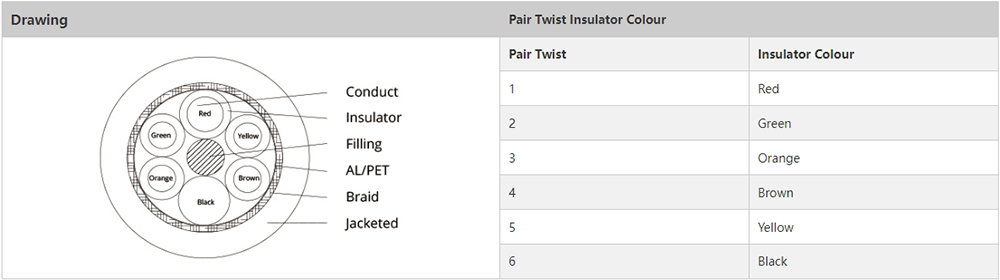

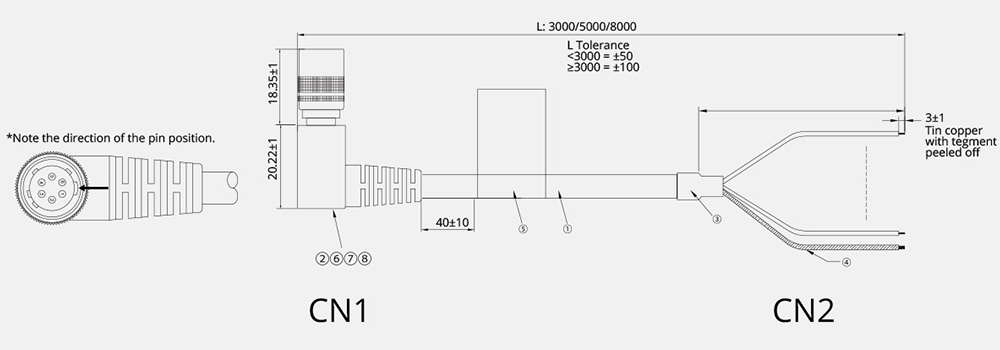

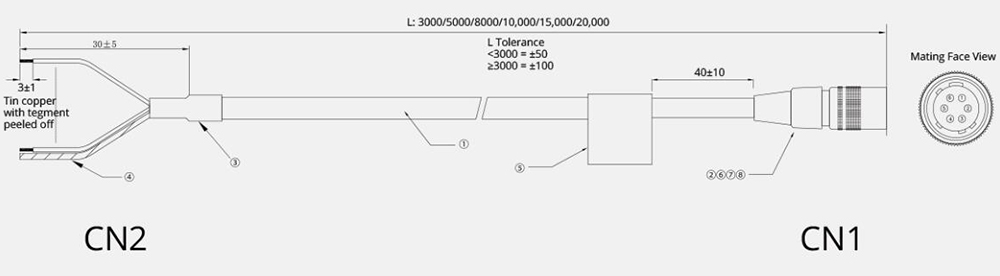

HR 6 Pin Connector Specifications
Product Features
01
A variety of connector types and cable sizes are available.
02
A variety of key directions are available, allowing you to install worry-free.
03
Can be customized according to customer’s requirements: Depending on the application, it can be used with power adapter; the tail can be connected to the terminal; M series I/O cable can also be customized.
04
Quickly provide drawings for your confirmation before sale, and a one-year warranty period after sale, so you have no worries before and after sale.
05
Fast delivery: Sample order – (3-5 days) Bulk order- (7-10 days)
Applications
Applicable Brands Basler, Dalsa, Hikvision, Dahua Technology, Daheng Optics, Imavision, Sony, JAI, AVT, PointGrey, IDS, Vieworks, The Imaging Source and so on
Product Specification
1st Connector Mounting Type | Cable Type |
||
---|---|---|---|
1st Connector Contact Termination | Solder |
||
Cable 2nd Connector | HRS Jack |
||
2nd Contact Type | Female Pin |
||
2nd Connector Number of Positions | 6 Pin |
||
2nd Connector Orientation | Straight |
||
2nd Connector Mounting Type | Cable Type |
||
2nd Connector Contact Termination | Solder |
||
Cable Type | 26AWG |
||
Cable length | 1m |
||
Cable Color | Black |
||
Temperature Range | -55°C to +85°C |
||
1st Connector Mounting Type | Cable Type |
1st Connector Contact Termination | Solder |
Cable 2nd Connector | HRS Jack |
2nd Contact Type | Female Pin |
2nd Connector Number of Positions | 6 Pin |
2nd Connector Orientation | Straight |
2nd Connector Mounting Type | Cable Type |
2nd Connector Contact Termination | Solder |
Cable Type | 26AWG |
Cable length | 1m |
Cable Color | Black |
Temperature Range | -55°C to +85°C |
1st Connector Mounting Type | Cable Type |
---|---|
1st Connector Contact Termination | Solder |
Cable 2nd Connector | HRS Jack |
2nd Contact Type | Female Pin |
2nd Connector Number of Positions | 6 Pin |
2nd Connector Orientation | Straight |
2nd Connector Mounting Type | Cable Type |
2nd Connector Contact Termination | Solder |
Cable Type | 26AWG |
Cable length | 1m |
Cable Color | Black |
Temperature Range | -55°C to +85°C |
Renhotec Information
We have two factories, one is located in Dongguan city, another in Jiangmen city. Visitors are always welcome.
RF Connector Compatibility
Yes, our RF connector interface dimension conform international standards. Normally it’s interchangeable with similar products of other brands, it’s better to send us the datasheet/sample of other brands for check before order.
We recommend that you provide us with detailed specifications of your existing interfaces and cables, performance requirement and usage environment, so that our technical team can evaluate them.
Please advise your PCB layout dimension requirement, we’ll recommend you the most suitable Renhotec drawing for check.
Customization and Sample Testing
Yes, we offer customization services to meet your specific needs. Please provide your specification, performance requirement or drawing, photos, or samples for evaluation.
Yes, we provide customised services, it has MOQ requirement, please send your requirement for our engineer team evaluation.
Yes, please advise the thread length for evaluation.
Yes, we can. Please send us the datasheet or connector and cable requirement, we can produce as per request.
Yes, please share it and the requirement with us, our engineer team will evaluate it.
RF Connector Specifications
The impedance of an RF connector typically refers to the characteristic impedance of the transmission line it supports. The most common characteristic impedances for RF connectors are 50 ohms and 75 ohms. Please select an RF connector with the appropriate characteristic impedance to ensure optimal signal transmission and minimal signal loss within the system.
Order Lead Time
Lead time depends on the product type, quantity, and production status. For items ready in stock, the lead time is 3-5 working days. For common items, the lead time for 10K is 10-12 working days. The accurate lead time can be provided once the order is confirmed.
Shipping and Packaging
For small quantities, we ship by express. For larger quantities, we ship by sea, air, railway, or truck.
Our standard packaging methods include blister box/polybag with label in a carton box. We can also package as per request.
Payment Methods
Accepted payment methods include T/T, Paypal, etc.
Quality Assurance
Yes, we can provide regular inspection reports. If you have a special requirement, please let us know.
Yes, they conform. RoHS and REACH test reports are available.
Our products have 12 months’ warranty. It’s better to provide the feedback within one month after you receive the goods.
