NMEA 2000 Cables and Connectors

Renhotec NMEA 2000 connector system is meticulously designed to meet the rigorous protocols and standards of NMEA 2000. Engineered with an IP67 rating, this versatile system includes multi-terminal connectors, standard and metric circular connectors, sensor and actuator cables, as well as elbow series connectors.

It serves as an excellent solution for seamlessly interconnecting marine electronics and display devices. With its exceptional signal reliability, the NMEA 2000 series enables multiple electronic devices to efficiently share data over a common channel. This not only simplifies installation but also optimizes data transmission, thereby enhancing the overall performance of the system.

View Products

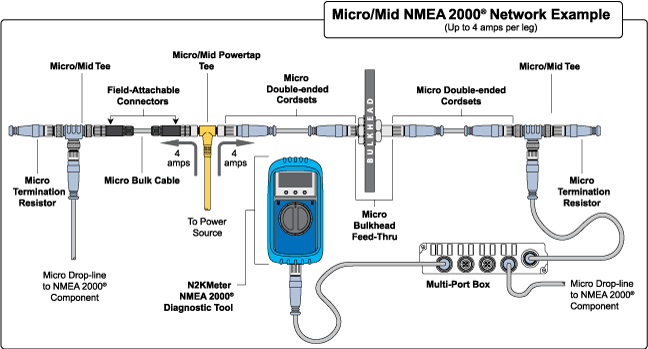

Micro NMEA2000

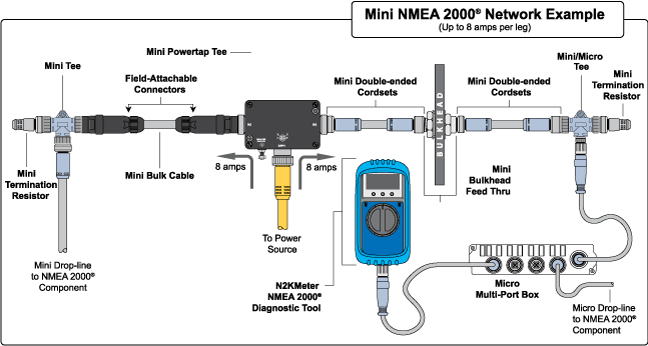

Mini_NMEA2000

NMEA 2000 Approved

100% universal and compatible with other manufacturers’ products.

Micro & Mini

NMEA 2000 micro-size and NMEA 2000 mini-size available.

IP67 Waterproof

Ideal for connecting marine electronics and display devices.

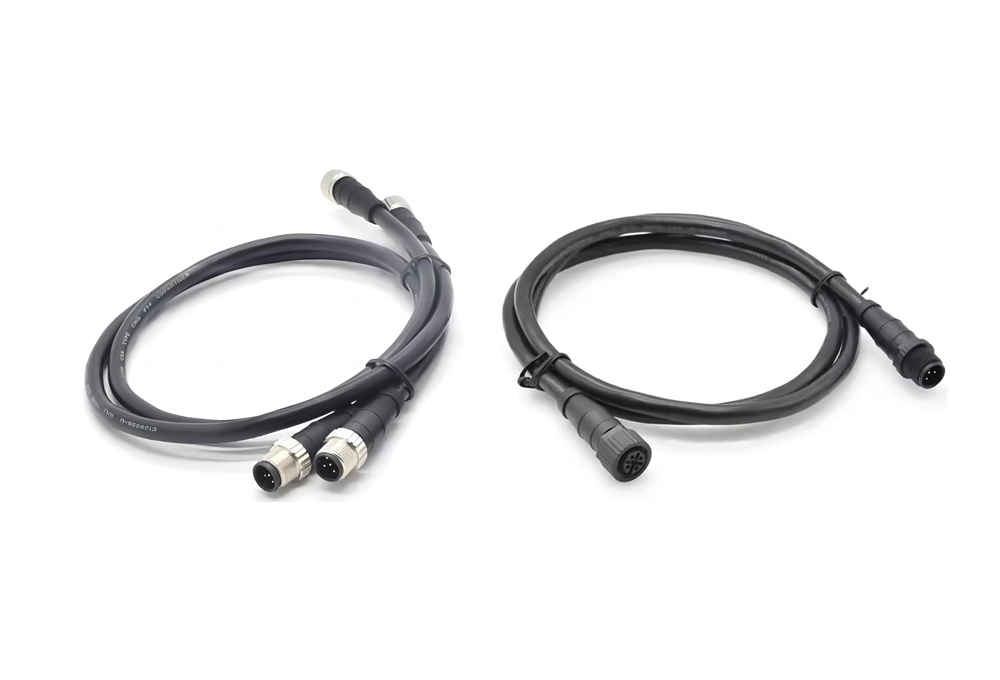

NMEA 2000 Micro Backbone Cables

For connection to an NMEA 2000 tee connector.

Large 18 AWG power conductors reduce voltage drop and provide better reliability for critical backbone cables.

  • IP67 Waterproof
  • Wire length 0.5~10 meters, can be customized.
  • Metal and plastic connectors available

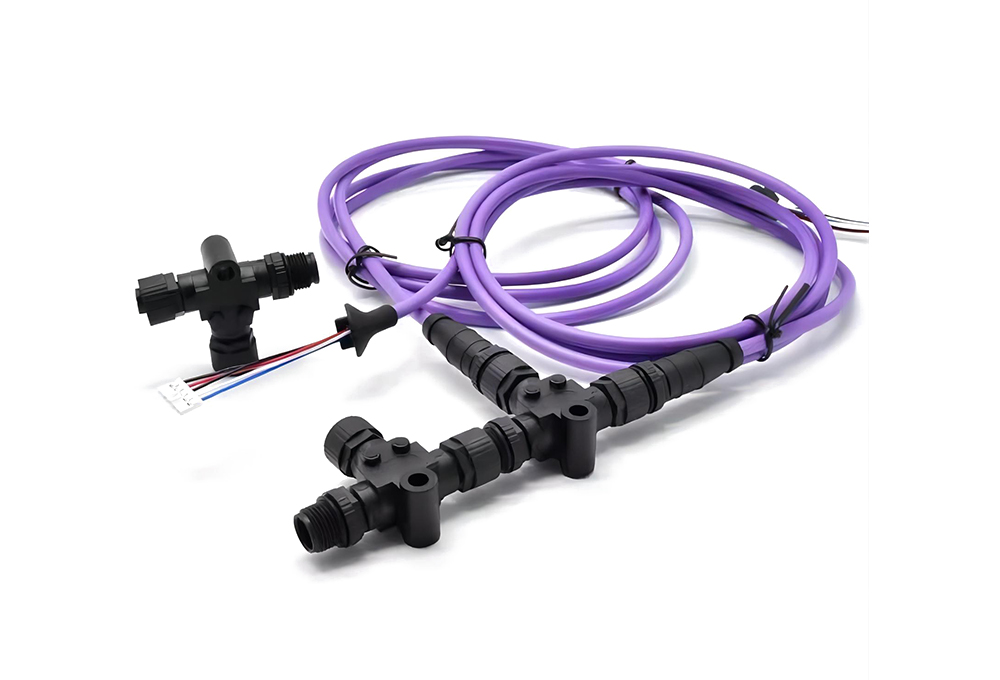

NMEA 2000 Micro Drop Cables

For connection between an NMEA 2000 device and tee connector.

The drop cables are smaller in diameter and more flexible than backbone cables for easy connection to NMEA 2000 devices.

  • IP67 Waterproof
  • Wire length 0.5~5 meters, can be customized.
  • Single and Multiport Connector available
  • Metal and plastic connectors available

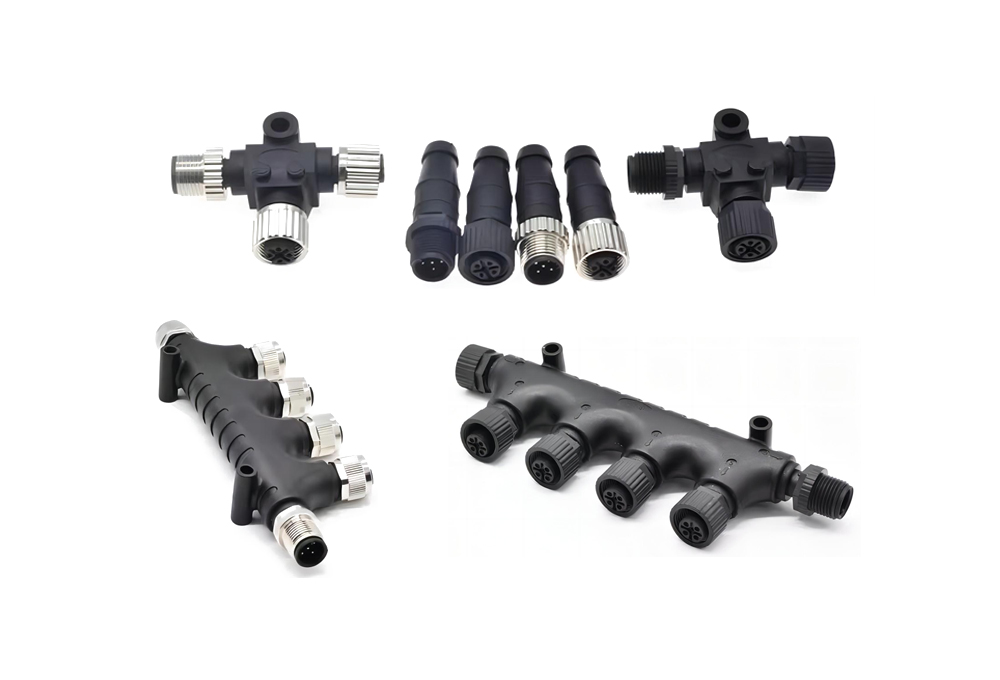

NMEA 2000 Micro Connectors-1

NMEA 2000 Micro Connectors

For connecting NMEA 2000 reserved and backbone cables, proper termination of NMEA 2000 networks of NMEA bare cables.

We manufacture NMEA 2000 Tee Connectors and Field Serviceable Connectors.

  • IP67 Waterproof
  • Single to six way tee available
  • Metal and plastic connectors available


NMEA 2000 Terminators

Electronic devices for NMEA 2000 networks that ensure proper signal communication and prevent signal reflection. They are installed at the end of the network to terminate signals and prevent signal bounce.

We manufacture Male Terminator and Female Terminator.

  • IP67 Waterproof
  • Rated Current：4A
  • Rated Voltage：25V

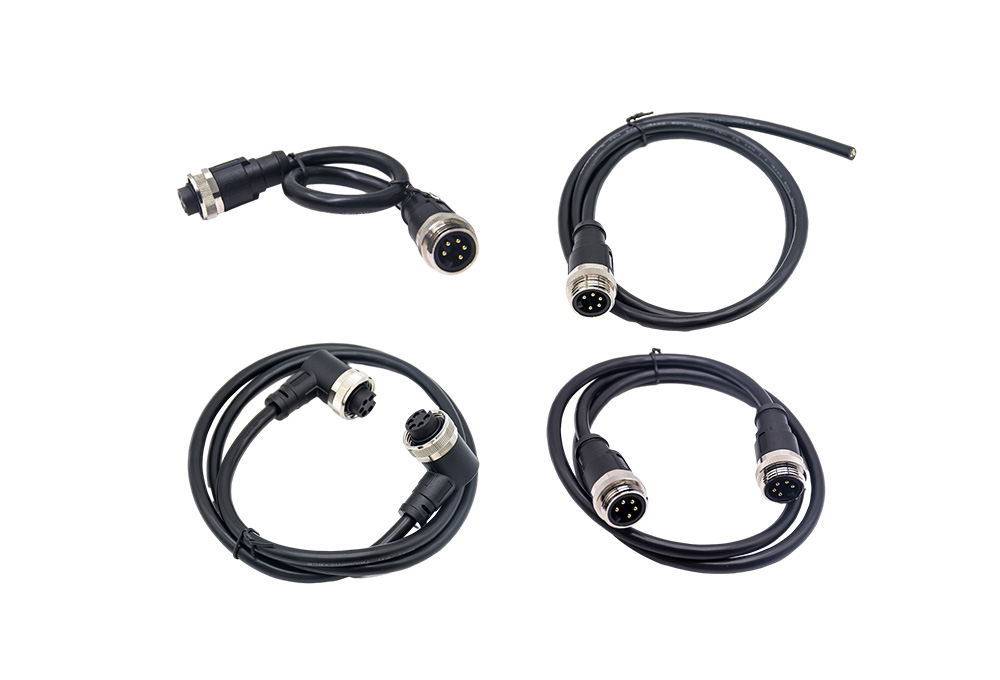

NMEA 2000 Mini Backbone-Drop Cable-1

NMEA 2000 Mini Backbone/Drop Cables

For connection to an NMEA 2000 tee connector, or between an NMEA 2000 device and tee connector.

  • Wire length customized.
  • Metal and plastic connectors available

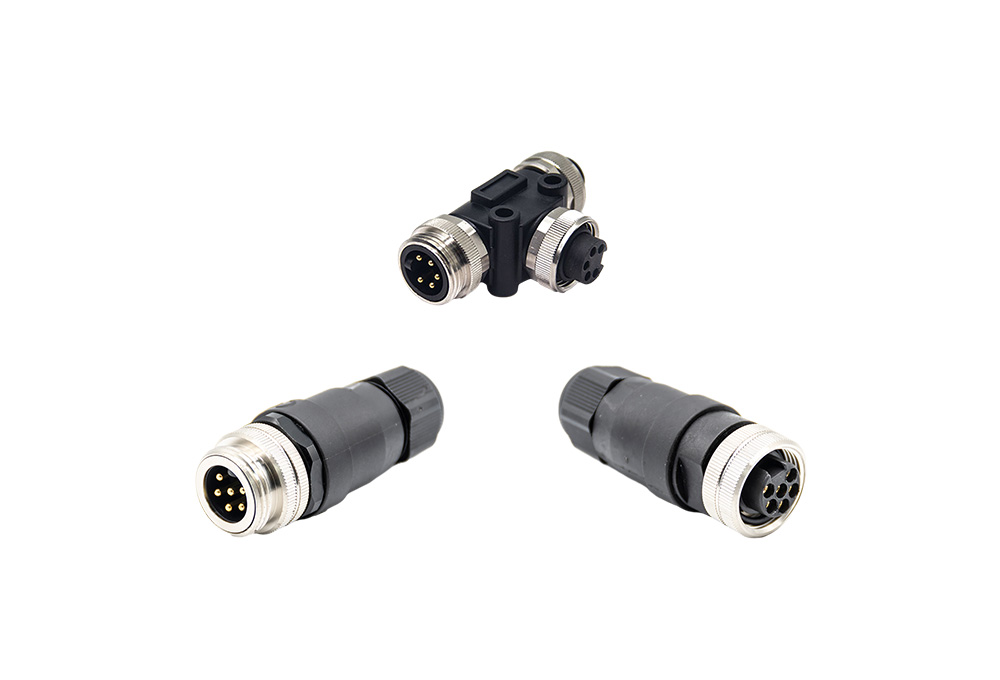

NMEA 2000 Mini Accessories-1

NMEA 2000 Mini Connectors

For connecting NMEA 2000 reserved and backbone cables, proper termination of NMEA 2000 networks, and termination of NMEA bare cables.

We manufacture NMEA 2000 Mini Tee Connectors, Terminators, and Field Serviceable Connectors.
