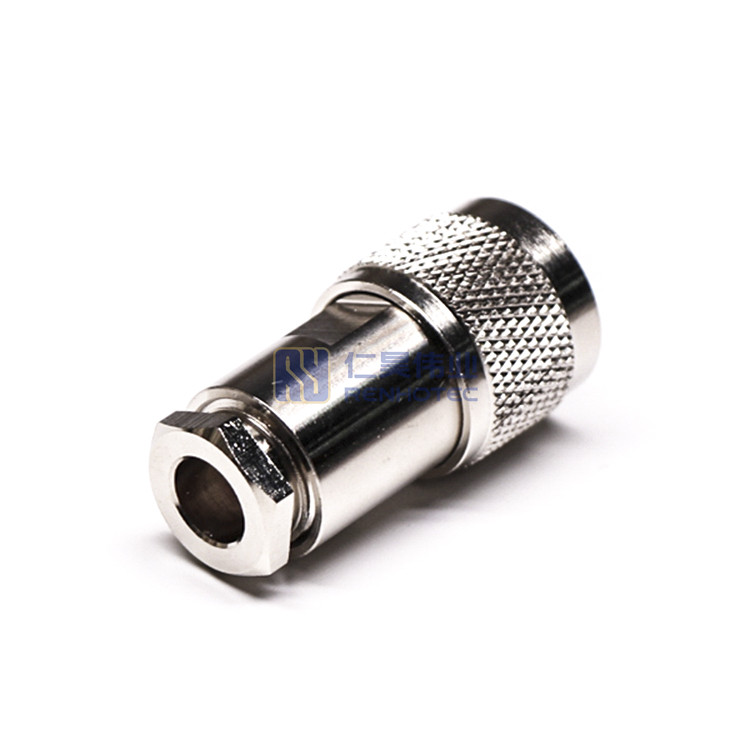

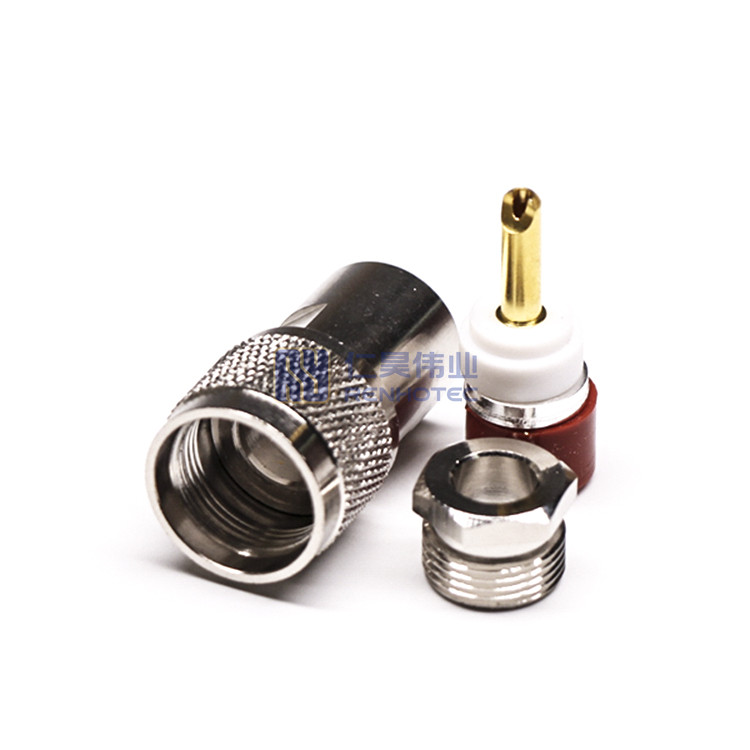

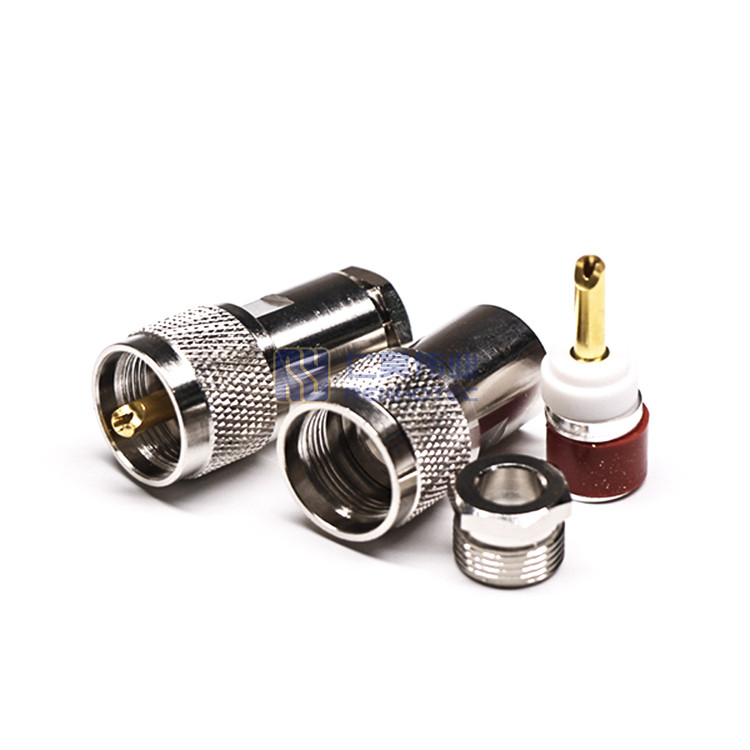

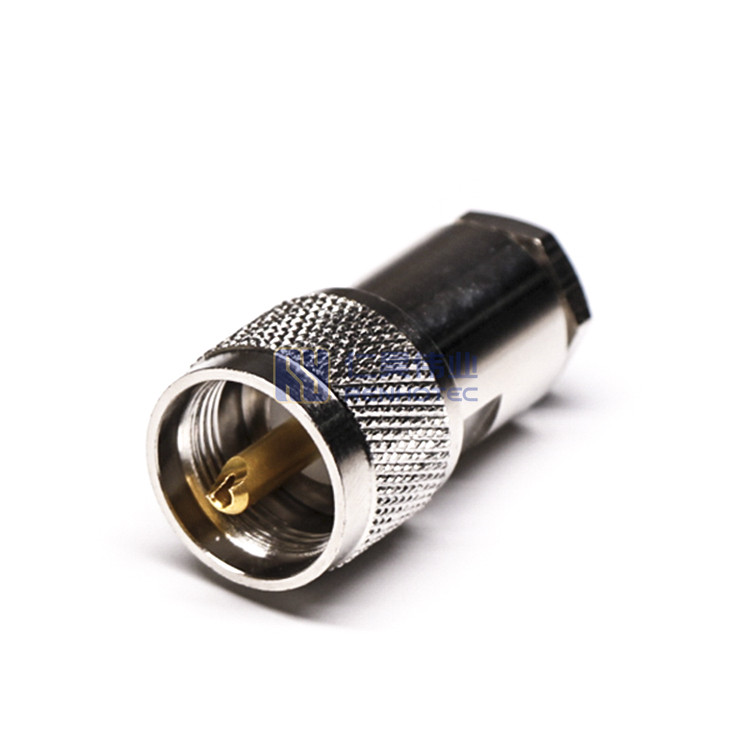

UHF разъем прямой мужской зажим тип кабеля — RHT-630-0111

Разъем UHF разработан во время Второй мировой войны или ранее, а изобретен в 1930-х годах инженером компании Amphenol Эдвардом Кларком Квакенбушем для использования в радиопромышленности. Наиболее популярный кабельный разъем и соответствующее гнездо для монтажа на шасси имеют старые номенклатуры PL-259 (вилка) и SO-239 (гнездо).

Разъем UHF — это название резьбового радиочастотного разъема. Коаксиальные разъемы UHF надежно передают сигналы на частотах до 100 МГц с резьбовым соединением. Широко используются для антенн, военных, систем оповещения, низкочастотных приложений и т. д.

Разъемы UHF оснащены резьбовым соединением. Разъемы UHF экономичны и популярны благодаря простоте монтажа. Завинчивающаяся заделка UHF с пайкой не требует специализированных обжимных инструментов.

Интерфейс

Приложение

Product Specification

RF Series

UHF Type

Connector Type

Plug

Orientation

Straight

Contact Type

Male Pin

Shield Termination

Clamp

Mounting Type

Cable Mount

Fastening Type

Threaded

Number of Ports

1

Продукция не найдена

50 ohm

Frequency - Max

300MHz

Shell Material

Copper Alloy

Shell Finish

Nickel Plated

Insulator Material

Teflon White

Contact Material

Brass

Contact Finish

Gold Plated

Insultation Resistance

5000MΩ Min

Mating Durability

≥ 500 cycles (For Beryllium Copper Contact)

Rated Voltage

500 Volts Peak

Temperature Range

-55℃ ~ +149℃ (Mica-filled phenolic insulators), -55°C ~ +85°C (Copolymer of styrene and polystyrene), -65℃~ +165℃ (TFE insulators)

RF Series

UHF Type

Connector Type

Plug

Orientation

Straight

Contact Type

Male Pin

Shield Termination

Clamp

Mounting Type

Cable Mount

Fastening Type

Threaded

Number of Ports

1

Продукция не найдена

50 ohm

Frequency - Max

300MHz

Shell Material

Copper Alloy

Shell Finish

Nickel Plated

Insulator Material

Teflon White

Contact Material

Brass

Contact Finish

Gold Plated

Insultation Resistance

5000MΩ Min

Mating Durability

≥ 500 cycles (For Beryllium Copper Contact)

Rated Voltage

500 Volts Peak

Temperature Range

-55℃ ~ +149℃ (Mica-filled phenolic insulators), -55°C ~ +85°C (Copolymer of styrene and polystyrene), -65℃~ +165℃ (TFE insulators)

RF Series

UHF Type

Connector Type

Plug

Orientation

Straight

Contact Type

Male Pin

Shield Termination

Clamp

Mounting Type

Cable Mount

Fastening Type

Threaded

Number of Ports

1

Продукция не найдена

50 ohm

Frequency - Max

300MHz

Shell Material

Copper Alloy

Shell Finish

Nickel Plated

Insulator Material

Teflon White

Contact Material

Brass

Contact Finish

Gold Plated

Insultation Resistance

5000MΩ Min

Mating Durability

≥ 500 cycles (For Beryllium Copper Contact)

Rated Voltage

500 Volts Peak

Temperature Range

-55℃ ~ +149℃ (Mica-filled phenolic insulators), -55°C ~ +85°C (Copolymer of styrene and polystyrene), -65℃~ +165℃ (TFE insulators)

Strip the cable: First, you will need to carefully strip away the outer insulation of the coaxial cable, exposing the shielded part of the wire.

Prepare the connector: Screw the back part of the connector onto the stripped cable

Solder the connector: Push the wire through the connector and solder it in place. After the solder cools down, screw the connector’s back and front parts together.

It’s essential to understand that UHF connectors, while versatile and useful, have limitations. Their physical size and impedance mismatch mean they’re unsuitable for high-frequency applications above 300 MHz. For frequencies higher than this, connectors such as BNC or N-type would be a better choice.

UHF Plug (Male): Also referred to as a PL-259, it’s the male version of the UHF connector. It is usually found on the ends of coaxial cables.

UHF Jack (Female): Known as the SO-239, the female connector is typically found on equipment such as radios and antennas.

UHF Adapter: These are used to connect two devices with incompatible connectors, or to change the gender of a connector.
